HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116659

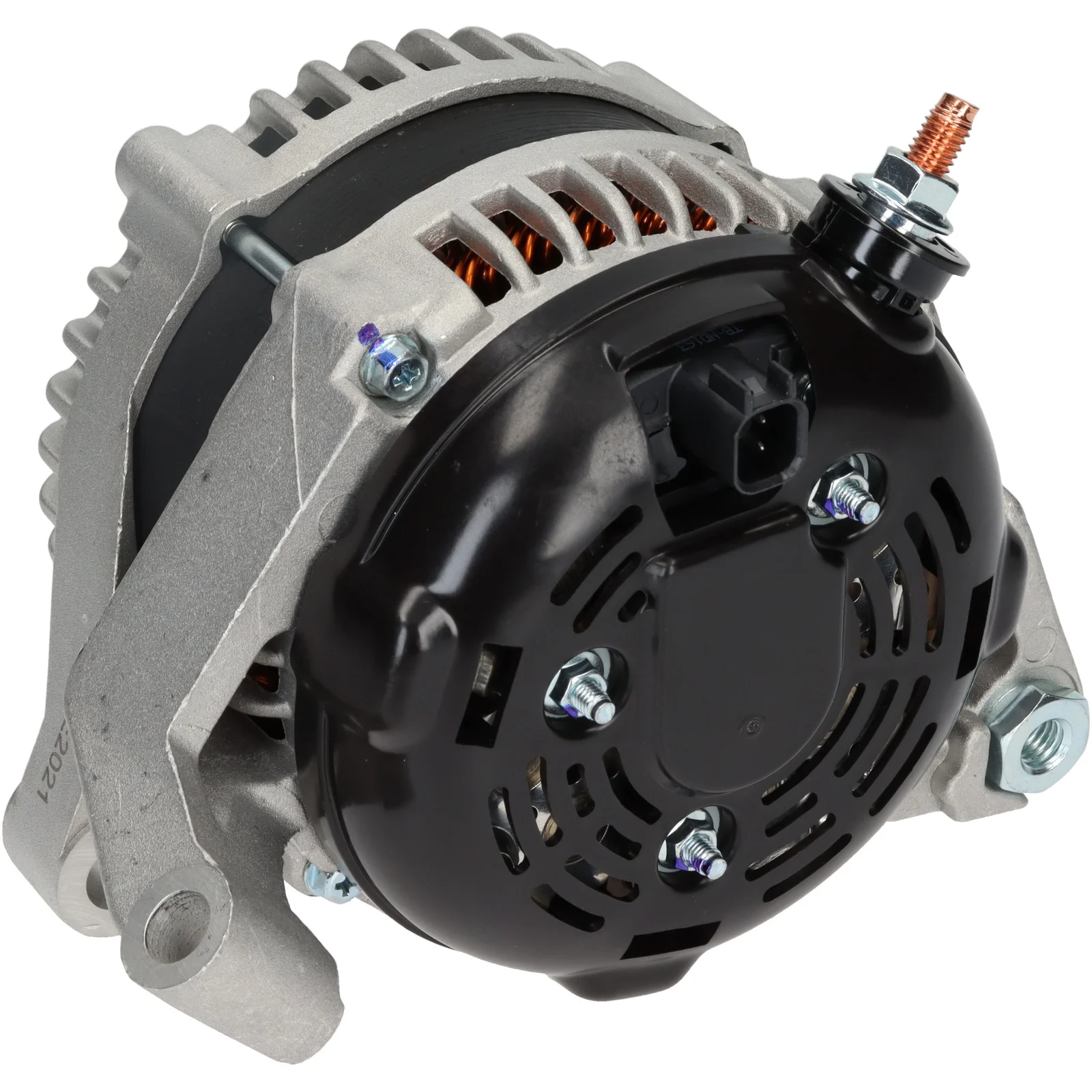

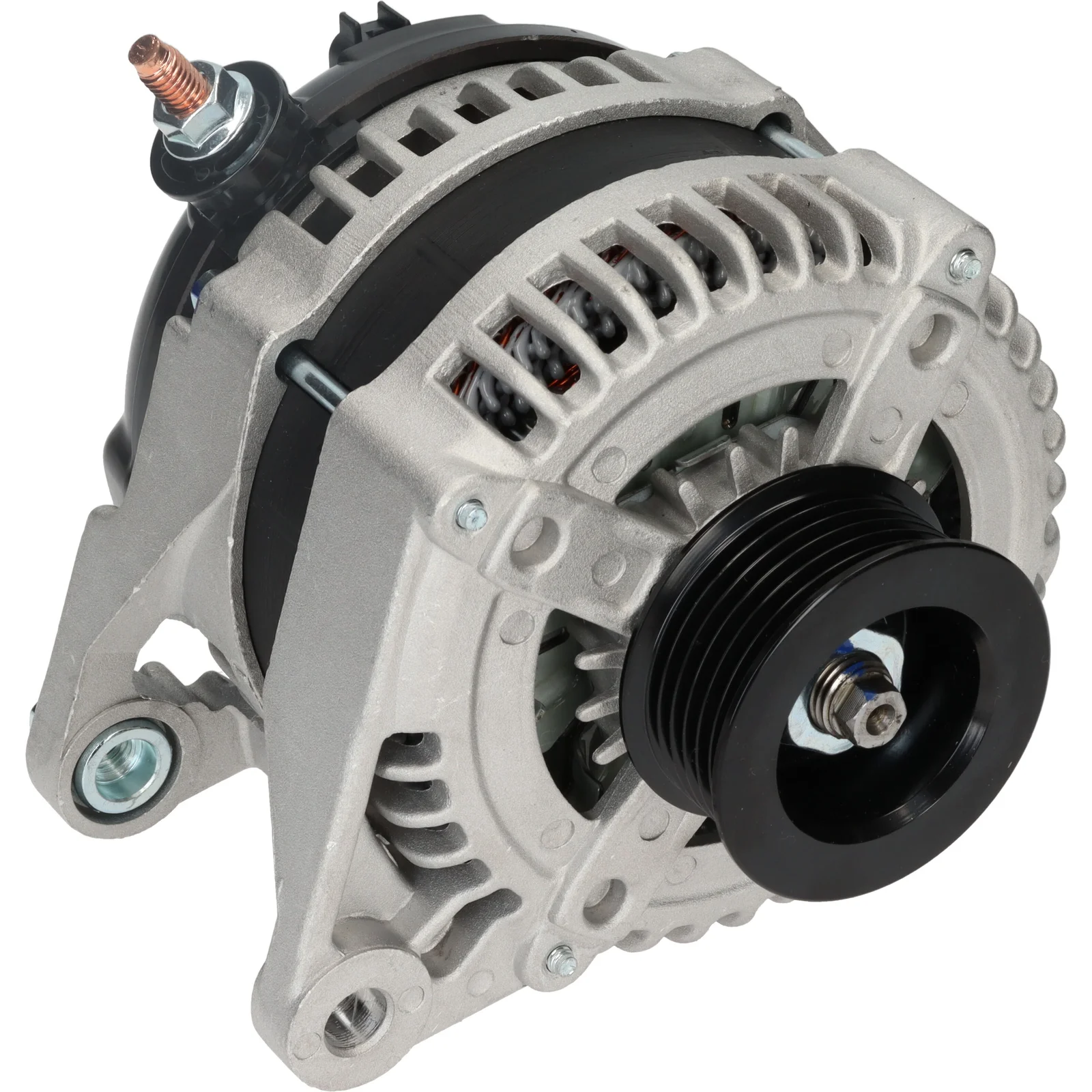

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 160, Festebrakett avstand: 67,40, Reimskive diameter: 57,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 160
Skiveavstand: 26.30
Bredde/festerarm: 12.00
Monteringsbeslag avstand: 67.40
Beslagshull: 11.20
Belt. justering beslagshull pos.: 10
Belt. justering beslagshull 1: 12.80
Skive diameter: 57.00
Groper/skive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 7
D+ Størrelse: Plugg
Plugg nr.: PL177
Total lengde mm: 161.50
Terminaltype: S-FR-IG-L
Skive: SP

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 67.40
Belt. adj. bracket hole 1 12.80
Belt. adj. brackethole pos. 10
Plug no. PL177
Bracket hole 11.20
Position/B+ in min. 7
Pulley SP
Pulley dia. 57.00
Pulley dist. 26.30
Radius 90.00
D+ Size Plug
Radius 2 90.00
Grooves/pulley 6
Terminal type S-FR-IG-L
Voltage 14
Total length 161.50 mm
Width/holder arm 12.00
Amp 160

  • OEM
    F032116659, 421000-0440, 421000-0470, 421000-0500, 421000-0530, 05149275AA, 56029914ad, 56029914AG, 56029914AL

  • Konkurrentreferens
    A6325, A6455S, CAL40535, 27-7677, 534.065.1402, 835.910.160, 835.966.140, 11240N, 554067RI, 12090873

  • NormaliseratArtNr
    a6325, a6455s, cal40535, f032116659, 11240n, 277677, 554067ri, 05149275aa, 12090873, 56029914ad, 56029914ag, 56029914al, 835910160, 835966140, 4210000440, 4210000470, 4210000500, 4210000530, 5340651402

  • Passar modeller
    Chrysler Model: Aspen Model series: Aspen Model type: 4WD Size of motor: 4.7 Brand of engine: EVA Type description: HG Body: SUV From date: 01-09-2006 To date: 01-12-2007 Fuel: Petrol Approved: Yes
    Chrysler Model: Aspen Model series: Aspen Size of motor: 4.7 Brand of engine: EVA Type description: HG Body: SUV From date: 01-09-2006 To date: 01-12-2007 Fuel: Petrol Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: 4WD Size of motor: 4.7 Brand of engine: EVA Type description: HB Body: SUV Fuel: Petrol Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: Flexfuel Size of motor: 4.7 Brand of engine: EVA Type description: HB Body: SUV Fuel: Petrol/Ethanol Approved: Yes
    Dodge Model: Nitro Model series: Nitro Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Body: SUV Fuel: Petrol Approved: Yes
    Dodge Model: Nitro Model series: Nitro Model type: 4WD Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG From date: 01-06-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Dodge Model: Nitro Model series: Nitro Size of motor: 3.7 Brand of engine: EKG Body: SUV Fuel: Petrol Approved: Yes
    Dodge Model: Nitro Model series: Nitro Van Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Type description: KA Body: Box Body / Estate From date: 01-10-2006 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
    Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
    Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Size of motor: 4.7 Brand of engine: EVA Body: Pickup Fuel: Petrol Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG Type description: KJ From date: 01-08-2003 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG Type description: KK From date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Grand Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG Type description: WH From date: 01-01-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Jeep Model: Commander Model series: Commander Model type: 4x4 Type of engine: V8 Size of motor: 4.7 Brand of engine: EVE Type description: XK, XH From date: 01-01-2008 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    Jeep Model: Commander Model series: Commander Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG From date: 01-09-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG From date: 01-10-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V8 Size of motor: 4.7 Brand of engine: EVA From date: 01-06-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V8 Size of motor: 4.7 Brand of engine: EVA Type description: WH From date: 01-09-2007 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V8 Size of motor: 4.7 Brand of engine: EVA Type description: WH, WK From date: 01-10-2004 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V8 Size of motor: 4.7 Brand of engine: EVE Type description: WH From date: 01-09-2007 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spenning: 14
    Ampere: 160
    Skiveavstand: 26.30
    Bredde/festerarm: 12.00
    Monteringsbeslag avstand: 67.40
    Beslagshull: 11.20
    Belt. justering beslagshull pos.: 10
    Belt. justering beslagshull 1: 12.80
    Skive diameter: 57.00
    Groper/skive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 7
    D+ Størrelse: Plugg
    Plugg nr.: PL177
    Total lengde mm: 161.50
    Terminaltype: S-FR-IG-L
    Skive: SP

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 67.40
    Belt. adj. bracket hole 1 12.80
    Belt. adj. brackethole pos. 10
    Plug no. PL177
    Bracket hole 11.20
    Position/B+ in min. 7
    Pulley SP
    Pulley dia. 57.00
    Pulley dist. 26.30
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Grooves/pulley 6
    Terminal type S-FR-IG-L
    Voltage 14
    Total length 161.50 mm
    Width/holder arm 12.00
    Amp 160
  • Kjøretøymatching

    • OEM
      F032116659, 421000-0440, 421000-0470, 421000-0500, 421000-0530, 05149275AA, 56029914ad, 56029914AG, 56029914AL

    • Konkurrentreferens
      A6325, A6455S, CAL40535, 27-7677, 534.065.1402, 835.910.160, 835.966.140, 11240N, 554067RI, 12090873

    • NormaliseratArtNr
      a6325, a6455s, cal40535, f032116659, 11240n, 277677, 554067ri, 05149275aa, 12090873, 56029914ad, 56029914ag, 56029914al, 835910160, 835966140, 4210000440, 4210000470, 4210000500, 4210000530, 5340651402

    • Passar modeller
      Chrysler Model: Aspen Model series: Aspen Model type: 4WD Size of motor: 4.7 Brand of engine: EVA Type description: HG Body: SUV From date: 01-09-2006 To date: 01-12-2007 Fuel: Petrol Approved: Yes
      Chrysler Model: Aspen Model series: Aspen Size of motor: 4.7 Brand of engine: EVA Type description: HG Body: SUV From date: 01-09-2006 To date: 01-12-2007 Fuel: Petrol Approved: Yes
      Dodge Model: Durango Model series: Durango Model type: 4WD Size of motor: 4.7 Brand of engine: EVA Type description: HB Body: SUV Fuel: Petrol Approved: Yes
      Dodge Model: Durango Model series: Durango Model type: Flexfuel Size of motor: 4.7 Brand of engine: EVA Type description: HB Body: SUV Fuel: Petrol/Ethanol Approved: Yes
      Dodge Model: Nitro Model series: Nitro Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Body: SUV Fuel: Petrol Approved: Yes
      Dodge Model: Nitro Model series: Nitro Model type: 4WD Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG From date: 01-06-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Dodge Model: Nitro Model series: Nitro Size of motor: 3.7 Brand of engine: EKG Body: SUV Fuel: Petrol Approved: Yes
      Dodge Model: Nitro Model series: Nitro Van Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Type description: KA Body: Box Body / Estate From date: 01-10-2006 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Model type: 4WD Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
      Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Size of motor: 3.7 Brand of engine: EKG Body: Pickup Fuel: Petrol Approved: Yes
      Dodge Model: Ram 1500 Model series: Ram 1500 Crew Cab Pickup Size of motor: 4.7 Brand of engine: EVA Body: Pickup Fuel: Petrol Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG Type description: KJ From date: 01-08-2003 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG Type description: KK From date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Grand Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG Type description: WH From date: 01-01-2008 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Jeep Model: Commander Model series: Commander Model type: 4x4 Type of engine: V8 Size of motor: 4.7 Brand of engine: EVE Type description: XK, XH From date: 01-01-2008 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      Jeep Model: Commander Model series: Commander Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG From date: 01-09-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 Size of motor: 3.7 Brand of engine: EKG From date: 01-10-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V8 Size of motor: 4.7 Brand of engine: EVA From date: 01-06-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V8 Size of motor: 4.7 Brand of engine: EVA Type description: WH From date: 01-09-2007 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V8 Size of motor: 4.7 Brand of engine: EVA Type description: WH, WK From date: 01-10-2004 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V8 Size of motor: 4.7 Brand of engine: EVE Type description: WH From date: 01-09-2007 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
      1 / 5
