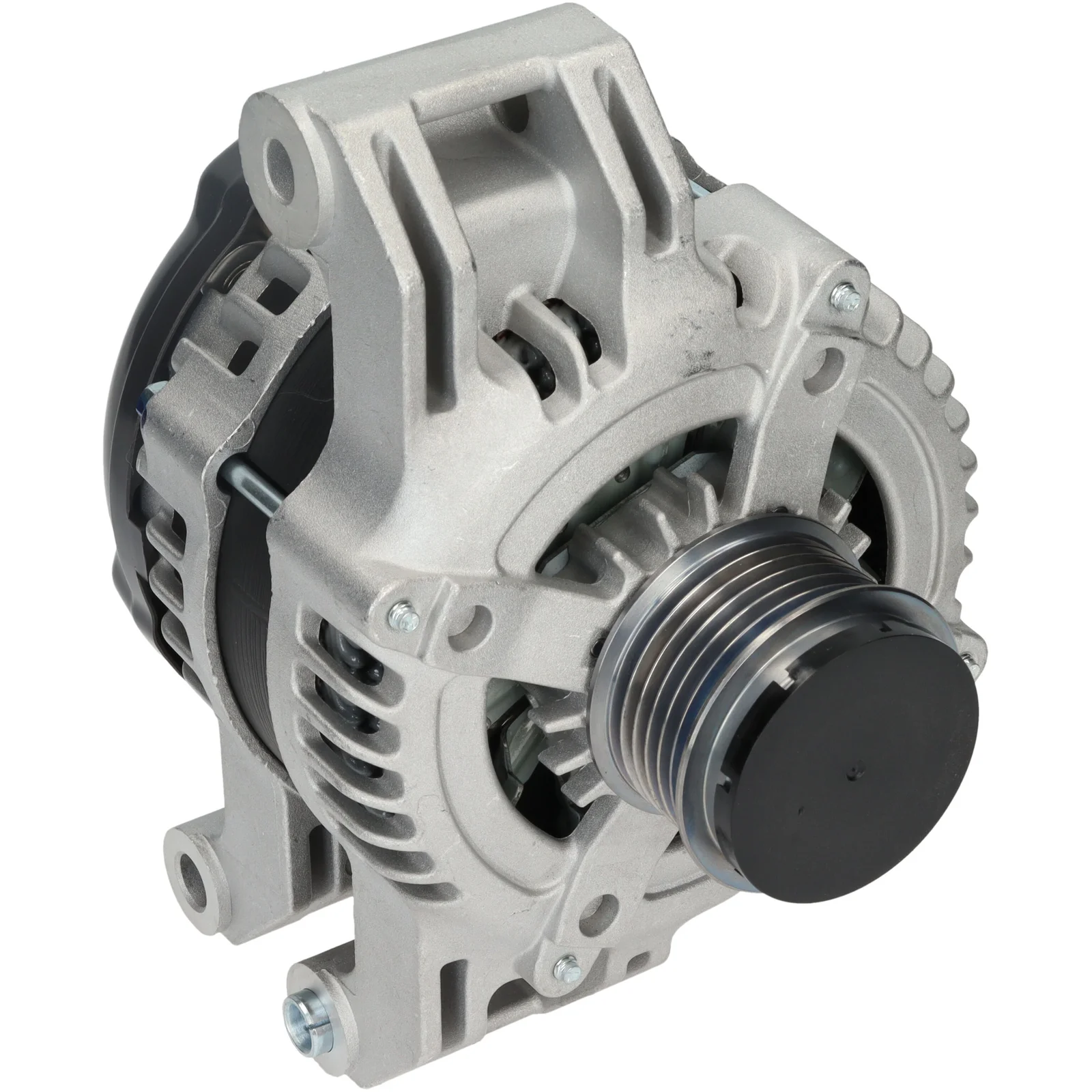

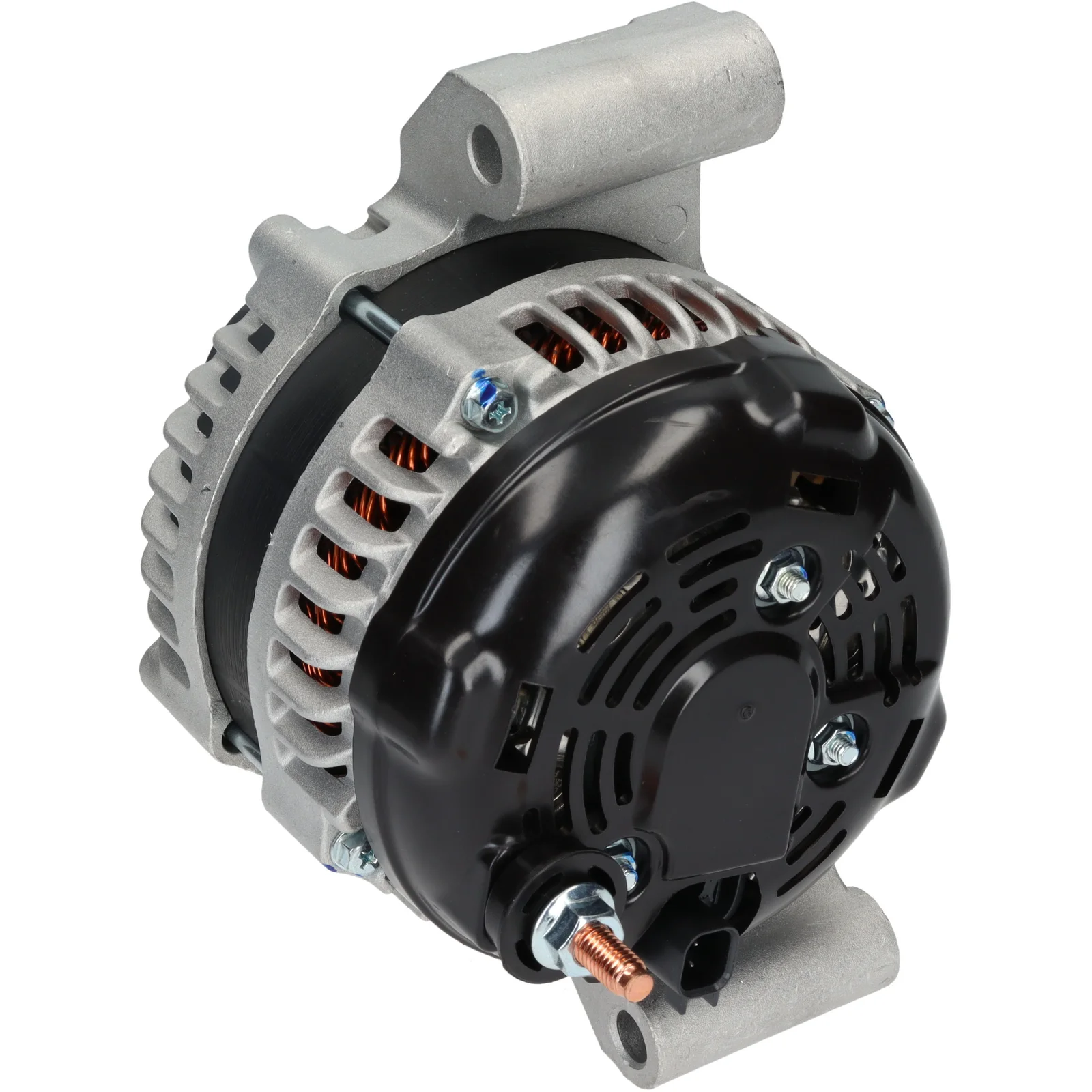

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116662

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 160, Rotasjon: CW, Montering. Bøssing dist.: 49.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 160
Drevskive avstand: 54.00
Bredde/holderarm: 57.50
Festebrakett avstand: 49.00
Brakett holdehull: 8.60
Beltejustering brakett holle: 8.30x9.60
Drevskivens diameter: 52.40
Grooves/drevskive: 6
Radius: 87.50
Radius 2: 87.50
B+: M8
Posisjon/B+ i min.: 40
Rotasjon: medurs
Smykk no.: PL177
Total lengde mm: 193.00
Drevskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 49.00
Belt. adj. bracket hole 1 8.30x9.60
Plug no. PL177
Bracket hole 8.60
Position/B+ in min. 40
Pulley SP/FW
Pulley dia. 52.40
Pulley dist. 54.00
Radius 87.50
Radius 2 87.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 193.00 mm
Width/holder arm 57.50
Amp 160

  • OEM
    F032116662, K04801779AL, 421000-0750, 421000-0752, 4801779AG, 56029624AB

  • Konkurrentreferens
    A5353, A6537S, CAL40511, DRA2186, LRA04198, 27-7807, 534.069.1602, 835.979.160, 11572N, 40434, 554820RI, 12090879

  • NormaliseratArtNr
    a5353, a6537s, cal40511, dra2186, f032116662, k04801779al, lra04198, 11572n, 40434, 277807, 554820ri, 4801779ag, 12090879, 56029624ab, 835979160, 4210000750, 4210000752, 5340691602

  • Passar modeller
    Chrysler Model: 200 Model series: 200 Saloon Size of motor: 2.4 Brand of engine: ED6 Body: Saloon From date: 01-06-2014 Fuel: Petrol Approved: Yes
    Chrysler Model: 300 Model series: 300 Size of motor: 3.6 Brand of engine: ERB From date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Dodge Model: Dart Model series: Dart Size of motor: 2.4 Brand of engine: ED6 From date: 01-04-2012 Fuel: Gasoline Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: AWD Size of motor: 3.6 Brand of engine: ERB Type description: WD Body: SUV Fuel: Petrol Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: FLEX Size of motor: 3.6 Brand of engine: ERB Type description: WD Body: SUV Fuel: Petrol/Ethanol Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: 4x4 Size of motor: 2.4 Brand of engine: ED6 Type description: KL Body: SUV Fuel: Petrol Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.4 Brand of engine: ED6 Type description: KL Body: SUV Fuel: Petrol Approved: Yes
    Jeep Model: Compass Model series: Compass Model type: 4x4 Size of motor: 2.4 Brand of engine: EDD, ED6 Type description: MP, M6, MV, M7 Body: SUV Fuel: Petrol Approved: Yes
    Jeep Model: Compass Model series: Compass Model type: FLEX Size of motor: 2.0 Brand of engine: ECG, ECL Type description: MP, M6, MV, M7 Body: SUV Fuel: Petrol/Ethanol Approved: Yes
    Jeep Model: Compass Model series: Compass Model type: MultiAir 4x4 Size of motor: 2.4 Brand of engine: EDD, ED6 Type description: MP, M6, MV, M7 Body: SUV Fuel: Petrol Approved: Yes
    Jeep Model: Compass Model series: Compass Model type: MultiAir Size of motor: 2.4 Brand of engine: EDD, ED6 Type description: MP, M6, MV, M7 Body: SUV Fuel: Petrol Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: VVT 4x4 Size of motor: 3.6 Brand of engine: ERB Type description: WK, WK2 Body: SUV From date: 01-04-2016 Fuel: Petrol Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: VVT Size of motor: 3.6 Brand of engine: ERB Type description: WK, WK2 Body: SUV From date: 01-10-2010 Fuel: Petrol Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: FlexFuel Size of motor: 3.6 Brand of engine: ERB Type description: WK From date: 01-11-2010 Fuel: Bi-Fuel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 Size of motor: 3.6 Brand of engine: ERB Type description: WL From date: 01-11-2010 Fuel: Gasoline Approved: Yes
    Jeep Model: Renegade Model series: Renegade SUV Model type: 4x4 Size of motor: 2.4 Brand of engine: ED6 Type description: BU, B1, BV Body: SUV From date: 01-06-2016 Fuel: Petrol Approved: Yes
    Jeep Model: Renegade Model series: Renegade SUV Model type: 4x4 Size of motor: 2.4 Brand of engine: ED6 Type description: BU, B1, BV Body: SUV From date: 01-07-2014 Fuel: Petrol Approved: Yes
    1 / 4
  • Beskrivelse
    Spenning: 14
    Ampere: 160
    Drevskive avstand: 54.00
    Bredde/holderarm: 57.50
    Festebrakett avstand: 49.00
    Brakett holdehull: 8.60
    Beltejustering brakett holle: 8.30x9.60
    Drevskivens diameter: 52.40
    Grooves/drevskive: 6
    Radius: 87.50
    Radius 2: 87.50
    B+: M8
    Posisjon/B+ i min.: 40
    Rotasjon: medurs
    Smykk no.: PL177
    Total lengde mm: 193.00
    Drevskive: SP/FW
    Vifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 49.00
    Belt. adj. bracket hole 1 8.30x9.60
    Plug no. PL177
    Bracket hole 8.60
    Position/B+ in min. 40
    Pulley SP/FW
    Pulley dia. 52.40
    Pulley dist. 54.00
    Radius 87.50
    Radius 2 87.50
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 57.50
    Amp 160
  • Kjøretøymatching

    • OEM
      F032116662, K04801779AL, 421000-0750, 421000-0752, 4801779AG, 56029624AB

    • Konkurrentreferens
      A5353, A6537S, CAL40511, DRA2186, LRA04198, 27-7807, 534.069.1602, 835.979.160, 11572N, 40434, 554820RI, 12090879

    • NormaliseratArtNr
      a5353, a6537s, cal40511, dra2186, f032116662, k04801779al, lra04198, 11572n, 40434, 277807, 554820ri, 4801779ag, 12090879, 56029624ab, 835979160, 4210000750, 4210000752, 5340691602

    • Passar modeller
      Chrysler Model: 200 Model series: 200 Saloon Size of motor: 2.4 Brand of engine: ED6 Body: Saloon From date: 01-06-2014 Fuel: Petrol Approved: Yes
      Chrysler Model: 300 Model series: 300 Size of motor: 3.6 Brand of engine: ERB From date: 01-07-2011 Fuel: Gasoline Approved: Yes
      Dodge Model: Dart Model series: Dart Size of motor: 2.4 Brand of engine: ED6 From date: 01-04-2012 Fuel: Gasoline Approved: Yes
      Dodge Model: Durango Model series: Durango Model type: AWD Size of motor: 3.6 Brand of engine: ERB Type description: WD Body: SUV Fuel: Petrol Approved: Yes
      Dodge Model: Durango Model series: Durango Model type: FLEX Size of motor: 3.6 Brand of engine: ERB Type description: WD Body: SUV Fuel: Petrol/Ethanol Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: 4x4 Size of motor: 2.4 Brand of engine: ED6 Type description: KL Body: SUV Fuel: Petrol Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.4 Brand of engine: ED6 Type description: KL Body: SUV Fuel: Petrol Approved: Yes
      Jeep Model: Compass Model series: Compass Model type: 4x4 Size of motor: 2.4 Brand of engine: EDD, ED6 Type description: MP, M6, MV, M7 Body: SUV Fuel: Petrol Approved: Yes
      Jeep Model: Compass Model series: Compass Model type: FLEX Size of motor: 2.0 Brand of engine: ECG, ECL Type description: MP, M6, MV, M7 Body: SUV Fuel: Petrol/Ethanol Approved: Yes
      Jeep Model: Compass Model series: Compass Model type: MultiAir 4x4 Size of motor: 2.4 Brand of engine: EDD, ED6 Type description: MP, M6, MV, M7 Body: SUV Fuel: Petrol Approved: Yes
      Jeep Model: Compass Model series: Compass Model type: MultiAir Size of motor: 2.4 Brand of engine: EDD, ED6 Type description: MP, M6, MV, M7 Body: SUV Fuel: Petrol Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: VVT 4x4 Size of motor: 3.6 Brand of engine: ERB Type description: WK, WK2 Body: SUV From date: 01-04-2016 Fuel: Petrol Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: VVT Size of motor: 3.6 Brand of engine: ERB Type description: WK, WK2 Body: SUV From date: 01-10-2010 Fuel: Petrol Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: FlexFuel Size of motor: 3.6 Brand of engine: ERB Type description: WK From date: 01-11-2010 Fuel: Bi-Fuel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 Size of motor: 3.6 Brand of engine: ERB Type description: WL From date: 01-11-2010 Fuel: Gasoline Approved: Yes
      Jeep Model: Renegade Model series: Renegade SUV Model type: 4x4 Size of motor: 2.4 Brand of engine: ED6 Type description: BU, B1, BV Body: SUV From date: 01-06-2016 Fuel: Petrol Approved: Yes
      Jeep Model: Renegade Model series: Renegade SUV Model type: 4x4 Size of motor: 2.4 Brand of engine: ED6 Type description: BU, B1, BV Body: SUV From date: 01-07-2014 Fuel: Petrol Approved: Yes
