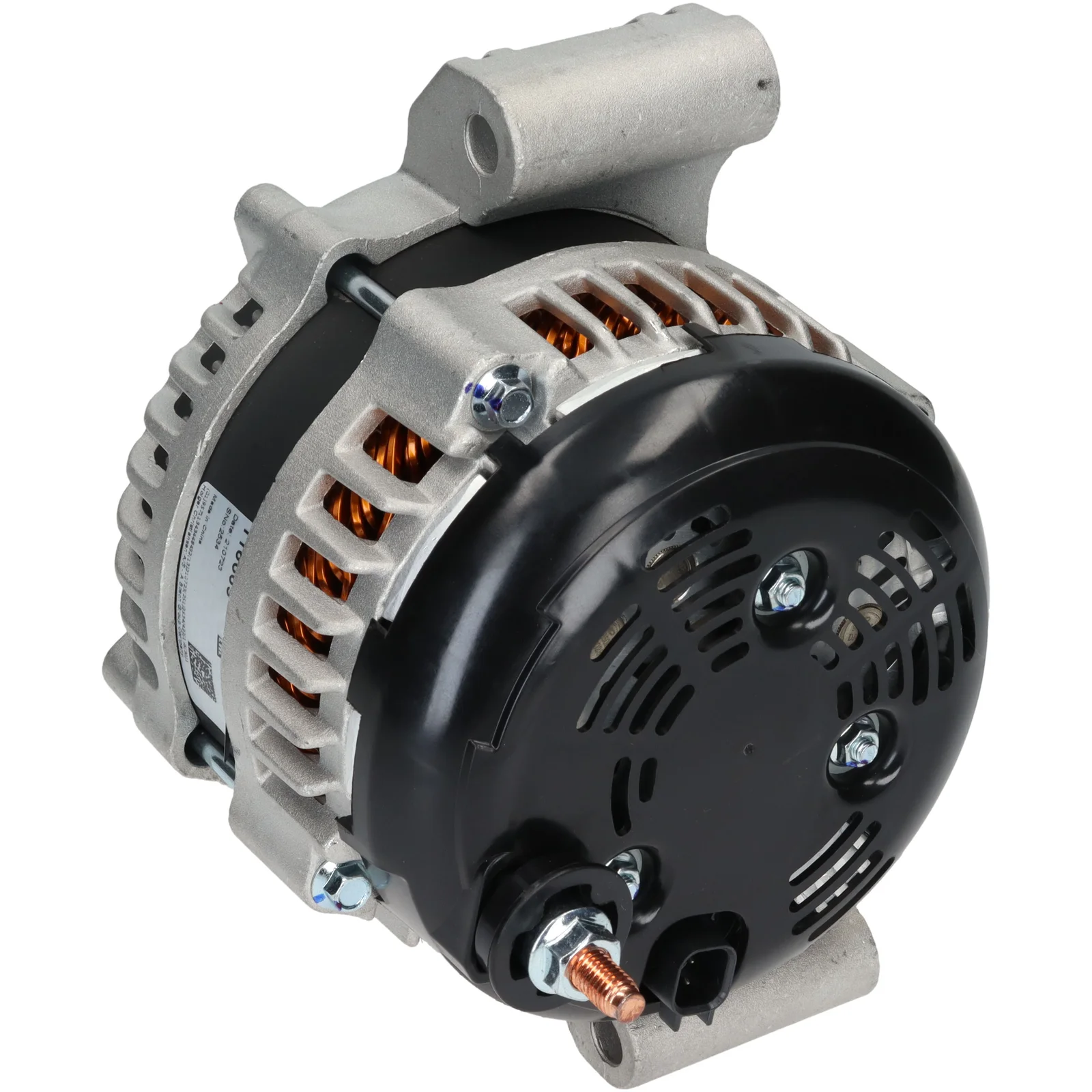

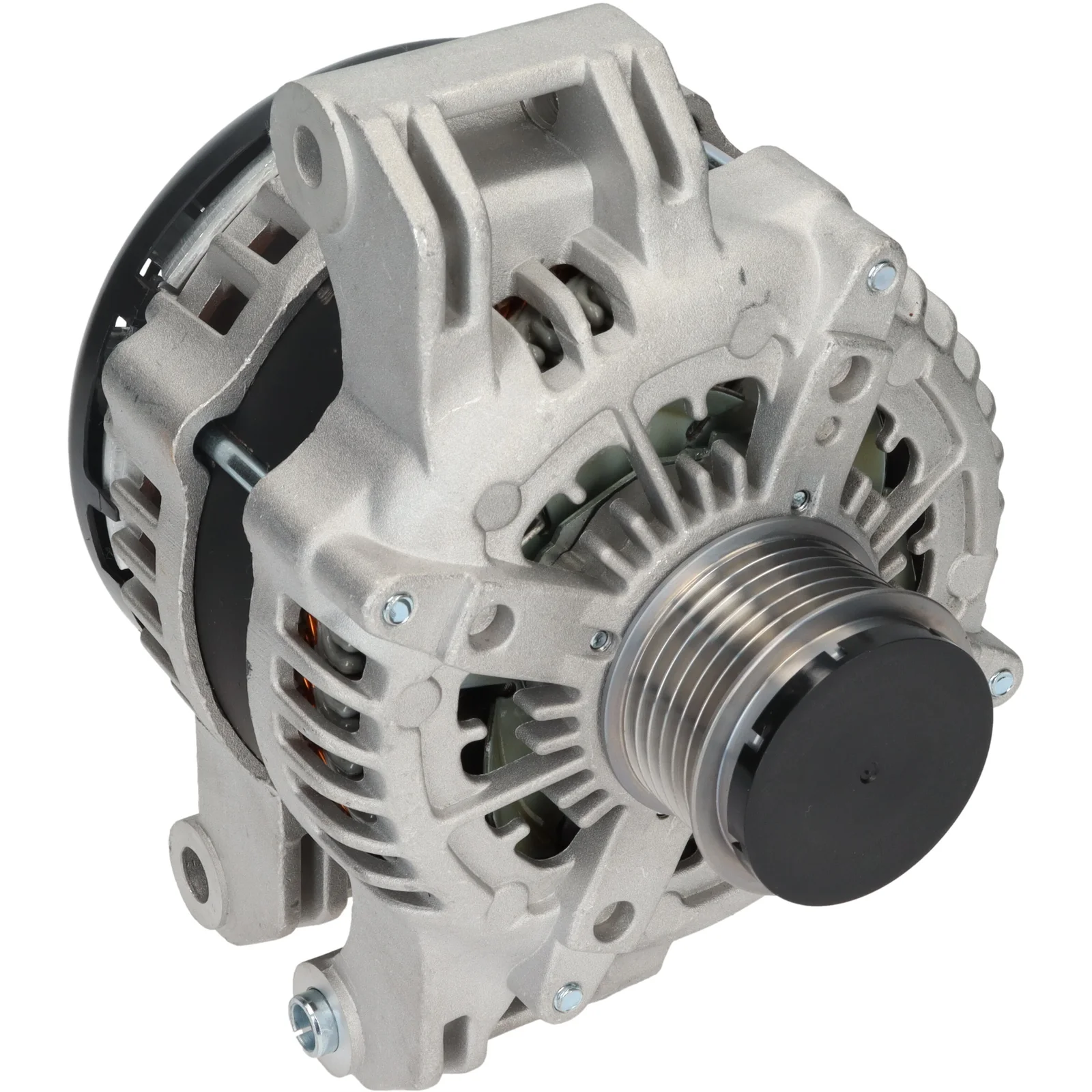

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116669

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand.: 49,50

Beskrivelse

Spenningsspenning: 14
Amp: 180
Drevskive dist.: 54.50
Bredde/holderarm: 60.50
Festebrakett dist.: 49.50
Brakettåpningsåpning: 9.30
Reimhjuljusteringsbrakettåpning 1: 9.70
Drevskive dia.: 52.40
Spor/drevskive: 6
Radius: 88.00
Radius 2: 88.00
B+: M8
Posisjon/B+ i min.: 51
Rotasjon: med klokka
Stikker nr.: PL177
Total lengde mm: 200.00
Drevskive: SP/FW

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 49.50
Belt. adj. bracket hole 1 9.70
Plug no. PL177
Bracket hole 9.30
Position/B+ in min. 51
Pulley SP/FW
Pulley dia. 52.40
Pulley dist. 54.50
Radius 88.00
Radius 2 88.00
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 200.00 mm
Width/holder arm 60.50
Amp 180

  • OEM
    F032116669, P04801778AF, 1986A01878, 421000-7040, 421000-7041, 421000-7042, 421000-7200, 4801778AF

  • Konkurrentreferens
    A6407S, CAL40512, DRA1767, 27-7889, 534.069.1802, 835.933.180, 11598N, 40101, 554819RI, 12091056

  • NormaliseratArtNr
    a6407s, cal40512, dra1767, f032116669, p04801778af, 1986a01878, 11598n, 40101, 277889, 554819ri, 4801778af, 12091056, 835933180, 4210007040, 4210007041, 4210007042, 4210007200, 5340691802

  • Passar modeller
    Chrysler Model: 300C Model series: 300C Model type: AWD Size of motor: 3.6 Brand of engine: ERB Type description: LX Body: Saloon Fuel: Petrol Approved: Yes
    Chrysler Model: 300C Model series: 300C Model type: Flexfuel Size of motor: 3.6 Brand of engine: ERB Type description: LX Body: Saloon From date: 01-09-2010 Fuel: Petrol/Ethanol Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: AWD Size of motor: 3.6 Brand of engine: ERB Type description: WD Body: SUV Fuel: Petrol Approved: Yes
    Dodge Model: Durango Model series: Durango Model type: FLEX Size of motor: 3.6 Brand of engine: ERB Type description: WD Body: SUV Fuel: Petrol/Ethanol Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: VVT 4x4 Size of motor: 3.6 Brand of engine: ERB Type description: WK, WK2 Body: SUV From date: 01-04-2016 Fuel: Petrol Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: VVT Size of motor: 3.6 Brand of engine: ERB Type description: WK, WK2 Body: SUV From date: 01-10-2010 Fuel: Petrol Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: FlexFuel Size of motor: 3.6 Brand of engine: ERB Type description: WK From date: 01-11-2010 Fuel: Bi-Fuel Approved: Yes
    Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 Size of motor: 3.6 Brand of engine: ERB Type description: WL From date: 01-11-2010 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 14
    Amp: 180
    Drevskive dist.: 54.50
    Bredde/holderarm: 60.50
    Festebrakett dist.: 49.50
    Brakettåpningsåpning: 9.30
    Reimhjuljusteringsbrakettåpning 1: 9.70
    Drevskive dia.: 52.40
    Spor/drevskive: 6
    Radius: 88.00
    Radius 2: 88.00
    B+: M8
    Posisjon/B+ i min.: 51
    Rotasjon: med klokka
    Stikker nr.: PL177
    Total lengde mm: 200.00
    Drevskive: SP/FW

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 49.50
    Belt. adj. bracket hole 1 9.70
    Plug no. PL177
    Bracket hole 9.30
    Position/B+ in min. 51
    Pulley SP/FW
    Pulley dia. 52.40
    Pulley dist. 54.50
    Radius 88.00
    Radius 2 88.00
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 200.00 mm
    Width/holder arm 60.50
    Amp 180
  • Kjøretøymatching

    • OEM
      F032116669, P04801778AF, 1986A01878, 421000-7040, 421000-7041, 421000-7042, 421000-7200, 4801778AF

    • Konkurrentreferens
      A6407S, CAL40512, DRA1767, 27-7889, 534.069.1802, 835.933.180, 11598N, 40101, 554819RI, 12091056

    • NormaliseratArtNr
      a6407s, cal40512, dra1767, f032116669, p04801778af, 1986a01878, 11598n, 40101, 277889, 554819ri, 4801778af, 12091056, 835933180, 4210007040, 4210007041, 4210007042, 4210007200, 5340691802

    • Passar modeller
      Chrysler Model: 300C Model series: 300C Model type: AWD Size of motor: 3.6 Brand of engine: ERB Type description: LX Body: Saloon Fuel: Petrol Approved: Yes
      Chrysler Model: 300C Model series: 300C Model type: Flexfuel Size of motor: 3.6 Brand of engine: ERB Type description: LX Body: Saloon From date: 01-09-2010 Fuel: Petrol/Ethanol Approved: Yes
      Dodge Model: Durango Model series: Durango Model type: AWD Size of motor: 3.6 Brand of engine: ERB Type description: WD Body: SUV Fuel: Petrol Approved: Yes
      Dodge Model: Durango Model series: Durango Model type: FLEX Size of motor: 3.6 Brand of engine: ERB Type description: WD Body: SUV Fuel: Petrol/Ethanol Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: VVT 4x4 Size of motor: 3.6 Brand of engine: ERB Type description: WK, WK2 Body: SUV From date: 01-04-2016 Fuel: Petrol Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Model type: VVT Size of motor: 3.6 Brand of engine: ERB Type description: WK, WK2 Body: SUV From date: 01-10-2010 Fuel: Petrol Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: FlexFuel Size of motor: 3.6 Brand of engine: ERB Type description: WK From date: 01-11-2010 Fuel: Bi-Fuel Approved: Yes
      Jeep Model: Grand Cherokee Model series: Grand Cherokee Type of engine: V6 Size of motor: 3.6 Brand of engine: ERB Type description: WL From date: 01-11-2010 Fuel: Gasoline Approved: Yes
