HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116678

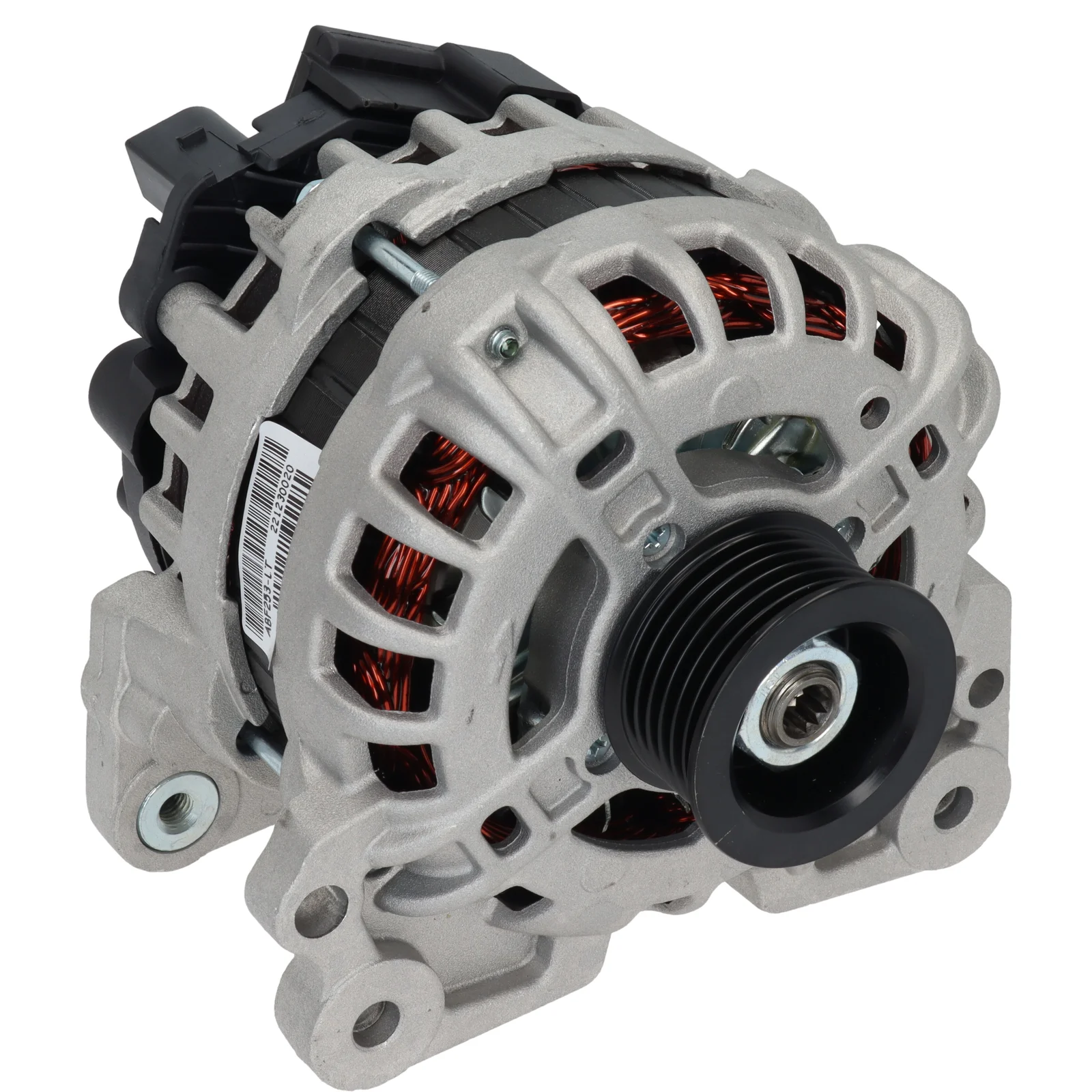

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 90, Rotasjon: CW, Monteringsfeste avstand: 61,00

Beskrivelse

Spenning: 14
Ampere: 90
Drivskivesedelen: 30.00
Bredde/holderarm: 14.00
Montasjebrakket avstand: 61.00
Brakethull: 8.50
Båndjustering brakethullposisjon: 45
Båndjustering brakethull 1: 8.50
Drivskivediameter: 49.20
Riller/drivskive: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 44
Rotasjon: med urviseren
Plugg nr.: PL125
Total lengde mm: 166.00
Terminaltype: COM
Kommunikasjon: LIN
Drivskive: SP
Vifte: IF
Regulator type: IR
Anmerkninger: Denne dynamoen har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 44
Pulley SP
Pulley dia. 49.20
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 166.00 mm
Width/holder arm 14.00
Amp 90

  • OEM
    F000BL04D3, F000BL04D4, F032116678, 04C903023E, 04C903023EX, 1986A01525

  • Konkurrentreferens
    DRA1585, 28-7888, 211.530.902, 445.515.090, 40125, 12090986, 32084750, 0986084750

  • NormaliseratArtNr
    dra1585, f000bl04d3, f000bl04d4, f032116678, 04c903023e, 04c903023ex, 1986a01525, 40125, 287888, 12090986, 32084750, 211530902, 445515090, 0986084750

  • Passar modeller
    Seat Model: Ibiza Model series: Ibiza Model type: Sportcoupe Size of motor: 1.0 Brand of engine: CHYB Type description: 6J1, 6P1 Body: Coupe From date: 01-05-2015 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J5, 6P5 Body: Hatchback From date: 01-05-2015 To date: 01-06-2017 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J8, 6P8 Body: Estate From date: 01-05-2015 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 14
    Ampere: 90
    Drivskivesedelen: 30.00
    Bredde/holderarm: 14.00
    Montasjebrakket avstand: 61.00
    Brakethull: 8.50
    Båndjustering brakethullposisjon: 45
    Båndjustering brakethull 1: 8.50
    Drivskivediameter: 49.20
    Riller/drivskive: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 44
    Rotasjon: med urviseren
    Plugg nr.: PL125
    Total lengde mm: 166.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drivskive: SP
    Vifte: IF
    Regulator type: IR
    Anmerkninger: Denne dynamoen har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 44
    Pulley SP
    Pulley dia. 49.20
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 166.00 mm
    Width/holder arm 14.00
    Amp 90
  • Kjøretøymatching

    • OEM
      F000BL04D3, F000BL04D4, F032116678, 04C903023E, 04C903023EX, 1986A01525

    • Konkurrentreferens
      DRA1585, 28-7888, 211.530.902, 445.515.090, 40125, 12090986, 32084750, 0986084750

    • NormaliseratArtNr
      dra1585, f000bl04d3, f000bl04d4, f032116678, 04c903023e, 04c903023ex, 1986a01525, 40125, 287888, 12090986, 32084750, 211530902, 445515090, 0986084750

    • Passar modeller
      Seat Model: Ibiza Model series: Ibiza Model type: Sportcoupe Size of motor: 1.0 Brand of engine: CHYB Type description: 6J1, 6P1 Body: Coupe From date: 01-05-2015 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J5, 6P5 Body: Hatchback From date: 01-05-2015 To date: 01-06-2017 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J8, 6P8 Body: Estate From date: 01-05-2015 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
      1 / 3
