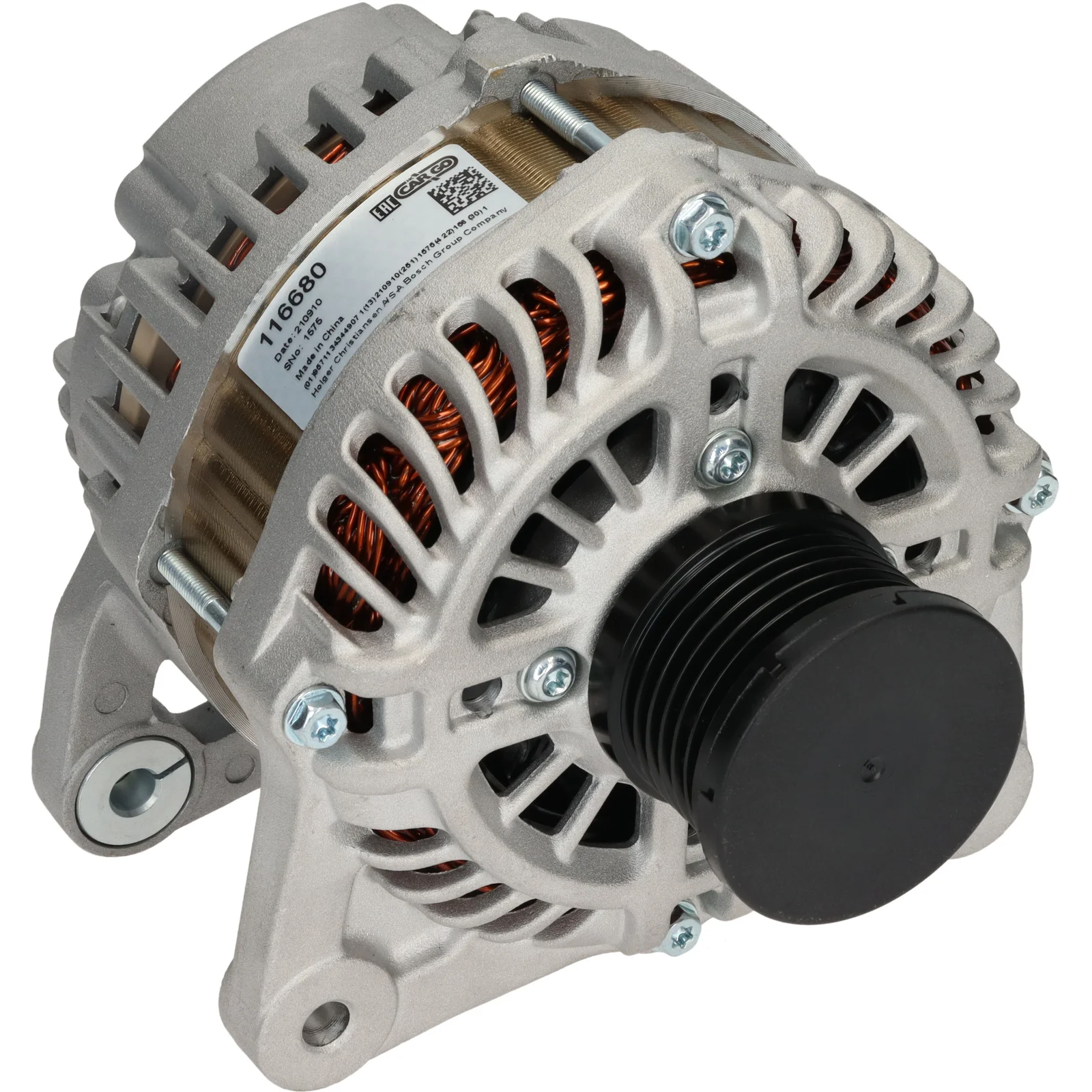

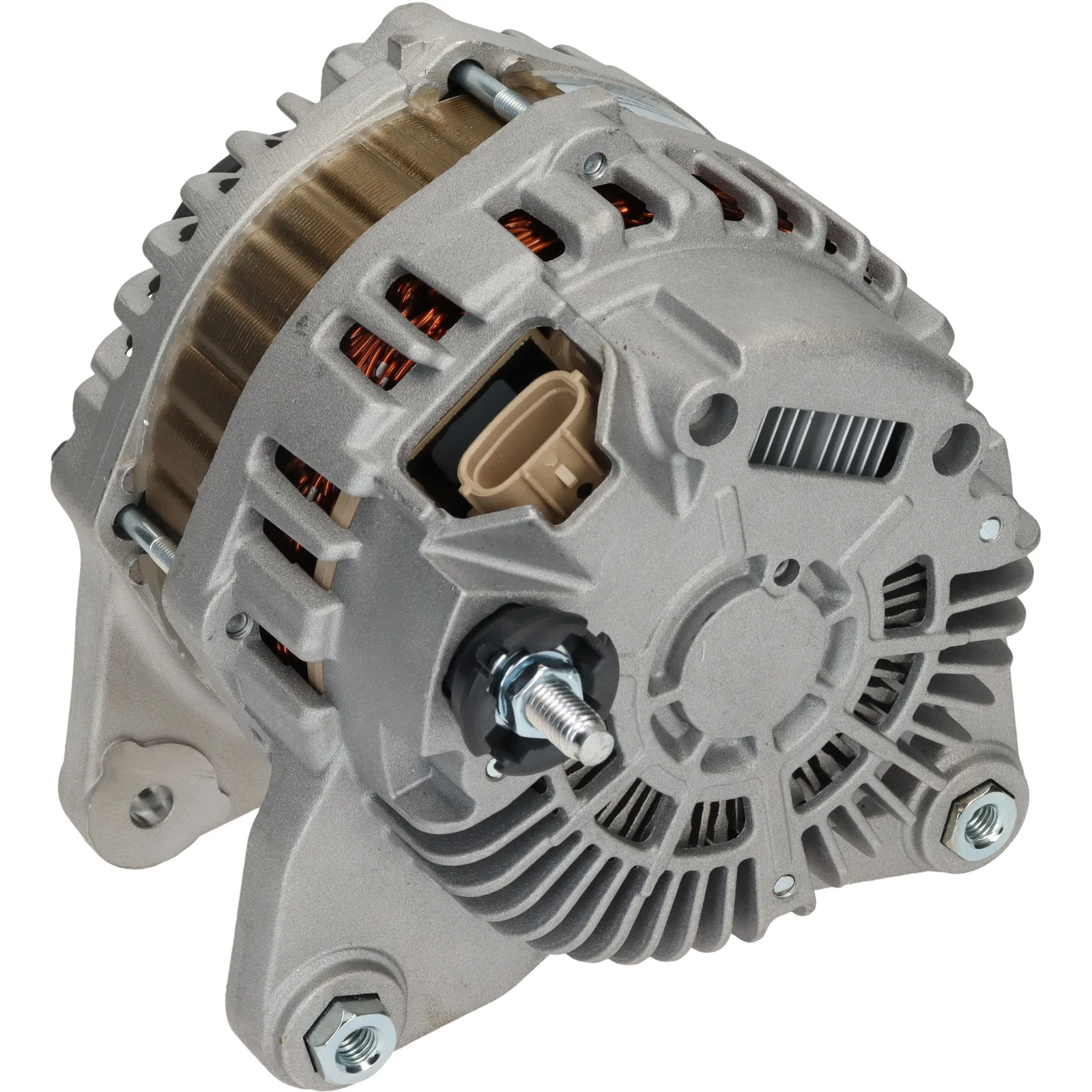

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116680

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 110, Rotasjon: CW, Monteringsbrakett avstand: 58.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 110
Kullengeskivelse: 38.50
Bredde/holderarm: 14.00
Festebrakettavstand: 58.00
Brakettåpningshull: 8.50
Belt. justeringsbrakettposisjon: 45
Belt. justeringsbrakettåpningshull 1: 8.50
Kullengedsdiameter: 50.00
Groper/kullengde: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 41
D+ Størrelse: Plugg
Rotasjon: Kl. 1 (med klokken)
Plugg nr.: PL163
Total lengde mm: 192.00
Lampetype: Inaktiv
Kullengde: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 58.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL163
Bracket hole 8.50
Position/B+ in min. 41
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 38.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Lamp type Inactive
Voltage 14
Total length 192.00 mm
Width/holder arm 14.00
Amp 110

  • OEM
    A002TJ1381, A2TJ1381, A2TJ1381ZE, A2TJ2081, A2TJ2081ZE, F032116680, 23100-1KM1A, 23100-1KM1B, 23100-1KM1M, 23100-BV81C

  • Konkurrentreferens
    A5124, CAL35360, DRA0858, DRA0858N, 28-7513, 165.599.110, 554397RI, 12061026

  • NormaliseratArtNr
    a002tj1381, a2tj1381, a2tj1381ze, a2tj2081, a2tj2081ze, a5124, cal35360, dra0858, dra0858n, f032116680, 23100bv81c, 231001km1a, 231001km1b, 231001km1m, 287513, 554397ri, 12061026, 165599110

  • Passar modeller
    Nissan (Dongfeng) Model: Tiida Model series: Tiida Model type: GTS Size of motor: 1.6 Type description: C12 Body: Hatchback From date: 01-06-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Nissan Model: Juke Model series: Juke Model type: 4x4 Size of motor: 1.6 Brand of engine: MR16DDT Body: Hatchback From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Juke Model series: Juke Model type: 4x4 Type of engine: Diesel Size of motor: 1.6 Brand of engine: MR16DDT Type description: F15 Body: Hatchback From date: 01-02-2013 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Juke Model series: Juke Model type: 4x4 Type of engine: DIG-T Size of motor: 1.6 Brand of engine: MR16DDT Type description: F15 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Juke Model series: Juke Model type: NISMO RS Type of engine: DIG-T Size of motor: 1.6 Brand of engine: MR16DDT Type description: F15 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Juke Model series: Juke Size of motor: 1.6 Brand of engine: MR16DDT Body: Hatchback From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Juke Model series: Juke Size of motor: 1.6 Brand of engine: MR16DDT Type description: F15 Body: Box Body / Estate From date: 01-03-2013 Fuel: Petrol Approved: Yes
    Nissan Model: Juke Model series: Juke Type of engine: DIG-T Size of motor: 1.6 Brand of engine: MR16DDT Body: Hatchback From date: 01-03-2013 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
    Nissan Model: Tiida Model series: Tiida Hatchback Model type: Flexfuel Size of motor: 1.6 Brand of engine: MR16DDT Type description: C12 Body: Hatchback Fuel: Petrol/Ethanol Approved: Yes
    Nissan Model: Tiida Model series: Tiida Hatchback Size of motor: 1.6 Brand of engine: MR16DDT Type description: C12 Body: Hatchback From date: 01-02-2013 Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Ampere: 110
    Kullengeskivelse: 38.50
    Bredde/holderarm: 14.00
    Festebrakettavstand: 58.00
    Brakettåpningshull: 8.50
    Belt. justeringsbrakettposisjon: 45
    Belt. justeringsbrakettåpningshull 1: 8.50
    Kullengedsdiameter: 50.00
    Groper/kullengde: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 41
    D+ Størrelse: Plugg
    Rotasjon: Kl. 1 (med klokken)
    Plugg nr.: PL163
    Total lengde mm: 192.00
    Lampetype: Inaktiv
    Kullengde: SP/FW
    Vifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 58.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL163
    Bracket hole 8.50
    Position/B+ in min. 41
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 38.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Lamp type Inactive
    Voltage 14
    Total length 192.00 mm
    Width/holder arm 14.00
    Amp 110
  • Kjøretøymatching

    • OEM
      A002TJ1381, A2TJ1381, A2TJ1381ZE, A2TJ2081, A2TJ2081ZE, F032116680, 23100-1KM1A, 23100-1KM1B, 23100-1KM1M, 23100-BV81C

    • Konkurrentreferens
      A5124, CAL35360, DRA0858, DRA0858N, 28-7513, 165.599.110, 554397RI, 12061026

    • NormaliseratArtNr
      a002tj1381, a2tj1381, a2tj1381ze, a2tj2081, a2tj2081ze, a5124, cal35360, dra0858, dra0858n, f032116680, 23100bv81c, 231001km1a, 231001km1b, 231001km1m, 287513, 554397ri, 12061026, 165599110

    • Passar modeller
      Nissan (Dongfeng) Model: Tiida Model series: Tiida Model type: GTS Size of motor: 1.6 Type description: C12 Body: Hatchback From date: 01-06-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Nissan Model: Juke Model series: Juke Model type: 4x4 Size of motor: 1.6 Brand of engine: MR16DDT Body: Hatchback From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Juke Model series: Juke Model type: 4x4 Type of engine: Diesel Size of motor: 1.6 Brand of engine: MR16DDT Type description: F15 Body: Hatchback From date: 01-02-2013 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Juke Model series: Juke Model type: 4x4 Type of engine: DIG-T Size of motor: 1.6 Brand of engine: MR16DDT Type description: F15 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Juke Model series: Juke Model type: NISMO RS Type of engine: DIG-T Size of motor: 1.6 Brand of engine: MR16DDT Type description: F15 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Juke Model series: Juke Size of motor: 1.6 Brand of engine: MR16DDT Body: Hatchback From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Nissan Model: Juke Model series: Juke Size of motor: 1.6 Brand of engine: MR16DDT Type description: F15 Body: Box Body / Estate From date: 01-03-2013 Fuel: Petrol Approved: Yes
      Nissan Model: Juke Model series: Juke Type of engine: DIG-T Size of motor: 1.6 Brand of engine: MR16DDT Body: Hatchback From date: 01-03-2013 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
      Nissan Model: Tiida Model series: Tiida Hatchback Model type: Flexfuel Size of motor: 1.6 Brand of engine: MR16DDT Type description: C12 Body: Hatchback Fuel: Petrol/Ethanol Approved: Yes
      Nissan Model: Tiida Model series: Tiida Hatchback Size of motor: 1.6 Brand of engine: MR16DDT Type description: C12 Body: Hatchback From date: 01-02-2013 Fuel: Petrol Approved: Yes
      1 / 2
