HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116697

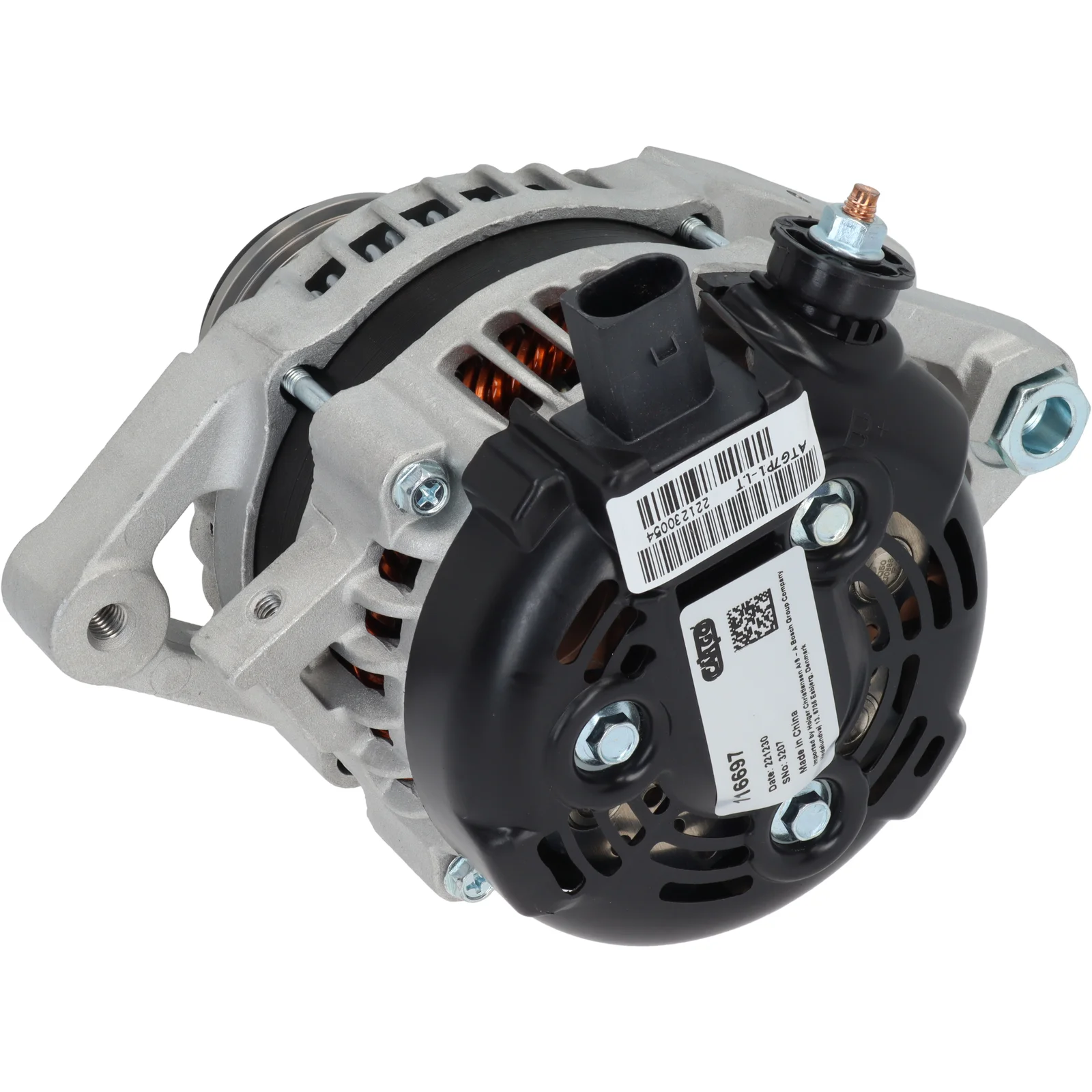

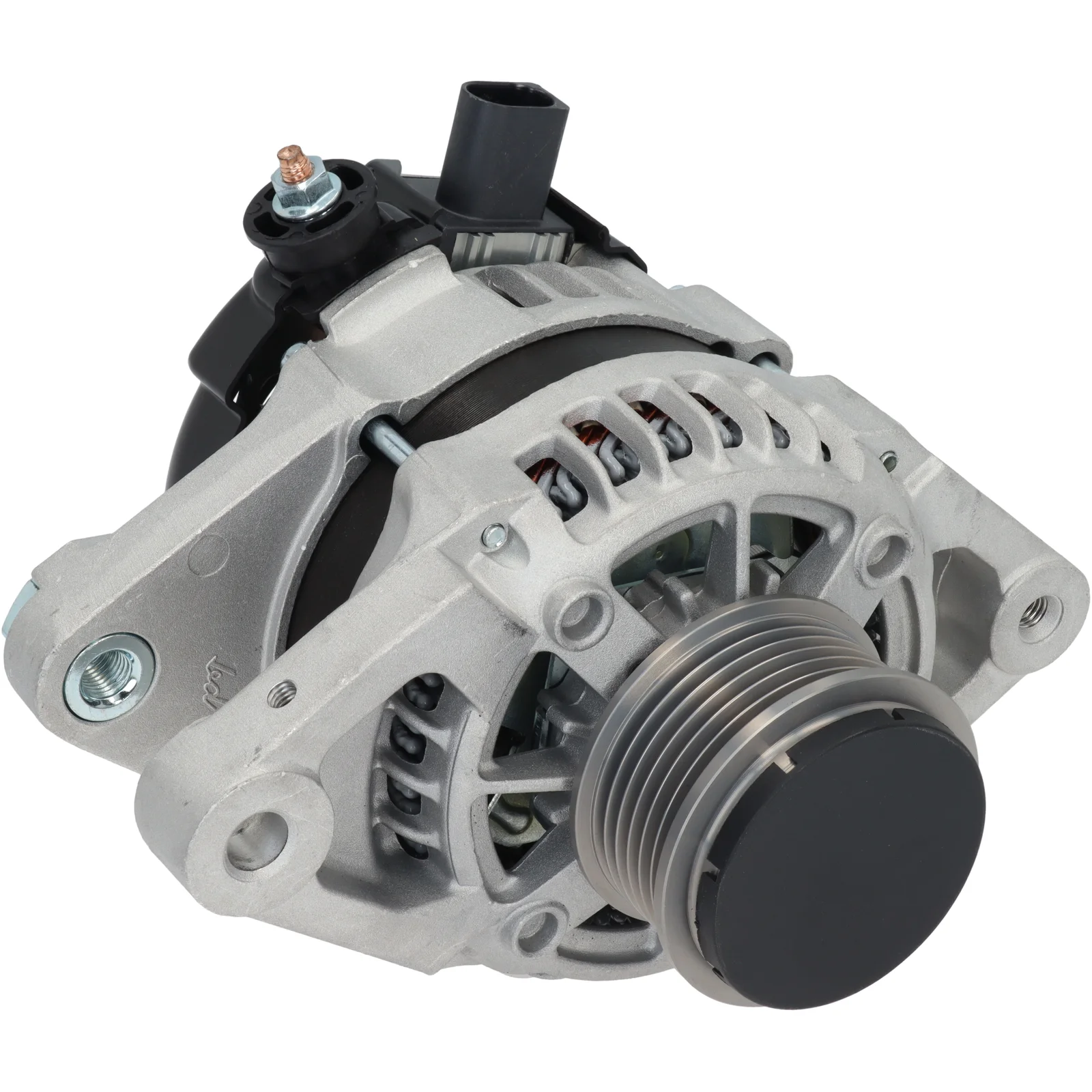

HC-Cargo Dynamo

Teknisk info:

Spennings: 14, Amp: 80, Rotasjon: CW, Monteringsbeslag avstand: 37.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsmål: 14
Ampere: 80
Drivreimavstand: 29.20
Bredde/holderarm: 19.00
Festebrakettavstand: 37.00
Brakettåpning: 11.00
Båndjustering brakkeposisjon: 59
Båndjustering brakkepå grunn: M8
Drivskivens diameter: 60.00
Riller/drivskive: 6
Radius: 89.00
Radius 2: 81.50
B+: M6
Posisjon/B+ i min.: 20
Rotasjon: medur → medurs
Plugg nr.: PL181
Total lengde mm: 162.00
Terminaltype: COM
Kommunikasjon: LIN
Drivskive: SP
Vifte: IF
Regulator type: IR
Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M6
Communication LIN
Mount. bracket dist. 37.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 59
Plug no. PL181
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP
Pulley dia. 60.00
Pulley dist. 29.20
Radius 89.00
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 162.00 mm
Width/holder arm 19.00
Amp 80

  • OEM
    b000912080, F032116697, 1986A01483, 27060-0Q160, 104210-9820, 104210-9821

  • Konkurrentreferens
    A6489S, CAL40547, DAN1307, DRA1457, LRA03969, 28-7579, 225.574.080, 40201, 443295, 444242, 555309, 12090902, 89216318, 0986085250

  • NormaliseratArtNr
    a6489s, b000912080, cal40547, dan1307, dra1457, f032116697, lra03969, 1986a01483, 40201, 270600q160, 287579, 443295, 444242, 555309, 12090902, 89216318, 225574080, 0986085250, 1042109820, 1042109821

  • Passar modeller
    Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Aygo Model series: Aygo X Model type: VVT-i (KGB70) Type of engine: VVT-i Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B7_ Body: Hatchback From date: 01-03-2022 Fuel: Petrol Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P21_, _PA1_, _PH1_ Body: Hatchback From date: 01-02-2020 Fuel: Petrol Approved: Yes
  • Beskrivelse
    Spenningsmål: 14
    Ampere: 80
    Drivreimavstand: 29.20
    Bredde/holderarm: 19.00
    Festebrakettavstand: 37.00
    Brakettåpning: 11.00
    Båndjustering brakkeposisjon: 59
    Båndjustering brakkepå grunn: M8
    Drivskivens diameter: 60.00
    Riller/drivskive: 6
    Radius: 89.00
    Radius 2: 81.50
    B+: M6
    Posisjon/B+ i min.: 20
    Rotasjon: medur → medurs
    Plugg nr.: PL181
    Total lengde mm: 162.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drivskive: SP
    Vifte: IF
    Regulator type: IR
    Merknader: Denne Generator har en COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M6
    Communication LIN
    Mount. bracket dist. 37.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 59
    Plug no. PL181
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 29.20
    Radius 89.00
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 19.00
    Amp 80
  • Kjøretøymatching

    • OEM
      b000912080, F032116697, 1986A01483, 27060-0Q160, 104210-9820, 104210-9821

    • Konkurrentreferens
      A6489S, CAL40547, DAN1307, DRA1457, LRA03969, 28-7579, 225.574.080, 40201, 443295, 444242, 555309, 12090902, 89216318, 0986085250

    • NormaliseratArtNr
      a6489s, b000912080, cal40547, dan1307, dra1457, f032116697, lra03969, 1986a01483, 40201, 270600q160, 287579, 443295, 444242, 555309, 12090902, 89216318, 225574080, 0986085250, 1042109820, 1042109821

    • Passar modeller
      Peugeot Model: 108 Model series: 108 Type of engine: VTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Size of motor: 1.0 Brand of engine: 1KR-FE Type description: PAB4_, KGB4_ Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B4_ Body: Hatchback From date: 01-03-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Aygo Model series: Aygo X Model type: VVT-i (KGB70) Type of engine: VVT-i Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _B7_ Body: Hatchback From date: 01-03-2022 Fuel: Petrol Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P21_, _PA1_, _PH1_ Body: Hatchback From date: 01-02-2020 Fuel: Petrol Approved: Yes
