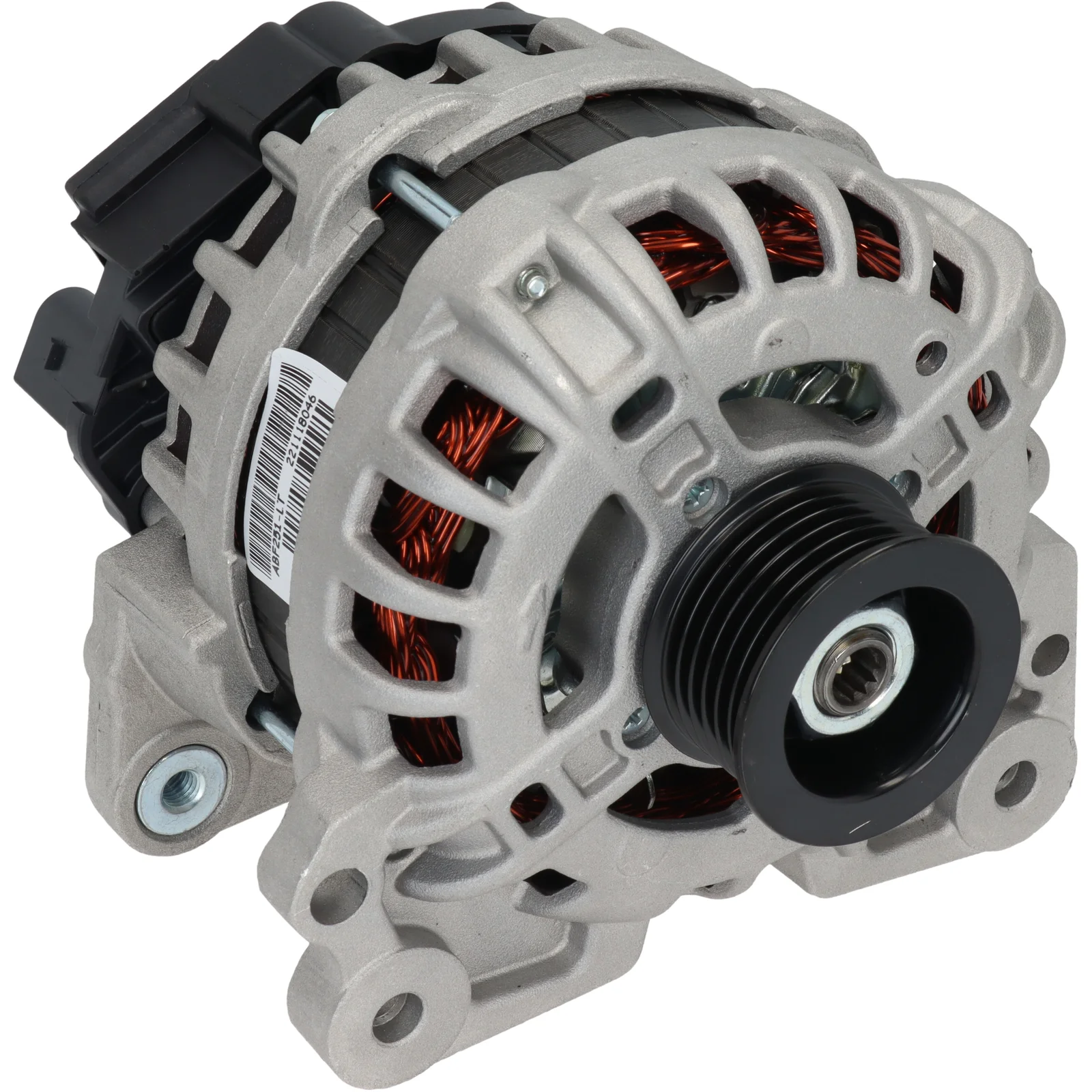

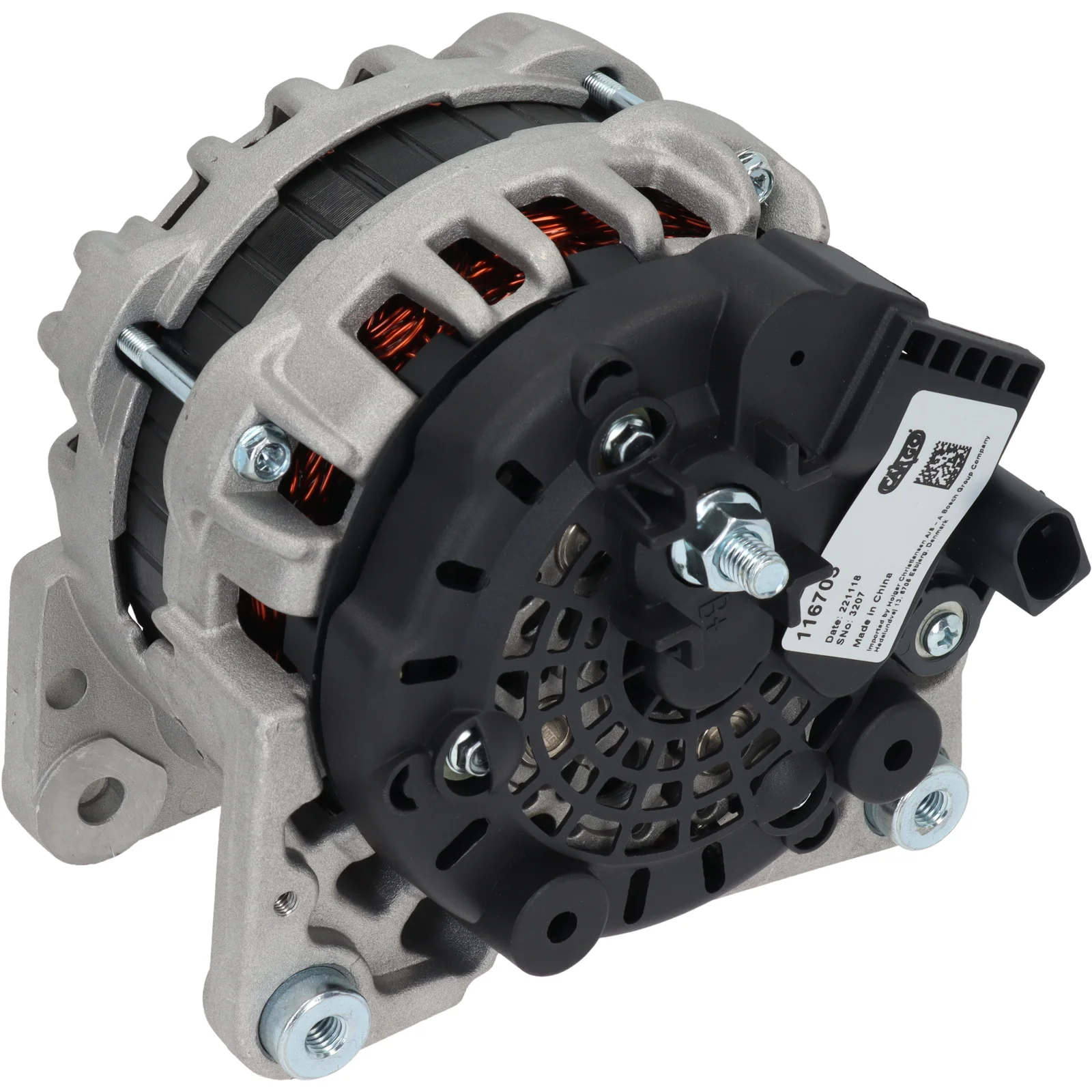

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116705

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Rotasjon: CW, Monteringsbeslag avstand: 60,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsvalg: 14
Amp: 110
Pulley dist.: 30.00
Bredde/bøssing arm: 14.00
Festebrakett avstand: 60.00
Brakettshull: 8.50
Trekkrigjering justering brakkethull pos.: 45
Trekkrigjering justering brakkethull 1: 8.50
Drev diameter: 49.50
Groover/drev: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Rotasjon: med urviseren
Stikkontakt nr.: PL181
Total lengde mm: 166.00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP
Vifte: IF
Regulator type: IR
Merkninger: Denne innslagsrelé har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 8.50
Pulley SP
Pulley dia. 49.50
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 166.00 mm
Width/holder arm 14.00
Amp 110

  • OEM
    F000BL06Z7, F000BL06Z8, F032116705, 04C903023H, 04C903023HX

  • Konkurrentreferens
    A0782S, CAL10027, LRA04051, 28-7660, 445.514.110, 9071, 555023RIB, 12090930, 32084760, 89215954, 0986084760

  • NormaliseratArtNr
    a0782s, cal10027, f000bl06z7, f000bl06z8, f032116705, lra04051, 04c903023h, 04c903023hx, 9071, 287660, 555023rib, 12090930, 32084760, 89215954, 445514110, 0986084760

  • Passar modeller
    Seat Model: Ibiza Model series: Ibiza Model type: Sportcoupe Size of motor: 1.0 Brand of engine: CHYB Type description: 6J1, 6P1 Body: Coupe From date: 01-05-2015 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J5, 6P5 Body: Hatchback From date: 01-05-2015 To date: 01-06-2017 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J8, 6P8 Body: Estate From date: 01-05-2015 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsvalg: 14
    Amp: 110
    Pulley dist.: 30.00
    Bredde/bøssing arm: 14.00
    Festebrakett avstand: 60.00
    Brakettshull: 8.50
    Trekkrigjering justering brakkethull pos.: 45
    Trekkrigjering justering brakkethull 1: 8.50
    Drev diameter: 49.50
    Groover/drev: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Rotasjon: med urviseren
    Stikkontakt nr.: PL181
    Total lengde mm: 166.00
    Terminaltype: COM
    Kommunikasjon: LIN
    Drev: SP
    Vifte: IF
    Regulator type: IR
    Merkninger: Denne innslagsrelé har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL181
    Bracket hole 8.50
    Pulley SP
    Pulley dia. 49.50
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 166.00 mm
    Width/holder arm 14.00
    Amp 110
  • Kjøretøymatching

    • OEM
      F000BL06Z7, F000BL06Z8, F032116705, 04C903023H, 04C903023HX

    • Konkurrentreferens
      A0782S, CAL10027, LRA04051, 28-7660, 445.514.110, 9071, 555023RIB, 12090930, 32084760, 89215954, 0986084760

    • NormaliseratArtNr
      a0782s, cal10027, f000bl06z7, f000bl06z8, f032116705, lra04051, 04c903023h, 04c903023hx, 9071, 287660, 555023rib, 12090930, 32084760, 89215954, 445514110, 0986084760

    • Passar modeller
      Seat Model: Ibiza Model series: Ibiza Model type: Sportcoupe Size of motor: 1.0 Brand of engine: CHYB Type description: 6J1, 6P1 Body: Coupe From date: 01-05-2015 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J5, 6P5 Body: Hatchback From date: 01-05-2015 To date: 01-06-2017 Fuel: Gasoline Approved: Yes
      Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J8, 6P8 Body: Estate From date: 01-05-2015 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: CHYB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYA Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R From date: 01-01-2014 Fuel: Gasoline Approved: Yes
      VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: 6R, 6C Body: Hatchback From date: 01-01-2014 Fuel: Gasoline Approved: Yes
