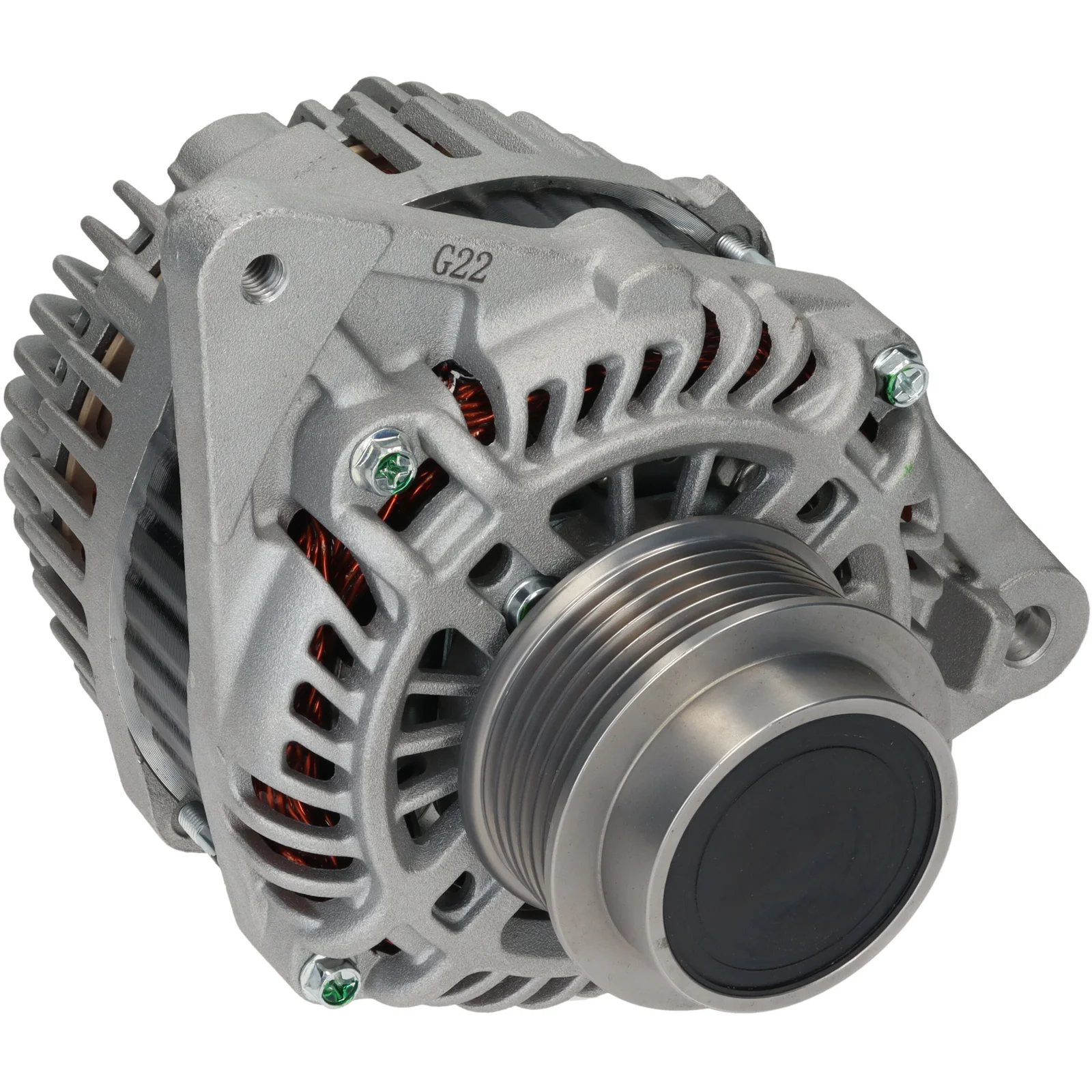

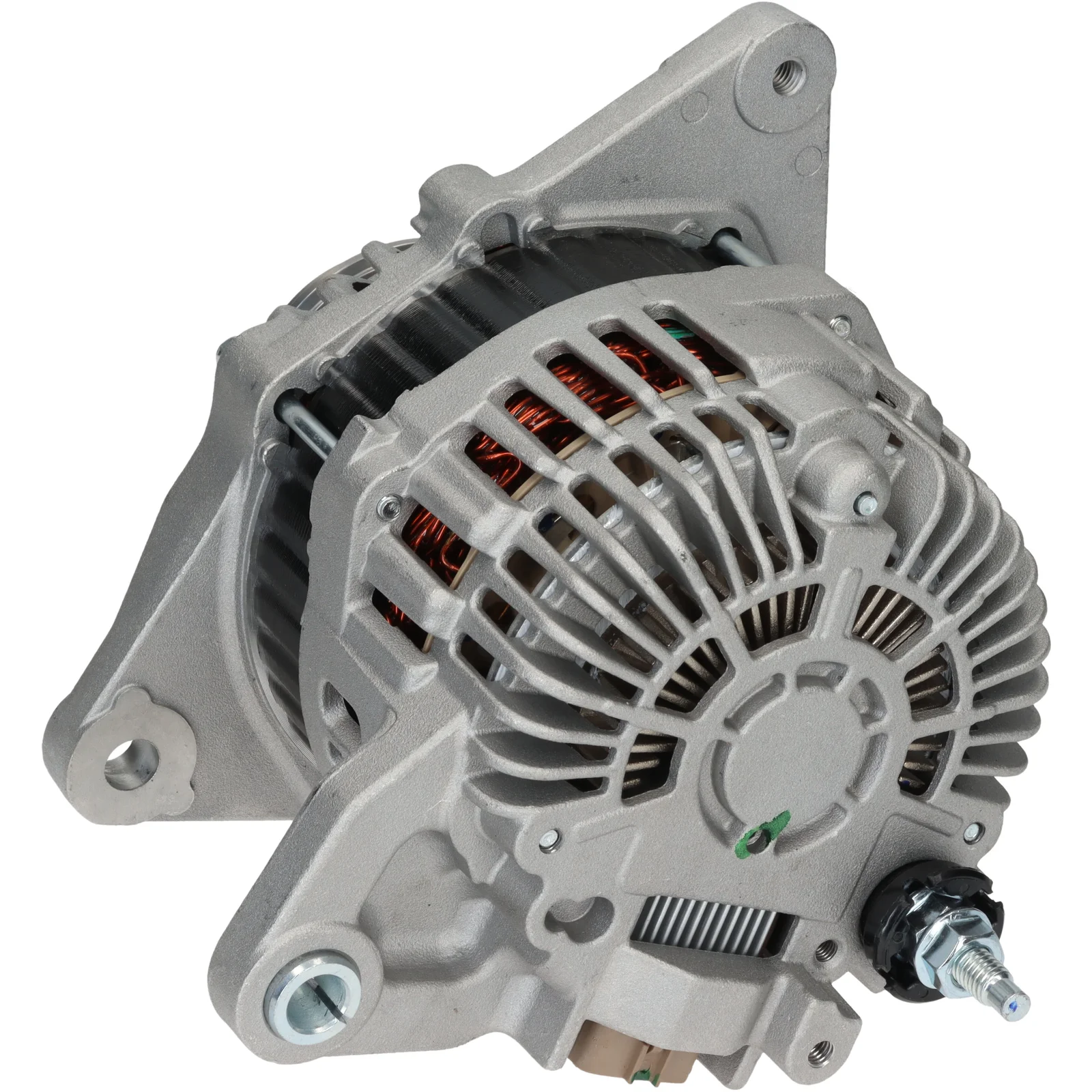

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116707

HC-Cargo Dynamo

Teknisk info:

Strømspenning: 14, Amp: 95, Rotasjon: CW, Monteringsfeste avstand: 65,70

Beskrivelse

Spenningsnivå: 14
Ampere: 95
Drevavstand: 39,00
Bredde/bøssingarm: 13,00
Monteringsbrakettavstand: 65,70
Brakettets hull: 10,50
Båndjusteringsbrakettposisjon: 7
Båndjusteringsbrakett hull 1: M8
Drevskives diameter: 65,20
Grooves/drev: 6
Radius: 90,00
Radius 2: 96,50
B+: M8
Posisjon/B+ i min.: 13
D+: Støpselet
Rotasjon: medur
Støpsel nummer: PL68
Total lengde mm: 201,00
Drev: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 65.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL68
Bracket hole 10.50
Position/B+ in min. 13
Pulley SP/FW
Pulley dia. 65.20
Pulley dist. 39.00
Radius 90.00
D+ Size Plug
Radius 2 96.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 201.00 mm
Width/holder arm 13.00
Amp 95

  • OEM
    A005TL0781, A005TL0781ZT, A5TL0781, A5TL0781ZT, F032116707, 1800A410, 6000605437

  • Konkurrentreferens
    CAL35431, LRA04378, 28-7987, 155.955.095, 40679

  • NormaliseratArtNr
    a005tl0781, a005tl0781zt, a5tl0781, a5tl0781zt, cal35431, f032116707, lra04378, 1800a410, 40679, 287987, 155955095, 6000605437

  • Passar modeller
    Fiat Model: Fullback Model series: Fullback Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4N15 Type description: KT_ Body: Pick Up From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pick Up From date: 01-09-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pick Up From date: 01-09-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: DI-D 4WD Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: DI-D Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Model type: 4WD Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup From date: 01-11-2014 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Platform/Chassis Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 4N15 Type description: MQ Body: Platform/Chassis From date: 01-01-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Platform/Chassis Type of engine: Diesel Size of motor: 2.4 Brand of engine: 4N15 Type description: MQ Body: Platform/Chassis From date: 01-01-2015 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 95
    Drevavstand: 39,00
    Bredde/bøssingarm: 13,00
    Monteringsbrakettavstand: 65,70
    Brakettets hull: 10,50
    Båndjusteringsbrakettposisjon: 7
    Båndjusteringsbrakett hull 1: M8
    Drevskives diameter: 65,20
    Grooves/drev: 6
    Radius: 90,00
    Radius 2: 96,50
    B+: M8
    Posisjon/B+ i min.: 13
    D+: Støpselet
    Rotasjon: medur
    Støpsel nummer: PL68
    Total lengde mm: 201,00
    Drev: SP/FW
    Vifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 65.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL68
    Bracket hole 10.50
    Position/B+ in min. 13
    Pulley SP/FW
    Pulley dia. 65.20
    Pulley dist. 39.00
    Radius 90.00
    D+ Size Plug
    Radius 2 96.50
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 201.00 mm
    Width/holder arm 13.00
    Amp 95
  • Kjøretøymatching

    • OEM
      A005TL0781, A005TL0781ZT, A5TL0781, A5TL0781ZT, F032116707, 1800A410, 6000605437

    • Konkurrentreferens
      CAL35431, LRA04378, 28-7987, 155.955.095, 40679

    • NormaliseratArtNr
      a005tl0781, a005tl0781zt, a5tl0781, a5tl0781zt, cal35431, f032116707, lra04378, 1800a410, 40679, 287987, 155955095, 6000605437

    • Passar modeller
      Fiat Model: Fullback Model series: Fullback Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4N15 Type description: KT_ Body: Pick Up From date: 01-04-2016 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pick Up From date: 01-09-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pick Up From date: 01-09-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: DI-D 4WD Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: DI-D Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Model type: 4WD Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup From date: 01-11-2014 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Platform/Chassis Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 4N15 Type description: MQ Body: Platform/Chassis From date: 01-01-2015 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L200 Model series: L200 Platform/Chassis Type of engine: Diesel Size of motor: 2.4 Brand of engine: 4N15 Type description: MQ Body: Platform/Chassis From date: 01-01-2015 Fuel: Diesel Approved: Yes
