HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116714

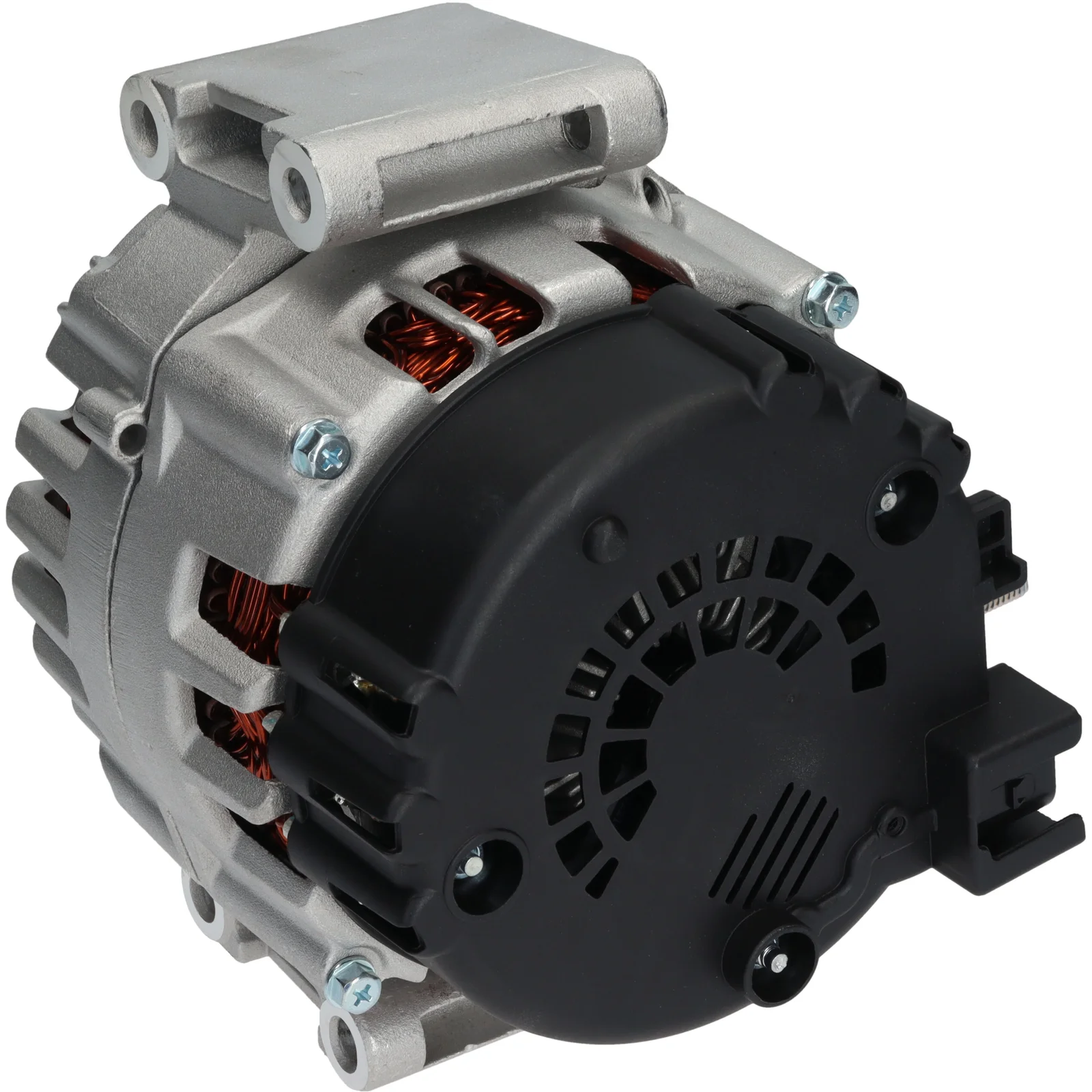

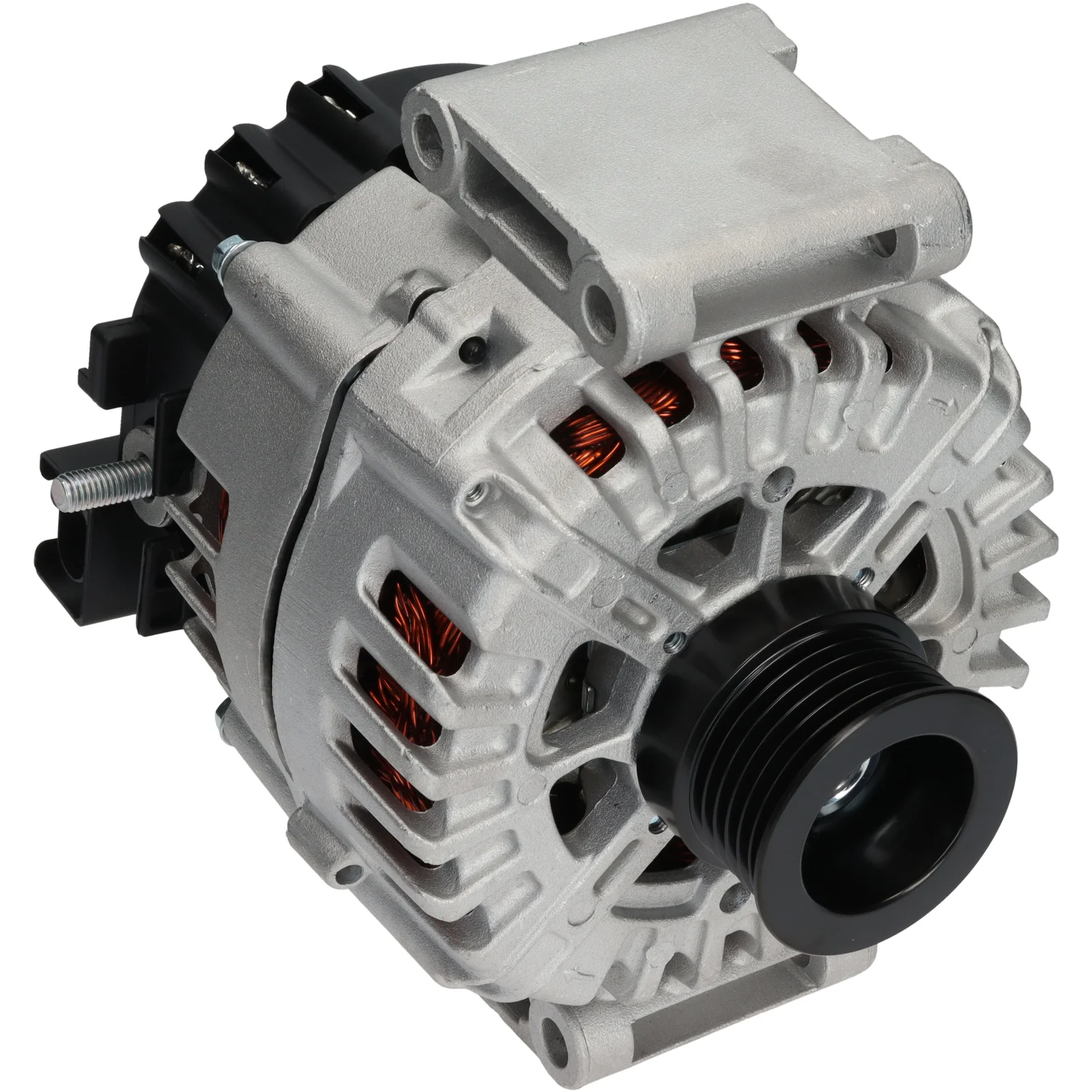

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand: 56,00

Beskrivelse

Spenningsnivå: 14
Amp: 180
Drev avstand: 31,50
Bredde/holderarm: 70,00
Festebrakett avstand: 56,00
Brakettåpning: 9,00
Båndjust. brakettåpning 1: 8,00
Båndjust. brakettåpning 2: 9,00
Drevskive diameter: 50,00
Vaner/rekke: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Posisjon/B+ i min.: 45
Rotasjon: Dvs.
Plugg nr.: PL181
Total lengde mm: 190,00
Terminaltype: COM
ID-kode: 41
Kommunikasjon: LIN
Drevskive: SP
Kjølevifte: IF
Regul. type: IR
Anmerkninger: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 9.00
Plug no. PL181
Bracket hole 9.00
Position/B+ in min. 45
Pulley SP
Pulley dia. 50.00
Pulley dist. 31.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 41
Terminal type COM
Voltage 14
Total length 190.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    A0141544202, F032116714, FG18S046, 2607380A, 0141544202

  • Konkurrentreferens
    A3613S, CAL15423, DRA0765, 28-5939, 555.597.180, 209174, 209174A, 439717, 553448RI, 9090677, 12090631, 32002321

  • NormaliseratArtNr
    a0141544202, a3613s, cal15423, dra0765, f032116714, fg18s046, 209174, 209174a, 285939, 439717, 553448ri, 2607380a, 9090677, 12090631, 32002321, 0141544202, 555597180

  • Passar modeller
    Mercedes-Benz Model: 300 Model series: C 300 Model type: 4-matic Size of motor: 3.5 Brand of engine: M276.957 Type description: W204 From date: 01-02-2011 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 300 Model series: E 300 Model type: 4-Matic Size of motor: 3.5 Brand of engine: M276.952 Type description: S212 Body: Estate From date: 01-07-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 300 Model series: E 300 Model type: BlueEfficiency 4-matic Size of motor: 3.5 Brand of engine: M276.952 Type description: W212 From date: 01-07-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 300 Model series: GLK 300 Model type: 4-Matic Size of motor: 3.5 Brand of engine: M276.957 Type description: X204 From date: 01-09-2009 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: C 350 Model type: 4-matic CGI Size of motor: 3.5 Brand of engine: M276.957 Type description: W204 From date: 01-01-2011 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: C 350 Model type: 4-matic Size of motor: 3.5 Brand of engine: M276.957 Type description: C204 Body: Coupe From date: 01-09-2013 Fuel: Petrol Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M276.957 Type description: C207 Body: Coupe From date: 01-02-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-Matic Size of motor: 3.5 Brand of engine: M276.952 Type description: S212 Body: Estate From date: 01-09-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Size of motor: 3.5 Brand of engine: M276.952 Type description: W212 From date: 01-09-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLK 350 Model type: 4-matic Size of motor: 3.5 Brand of engine: M276.957 Type description: X204 From date: 01-06-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: S 350 Model type: 4-Matic Size of motor: 3.5 Brand of engine: M276.950 Type description: W221 From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsnivå: 14
    Amp: 180
    Drev avstand: 31,50
    Bredde/holderarm: 70,00
    Festebrakett avstand: 56,00
    Brakettåpning: 9,00
    Båndjust. brakettåpning 1: 8,00
    Båndjust. brakettåpning 2: 9,00
    Drevskive diameter: 50,00
    Vaner/rekke: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Posisjon/B+ i min.: 45
    Rotasjon: Dvs.
    Plugg nr.: PL181
    Total lengde mm: 190,00
    Terminaltype: COM
    ID-kode: 41
    Kommunikasjon: LIN
    Drevskive: SP
    Kjølevifte: IF
    Regul. type: IR
    Anmerkninger: Denne Dynamo har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. bracket hole 2 9.00
    Plug no. PL181
    Bracket hole 9.00
    Position/B+ in min. 45
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 31.50
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 41
    Terminal type COM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 70.00
    Amp 180
  • Kjøretøymatching

    • OEM
      A0141544202, F032116714, FG18S046, 2607380A, 0141544202

    • Konkurrentreferens
      A3613S, CAL15423, DRA0765, 28-5939, 555.597.180, 209174, 209174A, 439717, 553448RI, 9090677, 12090631, 32002321

    • NormaliseratArtNr
      a0141544202, a3613s, cal15423, dra0765, f032116714, fg18s046, 209174, 209174a, 285939, 439717, 553448ri, 2607380a, 9090677, 12090631, 32002321, 0141544202, 555597180

    • Passar modeller
      Mercedes-Benz Model: 300 Model series: C 300 Model type: 4-matic Size of motor: 3.5 Brand of engine: M276.957 Type description: W204 From date: 01-02-2011 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 300 Model series: E 300 Model type: 4-Matic Size of motor: 3.5 Brand of engine: M276.952 Type description: S212 Body: Estate From date: 01-07-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 300 Model series: E 300 Model type: BlueEfficiency 4-matic Size of motor: 3.5 Brand of engine: M276.952 Type description: W212 From date: 01-07-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 300 Model series: GLK 300 Model type: 4-Matic Size of motor: 3.5 Brand of engine: M276.957 Type description: X204 From date: 01-09-2009 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: C 350 Model type: 4-matic CGI Size of motor: 3.5 Brand of engine: M276.957 Type description: W204 From date: 01-01-2011 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: C 350 Model type: 4-matic Size of motor: 3.5 Brand of engine: M276.957 Type description: C204 Body: Coupe From date: 01-09-2013 Fuel: Petrol Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M276.957 Type description: C207 Body: Coupe From date: 01-02-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-Matic Size of motor: 3.5 Brand of engine: M276.952 Type description: S212 Body: Estate From date: 01-09-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Size of motor: 3.5 Brand of engine: M276.952 Type description: W212 From date: 01-09-2011 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLK 350 Model type: 4-matic Size of motor: 3.5 Brand of engine: M276.957 Type description: X204 From date: 01-06-2008 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 350 Model series: S 350 Model type: 4-Matic Size of motor: 3.5 Brand of engine: M276.950 Type description: W221 From date: 01-04-2011 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
