HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116724

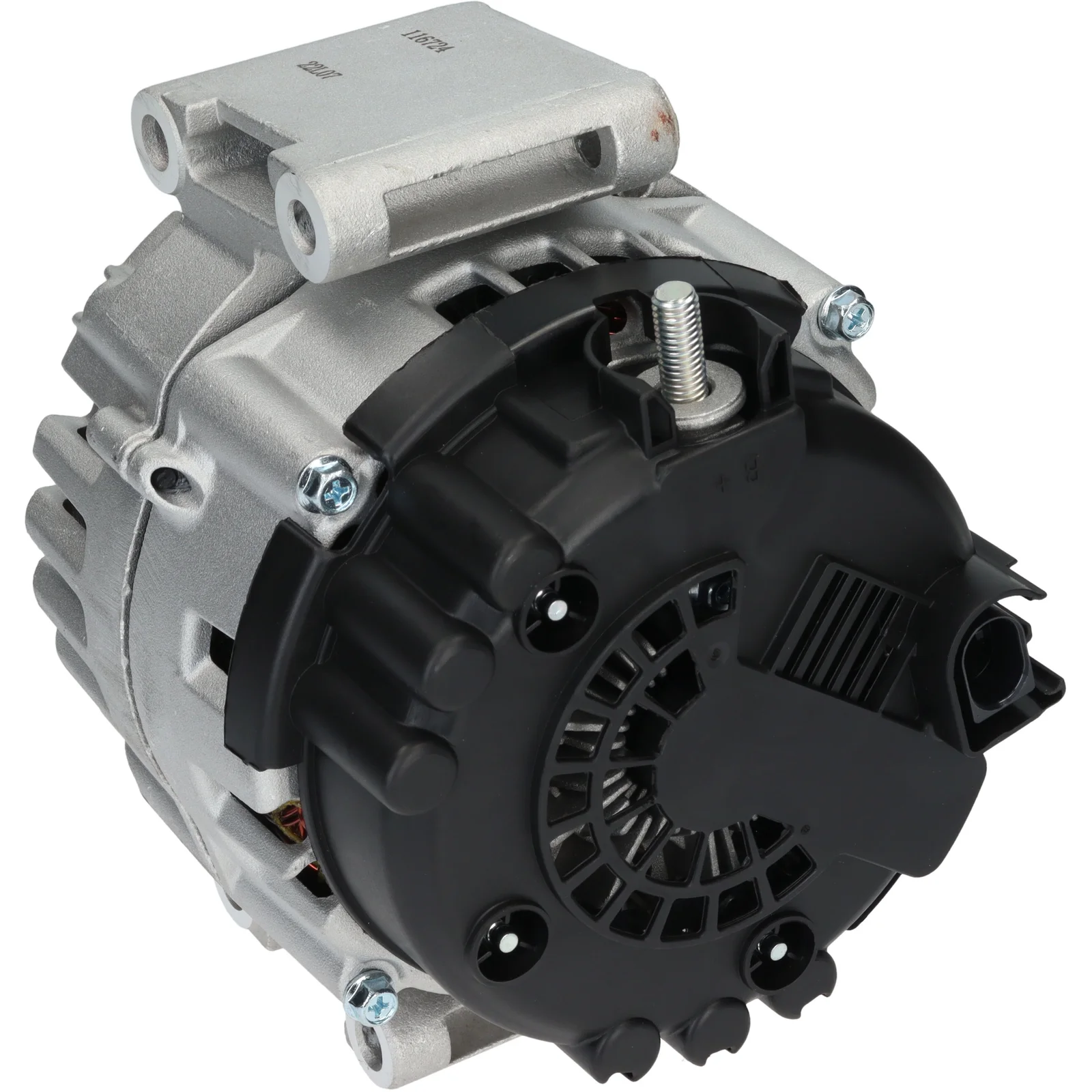

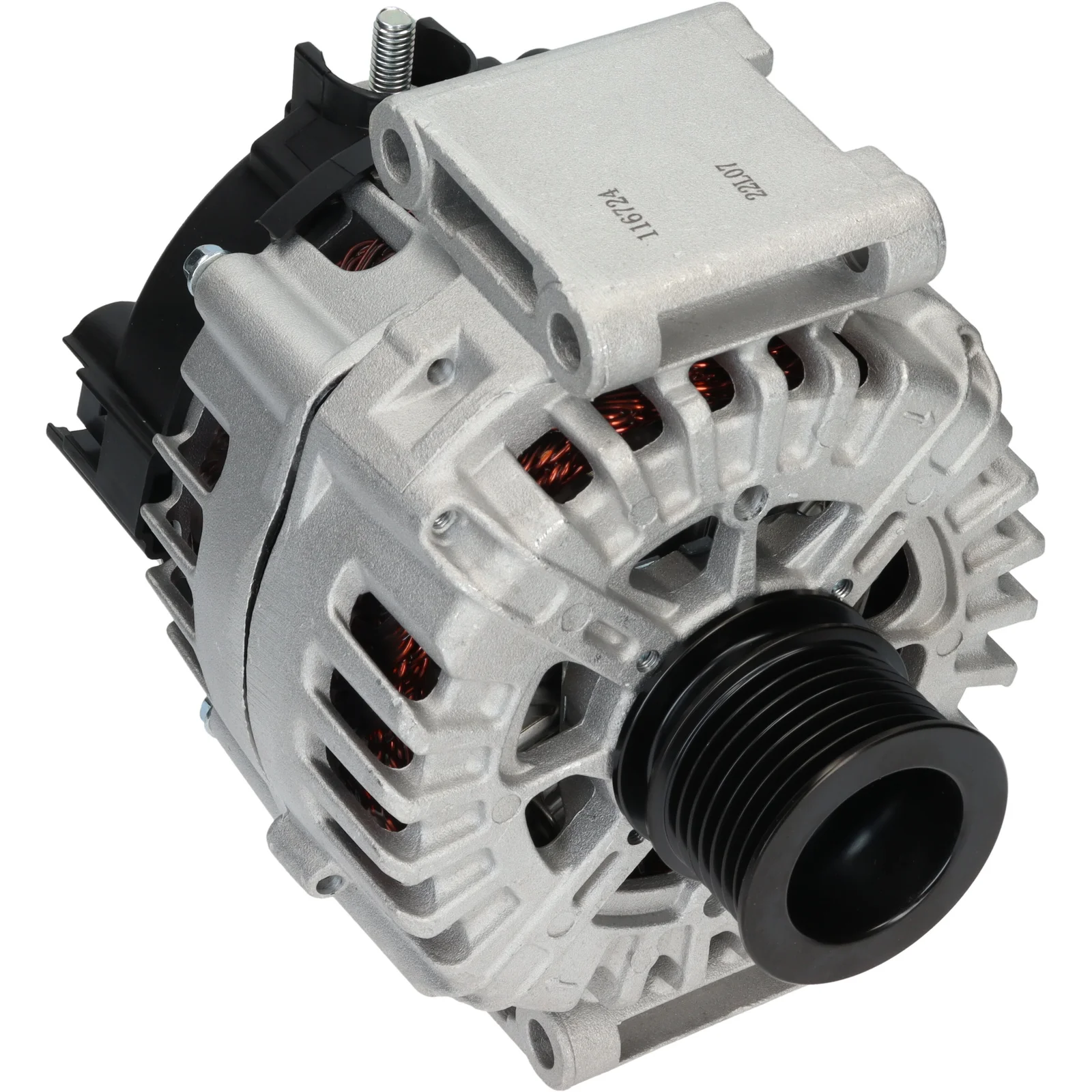

HC-Cargo Dynamo

Teknisk info:

Spenningsverdi: 14, Amp: 250, Rotasjon: CW, Monteringsstøtteavstand: 56.00

Beskrivelse

Spenning: 14
Amp: 250
Drevskive dist.: 31.70
Bredde/holderarm: 70.00
Monteringsbeslag dist.: 56.00
Beslagshull: 9.00
Belt. just. beslagshull 1: 9.20
Belt. just. beslagshull 2: 8.50
Drevskive dia.: 50.00
Grooves/drevskive: 7
Radius: 81.50
Radius 2: 81.50
B+: M8
Posisjon/B+ i min.: 30
Rotasjon: CW
Støpselets nr.: PL181
Total lengde mm: 187.00
Terminaltype: COM
ID-kode: 89
Kommunikasjon: LIN
Drevskive: SP
Vifte: IF
Reg. type: IR
Merknader: Dette generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummer brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.20
Belt. adj. bracket hole 2 8.50
Plug no. PL181
Bracket hole 9.00
Position/B+ in min. 30
Pulley SP
Pulley dia. 50.00
Pulley dist. 31.70
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
ID Code 89
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 70.00
Amp 250

  • OEM
    A0009060903, A0009065307, CG25S035, F032116724, 0009065307

  • Konkurrentreferens
    A3606S, CAL15A08, LRA04154, 28-7763, 555.948.250, 40341, 439891, 440638, 554678RIR, 12090837, 32439891

  • NormaliseratArtNr
    a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250

  • Passar modeller
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: A238 Body: Convertible From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: C238 Body: Coupe From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: W213 From date: 01-06-2017 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-10-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: W213 From date: 01-01-2016 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GL 350 Model type: BlueTEC 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GL 3560 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 AMG Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Coupe From date: 01-03-2015 To date: 01-10-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-04-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 Body: Closed Off-Road Vehicle From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: de 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-10-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLS 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-11-2015 To date: 01-04-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: ML 350 Model type: BlueTec 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: 166 From date: 01-06-2011 To date: 01-02-2015 Fuel: Diesel Approved: Yes
