HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116725

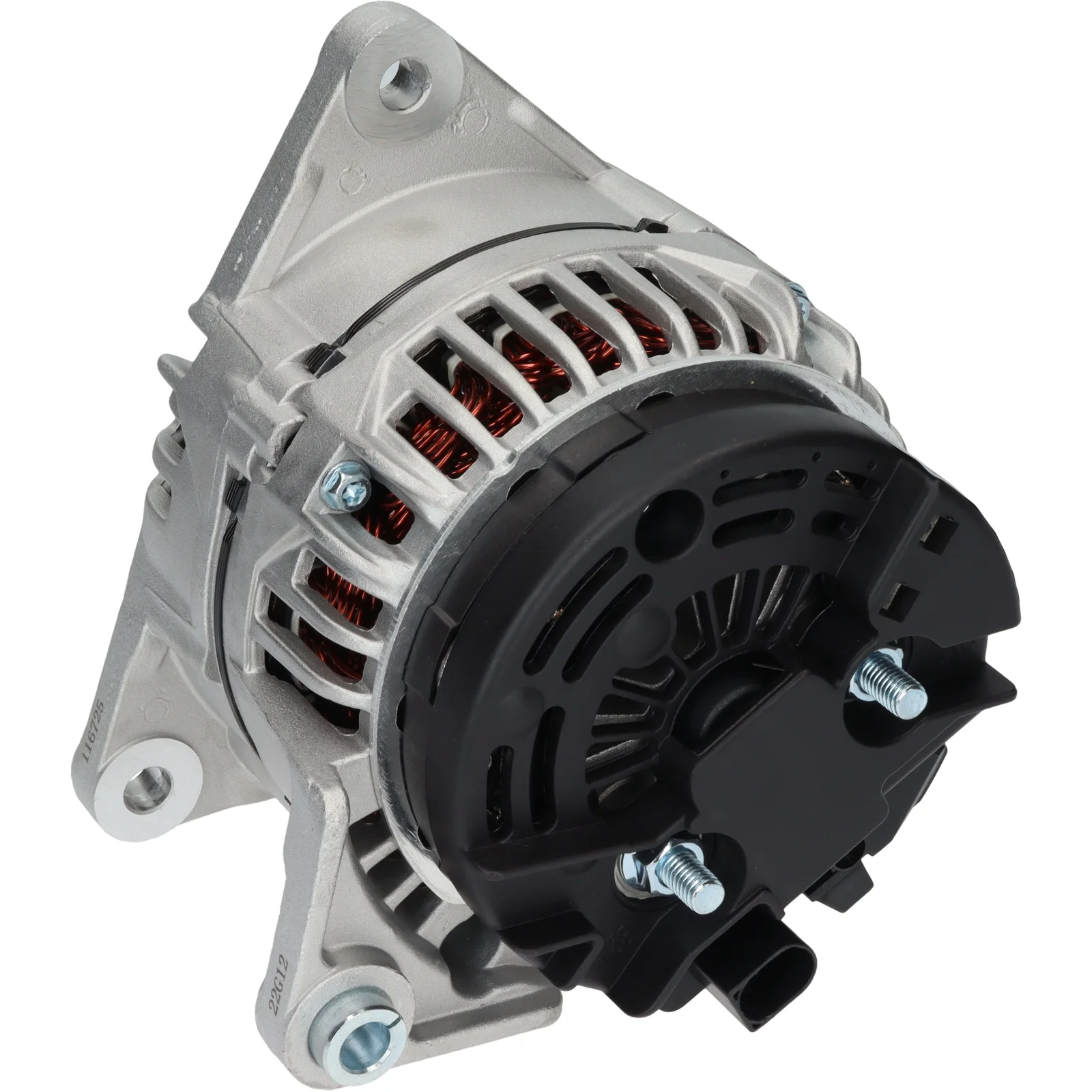

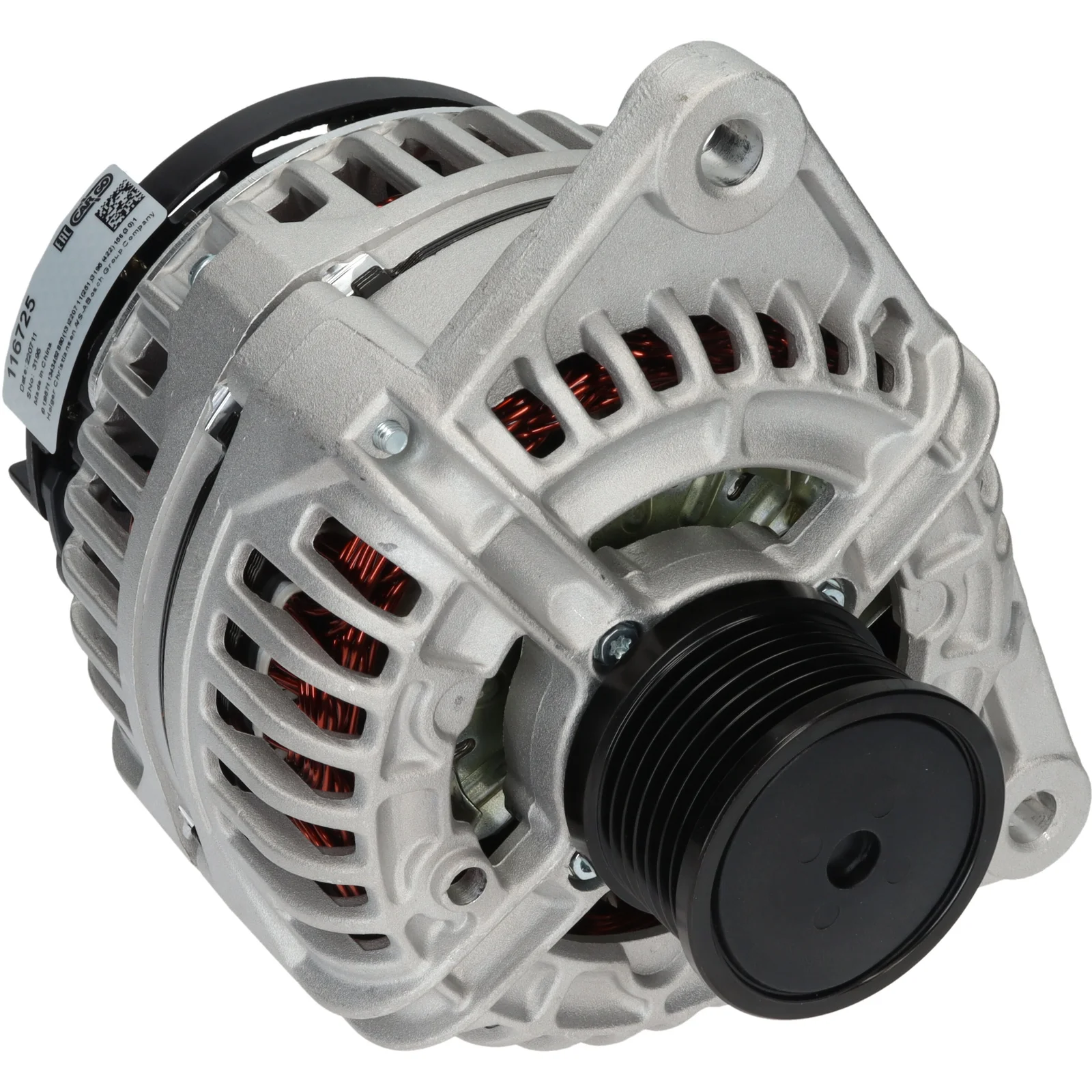

HC-Cargo Dynamo

Teknisk info:

Spenningsgiver: 14, Amp: 140, Rotasjon: CW, Monteringsbrakett avstand: 79.50

Beskrivelse

Spennings**: 14
Ampere**: 140
Belteskive dist.: 38,00
Bredde/holderarm: 14,00
Festebrakett dist.: 79,50
Brakettånhull: 10,50
Belteskive-justeringshullpos.: 10
Belteskive-justeringshull 1: 11,00
Belteskive dia.: 55,00
Grooves/belteskive: 7
Radius: 94,20
Radius 2: 95,80
B+: M8
Posisjon/B+ i min.: 4
D+ Størrelse: Støpselet
Rotasjon: CW
Støpselets nr.: PL87
Total lengde mm: 193,00
Klemmertype: L
Belteskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 79.50
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 10
Plug no. PL87
Bracket hole 10.50
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.00
Radius 94.20
D+ Size Plug
Radius 2 95.80
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L
Voltage 14
Total length 193.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F032116725, ME230743, MK667725, 1986A00910, 0124525216, 0124525565, 0124525566

  • Konkurrentreferens
    A0816S, LRA04330, 28-7939, 155.913.140, 443405, 444285, 12061248, 0986086050

  • NormaliseratArtNr
    a0816s, f032116725, lra04330, me230743, mk667725, 1986a00910, 287939, 443405, 444285, 12061248, 0124525216, 0124525565, 0124525566, 155913140, 0986086050

  • Passar modeller
    Fuso (Mitsubishi) Model: Canter Model series: 3C13 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3C15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3S13 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3S15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 3S18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 615 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 6C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 6S15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 715 Eco-Hybrid Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 715 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Dump Truck From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 7C15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: Canter Model series: 7C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 815 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 918 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fuso (Mitsubishi) Model: CANTER Model series: 9C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 413 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 615, 616 Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 615, 616 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 6C18 4X4 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 715 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Dump Truck From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 7C15 EcoHybrid Size of motor: 3.0 Body: Platform / Chassis From date: 01-09-2012 Fuel: Hybrid Approved: Yes
    Mitsubishi Model: Canter Model series: 815, 816 Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 815, 816 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 916, 918 Size of motor: 3.0 Brand of engine: 4P10-7AT6 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: 916, 918 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Temsa Model: PRESTIJ Model series: PRESTIJ SD, PRESTIJ CITY Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Bus From date: 01-10-2011 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivelse
    Spennings**: 14
    Ampere**: 140
    Belteskive dist.: 38,00
    Bredde/holderarm: 14,00
    Festebrakett dist.: 79,50
    Brakettånhull: 10,50
    Belteskive-justeringshullpos.: 10
    Belteskive-justeringshull 1: 11,00
    Belteskive dia.: 55,00
    Grooves/belteskive: 7
    Radius: 94,20
    Radius 2: 95,80
    B+: M8
    Posisjon/B+ i min.: 4
    D+ Størrelse: Støpselet
    Rotasjon: CW
    Støpselets nr.: PL87
    Total lengde mm: 193,00
    Klemmertype: L
    Belteskive: SP/FW
    Vifte: IF
    Regulator type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 79.50
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 10
    Plug no. PL87
    Bracket hole 10.50
    Position/B+ in min. 4
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.00
    Radius 94.20
    D+ Size Plug
    Radius 2 95.80
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 14.00
    Amp 140
  • Kjøretøymatching

    • OEM
      F032116725, ME230743, MK667725, 1986A00910, 0124525216, 0124525565, 0124525566

    • Konkurrentreferens
      A0816S, LRA04330, 28-7939, 155.913.140, 443405, 444285, 12061248, 0986086050

    • NormaliseratArtNr
      a0816s, f032116725, lra04330, me230743, mk667725, 1986a00910, 287939, 443405, 444285, 12061248, 0124525216, 0124525565, 0124525566, 155913140, 0986086050

    • Passar modeller
      Fuso (Mitsubishi) Model: Canter Model series: 3C13 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: Canter Model series: 3C15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: Canter Model series: 3C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: Canter Model series: 3S13 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: Canter Model series: 3S15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: Canter Model series: 3S18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: CANTER Model series: 615 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: CANTER Model series: 6C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2013 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: Canter Model series: 6S15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: CANTER Model series: 715 Eco-Hybrid Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: CANTER Model series: 715 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Dump Truck From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: Canter Model series: 7C15 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: Canter Model series: 7C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-11-2010 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: CANTER Model series: 815 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: CANTER Model series: 918 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Fuso (Mitsubishi) Model: CANTER Model series: 9C18 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform/Chassis From date: 01-06-2013 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 413 Size of motor: 3.0 Brand of engine: 4P10-T2 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 615, 616 Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 615, 616 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 6C18 4X4 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 715 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Dump Truck From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 7C15 EcoHybrid Size of motor: 3.0 Body: Platform / Chassis From date: 01-09-2012 Fuel: Hybrid Approved: Yes
      Mitsubishi Model: Canter Model series: 815, 816 Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 815, 816 Size of motor: 3.0 Brand of engine: 4P10-T4 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 916, 918 Size of motor: 3.0 Brand of engine: 4P10-7AT6 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: 916, 918 Size of motor: 3.0 Brand of engine: 4P10-T6 Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Temsa Model: PRESTIJ Model series: PRESTIJ SD, PRESTIJ CITY Size of motor: 3.0 Brand of engine: 4P10-7AT4 Body: Bus From date: 01-10-2011 Fuel: Diesel Approved: Yes
      1 / 6
