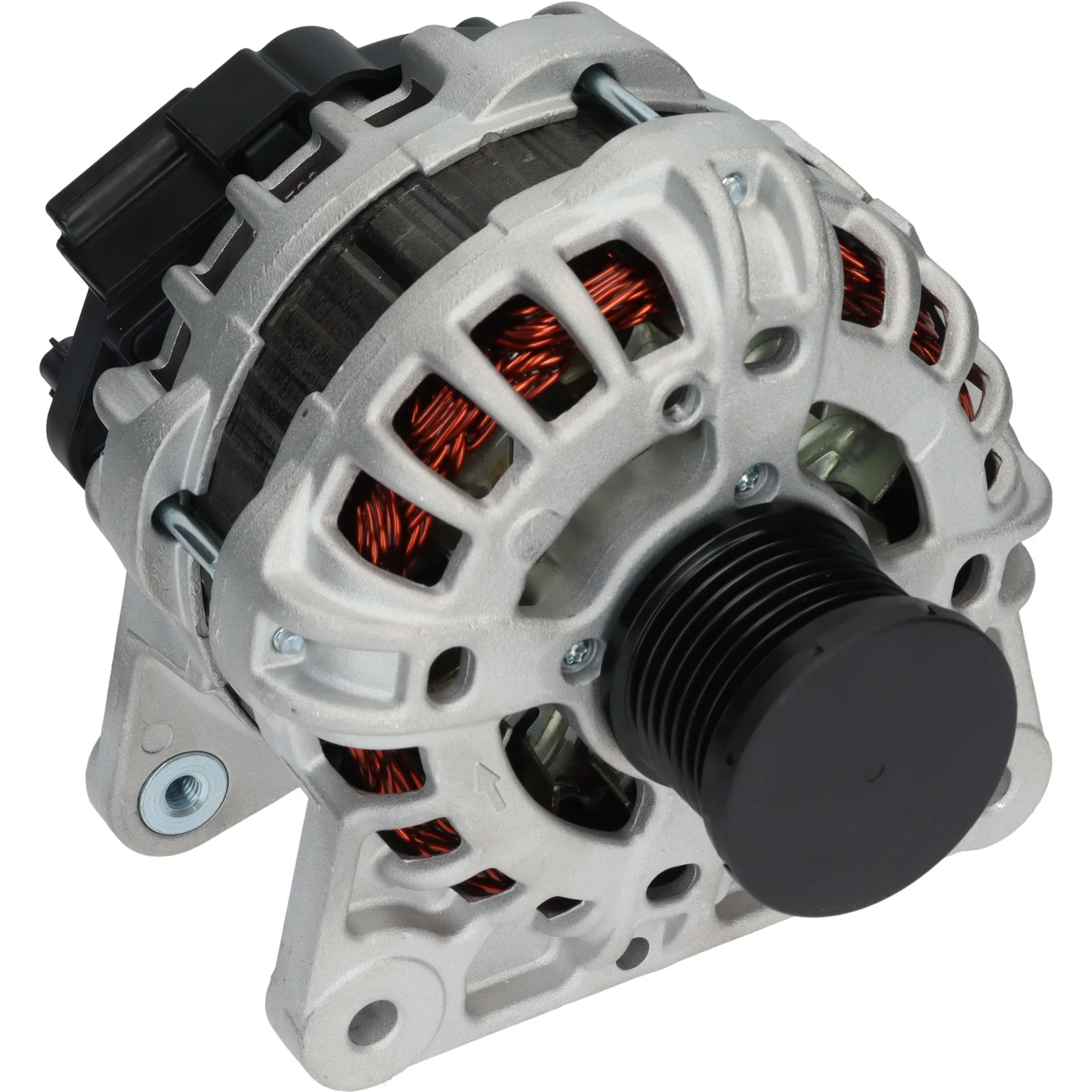

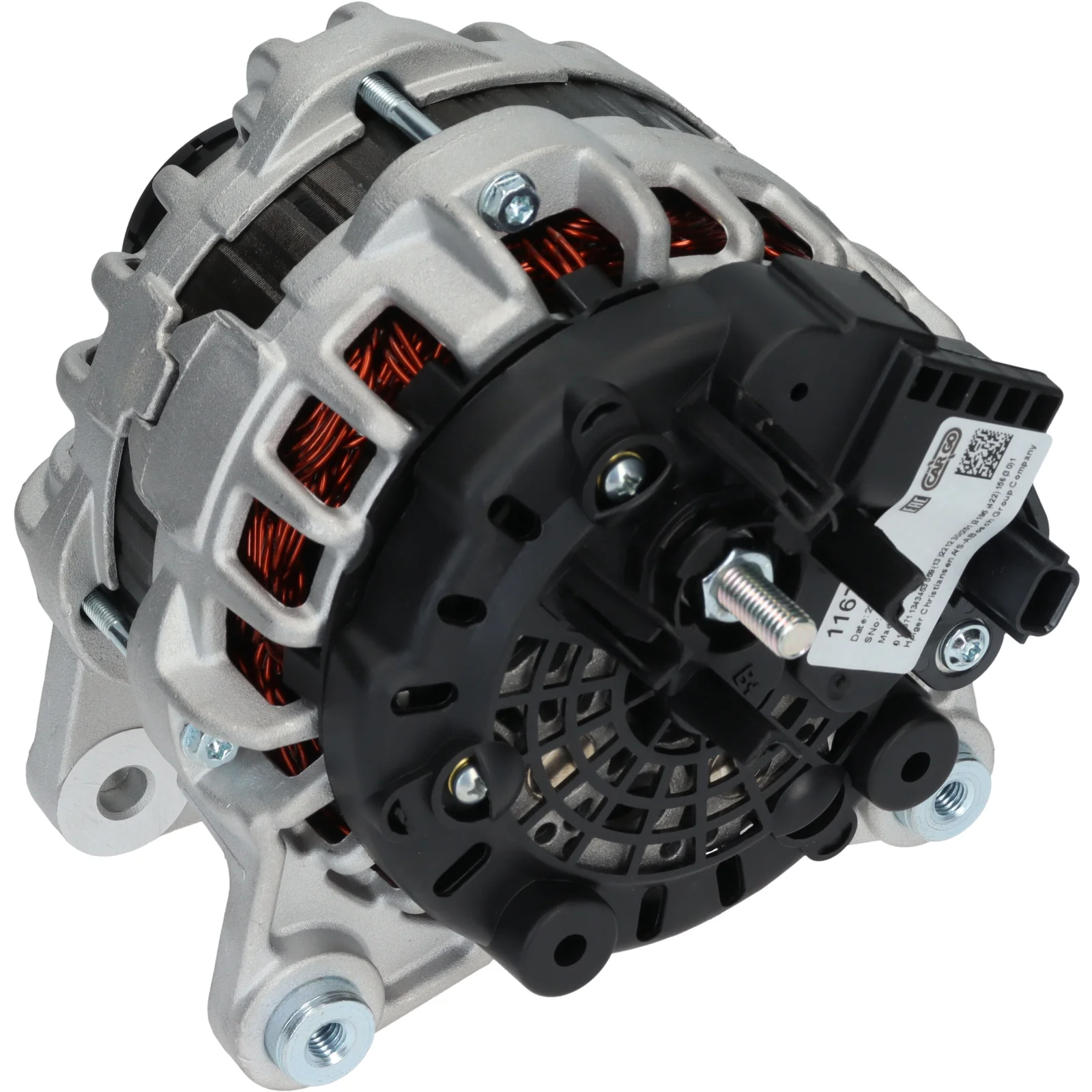

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116734

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 125, Rotasjon: CW, Monteringsbøssing avstand: 60.00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 14
Ampere: 125
Skive dist.: 33.00
Bredde/holderarm: 14.50
Festebrakett dist.: 60.00
Brakett hull: 9.00
Beltpassende justeringsbrakett pos.: 45
Beltpassende justeringsbrakett hull 1: 9.00
Skivediameter: 49.00
Groper/skive: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 52
Rotasjon: med urviseren
Plugg nr.: PL131
Total lengde mm: 191.00
Terminaltype: COM
ID-kode: 9
Kommunikasjon: LIN
Skive: SP/FW
Vifte: IF
Regulator type: IR
Merknader: Denne generatoren har et COM-terminal på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 9.00
Position/B+ in min. 52
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 33.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
ID Code 9
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.50
Amp 125

  • OEM
    F000BL07AU, F000BL07AV, F032116734, 231001568R

  • Konkurrentreferens
    A3563S, CAL15019, 554106RIB, 554106RIV

  • NormaliseratArtNr
    a3563s, cal15019, f000bl07au, f000bl07av, f032116734, 554106rib, 554106riv, 231001568r

  • Passar modeller
    Dacia Model: Dokker Model series: Dokker Express Model type: 115 LPG Size of motor: 1.6 Brand of engine: H4M740 Body: Van From date: 01-04-2015 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Dokker Model series: Dokker Express Size of motor: 1.6 Brand of engine: H4M738 Body: Van From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Dacia Model: Dokker Model series: Dokker Express Type of engine: LPG Size of motor: 1.6 Brand of engine: H4M740 Body: Van From date: 01-08-2018 Fuel: Petrol/Liquified Pet Approved: Yes
    Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: H4M740 Body: Estate From date: 01-04-2015 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Dokker Model series: Dokker Model type: LPG Type of engine: LPG Size of motor: 1.6 Brand of engine: H4M740 Type description: KE_ Body: Estate From date: 01-08-2018 Fuel: Petrol/Electro Approved: Yes
    Dacia Model: Dokker Model series: Dokker Pickup Size of motor: 1.6 Body: Pick Up From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Dacia Model: Dokker Model series: Dokker Size of motor: 1.6 Brand of engine: H4M738 Body: Estate From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: 115 4x4 Size of motor: 1.6 Brand of engine: H4M730 Type description: HM_ From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: 115 Type of engine: Sce Size of motor: 1.6 Brand of engine: H4M438 Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: 115 Type of engine: Sce Size of motor: 1.6 Brand of engine: H4M438 From date: 01-06-2015 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: 115 Type of engine: Sce Size of motor: 1.6 Brand of engine: H4M738 From date: 01-06-2015 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: 4x4 115 Type of engine: Sce Size of motor: 1.6 Brand of engine: H4M730, H4M738 Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: LPG Type of engine: Sce Size of motor: 1.6 Brand of engine: H4M740 From date: 01-06-2015 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: SCe 115 4x4 Type of engine: Sce Size of motor: 1.6 Brand of engine: H4M430 From date: 01-06-2015 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: SCe 115 4x4 Type of engine: Sce Size of motor: 1.6 Brand of engine: H4M730 From date: 01-06-2015 To date: 01-01-2018 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: Sce 115 Size of motor: 1.6 Brand of engine: H4M738 Type description: HM_ From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: Sce 115 Type of engine: LPG Size of motor: 1.6 Brand of engine: H4M740 Type description: HM_ From date: 01-10-2017 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Lodgy Model series: Lodgy Model type: 115 Type of engine: Sce Size of motor: 1.6 Brand of engine: H4M740 Body: Estate From date: 01-06-2015 Fuel: Gasoline Approved: Yes
    Dacia Model: Lodgy Model series: Lodgy Model type: LPG Size of motor: 1.6 Brand of engine: H4M740 Type description: JS_ Body: Estate From date: 01-04-2015 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Lodgy Model series: Lodgy Model type: LPG Type of engine: LPG Size of motor: 1.6 Brand of engine: H4M740 Type description: JS_ Body: MPV From date: 01-08-2018 Fuel: Petrol/Electro Approved: Yes
    Renault Model: Megane Model series: Megane Grandtour Size of motor: 1.6 Brand of engine: H4M738 Type description: K9A/M/N_ Body: Estate From date: 01-04-2016 Fuel: Petrol Approved: Yes Manufacture type: Grandtour
    Renault Model: Megane Model series: Megane Hatchback Size of motor: 1.6 Brand of engine: H4M738 Type description: B9A/M/N_ Body: Hatchback From date: 01-11-2015 Fuel: Petrol Approved: Yes
    Renault Model: Oroch Model series: Oroch Model type: Flex Size of motor: 1.6 Body: Pick Up From date: 01-09-2015 To date: 01-09-2017 Fuel: Gasoline Approved: Yes
