- Dynamo
-
HC-Cargo Dynamo
- Dynamo
-
HC-Cargo Dynamo
Varenr.: F032116747

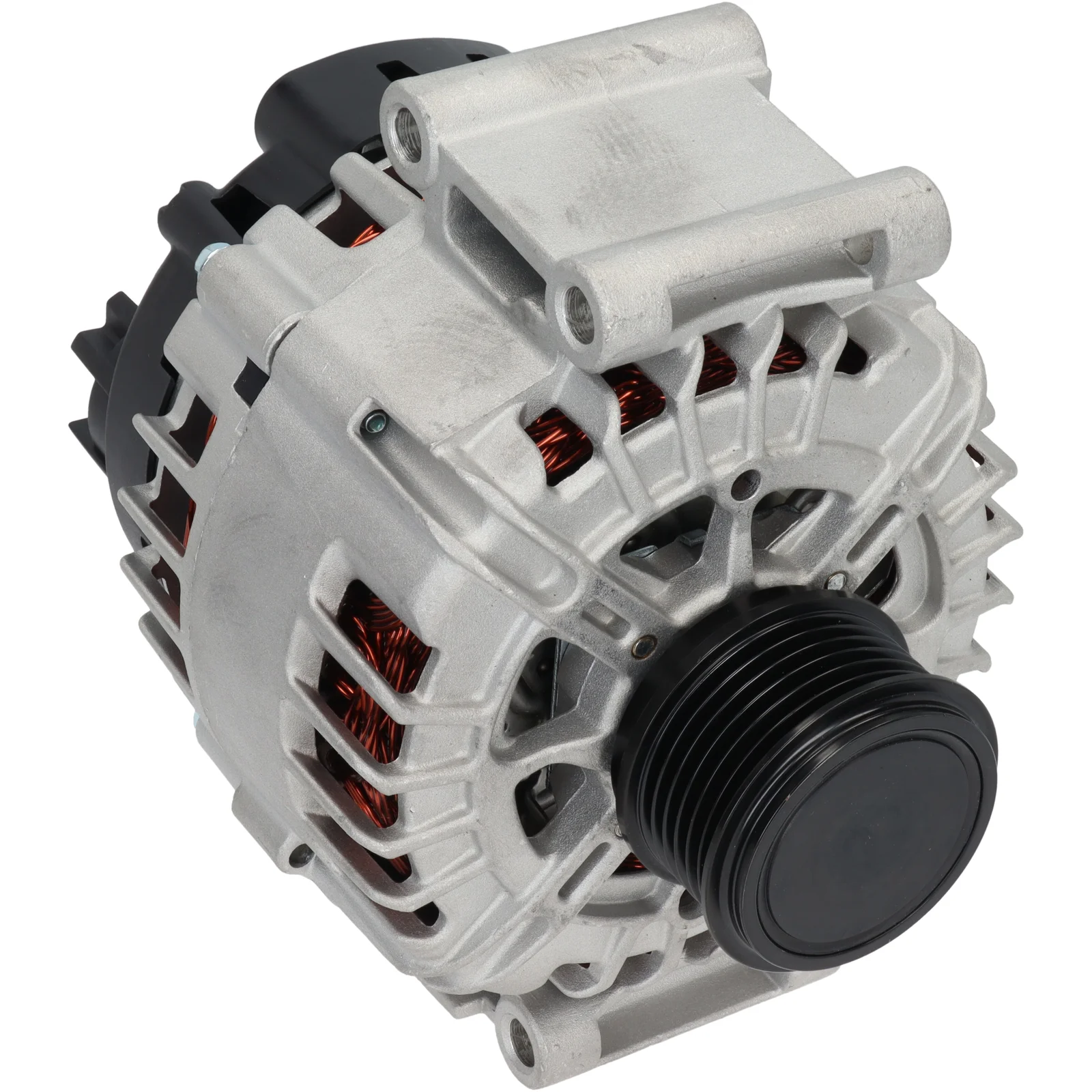

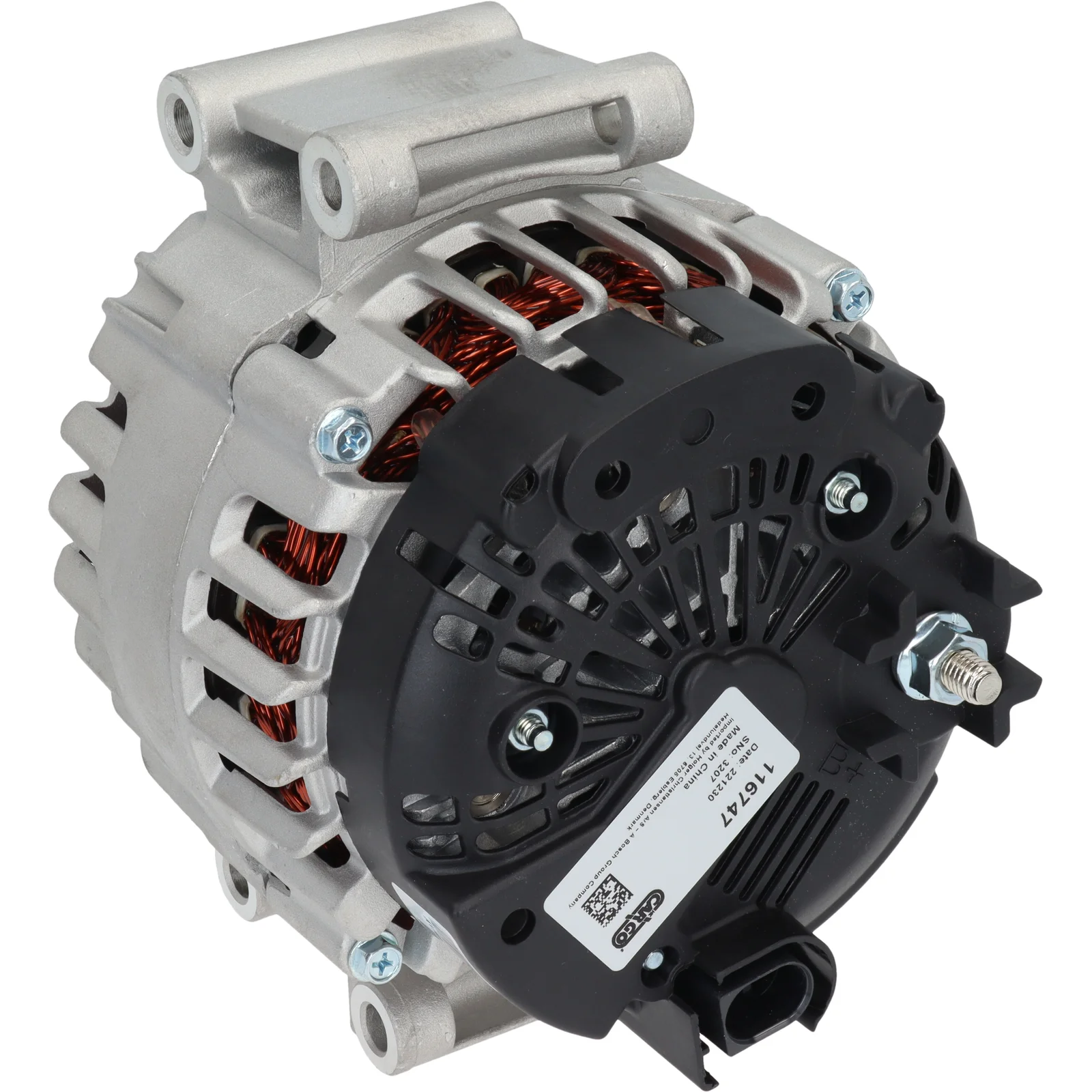

HC-Cargo Dynamo
Spenningsregulator: 14, Amp: 180, Rotasjon: CW, Monteringsbrakett avstand: 56,00
Beskrivelse
Spenningsspenning: 14
Amp: 180
Drevskive avstand: 29.50
Bredde/beslag arm: 70.00
Festebraktdistanse: 56.00
Brakthull: 9.00
Belt. justering. brakthull 1: 9.00
Belt. justering. brakthull 2: 8.00
Drev diameter: 56.00
Riller/drev: 6
Radius: 82.50
Radius 2: 82.50
B+: M8
Posisjon/B+ i min.: 45
Rotasjon: CW
Kontakt nr.: PL181
Total lengde mm: 195.00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har et COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.
Amp: 180
Drevskive avstand: 29.50
Bredde/beslag arm: 70.00
Festebraktdistanse: 56.00
Brakthull: 9.00
Belt. justering. brakthull 1: 9.00
Belt. justering. brakthull 2: 8.00
Drev diameter: 56.00
Riller/drev: 6
Radius: 82.50
Radius 2: 82.50
B+: M8
Posisjon/B+ i min.: 45
Rotasjon: CW
Kontakt nr.: PL181
Total lengde mm: 195.00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har et COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| Communication | LIN |
| Mount. bracket dist. | 56.00 |
| Belt. adj. bracket hole 1 | 9.00 |
| Belt. adj. bracket hole 2 | 8.00 |
| Plug no. | PL181 |
| Bracket hole | 9.00 |
| Position/B+ in min. | 45 |
| Pulley | SP/FW |
| Pulley dia. | 56.00 |
| Pulley dist. | 29.50 |
| Radius | 82.50 |
| Radius 2 | 82.50 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CW |
| Fan | IF |
| Grooves/pulley | 6 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 195.00 mm |
| Width/holder arm | 70.00 |
| Amp | 180 |
-
OEM
F032116747, FG18T084, FG18T169, FG18T201, 06J903023K, 06J903023KX, 06K903015B, 06K903015BX, 06K903015D, 2612300, 2612300B, 2612300C, 2612300D, 2612300E, 2612300F, 2612300G, 2612300H, 2715550A -
Konkurrentreferens
LRA04099, 8EL015637-231, 28-7708, 305.934.180, 439737, 440327, 554268RI, 554268RIV, 12090799, 12090801, 32000004 -
NormaliseratArtNr
f032116747, fg18t084, fg18t169, fg18t201, lra04099, 06j903023k, 06j903023kx, 06k903015b, 06k903015bx, 06k903015d, 8el015637231, 287708, 439737, 440327, 554268ri, 554268riv, 2612300, 2612300b, 2612300c, 2612300d, 2612300e, 2612300f, 2612300g, 2612300h, 2715550a, 12090799, 12090801, 32000004, 305934180 -
Passar modeller
Audi Model: A3 Limousine Model series: A3 Limousine Model type: S3 quattro Size of motor: 2.0 Brand of engine: CYFB Type description: 8VS, 8VM Body: Saloon From date: 01-05-2014 To date: 01-10-2020 Fuel: Petrol Approved: Yes Audi Model: A3 Limousine Model series: A3 Limousine Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNTC Type description: 8VS, 8VM Body: Saloon From date: 01-11-2015 To date: 01-10-2020 Fuel: Petrol Approved: Yes Audi Model: A3 Model series: A3 Limousine Model type: Quattro Size of motor: 2.0 Brand of engine: CJXD Type description: 8VS, 8VM From date: 01-08-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Limousine Model type: Quattro Size of motor: 2.0 Brand of engine: DJHB Type description: 8VS, 8VM From date: 01-08-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Limousine Model type: TFSI Type of engine: TFSI Size of motor: 2.0 Brand of engine: CZRA Type description: 8VS, 8VM Body: Saloon Fuel: Petrol Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: CJXD Type description: 8V1, 8VK Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: CJXF Type description: 8V1 Body: Hatchback From date: 01-05-2014 To date: 01-08-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: CJXG Type description: 8V1, 8VK Body: Hatchback From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: CJXG Type description: 8VS, 8VM From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: DJHA Type description: 8V1, 8VK Body: Hatchback From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: DJHA Type description: 8VS, 8VM From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: DJHB Type description: 8V1, 8VK Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Sportback Size of motor: 2.0 Brand of engine: CJXF Type description: 8VA Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CNTC Type description: 8V7 Body: Convertible From date: 01-05-2014 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8V1, 8VK Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8VS, 8VM From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: S3 Limousine Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZA Type description: 8VS, 8VM From date: 01-07-2018 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Sportback Quattro Size of motor: 2.0 Brand of engine: CJXG Type description: 8VA, 8VF Body: Hatchback From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Sportback Quattro Size of motor: 2.0 Brand of engine: DJHA Type description: 8VA, 8VF Body: Hatchback From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Sportback Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8VA, 8VF Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Sportback Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8VA, 8VF Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Sportback Model type: Quattro Size of motor: 2.0 Brand of engine: CJXD Type description: 8VA, 8VF Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Sportback Model type: Quattro Size of motor: 2.0 Brand of engine: DJHB Type description: 8VA, 8VF Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Sportback Model type: Sportback Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZA Type description: 8VA, 8VF Body: Hatchback From date: 01-07-2018 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8V1, 8VK Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8VS, 8VM From date: 01-05-2016 Fuel: Gasoline Approved: Yes Cupra Model: Ateca Model series: Ateca Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUE Type description: KH7 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes Cupra Model: Ateca Model series: Ateca Model type: TSI 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DNNA Type description: KH7, KHP, KBP Body: SUV Fuel: Petrol Approved: Yes Seat Model: Alhambra Model series: Alhambra Type of engine: TSi Size of motor: 2.0 Brand of engine: DEDA Type description: 710, 711 Body: MPV From date: 01-05-2015 Fuel: Gasoline Approved: Yes Seat Model: Ateca Model series: Ateca Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB Type description: KH7 From date: 01-05-2017 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Cupra R Size of motor: 2.0 Brand of engine: CJXG Type description: 5F1 Body: Hatchback From date: 01-11-2017 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F8 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: ST Seat Model: Leon Model series: Leon Model type: Cupra Size of motor: 2.0 Brand of engine: CJXE Type description: 5F1 Body: Hatchback From date: 01-10-2013 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Sc Model type: Cupra Size of motor: 2.0 Brand of engine: CJXC Type description: 5F5 Body: Coupe From date: 01-01-2017 To date: 01-08-2018 Fuel: Petrol Approved: Yes Seat Model: Leon Model series: Leon SC Model type: Cupra Size of motor: 2.0 Brand of engine: CJXE Type description: 5F5 Body: Coupe From date: 01-10-2013 To date: 01-11-2016 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon SC Model type: Cupra Size of motor: 2.0 Brand of engine: CJXH Type description: 5F5 Body: Coupe From date: 01-10-2015 To date: 01-11-2016 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon SC Type of engine: TFSI Size of motor: 1.8 Brand of engine: CJSA Type description: 5F5 Body: Coupe From date: 01-02-2013 To date: 01-08-2018 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon ST Model type: Cupra Size of motor: 2.0 Brand of engine: CJXE Type description: 5F8 Body: Estate From date: 01-10-2013 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F1 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F8 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: ST Seat Model: Tarraco Model series: Tarraco Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: KN2_ Body: Closed Off-Road Vehicle From date: 01-11-2018 Fuel: Gasoline Approved: Yes Skoda Model: Octavia Model series: Octavia Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5,00E+05 Body: Estate From date: 01-02-2019 Fuel: Gasoline Approved: Yes Manufacture type: Combi Skoda Model: Octavia Model series: Octavia Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5E3, NL3, NR3 Body: Hatchback From date: 01-02-2019 Fuel: Gasoline Approved: Yes Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5,00E+05 Body: Estate From date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Combi Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5E3, NL3, NR3 Body: Hatchback From date: 01-02-2017 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Model type: 4x4 Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Model type: 4x4 Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSC Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSC Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi VW Model: Arteon Model series: Arteon Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DJHC Type description: 3H7 Body: Hatchback From date: 01-04-2017 Fuel: Gasoline Approved: Yes VW Model: Arteon Model series: Arteon Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA,DLRB Type description: 3H7 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Arteon Model series: Arteon Shooting Brake Model type: 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DJHC Type description: 3H9 Body: Estate From date: 01-06-2020 Fuel: Petrol Approved: Yes VW Model: Arteon Model series: Arteon Shooting Brake Model type: 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DLRB Type description: 3H9 Body: Estate From date: 01-09-2020 Fuel: Petrol Approved: Yes VW Model: Arteon Model series: Arteon Shooting Brake Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB, DNNA, DUNA, DKZA Type description: 3H9 Body: Estate From date: 01-09-2020 Fuel: Petrol Approved: Yes Manufacture type: Shooting B VW Model: Arteon Model series: Arteon Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB Type description: 3H7 Body: Hatchback From date: 01-05-2017 Fuel: Gasoline Approved: Yes VW Model: California Model series: California T6 Camper Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKA Type description: SGC, SGG, SHC Body: Bus From date: 01-06-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKA Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKB Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes VW Model: Golf Alltrack Model series: Golf Alltrack Model type: 4motion Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSB Type description: BA5 Body: Estate From date: 01-12-2014 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: CJXB Type description: BA5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: CJXD Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: CJXG Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHA Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHA Type description: BA5, BV5 Body: Estate From date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: Estate VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHB Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHB Type description: BA5, BV5 Body: Estate From date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: Estate VW Model: Golf Model series: Golf VII Model type: Clubsport S Type of engine: GTi Size of motor: 2.0 Brand of engine: CJXG Type description: 5G1, BE1 Body: Hatchback From date: 01-09-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: R 4motion Size of motor: 2.0 Brand of engine: CJXC Type description: BA5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Golf Model series: Golf VII Size of motor: 2.0 Brand of engine: CJXB Type description: 5G1 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Size of motor: 2.0 Brand of engine: CJXC Type description: 5G1 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Size of motor: 2.0 Brand of engine: DLBA Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-03-2017 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Type of engine: GTI Size of motor: 2.0 Brand of engine: CHHA Type description: 5G1 Body: Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Type of engine: GTI Size of motor: 2.0 Brand of engine: CHHB Type description: 5G1 Body: Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Type of engine: GTi Size of motor: 2.0 Brand of engine: CJXE Type description: 5G1, BE1 Body: Hatchback From date: 01-02-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Van Model type: GTI Size of motor: 2.0 Brand of engine: CHHA Type description: 5G1 Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Van Model type: GTI Size of motor: 2.0 Brand of engine: CHHB Type description: 5G1 Body: Box Body / Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Van Model type: GTI TCR Size of motor: 2.0 Brand of engine: CJXH, DNUC Type description: 5G1, BQ1, BE1, BE2, AU1, AU2 Body: Hatchback From date: 01-01-2019 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGF, SGM, SGN Body: MPV From date: 01-06-2015 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGF, SGM, SGN Body: MPV From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKB Type description: SGF, SGM, SGN Body: MPV From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Alltrack Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3G5 Body: Estate From date: 01-07-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Alltrack Model type: 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CJXA Type description: 3G5, CB5 Body: Estate From date: 01-11-2018 Fuel: Petrol Approved: Yes VW Model: Passat Model series: Passat Alltrack Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G5, CB5 Body: Estate From date: 01-08-2018 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3G2 From date: 01-05-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3G5 Body: Estate From date: 01-05-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G2, CB2 From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G5, CB5 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 3G2 From date: 01-02-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 3G5 Body: Estate From date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSC Type description: 3G2 From date: 01-02-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSC Type description: 3G5 Body: Estate From date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3G2 From date: 01-02-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3G5 Body: Estate From date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB,DKZA Type description: 3G2, CB2 From date: 01-11-2018 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA,CZPB Type description: 3G5, CB5 Body: Estate From date: 01-11-2018 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Sharan Model series: Sharan Type of engine: TSi Size of motor: 2.0 Brand of engine: DEDA Type description: 7N1, 7N2 Body: MPV From date: 01-05-2015 Fuel: Gasoline Approved: Yes VW Model: T-Roc Model series: T-Roc Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB Type description: A11 From date: 01-07-2017 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Allspace Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CXDA Type description: BW2 From date: 01-07-2017 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Allspace Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DGVA Type description: BW2 From date: 01-03-2017 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4 Motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CZPA Type description: AD1 From date: 01-01-2016 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: AD1 From date: 01-06-2016 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DKTA Type description: AD1 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: AD1 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNLA Type description: BW2 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNPA Type description: BW2, BJ2 Body: SUV From date: 01-09-2020 Fuel: Petrol Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: R 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNFG Type description: AD1, AX1 Body: SUV From date: 01-11-2020 Fuel: Petrol Approved: Yes VW Model: Touran Model series: Touran Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 5T1 Body: MPV From date: 01-11-2015 Fuel: Gasoline Approved: Yes VW Model: Touran Model series: Touran Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKB Type description: SGB, SGG, SGJ Body: Bus From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGA, SGH Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGB, SGG, SGJ Body: Bus From date: 01-06-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGA, SGH Body: Van From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGB, SGG, SGJ Body: Bus From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKB Type description: SFD, SFE, SFL, SFZ Body: Platform / Chassis From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKB Type description: SGA, SGH Body: Van From date: 01-04-2015 Fuel: Gasoline Approved: Yes 1 / 24
-
Beskrivelse
Spenningsspenning: 14
Amp: 180
Drevskive avstand: 29.50
Bredde/beslag arm: 70.00
Festebraktdistanse: 56.00
Brakthull: 9.00
Belt. justering. brakthull 1: 9.00
Belt. justering. brakthull 2: 8.00
Drev diameter: 56.00
Riller/drev: 6
Radius: 82.50
Radius 2: 82.50
B+: M8
Posisjon/B+ i min.: 45
Rotasjon: CW
Kontakt nr.: PL181
Total lengde mm: 195.00
Terminaltype: COM
Kommunikasjon: LIN
Drev: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne generatoren har et COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.Filer
-
Spesifikasjon
B+ M8 Communication LIN Mount. bracket dist. 56.00 Belt. adj. bracket hole 1 9.00 Belt. adj. bracket hole 2 8.00 Plug no. PL181 Bracket hole 9.00 Position/B+ in min. 45 Pulley SP/FW Pulley dia. 56.00 Pulley dist. 29.50 Radius 82.50 Radius 2 82.50 Regulator type IR Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. Rotation CW Fan IF Grooves/pulley 6 Terminal type COM Voltage 14 Total length 195.00 mm Width/holder arm 70.00 Amp 180 -
Kjøretøymatching
-
OEM
F032116747, FG18T084, FG18T169, FG18T201, 06J903023K, 06J903023KX, 06K903015B, 06K903015BX, 06K903015D, 2612300, 2612300B, 2612300C, 2612300D, 2612300E, 2612300F, 2612300G, 2612300H, 2715550A -
Konkurrentreferens
LRA04099, 8EL015637-231, 28-7708, 305.934.180, 439737, 440327, 554268RI, 554268RIV, 12090799, 12090801, 32000004 -
NormaliseratArtNr
f032116747, fg18t084, fg18t169, fg18t201, lra04099, 06j903023k, 06j903023kx, 06k903015b, 06k903015bx, 06k903015d, 8el015637231, 287708, 439737, 440327, 554268ri, 554268riv, 2612300, 2612300b, 2612300c, 2612300d, 2612300e, 2612300f, 2612300g, 2612300h, 2715550a, 12090799, 12090801, 32000004, 305934180 -
Passar modeller
Audi Model: A3 Limousine Model series: A3 Limousine Model type: S3 quattro Size of motor: 2.0 Brand of engine: CYFB Type description: 8VS, 8VM Body: Saloon From date: 01-05-2014 To date: 01-10-2020 Fuel: Petrol Approved: Yes Audi Model: A3 Limousine Model series: A3 Limousine Type of engine: TFSI Size of motor: 2.0 Brand of engine: CNTC Type description: 8VS, 8VM Body: Saloon From date: 01-11-2015 To date: 01-10-2020 Fuel: Petrol Approved: Yes Audi Model: A3 Model series: A3 Limousine Model type: Quattro Size of motor: 2.0 Brand of engine: CJXD Type description: 8VS, 8VM From date: 01-08-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Limousine Model type: Quattro Size of motor: 2.0 Brand of engine: DJHB Type description: 8VS, 8VM From date: 01-08-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Limousine Model type: TFSI Type of engine: TFSI Size of motor: 2.0 Brand of engine: CZRA Type description: 8VS, 8VM Body: Saloon Fuel: Petrol Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: CJXD Type description: 8V1, 8VK Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: CJXF Type description: 8V1 Body: Hatchback From date: 01-05-2014 To date: 01-08-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: CJXG Type description: 8V1, 8VK Body: Hatchback From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: CJXG Type description: 8VS, 8VM From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: DJHA Type description: 8V1, 8VK Body: Hatchback From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: DJHA Type description: 8VS, 8VM From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Size of motor: 2.0 Brand of engine: DJHB Type description: 8V1, 8VK Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Sportback Size of motor: 2.0 Brand of engine: CJXF Type description: 8VA Body: Hatchback From date: 01-05-2014 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CNTC Type description: 8V7 Body: Convertible From date: 01-05-2014 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8V1, 8VK Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8VS, 8VM From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: S3 Limousine Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZA Type description: 8VS, 8VM From date: 01-07-2018 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Sportback Quattro Size of motor: 2.0 Brand of engine: CJXG Type description: 8VA, 8VF Body: Hatchback From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Sportback Quattro Size of motor: 2.0 Brand of engine: DJHA Type description: 8VA, 8VF Body: Hatchback From date: 01-06-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Sportback Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8VA, 8VF Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Model type: Sportback Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8VA, 8VF Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Sportback Model type: Quattro Size of motor: 2.0 Brand of engine: CJXD Type description: 8VA, 8VF Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Sportback Model type: Quattro Size of motor: 2.0 Brand of engine: DJHB Type description: 8VA, 8VF Body: Hatchback From date: 01-07-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Sportback Model type: Sportback Type of engine: TFSi Size of motor: 2.0 Brand of engine: DKZA Type description: 8VA, 8VF Body: Hatchback From date: 01-07-2018 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8V1, 8VK Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes Audi Model: A3 Model series: A3 Type of engine: TFSi Size of motor: 2.0 Brand of engine: CZPB Type description: 8VS, 8VM From date: 01-05-2016 Fuel: Gasoline Approved: Yes Cupra Model: Ateca Model series: Ateca Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUE Type description: KH7 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes Cupra Model: Ateca Model series: Ateca Model type: TSI 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DNNA Type description: KH7, KHP, KBP Body: SUV Fuel: Petrol Approved: Yes Seat Model: Alhambra Model series: Alhambra Type of engine: TSi Size of motor: 2.0 Brand of engine: DEDA Type description: 710, 711 Body: MPV From date: 01-05-2015 Fuel: Gasoline Approved: Yes Seat Model: Ateca Model series: Ateca Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB Type description: KH7 From date: 01-05-2017 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Cupra R Size of motor: 2.0 Brand of engine: CJXG Type description: 5F1 Body: Hatchback From date: 01-11-2017 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F8 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: ST Seat Model: Leon Model series: Leon Model type: Cupra Size of motor: 2.0 Brand of engine: CJXE Type description: 5F1 Body: Hatchback From date: 01-10-2013 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Sc Model type: Cupra Size of motor: 2.0 Brand of engine: CJXC Type description: 5F5 Body: Coupe From date: 01-01-2017 To date: 01-08-2018 Fuel: Petrol Approved: Yes Seat Model: Leon Model series: Leon SC Model type: Cupra Size of motor: 2.0 Brand of engine: CJXE Type description: 5F5 Body: Coupe From date: 01-10-2013 To date: 01-11-2016 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon SC Model type: Cupra Size of motor: 2.0 Brand of engine: CJXH Type description: 5F5 Body: Coupe From date: 01-10-2015 To date: 01-11-2016 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon SC Type of engine: TFSI Size of motor: 1.8 Brand of engine: CJSA Type description: 5F5 Body: Coupe From date: 01-02-2013 To date: 01-08-2018 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon ST Model type: Cupra Size of motor: 2.0 Brand of engine: CJXE Type description: 5F8 Body: Estate From date: 01-10-2013 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F1 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes Seat Model: Leon Model series: Leon Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5F8 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: ST Seat Model: Tarraco Model series: Tarraco Model type: 4Drive Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: KN2_ Body: Closed Off-Road Vehicle From date: 01-11-2018 Fuel: Gasoline Approved: Yes Skoda Model: Octavia Model series: Octavia Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5,00E+05 Body: Estate From date: 01-02-2019 Fuel: Gasoline Approved: Yes Manufacture type: Combi Skoda Model: Octavia Model series: Octavia Model type: 4x4 Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5E3, NL3, NR3 Body: Hatchback From date: 01-02-2019 Fuel: Gasoline Approved: Yes Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5,00E+05 Body: Estate From date: 01-02-2017 Fuel: Gasoline Approved: Yes Manufacture type: Combi Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: 5E3, NL3, NR3 Body: Hatchback From date: 01-02-2017 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Model type: 4x4 Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Model type: 4x4 Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSC Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSC Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3V3 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes Skoda Model: Superb Model series: Superb Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3V5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi VW Model: Arteon Model series: Arteon Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DJHC Type description: 3H7 Body: Hatchback From date: 01-04-2017 Fuel: Gasoline Approved: Yes VW Model: Arteon Model series: Arteon Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA,DLRB Type description: 3H7 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Arteon Model series: Arteon Shooting Brake Model type: 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DJHC Type description: 3H9 Body: Estate From date: 01-06-2020 Fuel: Petrol Approved: Yes VW Model: Arteon Model series: Arteon Shooting Brake Model type: 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DLRB Type description: 3H9 Body: Estate From date: 01-09-2020 Fuel: Petrol Approved: Yes VW Model: Arteon Model series: Arteon Shooting Brake Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB, DNNA, DUNA, DKZA Type description: 3H9 Body: Estate From date: 01-09-2020 Fuel: Petrol Approved: Yes Manufacture type: Shooting B VW Model: Arteon Model series: Arteon Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB Type description: 3H7 Body: Hatchback From date: 01-05-2017 Fuel: Gasoline Approved: Yes VW Model: California Model series: California T6 Camper Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKA Type description: SGC, SGG, SHC Body: Bus From date: 01-06-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKA Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes VW Model: California Model series: California T6 Camper Type of engine: TSI Size of motor: 2.0 Brand of engine: CJKB Type description: SGC, SGG, SHC Body: Bus From date: 01-04-2015 To date: 01-07-2019 Fuel: Petrol Approved: Yes VW Model: Golf Alltrack Model series: Golf Alltrack Model type: 4motion Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSB Type description: BA5 Body: Estate From date: 01-12-2014 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: CJXB Type description: BA5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: CJXD Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: CJXG Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHA Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHA Type description: BA5, BV5 Body: Estate From date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: Estate VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHB Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-12-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: 4motion Size of motor: 2.0 Brand of engine: DJHB Type description: BA5, BV5 Body: Estate From date: 01-12-2016 Fuel: Gasoline Approved: Yes Manufacture type: Estate VW Model: Golf Model series: Golf VII Model type: Clubsport S Type of engine: GTi Size of motor: 2.0 Brand of engine: CJXG Type description: 5G1, BE1 Body: Hatchback From date: 01-09-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Model type: R 4motion Size of motor: 2.0 Brand of engine: CJXC Type description: BA5 Body: Estate From date: 01-03-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Golf Model series: Golf VII Size of motor: 2.0 Brand of engine: CJXB Type description: 5G1 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Size of motor: 2.0 Brand of engine: CJXC Type description: 5G1 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Size of motor: 2.0 Brand of engine: DLBA Type description: 5G1, BQ1, BE1, BE2 Body: Hatchback From date: 01-03-2017 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Type of engine: GTI Size of motor: 2.0 Brand of engine: CHHA Type description: 5G1 Body: Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Type of engine: GTI Size of motor: 2.0 Brand of engine: CHHB Type description: 5G1 Body: Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Type of engine: GTi Size of motor: 2.0 Brand of engine: CJXE Type description: 5G1, BE1 Body: Hatchback From date: 01-02-2016 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Van Model type: GTI Size of motor: 2.0 Brand of engine: CHHA Type description: 5G1 Body: Box Body / Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Van Model type: GTI Size of motor: 2.0 Brand of engine: CHHB Type description: 5G1 Body: Box Body / Hatchback From date: 01-04-2013 Fuel: Gasoline Approved: Yes VW Model: Golf Model series: Golf VII Van Model type: GTI TCR Size of motor: 2.0 Brand of engine: CJXH, DNUC Type description: 5G1, BQ1, BE1, BE2, AU1, AU2 Body: Hatchback From date: 01-01-2019 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGF, SGM, SGN Body: MPV From date: 01-06-2015 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGF, SGM, SGN Body: MPV From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Multivan Model series: Multivan Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKB Type description: SGF, SGM, SGN Body: MPV From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Alltrack Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3G5 Body: Estate From date: 01-07-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Alltrack Model type: 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CJXA Type description: 3G5, CB5 Body: Estate From date: 01-11-2018 Fuel: Petrol Approved: Yes VW Model: Passat Model series: Passat Alltrack Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G5, CB5 Body: Estate From date: 01-08-2018 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3G2 From date: 01-05-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJXA Type description: 3G5 Body: Estate From date: 01-05-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G2, CB2 From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNUA Type description: 3G5, CB5 Body: Estate From date: 01-09-2018 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 3G2 From date: 01-02-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 3G5 Body: Estate From date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSC Type description: 3G2 From date: 01-02-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSC Type description: 3G5 Body: Estate From date: 01-02-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3G2 From date: 01-02-2015 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: 3G5 Body: Estate From date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB,DKZA Type description: 3G2, CB2 From date: 01-11-2018 Fuel: Gasoline Approved: Yes VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA,CZPB Type description: 3G5, CB5 Body: Estate From date: 01-11-2018 Fuel: Gasoline Approved: Yes Manufacture type: Variant VW Model: Sharan Model series: Sharan Type of engine: TSi Size of motor: 2.0 Brand of engine: DEDA Type description: 7N1, 7N2 Body: MPV From date: 01-05-2015 Fuel: Gasoline Approved: Yes VW Model: T-Roc Model series: T-Roc Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CZPB Type description: A11 From date: 01-07-2017 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Allspace Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: CXDA Type description: BW2 From date: 01-07-2017 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Allspace Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DGVA Type description: BW2 From date: 01-03-2017 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4 Motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CZPA Type description: AD1 From date: 01-01-2016 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CHHB Type description: AD1 From date: 01-06-2016 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DKTA Type description: AD1 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DKZA Type description: AD1 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNLA Type description: BW2 Body: Closed Off-Road Vehicle From date: 01-09-2018 Fuel: Gasoline Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: 4motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNPA Type description: BW2, BJ2 Body: SUV From date: 01-09-2020 Fuel: Petrol Approved: Yes VW Model: Tiguan Model series: Tiguan Model type: R 4Motion Type of engine: TSI Size of motor: 2.0 Brand of engine: DNFG Type description: AD1, AX1 Body: SUV From date: 01-11-2020 Fuel: Petrol Approved: Yes VW Model: Touran Model series: Touran Type of engine: TSi Size of motor: 1.8 Brand of engine: CJSA Type description: 5T1 Body: MPV From date: 01-11-2015 Fuel: Gasoline Approved: Yes VW Model: Touran Model series: Touran Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKB Type description: SGB, SGG, SGJ Body: Bus From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGA, SGH Body: Van From date: 01-06-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGB, SGG, SGJ Body: Bus From date: 01-06-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGA, SGH Body: Van From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKA Type description: SGB, SGG, SGJ Body: Bus From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKB Type description: SFD, SFE, SFL, SFZ Body: Platform / Chassis From date: 01-04-2015 Fuel: Gasoline Approved: Yes VW Model: Transporter Model series: Transporter VI Type of engine: TSi Size of motor: 2.0 Brand of engine: CJKB Type description: SGA, SGH Body: Van From date: 01-04-2015 Fuel: Gasoline Approved: Yes 1 / 24
-
