HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116753

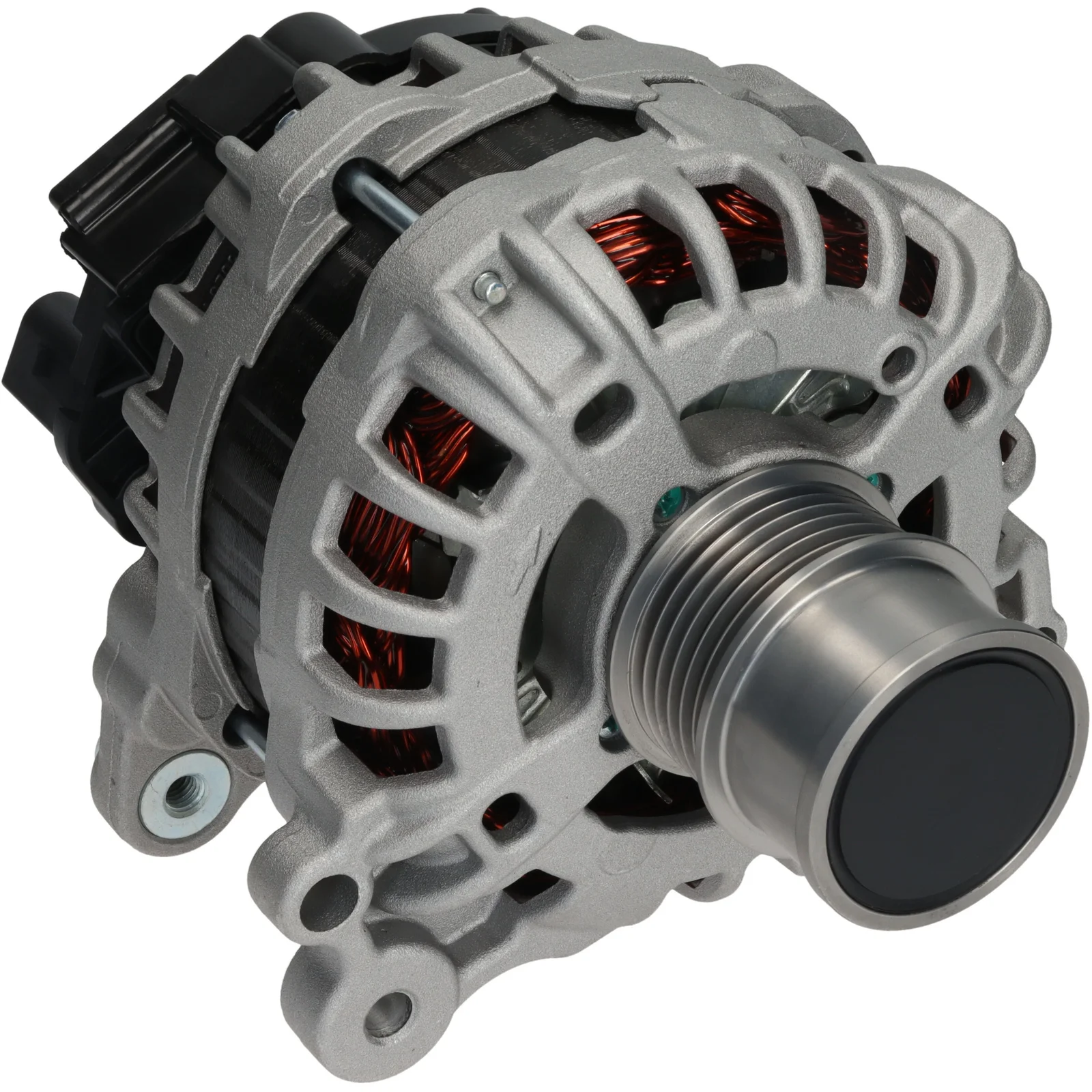

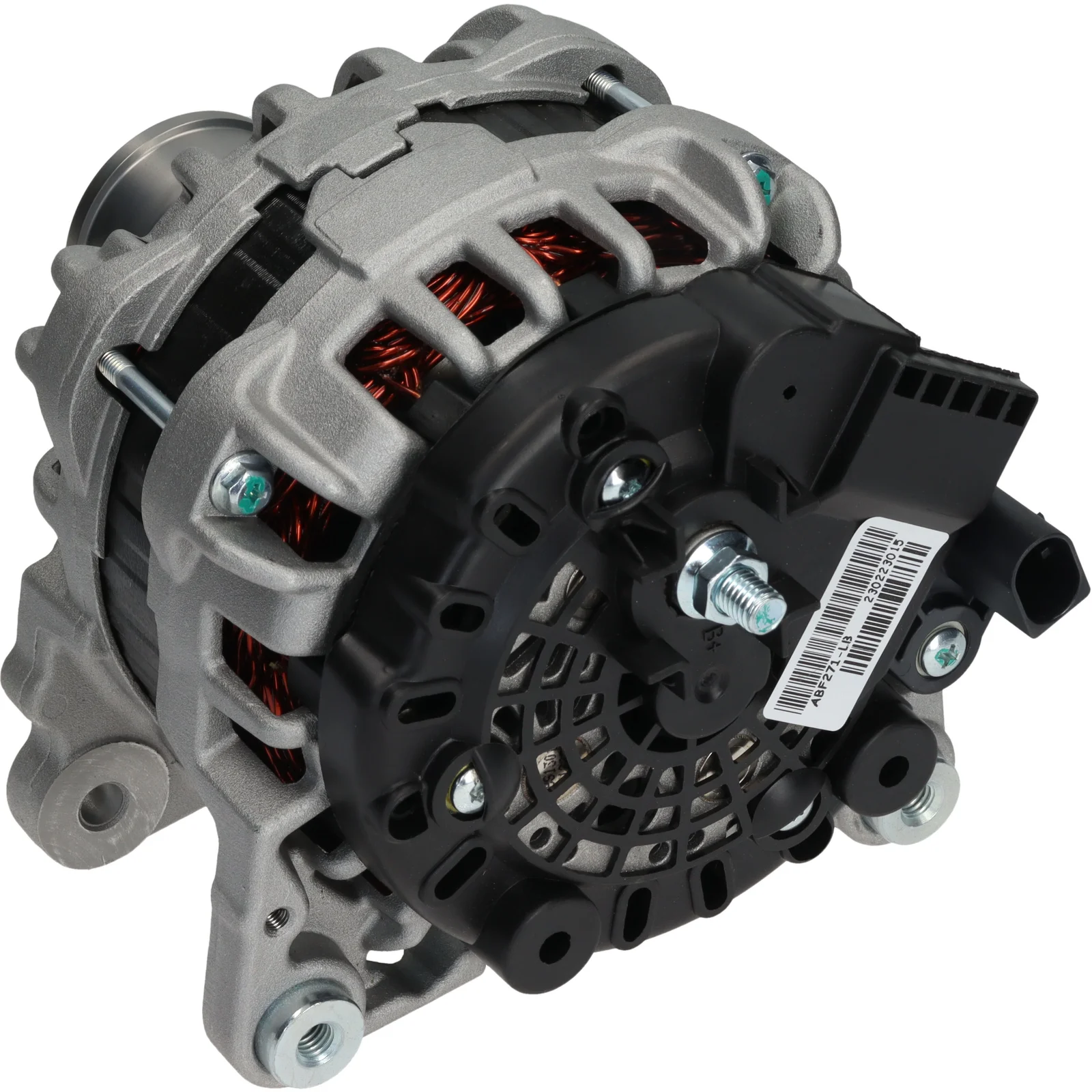

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Rotasjon: CW, Monteringsbeslag avstand: 60,00

Beskrivelse

Spenningskilde: 14
Amp: 110
Drevkugg: 30.00
Bredde/holderarm: 14.00
Monteringsbeslag avstand: 60.00
Beslagshull: 8.50
Båndinnstillingsbeslagposisjon: 15
Båndinnstillingsbeslagshull 1: M8
Drevdiame.: 52.30
Riller/drev: 6
Radius: 90.00
Radius 2: 90.00
B+-lengde mm: 14.00
B+: M8
Posisjon/B+ i min.: 55
Rotasjon: HØYRE/VENSTRE
Stikkontaktnr.: PL181
Total lengde mm: 195.00
Klemmetype: KOM
Kommunikasjon: LIN
Drev: SP/FW
Vifte: IF
Regulator type: IR
Anmerkninger: Denne Dynamoen har en KOM-klemme på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 52.30
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 195.00 mm
Width/holder arm 14.00
Amp 110
B+ Length 14.00 mm

  • OEM
    F000BL0701, F000BL07A0, F032116753, 04E903023G

  • Konkurrentreferens
    305.963.110

  • NormaliseratArtNr
    f000bl0701, f000bl07a0, f032116753, 04e903023g, 305963110

  • Passar modeller
    Skoda Model: Octavia Model series: Octavia Model type: G-TEC Type of engine: TSI Size of motor: 1.4 Brand of engine: CPWA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Model type: G-TEC Type of engine: TSI Size of motor: 1.4 Brand of engine: CPWA Type description: 5,00E+05 Body: Estate From date: 01-11-2013 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    1 / 2
  • Beskrivelse
    Spenningskilde: 14
    Amp: 110
    Drevkugg: 30.00
    Bredde/holderarm: 14.00
    Monteringsbeslag avstand: 60.00
    Beslagshull: 8.50
    Båndinnstillingsbeslagposisjon: 15
    Båndinnstillingsbeslagshull 1: M8
    Drevdiame.: 52.30
    Riller/drev: 6
    Radius: 90.00
    Radius 2: 90.00
    B+-lengde mm: 14.00
    B+: M8
    Posisjon/B+ i min.: 55
    Rotasjon: HØYRE/VENSTRE
    Stikkontaktnr.: PL181
    Total lengde mm: 195.00
    Klemmetype: KOM
    Kommunikasjon: LIN
    Drev: SP/FW
    Vifte: IF
    Regulator type: IR
    Anmerkninger: Denne Dynamoen har en KOM-klemme på regulatoren. Det anbefales å bruke OEM-nummeret for å sjekke egnethet før bestilling.

    Filer

  • Spesifikasjon
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 15
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 55
    Pulley SP/FW
    Pulley dia. 52.30
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 195.00 mm
    Width/holder arm 14.00
    Amp 110
    B+ Length 14.00 mm
  • Kjøretøymatching

    • OEM
      F000BL0701, F000BL07A0, F032116753, 04E903023G

    • Konkurrentreferens
      305.963.110

    • NormaliseratArtNr
      f000bl0701, f000bl07a0, f032116753, 04e903023g, 305963110

    • Passar modeller
      Skoda Model: Octavia Model series: Octavia Model type: G-TEC Type of engine: TSI Size of motor: 1.4 Brand of engine: CPWA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Skoda Model: Octavia Model series: Octavia Model type: G-TEC Type of engine: TSI Size of motor: 1.4 Brand of engine: CPWA Type description: 5,00E+05 Body: Estate From date: 01-11-2013 Fuel: Gasoline Approved: Yes Manufacture type: Combi
      Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
      Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
      Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
