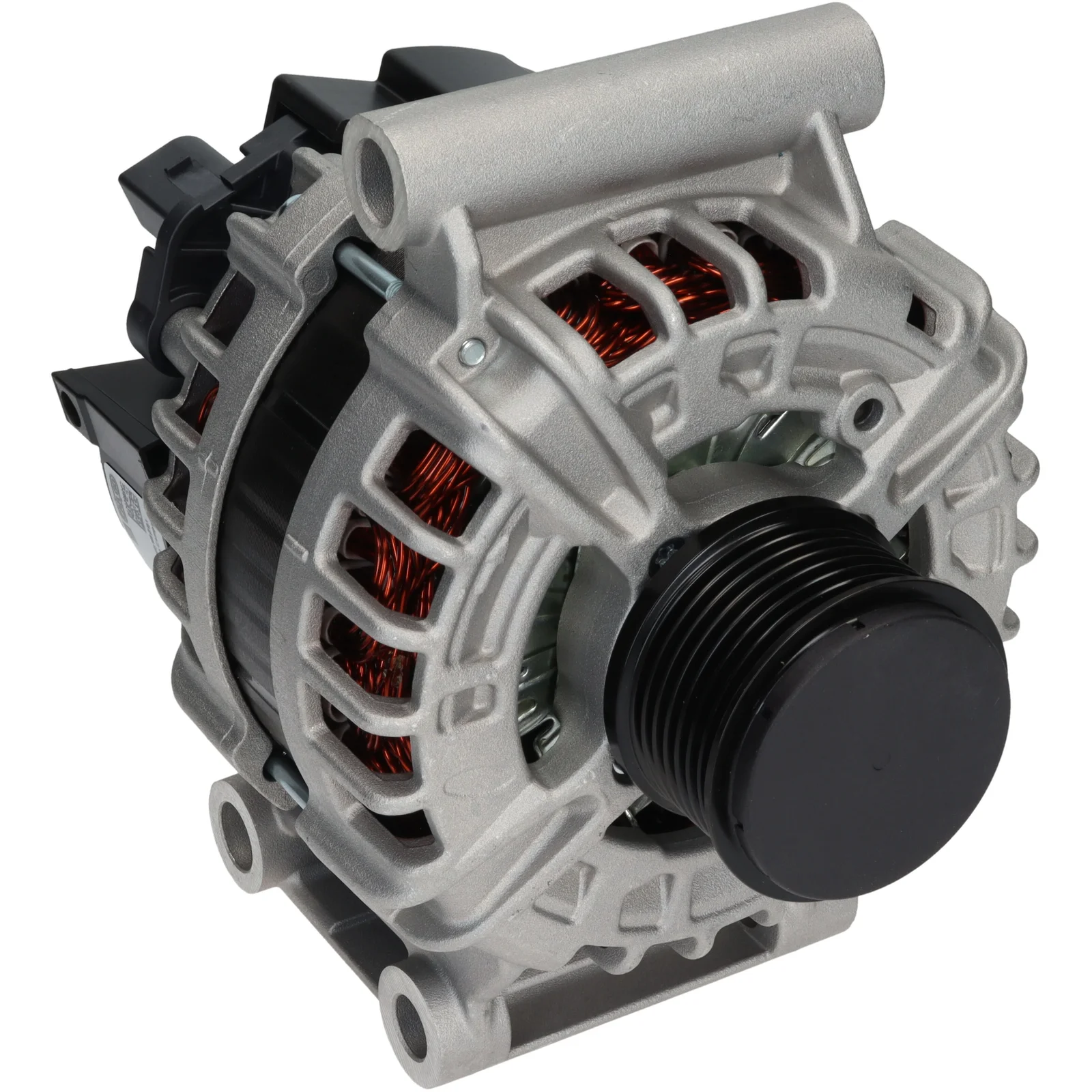

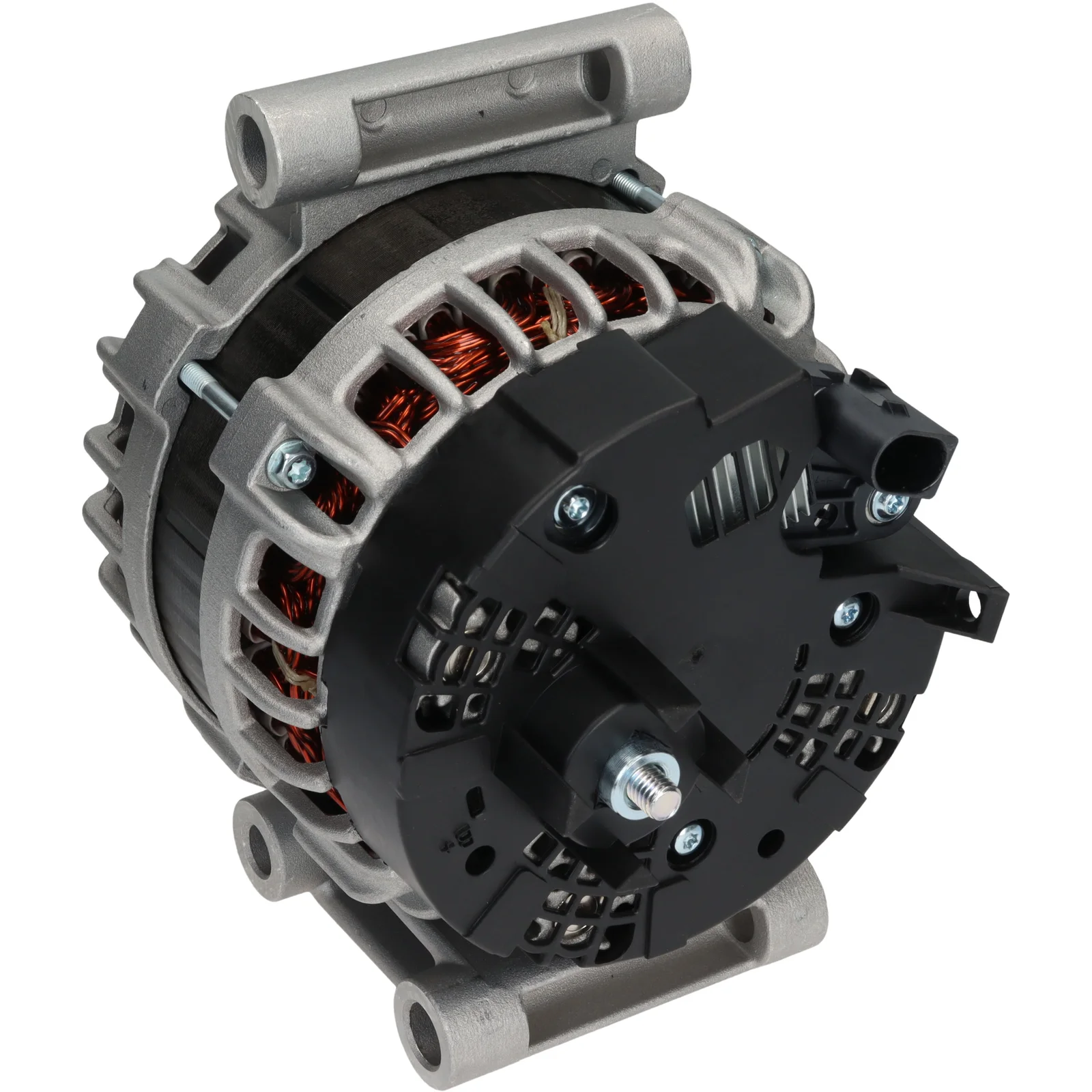

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116782

HC-Cargo Dynamo

Teknisk info:

Spenning: 14, Amp: 210, Rotasjon: CW, Festebrakett avstand: 74,00

Beskrivelse

Spenning: 14
Amp: 210
Bøssing av remskive: 43.50
Bredde/beskyttelsesarm: 97.00
Festebrakettavstand: 74.00
Brakett-hole: 10.30
Remskivens justeringsbrakett-hull 1: 10.30
Bøssing-diameter: 58.70
Riller/remskive: 7
Radius: 87.50
Radius 2: 87.50
B+: M8
Posisjon/B+ i min.: 44
Rotasjon: med urviseren
Plugg nr.: PL174
Total lengde mm: 203.00
Terminaltype: COM
ID-kode: 88
Kommunikasjon: LIN
Bøssing: SP/FW
Vifte: IF
Regulator-type: IR
Annet: Denne generatoren har en COM-terminal på regulatoren. Det anbefales at OEM-nummeret brukes for å sjekke egnethet før bestilling.

Filer

Spesifikasjon

B+ M8
Communication LIN
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 10.30
Plug no. PL174
Bracket hole 10.30
Position/B+ in min. 44
Pulley SP/FW
Pulley dia. 58.70
Pulley dist. 43.50
Radius 87.50
Radius 2 87.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
ID Code 88
Terminal type COM
Voltage 14
Total length 203.00 mm
Width/holder arm 97.00
Amp 210

  • OEM
    BK3T10300EA, BK3T10300EB, BK3Z10346A, F032116782, 1986A00683, 1820604, 1874997, 0125811015, 0125811016, 0125811085, 0125811086

  • Konkurrentreferens
    A0770S, CAL10A05, DRA1798, LRA04178, 8EL011713-921, 28-7787, 595.596.210, 40356, 443414, 444289, 555028RIB, 12090744, 32003008, 0986082187, 0986086040

  • NormaliseratArtNr
    a0770s, bk3t10300ea, bk3t10300eb, bk3z10346a, cal10a05, dra1798, f032116782, lra04178, 8el011713921, 1986a00683, 40356, 287787, 443414, 444289, 555028rib, 1820604, 1874997, 12090744, 32003008, 0125811015, 0125811016, 0125811085, 0125811086, 595596210, 0986082187, 0986086040

  • Passar modeller
    Ford Model: Transit Model series: Transit Box Model type: RWD Type of engine: TDCi Size of motor: 2.2 Brand of engine: UHR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Van From date: 01-08-2015 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCI Size of motor: 2.2 Brand of engine: CVR5 Body: Bus From date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Van From date: 01-08-2015 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CY24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CY24 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5, CY24 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: RWD Type of engine: TDCi Size of motor: 2.2 Brand of engine: UHR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYF5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: DRR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: DRR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
