HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032116790

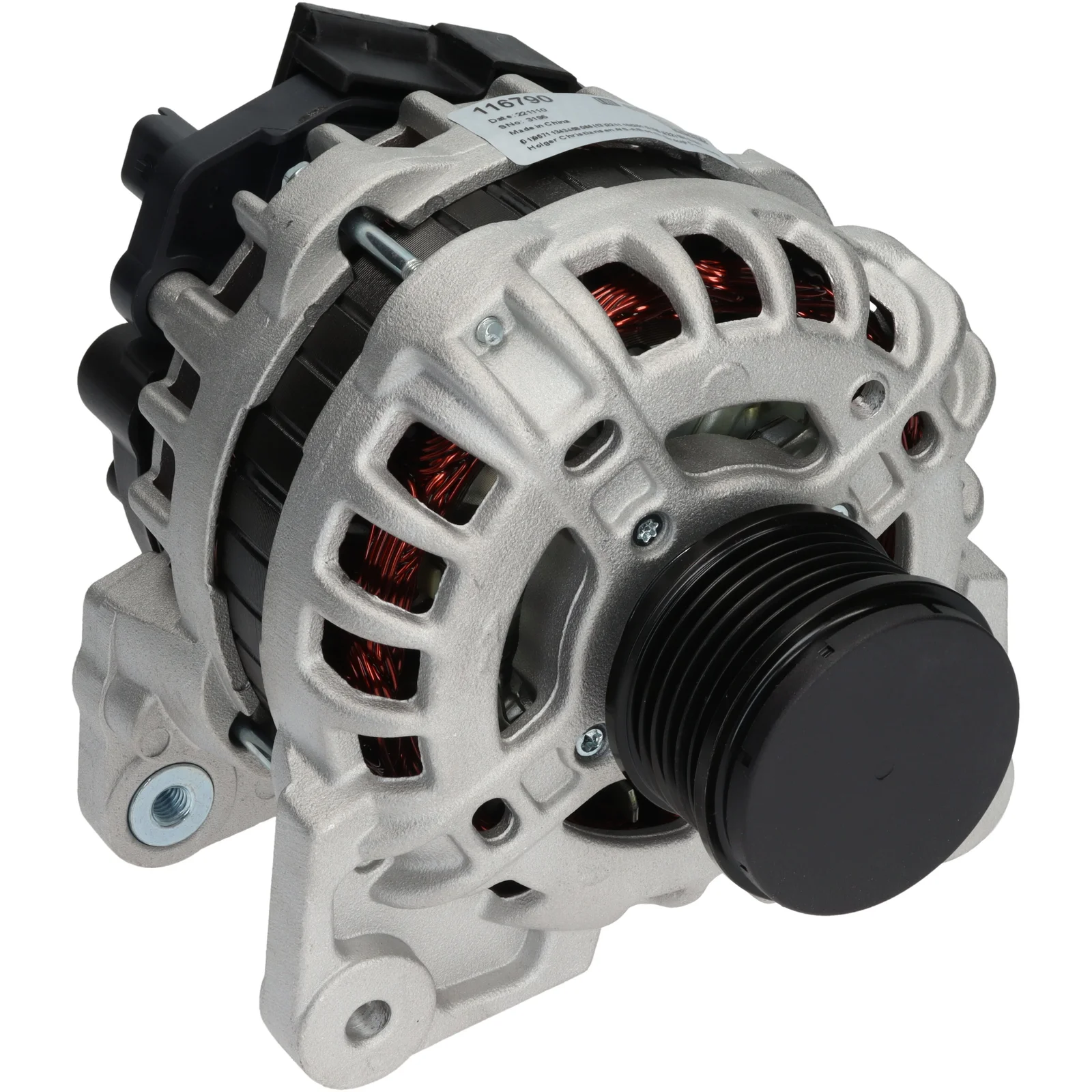

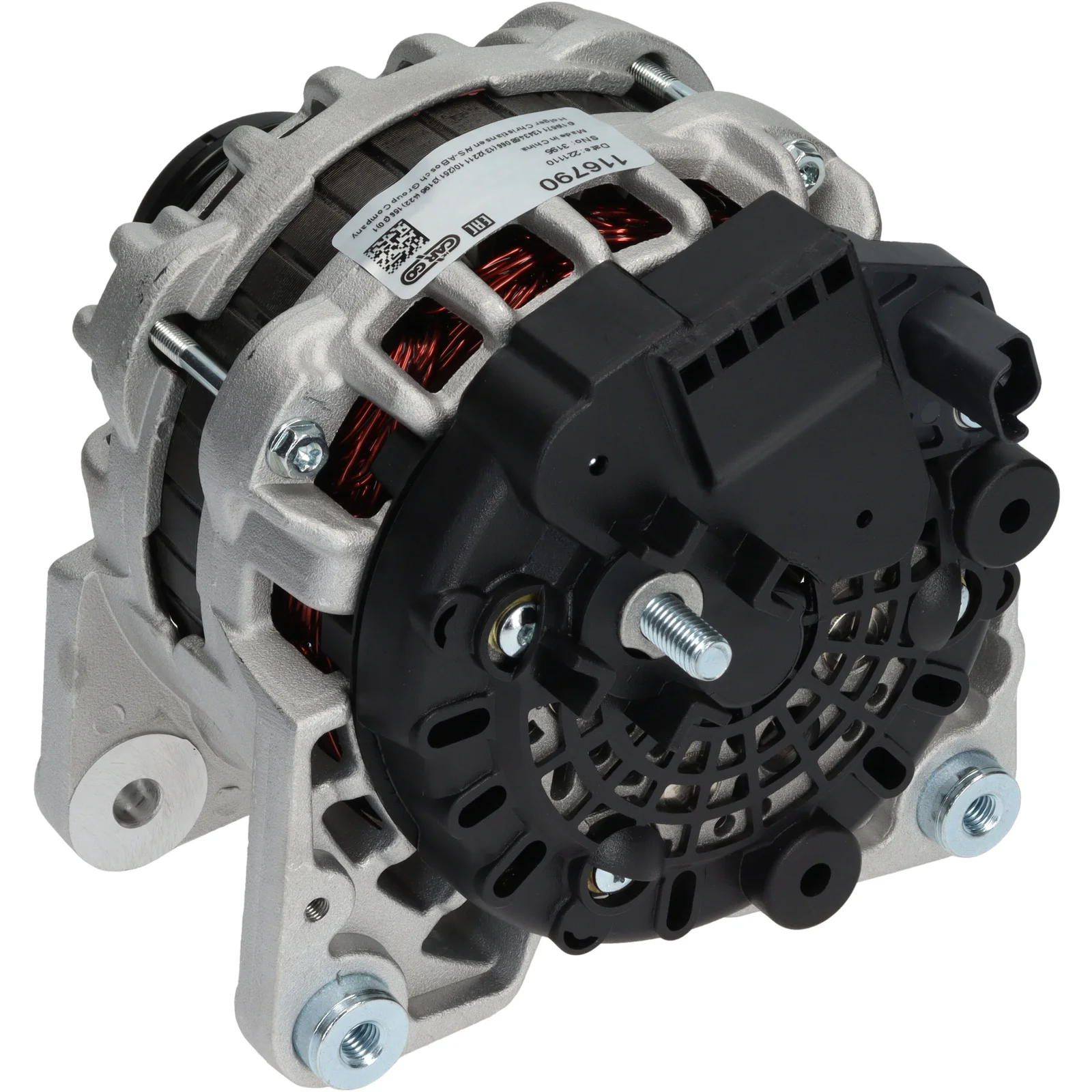

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 14, Amp: 110, Ro.asjon: CW, Monteringsbøssing avstand: 75,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 14
Ampere: 110
Drevskive avstand: 38,80
Bredde/holderarm: 14,50
Festeble avstand: 75,00
Festebukk hull: 8,00
Båndtilpasset bukk hullposisjon: 45
Båndtilpasset bukk hull 1: 8,00
Drevene diameter: 55,00
Riller/drev: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Posisjon/B+ i min.: 44
D+ Størrelse: Plugg
Rotasjon: medurs
Plugg nr.: PL72
Total lengde mm: 183,00
Terminaltype: L-DFM
Drevskive: SP/FW
Vifte: IF
Regulators type: IR

Filer

Spesifikasjon

B+ M8
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 8.00
Position/B+ in min. 44
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.80
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
Total length 183.00 mm
Width/holder arm 14.50
Amp 110

  • OEM
    F000BL061C, F000BL0628, F032116790, 231001956, 231001956C, 231001956R, 231001956RC

  • Konkurrentreferens
    CAL10581, DRA1774, LRA04085, 28-7694, 575.957.110, 9013, 554618RI, 12090863

  • NormaliseratArtNr
    cal10581, dra1774, f000bl061c, f000bl0628, f032116790, lra04085, 9013, 287694, 554618ri, 12090863, 231001956, 231001956c, 231001956r, 231001956rc, 575957110

  • Passar modeller
    Dacia Model: Dokker Model series: Dokker Express Type of engine: 16V Size of motor: 1.6 Brand of engine: K7M812 Body: Van From date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Dacia Model: Dokker Model series: Dokker Express Type of engine: 16V Size of motor: 1.6 Brand of engine: K7M828 Body: Van From date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: K7M812 Body: Estate From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: K7M812 Body: Van From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: K7M828 Body: Estate From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: K7M828 Body: Van From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Dokker Model series: Dokker Type of engine: 16V Size of motor: 1.6 Brand of engine: K7M812 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Dacia Model: Dokker Model series: Dokker Type of engine: 16V Size of motor: 1.6 Brand of engine: K7M828 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Dacia Model: Lodgy Model series: Lodgy Model type: LPG Size of motor: 1.6 Brand of engine: K7M812 Body: Estate From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Lodgy Model series: Lodgy Model type: LPG Size of motor: 1.6 Brand of engine: K7M828 Body: Estate From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
    Dacia Model: Lodgy Model series: Lodgy Size of motor: 1.6 Brand of engine: K7MA8 Body: Estate From date: 01-03-2012 Fuel: Gasoline Approved: Yes
    Dacia Model: Sandero Model series: Sandero Size of motor: 1.6 Brand of engine: K7M812 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Sandero/Stepway Model series: Sandero/Stepway Size of motor: 1.6 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Renault Model: Sandero/Stepway Model series: Sandero/Stepway Size of motor: 1.6 Brand of engine: K7M812 Type description: B8_ Body: Hatchback From date: 01-04-2016 Fuel: Petrol Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsnivå: 14
    Ampere: 110
    Drevskive avstand: 38,80
    Bredde/holderarm: 14,50
    Festeble avstand: 75,00
    Festebukk hull: 8,00
    Båndtilpasset bukk hullposisjon: 45
    Båndtilpasset bukk hull 1: 8,00
    Drevene diameter: 55,00
    Riller/drev: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Posisjon/B+ i min.: 44
    D+ Størrelse: Plugg
    Rotasjon: medurs
    Plugg nr.: PL72
    Total lengde mm: 183,00
    Terminaltype: L-DFM
    Drevskive: SP/FW
    Vifte: IF
    Regulators type: IR

    Filer

  • Spesifikasjon
    B+ M8
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 45
    Plug no. PL72
    Bracket hole 8.00
    Position/B+ in min. 44
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.80
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type L-DFM
    Voltage 14
    Total length 183.00 mm
    Width/holder arm 14.50
    Amp 110
  • Kjøretøymatching

    • OEM
      F000BL061C, F000BL0628, F032116790, 231001956, 231001956C, 231001956R, 231001956RC

    • Konkurrentreferens
      CAL10581, DRA1774, LRA04085, 28-7694, 575.957.110, 9013, 554618RI, 12090863

    • NormaliseratArtNr
      cal10581, dra1774, f000bl061c, f000bl0628, f032116790, lra04085, 9013, 287694, 554618ri, 12090863, 231001956, 231001956c, 231001956r, 231001956rc, 575957110

    • Passar modeller
      Dacia Model: Dokker Model series: Dokker Express Type of engine: 16V Size of motor: 1.6 Brand of engine: K7M812 Body: Van From date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Dacia Model: Dokker Model series: Dokker Express Type of engine: 16V Size of motor: 1.6 Brand of engine: K7M828 Body: Van From date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: K7M812 Body: Estate From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
      Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: K7M812 Body: Van From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
      Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: K7M828 Body: Estate From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
      Dacia Model: Dokker Model series: Dokker Model type: LPG Size of motor: 1.6 Brand of engine: K7M828 Body: Van From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
      Dacia Model: Dokker Model series: Dokker Type of engine: 16V Size of motor: 1.6 Brand of engine: K7M812 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Dacia Model: Dokker Model series: Dokker Type of engine: 16V Size of motor: 1.6 Brand of engine: K7M828 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Dacia Model: Lodgy Model series: Lodgy Model type: LPG Size of motor: 1.6 Brand of engine: K7M812 Body: Estate From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
      Dacia Model: Lodgy Model series: Lodgy Model type: LPG Size of motor: 1.6 Brand of engine: K7M828 Body: Estate From date: 01-11-2013 Fuel: Bi-Fuel Approved: Yes
      Dacia Model: Lodgy Model series: Lodgy Size of motor: 1.6 Brand of engine: K7MA8 Body: Estate From date: 01-03-2012 Fuel: Gasoline Approved: Yes
      Dacia Model: Sandero Model series: Sandero Size of motor: 1.6 Brand of engine: K7M812 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Sandero/Stepway Model series: Sandero/Stepway Size of motor: 1.6 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Renault Model: Sandero/Stepway Model series: Sandero/Stepway Size of motor: 1.6 Brand of engine: K7M812 Type description: B8_ Body: Hatchback From date: 01-04-2016 Fuel: Petrol Approved: Yes
      1 / 3
