Varenr.: F032110952

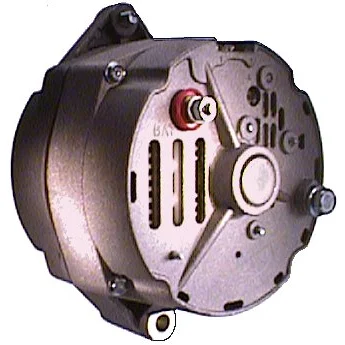

HC-Cargo Dynamo

Teknisk info:

Spenning: 28, Amp: 40, Rotasjon: CW, Remskive dia.: 70.80

Beskrivelse

Spenningsvekt: 28
Ampere: 40
Terminal: W
Drev. avstand: 75,50
Bredde/holderarm: 50,70
Bracket hull: 10,10
Beltesj. justering bracket hull pos.: 60
Beltesj. justering bracket hull 1: 5/16" UNC
Drev. dia.: 70,80
Riller/drev: 1
Radius: 82,00
Radius 2: 84,00
B+: M5
Posisjon/B+ i min.: 8
D+ Størrelse: Propp
Rotasjon: med urviseren
Propp nr.: PL216
Total lengde mm: 166,50
Drev: P
Regulator type: IR
Prod. info: BN
Service: Casemontasje
Anmerkninger: Bytte ut: 10SI.

Filer

Spesifikasjon

B+ M5
Belt. adj. bracket hole 1 5/16" UNC
Belt. adj. brackethole pos. 60
Plug no. PL216
Bracket hole 10.10
Position/B+ in min. 8
Prod. info BN
Pulley P
Pulley dia. 70.80
Pulley dist. 75.50
Radius 82.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Remarks Replacing: 10SI.
Rotation CW
Servicing Case
Grooves/pulley 1
Terminal W
Voltage 28
Total length 166.50 mm
Width/holder arm 50.70
Amp 40

  • OEM
    F032110952, 1101204, 1102918, 1102919, 1103031, 1103123, 1105510, 1105537, 3604476rx

  • Konkurrentreferens
    ALT22022, BAO3203R, CAL60625, drz0143, 8el730168-001, 90-01-3129n, 585.103.404, 646.042.040, 5524, 7176, 7176N, 7179, 48993

  • NormaliseratArtNr
    alt22022, bao3203r, cal60625, drz0143, f032110952, 8el730168001, 5524, 7176, 7176n, 7179, 48993, 1101204, 1102918, 1102919, 1103031, 1103123, 1105510, 1105537, 3604476rx, 90013129n, 585103404, 646042040

  • Passar modeller
    Case Model: 1000 Series Model series: 1150 From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
    Case Model: 1000 Series Model series: 1450 Approved: Yes
    Case Model: 500 Series Model series: 580 Model type: C,D Brand of engine: 188D,207D From date: 01-01-1983 To date: 01-01-1988 Fuel: Diesel Approved: Yes
    Case Model: 600 Series Model series: 680 From date: 01-01-1983 To date: 01-01-1988 Approved: Yes
    Case Model: 700 Series Model series: 780 Approved: Yes
    Case Model: W Model series: W14 Approved: Yes
    Case Model: W Model series: W18 Approved: Yes
    Case Model: W Model series: W24 Approved: Yes
    Case Model: W Model series: W30 Approved: Yes
    Case Model: W Model series: W36 Approved: Yes
    Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
