Varenr.: F032111596

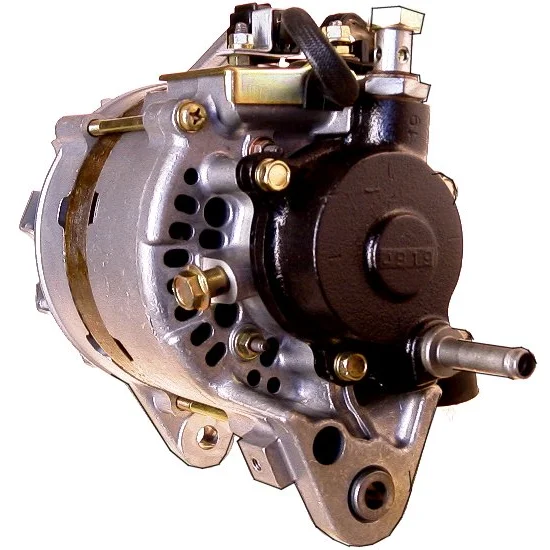

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 28, Amp: 50, Rotasjon: P. h., Monteringsbeslag avstand: 106.00

Beskrivelse

Spenningsverdi: 28
Ampere: 50
Driveskive avstand: 65,00
Bredde/holderarm: 14,00
Festebrakett avstand: 106,00
Bracket-hull: 10,50
Belt. justeringsbrakett hull pos.: 55
Belt. justeringsbrakett hull 1: M8
Driveskivens diameter: 84,40
Skåler/driveskive: 1
Radius: 82,00
Radius 2: 90,00
B+: M6
Posisjon/B+ i min.: 3
Rotasjon: CW
Koblingsnummer: PL15
Total lengde mm: 277,00
Driveskive: P
Regulator: uten
Vac. pumpe: Ja
Produsentinfo: BN
Service: Toyota
Merknader: Regulator: HC-CARGO 132628

Filer

Spesifikasjon

B+ M6
Mount. bracket dist. 106.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL15
Bracket hole 10.50
Position/B+ in min. 3
Prod. info BN
Pulley P
Pulley dia. 84.40
Pulley dist. 65.00
Radius 82.00
Radius 2 90.00
Regulator w/o
Remarks Regulator: HC-CARGO 132628
Rotation CW
Servicing Toyota
Grooves/pulley 1
Vac. pump Yes
Voltage 28
Total length 277.00 mm
Width/holder arm 14.00
Amp 50

  • OEM
    F032111596, 27020-68040, 27020-68130, 27030-68040, 27030-68120, 100210-2302, 100210-2980, 121000-0041, 121000-1770

  • Konkurrentreferens
    A6651S, CAL40601, dra3748, LRA02392, 8el737165-001, 39-51.221, 47-0884, 235.020.254, 235.137.404, 5572, 56084, 119544, 401125, 12060345, 12060396

  • NormaliseratArtNr
    a6651s, cal40601, dra3748, f032111596, lra02392, 8el737165001, 5572, 56084, 119544, 401125, 470884, 3951221, 12060345, 12060396, 235020254, 235137404, 1002102302, 1002102980, 1210000041, 1210001770, 2702068040, 2702068130, 2703068040, 2703068120

  • Passar modeller
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H From date: 01-10-1982 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ47_V From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ60 From date: 01-01-1982 To date: 01-12-1985 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ60 From date: 01-10-1981 To date: 01-01-1988 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.0 Brand of engine: 12HT Type description: HJ61 From date: 01-10-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsverdi: 28
    Ampere: 50
    Driveskive avstand: 65,00
    Bredde/holderarm: 14,00
    Festebrakett avstand: 106,00
    Bracket-hull: 10,50
    Belt. justeringsbrakett hull pos.: 55
    Belt. justeringsbrakett hull 1: M8
    Driveskivens diameter: 84,40
    Skåler/driveskive: 1
    Radius: 82,00
    Radius 2: 90,00
    B+: M6
    Posisjon/B+ i min.: 3
    Rotasjon: CW
    Koblingsnummer: PL15
    Total lengde mm: 277,00
    Driveskive: P
    Regulator: uten
    Vac. pumpe: Ja
    Produsentinfo: BN
    Service: Toyota
    Merknader: Regulator: HC-CARGO 132628

    Filer

  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 106.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL15
    Bracket hole 10.50
    Position/B+ in min. 3
    Prod. info BN
    Pulley P
    Pulley dia. 84.40
    Pulley dist. 65.00
    Radius 82.00
    Radius 2 90.00
    Regulator w/o
    Remarks Regulator: HC-CARGO 132628
    Rotation CW
    Servicing Toyota
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 28
    Total length 277.00 mm
    Width/holder arm 14.00
    Amp 50
  • Kjøretøymatching

    • OEM
      F032111596, 27020-68040, 27020-68130, 27030-68040, 27030-68120, 100210-2302, 100210-2980, 121000-0041, 121000-1770

    • Konkurrentreferens
      A6651S, CAL40601, dra3748, LRA02392, 8el737165-001, 39-51.221, 47-0884, 235.020.254, 235.137.404, 5572, 56084, 119544, 401125, 12060345, 12060396

    • NormaliseratArtNr
      a6651s, cal40601, dra3748, f032111596, lra02392, 8el737165001, 5572, 56084, 119544, 401125, 470884, 3951221, 12060345, 12060396, 235020254, 235137404, 1002102302, 1002102980, 1210000041, 1210001770, 2702068040, 2702068130, 2703068040, 2703068120

    • Passar modeller
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H From date: 01-10-1982 To date: 01-12-1989 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ47_V From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ60 From date: 01-01-1982 To date: 01-12-1985 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.0 Brand of engine: 2H Type description: HJ60 From date: 01-10-1981 To date: 01-01-1988 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.0 Brand of engine: 12HT Type description: HJ61 From date: 01-10-1985 To date: 01-12-1989 Fuel: Diesel Approved: Yes
