Varenr.: F032111614

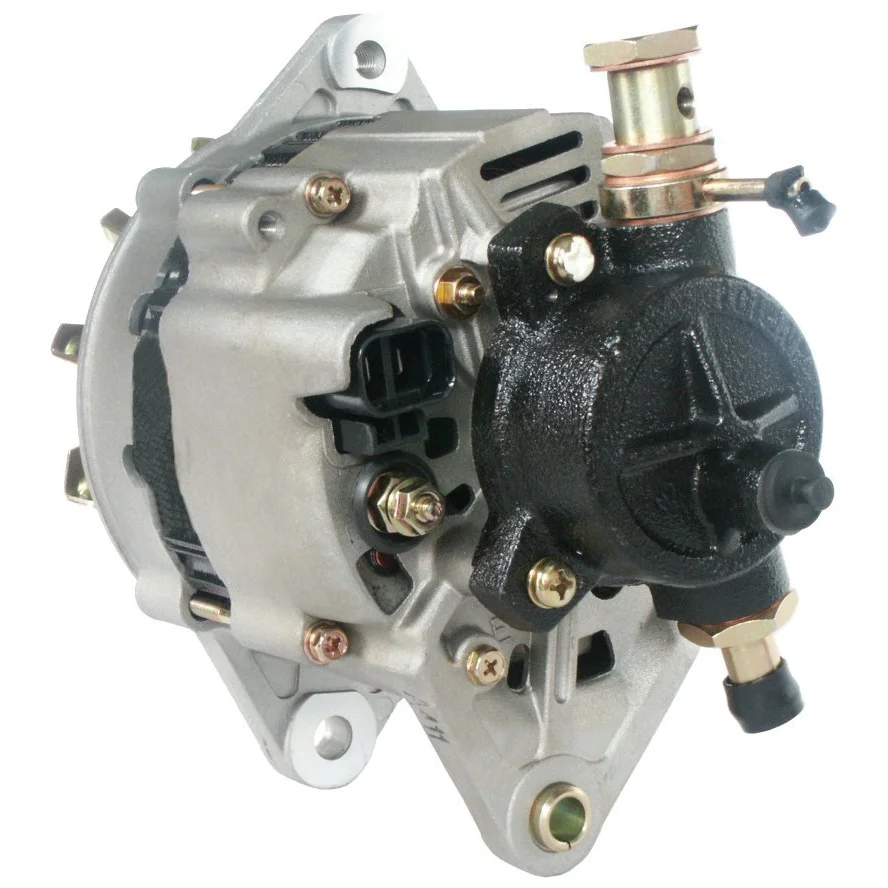

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 28, Amp: 35, Rotasjon: DFW, Monteringsbrakett avstand: 80,50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 28
Ampere: 35
Driveskive avstand: 42.00
Bredde/holderarm: 13.50
Monteringsbrakett avstand: 80.50
Brakett hull: 10.50
Båndjust. brakett hull pos.: 60
Båndjust. brakett hull 1: M8
Driveskivens diameter: 83.00
Riller/driveskive: 2
Radius: 89.50
Radius 2: 83.00
B+: M5
Posisjon/B+ i min.: 45
Rotasjon: Klokka: CW
Stiku nummer: PL07
Total lengde mm: 249.00
Driveskive: DP
Regulator type: IR
Vakuumpumpe: Ja
Produsjonsinfo: BN
Vedlikehold: Nissan

Filer

Spesifikasjon

B+ M5
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley DP
Pulley dia. 83.00
Pulley dist. 42.00
Radius 89.50
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 28
Total length 249.00 mm
Width/holder arm 13.50
Amp 35

  • OEM
    F032111614, ja672ir, lr235-402, lr235-404, lr235-404c, lr235-404s, lr235-404t, lr235-405, lr235-405s, lr235-405t, 23100-c8604

  • Konkurrentreferens
    A2013, ALT32064, CAL20600, dra3334, DRA3334N, LRA02431, 8el726387-001, 28-51.141, 48-0889, 166.805.035, 227.114.354, 5357, 23431N, 23431R, 40672RI, 56187, 119039, 210118, 210118A, 437796, 9051141, 9212357, 12060244, 0986080170, 944390511410

  • NormaliseratArtNr
    a2013, alt32064, cal20600, dra3334, dra3334n, f032111614, ja672ir, lr235402, lr235404, lr235404c, lr235404s, lr235404t, lr235405, lr235405s, lr235405t, lra02431, 8el726387001, 5357, 23100c8604, 23431n, 23431r, 40672ri, 56187, 119039, 210118, 210118a, 437796, 480889, 2851141, 9051141, 9212357, 12060244, 166805035, 227114354, 0986080170, 944390511410

  • Passar modeller
    Nissan Model: Patrol Model series: Patrol Size of motor: 2.8 Brand of engine: L28 Type description: 260 From date: 01-05-1986 To date: 01-06-1990 Fuel: Gasoline Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.2 Brand of engine: SD33T From date: 01-08-1988 To date: 01-06-1990 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.2 Brand of engine: SD33T Type description: W260 From date: 01-08-1988 To date: 01-06-1990 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.3 Brand of engine: SD33 Type description: 160 From date: 01-11-1979 To date: 01-08-1988 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 3.2 Brand of engine: SD33T Type description: 160 From date: 01-07-1983 To date: 01-08-1988 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 28
    Ampere: 35
    Driveskive avstand: 42.00
    Bredde/holderarm: 13.50
    Monteringsbrakett avstand: 80.50
    Brakett hull: 10.50
    Båndjust. brakett hull pos.: 60
    Båndjust. brakett hull 1: M8
    Driveskivens diameter: 83.00
    Riller/driveskive: 2
    Radius: 89.50
    Radius 2: 83.00
    B+: M5
    Posisjon/B+ i min.: 45
    Rotasjon: Klokka: CW
    Stiku nummer: PL07
    Total lengde mm: 249.00
    Driveskive: DP
    Regulator type: IR
    Vakuumpumpe: Ja
    Produsjonsinfo: BN
    Vedlikehold: Nissan

    Filer

  • Spesifikasjon
    B+ M5
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley DP
    Pulley dia. 83.00
    Pulley dist. 42.00
    Radius 89.50
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 28
    Total length 249.00 mm
    Width/holder arm 13.50
    Amp 35
  • Kjøretøymatching

    • OEM
      F032111614, ja672ir, lr235-402, lr235-404, lr235-404c, lr235-404s, lr235-404t, lr235-405, lr235-405s, lr235-405t, 23100-c8604

    • Konkurrentreferens
      A2013, ALT32064, CAL20600, dra3334, DRA3334N, LRA02431, 8el726387-001, 28-51.141, 48-0889, 166.805.035, 227.114.354, 5357, 23431N, 23431R, 40672RI, 56187, 119039, 210118, 210118A, 437796, 9051141, 9212357, 12060244, 0986080170, 944390511410

    • NormaliseratArtNr
      a2013, alt32064, cal20600, dra3334, dra3334n, f032111614, ja672ir, lr235402, lr235404, lr235404c, lr235404s, lr235404t, lr235405, lr235405s, lr235405t, lra02431, 8el726387001, 5357, 23100c8604, 23431n, 23431r, 40672ri, 56187, 119039, 210118, 210118a, 437796, 480889, 2851141, 9051141, 9212357, 12060244, 166805035, 227114354, 0986080170, 944390511410

    • Passar modeller
      Nissan Model: Patrol Model series: Patrol Size of motor: 2.8 Brand of engine: L28 Type description: 260 From date: 01-05-1986 To date: 01-06-1990 Fuel: Gasoline Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.2 Brand of engine: SD33T From date: 01-08-1988 To date: 01-06-1990 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.2 Brand of engine: SD33T Type description: W260 From date: 01-08-1988 To date: 01-06-1990 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.3 Brand of engine: SD33 Type description: 160 From date: 01-11-1979 To date: 01-08-1988 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 3.2 Brand of engine: SD33T Type description: 160 From date: 01-07-1983 To date: 01-08-1988 Fuel: Diesel Approved: Yes
