Varenr.: F032112261

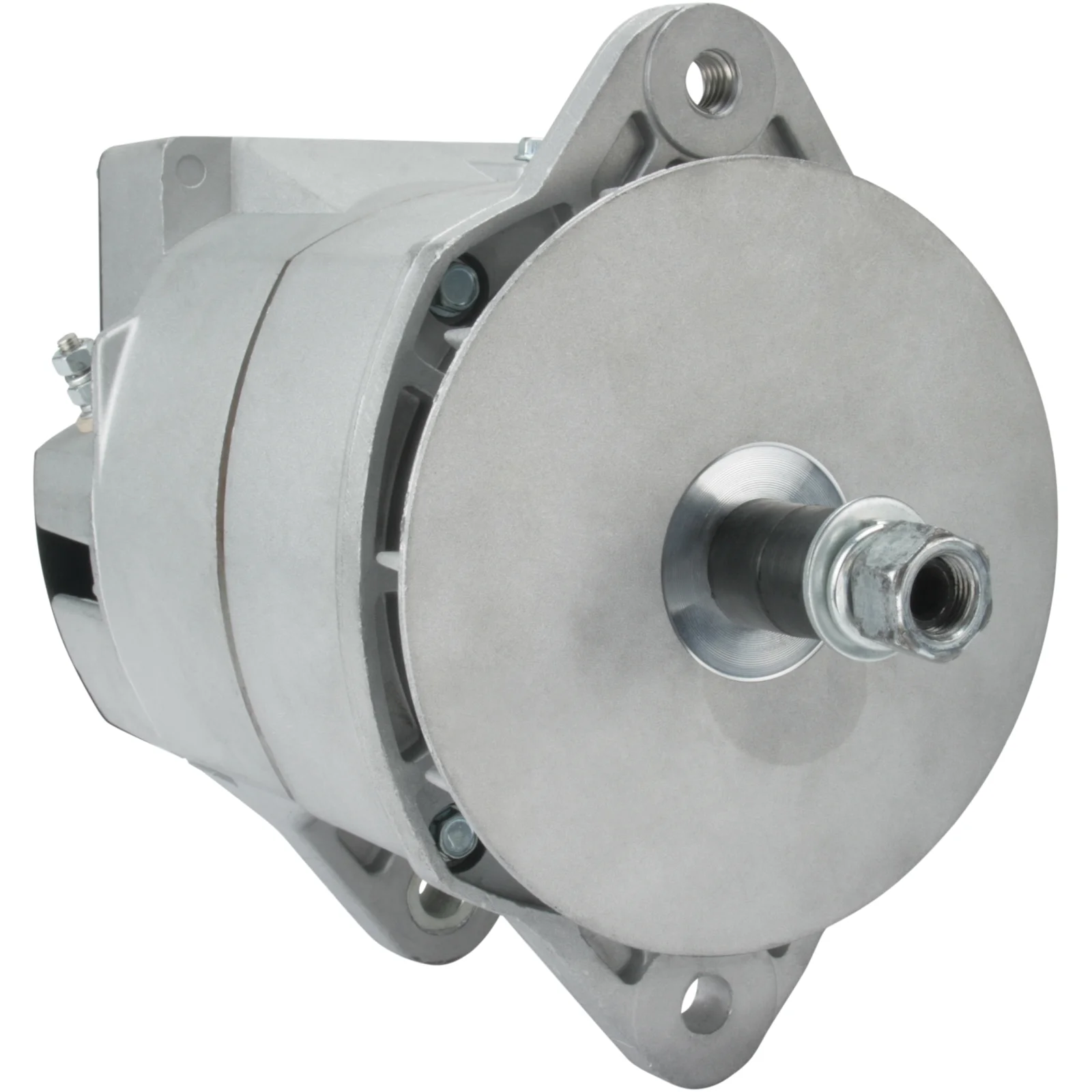

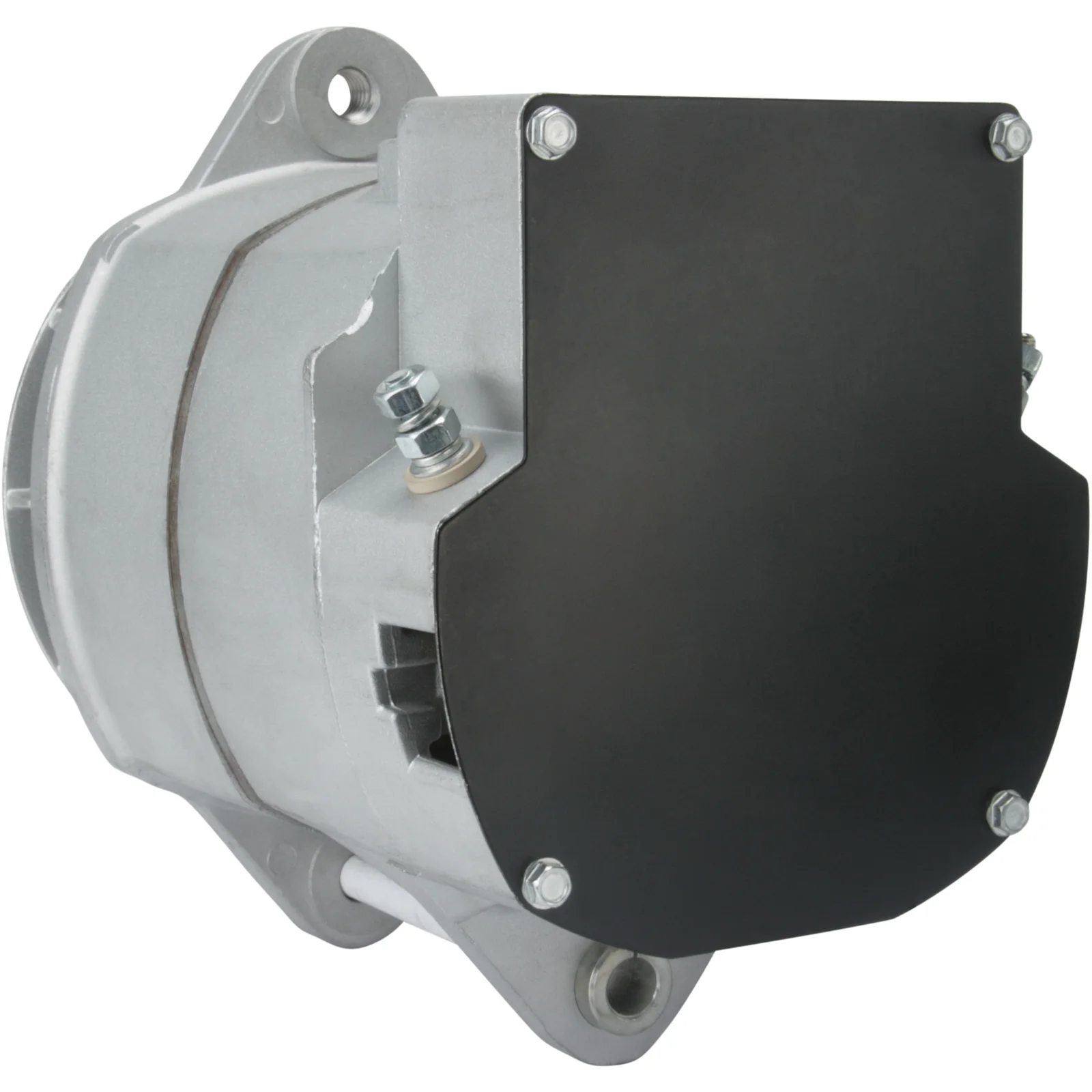

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 28, Amp: 60, Monteringsbøssing avstand: 101,00, Radius: 99,00

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 28
Ampere: 60
Isolert retur: Ja
Bredde/holderarm: 14.00
Feste beslaget avstand: 101.00
BESLAGSHULL: 13.00
Belt. juster. beslagshull pos.: 60
Belt. juster. beslagshull 1: 1/2" UNC
Radius: 99.00
Radius 2: 99.00
B+: 1/4" UNF
Posisjon/B+ i min.: 10
Total lengde mm: 268.00
En ledning tilkobling (Selvutløsende): Ja
Bøssing: uten
Regulator type: IR
Prod. info: BN
Servicing: Caterpillar
Info: Akseldiameter 22,20 mm
Merk: Erstatter: 30SI.

Spesifikasjon

B+ 1/4" UNF
Mount. bracket dist. 101.00
Belt. adj. bracket hole 1 1/2" UNC
One Wire hookup (Self exciting) Yes
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 10
Prod. info BN
Pulley w/o
Radius 99.00
Radius 2 99.00
Regulator type IR
Remarks Replacing: 30SI.
Servicing Caterpillar
Info Shaft 22.20 mm diameter
Insulated return Yes
Voltage 28
Total length 268.00 mm
Width/holder arm 14.00
Amp 60
  • OEM

    0R5203, F032112261, OR3667, OR3669, 4n3986, 333-1184, 100211-0890, 100211-6100, 1005045, 1117734, 1117746, 1117805, 1117826, 1117831, 1117834, 1117838, 1142401, 3000347, 3000347rx, 3675103RX, 10459002, 10459057, 10461238
  • Konkurrentreferens

    ALT22009, BAO3277, BAX1441001, CAL11631, CAL60602, DRA0331, 48-0636, 646.001.060, 646.052.050, 7263, 7263N, 7263R, 7975N, 12060N, 75647, 1117734, 32992870, 32992877
  • NormaliseratArtNr

    0r5203, alt22009, bao3277, bax1441001, cal11631, cal60602, dra0331, f032112261, or3667, or3669, 4n3986, 7263, 7263n, 7263r, 7975n, 12060n, 75647, 480636, 1005045, 1117734, 1117746, 1117805, 1117826, 1117831, 1117834, 1117838, 1142401, 3000347, 3000347rx, 3331184, 3675103rx, 10459002, 10459057, 10461238, 32992870, 32992877, 646001060, 646052050, 1002110890, 1002116100
  • Passar modeller

    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivelse
    Spenning: 28
    Ampere: 60
    Isolert retur: Ja
    Bredde/holderarm: 14.00
    Feste beslaget avstand: 101.00
    BESLAGSHULL: 13.00
    Belt. juster. beslagshull pos.: 60
    Belt. juster. beslagshull 1: 1/2" UNC
    Radius: 99.00
    Radius 2: 99.00
    B+: 1/4" UNF
    Posisjon/B+ i min.: 10
    Total lengde mm: 268.00
    En ledning tilkobling (Selvutløsende): Ja
    Bøssing: uten
    Regulator type: IR
    Prod. info: BN
    Servicing: Caterpillar
    Info: Akseldiameter 22,20 mm
    Merk: Erstatter: 30SI.
  • Spesifikasjon
    B+ 1/4" UNF
    Mount. bracket dist. 101.00
    Belt. adj. bracket hole 1 1/2" UNC
    One Wire hookup (Self exciting) Yes
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 10
    Prod. info BN
    Pulley w/o
    Radius 99.00
    Radius 2 99.00
    Regulator type IR
    Remarks Replacing: 30SI.
    Servicing Caterpillar
    Info Shaft 22.20 mm diameter
    Insulated return Yes
    Voltage 28
    Total length 268.00 mm
    Width/holder arm 14.00
    Amp 60
  • Kjøretøymatching
    • OEM

      0R5203, F032112261, OR3667, OR3669, 4n3986, 333-1184, 100211-0890, 100211-6100, 1005045, 1117734, 1117746, 1117805, 1117826, 1117831, 1117834, 1117838, 1142401, 3000347, 3000347rx, 3675103RX, 10459002, 10459057, 10461238
    • Konkurrentreferens

      ALT22009, BAO3277, BAX1441001, CAL11631, CAL60602, DRA0331, 48-0636, 646.001.060, 646.052.050, 7263, 7263N, 7263R, 7975N, 12060N, 75647, 1117734, 32992870, 32992877
    • NormaliseratArtNr

      0r5203, alt22009, bao3277, bax1441001, cal11631, cal60602, dra0331, f032112261, or3667, or3669, 4n3986, 7263, 7263n, 7263r, 7975n, 12060n, 75647, 480636, 1005045, 1117734, 1117746, 1117805, 1117826, 1117831, 1117834, 1117838, 1142401, 3000347, 3000347rx, 3331184, 3675103rx, 10459002, 10459057, 10461238, 32992870, 32992877, 646001060, 646052050, 1002110890, 1002116100
    • Passar modeller

      Caterpillar Model: Various Models Model series: Various Models Approved: Yes
