Varenr.: F032112477

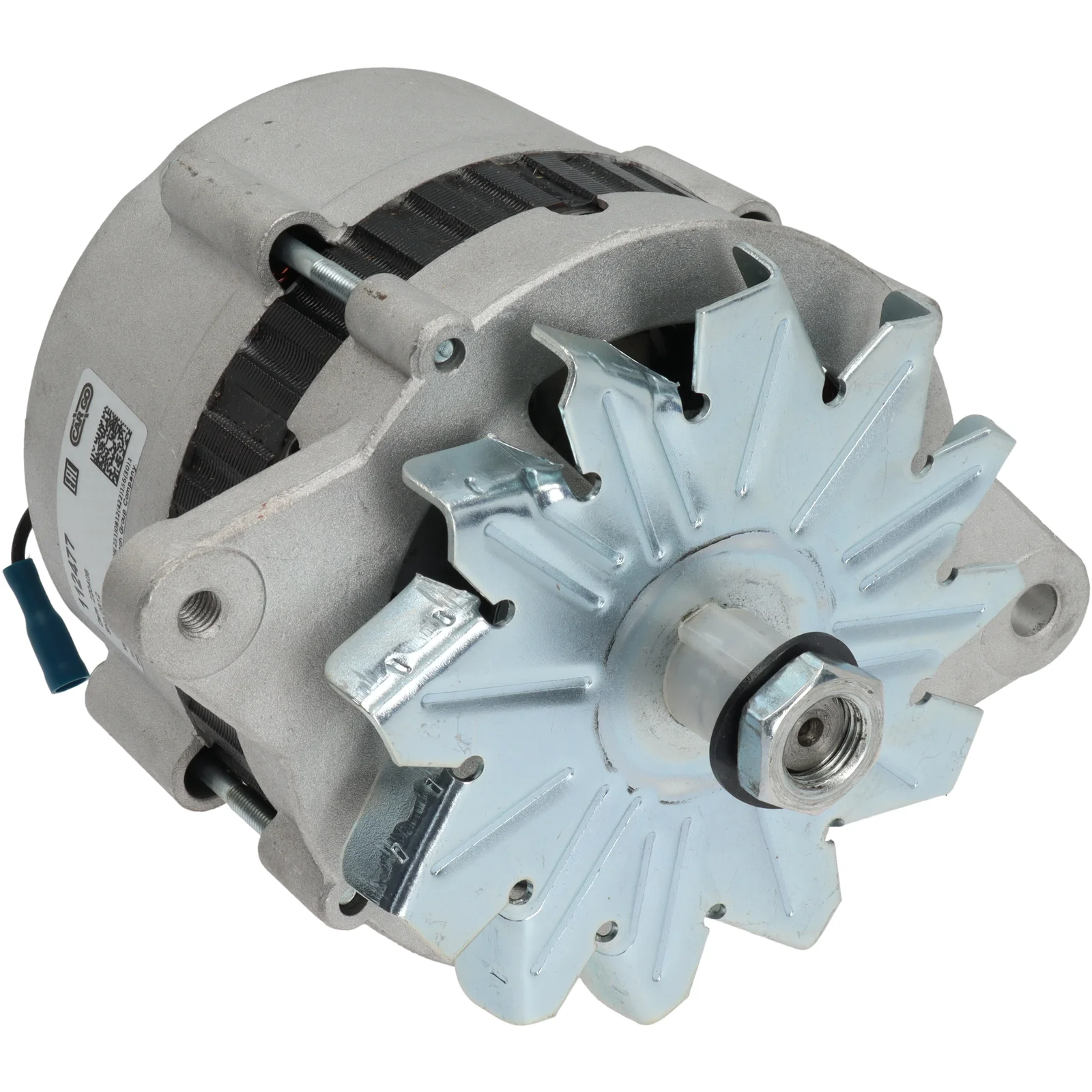

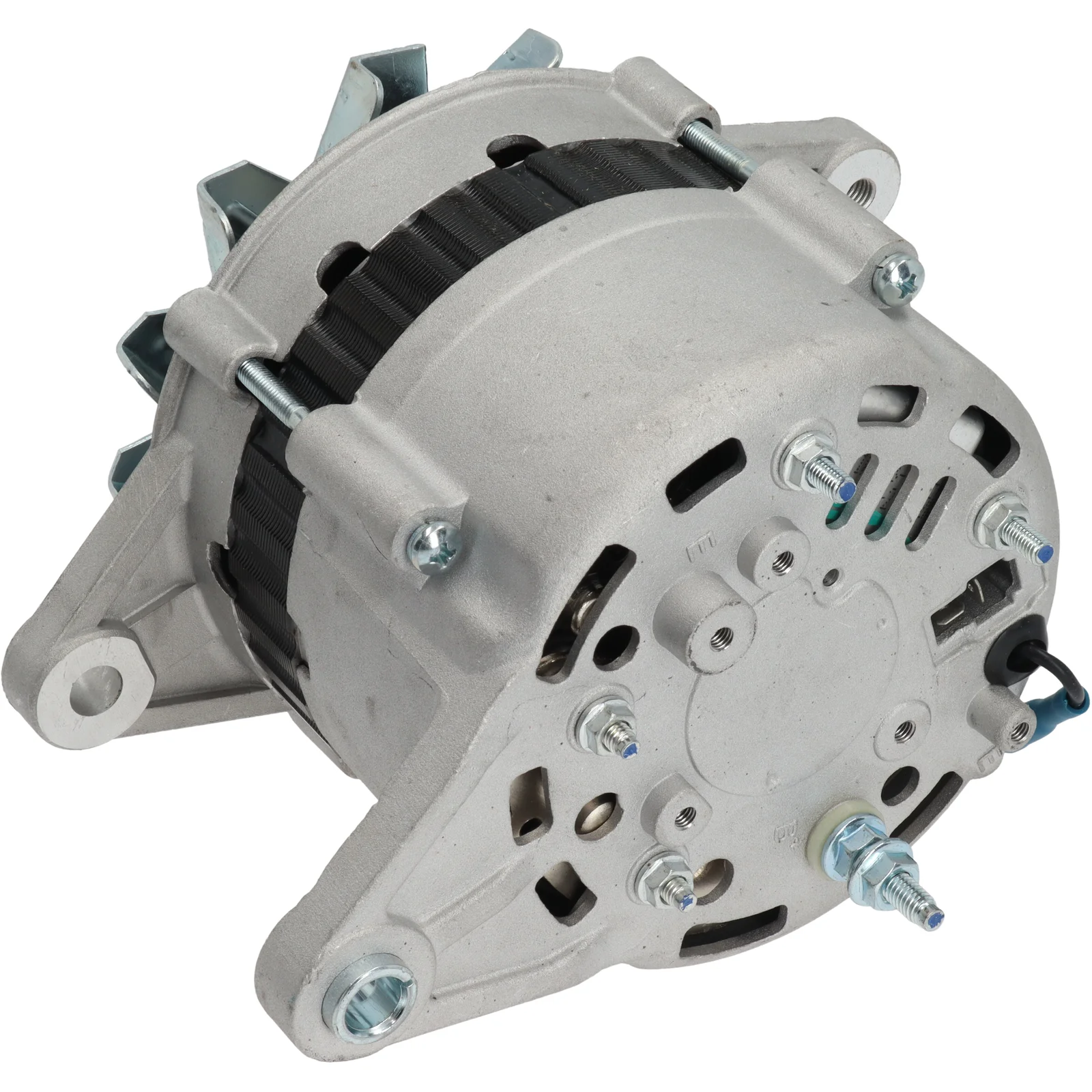

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 28, Amp: 25, Rotasjon: CW, Monterringsbøssing avstand: 84.00

Beskrivelse

Spenningsspenning: 28
Ampere: 25
Bredde/bærearm: 13,00
Monteringskobbing avstand: 84,00
Koblinghull: 10,20
Båndjustering koblingshull pos.: 60
Båndjustering koblingshull 1: M8
Radius: 90,00
Radius 2: 85,00
B+: M6
Posisjon/B+ i min.: 15
D+ Størrelse: Plugg
Rotasjon: med urviseren
Pluggnr.: PL09
Total lengde mm: 185,00
Dreving: uten
Regulator type: innslagsrelé | Solenoid
Produktinfo: BN/OE
Service: Mercury

Spesifikasjon

B+ M6
Mount. bracket dist. 84.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.20
Position/B+ in min. 15
Prod. info BN/OE
Pulley w/o
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Mercury
Voltage 28
Total length 185.00 mm
Width/holder arm 13.00
Amp 25
  • Beskrivelse
    Spenningsspenning: 28
    Ampere: 25
    Bredde/bærearm: 13,00
    Monteringskobbing avstand: 84,00
    Koblinghull: 10,20
    Båndjustering koblingshull pos.: 60
    Båndjustering koblingshull 1: M8
    Radius: 90,00
    Radius 2: 85,00
    B+: M6
    Posisjon/B+ i min.: 15
    D+ Størrelse: Plugg
    Rotasjon: med urviseren
    Pluggnr.: PL09
    Total lengde mm: 185,00
    Dreving: uten
    Regulator type: innslagsrelé | Solenoid
    Produktinfo: BN/OE
    Service: Mercury
  • Spesifikasjon
    B+ M6
    Mount. bracket dist. 84.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 10.20
    Position/B+ in min. 15
    Prod. info BN/OE
    Pulley w/o
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Mercury
    Voltage 28
    Total length 185.00 mm
    Width/holder arm 13.00
    Amp 25
