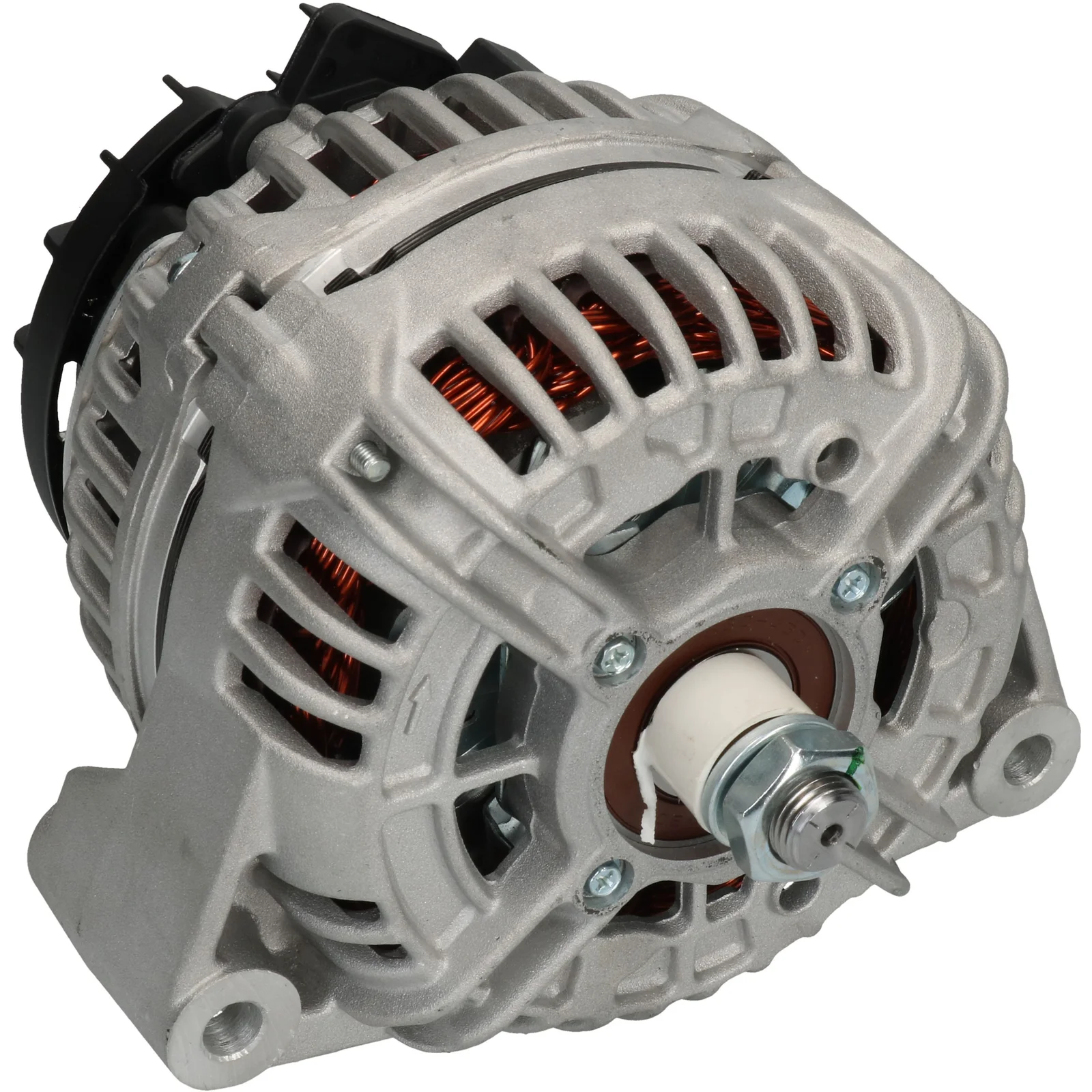

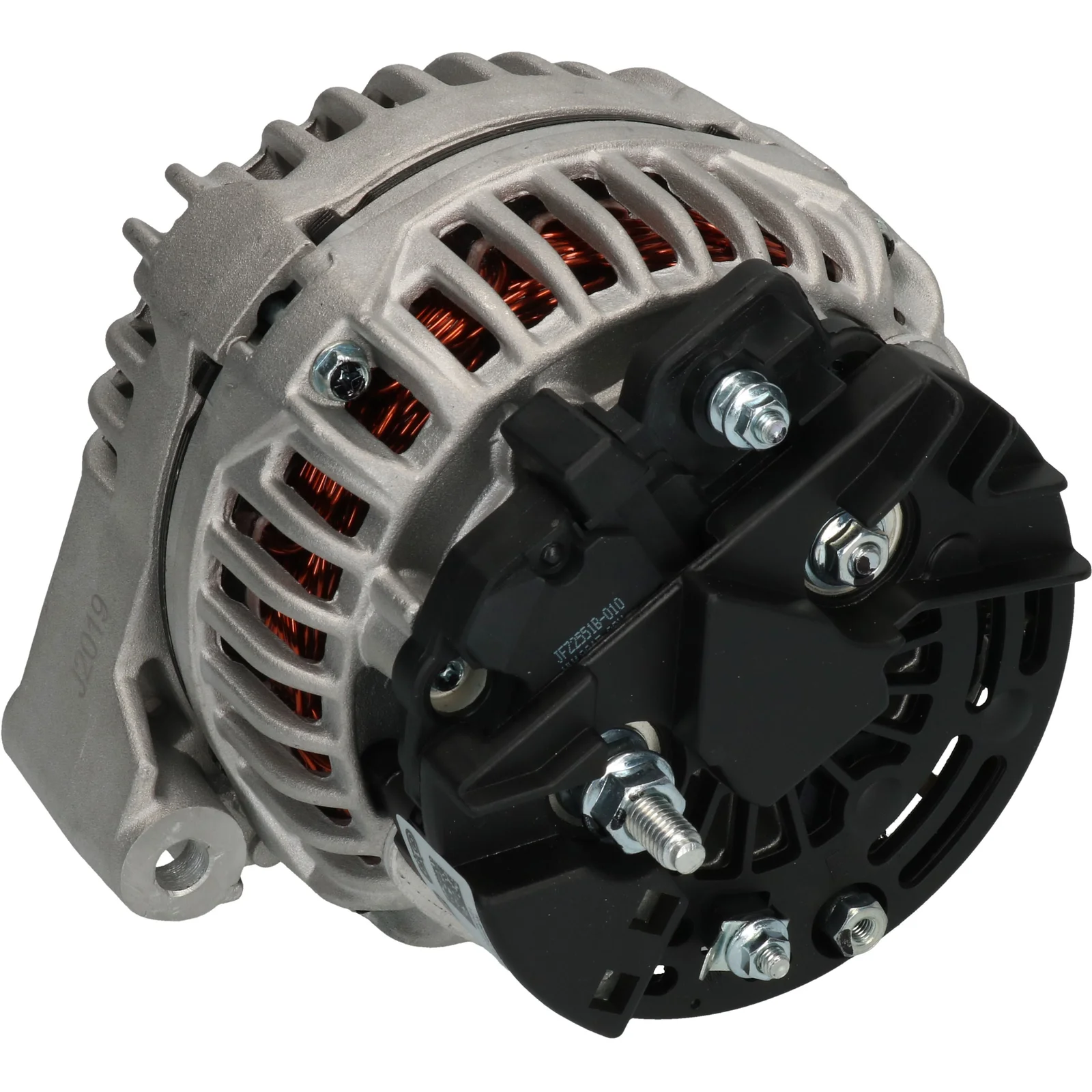

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114110

HC-Cargo Dynamo

Teknisk info:

Spenningsregulator: 28, Amp: 80, Radius: 90.00, Radius 2: 90.00

Beskrivelse

Spenningsverdi: 28
Amp: 80
Terminal: W
Bredde/festearm: 56.00
Bøssinghull: 10.20
Båndjusteringsbolthull pos.: 50
Båndjusteringsbolthull 1: 10.20
Radius: 90.00
Radius 2: 90.00
B+: M8
Posisjon/B+ i min.: 15
D+ Størrelse: M5
Total lengde mm: 190.00
Drev: uten
Vifte: IF
Regulator type: IR
Prod. info: BN

Filer

Spesifikasjon

B+ M8
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 50
Bracket hole 10.20
Position/B+ in min. 15
Prod. info BN
Pulley w/o
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Fan IF
Terminal W
Voltage 28
Total length 190.00 mm
Width/holder arm 56.00
Amp 80

  • OEM
    AAN5116, AAN5121, AAN8189, F032114110, 11.203.043, 11.203.064, 11.204.280, 01181735, 1181735, 01182043, 1182043, 01182399, 1182399, 01183191, 1183191, 01183604, 05729385, 08821292

  • Konkurrentreferens
    A9172(LETRIKA), CAL21600, DRA0252, DRA0252N, IA1031, LRA03040, MG473, 48-5652

  • NormaliseratArtNr
    a9172letrika, aan5116, aan5121, aan8189, cal21600, dra0252, dra0252n, f032114110, ia1031, lra03040, mg473, 485652, 01181735, 1181735, 01182043, 1182043, 01182399, 1182399, 01183191, 1183191, 01183604, 05729385, 08821292, 11203043, 11203064, 11204280

  • Passar modeller
    Bomag Model: BW 211 D-4 & BW 211 PD-4 Model series: BW 211 D-4 & BW 211 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 211 D-40 & BW 211 PD-40 Model series: BW 211 D-40 & BW 211 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 211 SERIES Model series: BW 211 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 212 D-40 & BW 212 PD-40 Model series: BW 212 D-40 & BW 212 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model series: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 D-40 & BW 213 PD-40 Model series: BW 213 D-40 & BW 213 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model series: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC (VIBRATORY PLATES) Model series: BW 213 DH-4 BVC (VIBRATORY PLATES) Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC Model series: BW 213 DH-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DI-4 BVC Model series: BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 SERIES Model series: BW 213 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 214 & BW 216 SERIES Model series: BW 214 & BW 216 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 214 DH-4 & BW 214 PDH-4 Model series: BW 214 DH-4 & BW 214 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 216 D-4 & BW 216 PD-4 Model series: BW 216 D-4 & BW 216 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW211-40 SERIES Model series: BW211-40 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW213D-40 Model series: BW213D-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: C840D SERIES Model series: C840D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: C850D SERIES Model series: C850D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
    Hyundai Model: HR110C-9 Model series: HR110C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Hyundai Model: HR120C-9 Model series: HR120C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Hyundai Model: HR140C-9 Model series: HR140C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    KHD Model: Engine Model series: Various Models Approved: Yes
    1 / 5
  • Beskrivelse
    Spenningsverdi: 28
    Amp: 80
    Terminal: W
    Bredde/festearm: 56.00
    Bøssinghull: 10.20
    Båndjusteringsbolthull pos.: 50
    Båndjusteringsbolthull 1: 10.20
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Posisjon/B+ i min.: 15
    D+ Størrelse: M5
    Total lengde mm: 190.00
    Drev: uten
    Vifte: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Spesifikasjon
    B+ M8
    Belt. adj. bracket hole 1 10.20
    Belt. adj. brackethole pos. 50
    Bracket hole 10.20
    Position/B+ in min. 15
    Prod. info BN
    Pulley w/o
    Radius 90.00
    D+ Size M5
    Radius 2 90.00
    Regulator type IR
    Fan IF
    Terminal W
    Voltage 28
    Total length 190.00 mm
    Width/holder arm 56.00
    Amp 80
  • Kjøretøymatching

    • OEM
      AAN5116, AAN5121, AAN8189, F032114110, 11.203.043, 11.203.064, 11.204.280, 01181735, 1181735, 01182043, 1182043, 01182399, 1182399, 01183191, 1183191, 01183604, 05729385, 08821292

    • Konkurrentreferens
      A9172(LETRIKA), CAL21600, DRA0252, DRA0252N, IA1031, LRA03040, MG473, 48-5652

    • NormaliseratArtNr
      a9172letrika, aan5116, aan5121, aan8189, cal21600, dra0252, dra0252n, f032114110, ia1031, lra03040, mg473, 485652, 01181735, 1181735, 01182043, 1182043, 01182399, 1182399, 01183191, 1183191, 01183604, 05729385, 08821292, 11203043, 11203064, 11204280

    • Passar modeller
      Bomag Model: BW 211 D-4 & BW 211 PD-4 Model series: BW 211 D-4 & BW 211 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 211 D-40 & BW 211 PD-40 Model series: BW 211 D-40 & BW 211 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 211 SERIES Model series: BW 211 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 212 D-40 & BW 212 PD-40 Model series: BW 212 D-40 & BW 212 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model series: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 D-40 & BW 213 PD-40 Model series: BW 213 D-40 & BW 213 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model series: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC (VIBRATORY PLATES) Model series: BW 213 DH-4 BVC (VIBRATORY PLATES) Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC Model series: BW 213 DH-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DI-4 BVC Model series: BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 SERIES Model series: BW 213 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 214 & BW 216 SERIES Model series: BW 214 & BW 216 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 214 DH-4 & BW 214 PDH-4 Model series: BW 214 DH-4 & BW 214 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 216 D-4 & BW 216 PD-4 Model series: BW 216 D-4 & BW 216 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW211-40 SERIES Model series: BW211-40 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW213D-40 Model series: BW213D-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: C840D SERIES Model series: C840D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: C850D SERIES Model series: C850D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
      Hyundai Model: HR110C-9 Model series: HR110C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Hyundai Model: HR120C-9 Model series: HR120C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Hyundai Model: HR140C-9 Model series: HR140C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      KHD Model: Engine Model series: Various Models Approved: Yes
      1 / 5
