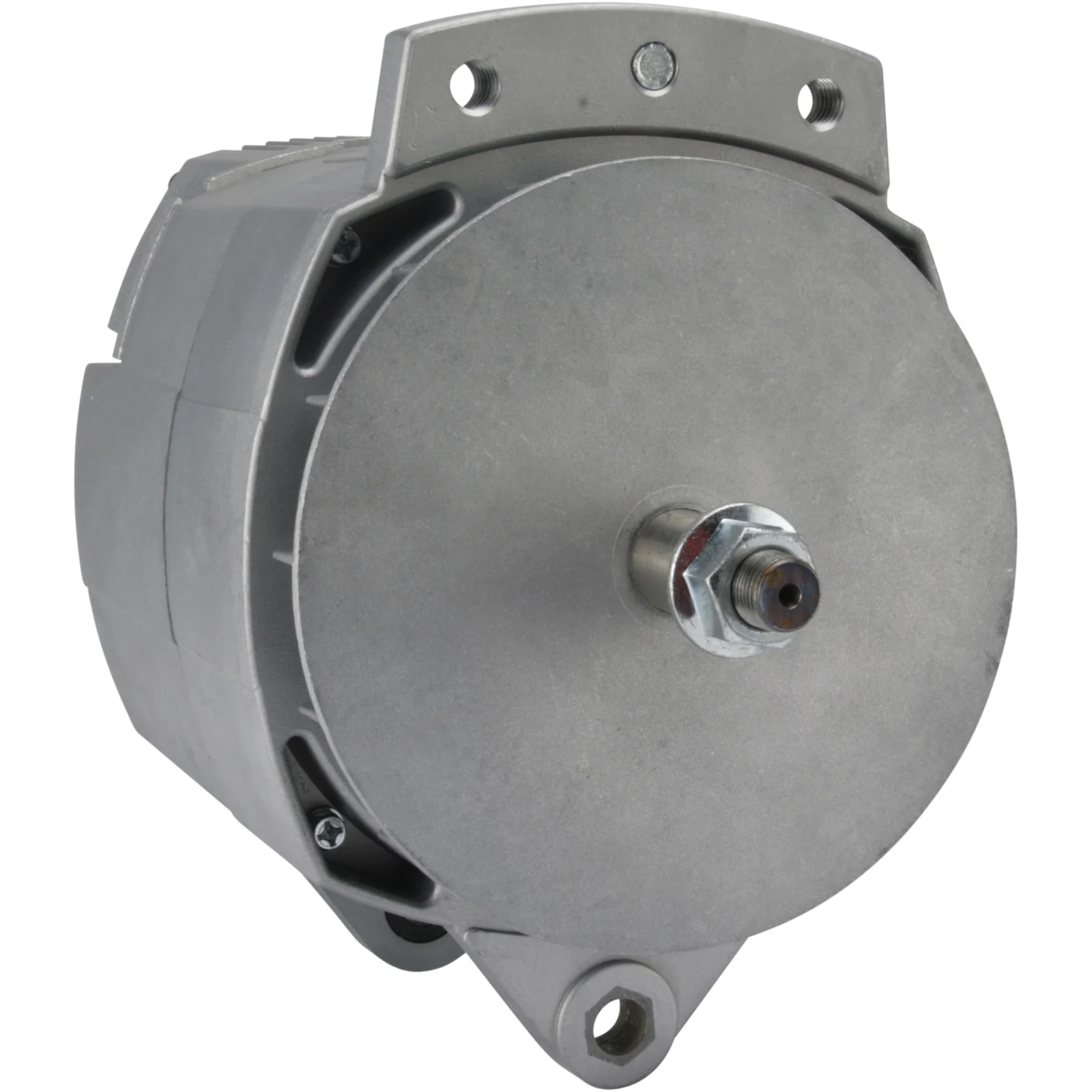

HC-Cargo Dynamo
HC-Cargo Dynamo
Varenr.: F032114348

HC-Cargo Dynamo

Teknisk info:

Nivå: 28, Amp: 150, Rotasjon: CW, Monteringsbrakett avstand: 102,20

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 28
Amp: 150
Bredde/holderarms: 13.00
Monteringsbrakettavstand: 102.20
Brakettåpning: 13.00
Båndtilpassingsbrakettåpning 1: 1/2" UNC
Radius: 108.00
Radius 2: 103.00
B+: 5/16" UNC
Posisjon/B+ i min.: 30
Rotasjon: CW
W pluggtype: 10-24 UNC
Total lengde mm: 266.50
Drev: uten
Spenningsregulator type: IR
Prod.info: BN
Merknader: For batteriløst system

Filer

Spesifikasjon

B+ 5/16" UNC
Mount. bracket dist. 102.20
Belt. adj. bracket hole 1 1/2" UNC
Bracket hole 13.00
Position/B+ in min. 30
Prod. info BN
Pulley w/o
Radius 108.00
Radius 2 103.00
Regulator type IR
Remarks For batteryless system
Rotation CW
Voltage 28
W plug type 10-24 UNC
Total length 266.50 mm
Width/holder arm 13.00
Amp 150

  • OEM
    ATS92905, F032114348, L8SC3110VC, 8SC3110V, 8SC3110VC, 8SC3110VC09, 8SC3110VC111, 8SC3110VC117, 8SC3110VC118, 8SC3110VC120, 8SC3110VC120E, 8SC3110VC17, 8SC3110VC18, 8SC3110VC23, 8SC3110VC37, 8SC3110VC39, 8SC3110VC40, 8SC3110VC42, 8SC3110VC43, 8SC3110VC64, 8SC3110VC65, 8SC3110VC79, 8SC3110VC80, 8SC3110VC81S, 8SC3110VC83, 8SC3110VC91, 8SC3110VC94, 8SC3110VC98, 8SC3110VCH114, 8SC3150VC, 8SC3150VC30, 8SC3150VC30A, 8SC3150VC95, 8SC3151VCA49, 8SC3151VCA59, 8SC3151VCA7, 8SC3151VCA77, 8SC3151VCB7, 8SC3200V, 110-568, 37018000002

  • Konkurrentreferens
    A9302S, ALT-0191, CAL11611, CAL11636, DRA0268, F042308016, F042308017, F042A08016, 553809RI

  • NormaliseratArtNr
    a9302s, alt0191, ats92905, cal11611, cal11636, dra0268, f032114348, f042308016, f042308017, f042a08016, l8sc3110vc, 8sc3110v, 8sc3110vc, 8sc3110vc09, 8sc3110vc111, 8sc3110vc117, 8sc3110vc118, 8sc3110vc120, 8sc3110vc120e, 8sc3110vc17, 8sc3110vc18, 8sc3110vc23, 8sc3110vc37, 8sc3110vc39, 8sc3110vc40, 8sc3110vc42, 8sc3110vc43, 8sc3110vc64, 8sc3110vc65, 8sc3110vc79, 8sc3110vc80, 8sc3110vc81s, 8sc3110vc83, 8sc3110vc91, 8sc3110vc94, 8sc3110vc98, 8sc3110vch114, 8sc3150vc, 8sc3150vc30, 8sc3150vc30a, 8sc3150vc95, 8sc3151vca49, 8sc3151vca59, 8sc3151vca7, 8sc3151vca77, 8sc3151vcb7, 8sc3200v, 110568, 553809ri, 37018000002

  • Passar modeller
    Thermo King Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivelse
    Spenning: 28
    Amp: 150
    Bredde/holderarms: 13.00
    Monteringsbrakettavstand: 102.20
    Brakettåpning: 13.00
    Båndtilpassingsbrakettåpning 1: 1/2" UNC
    Radius: 108.00
    Radius 2: 103.00
    B+: 5/16" UNC
    Posisjon/B+ i min.: 30
    Rotasjon: CW
    W pluggtype: 10-24 UNC
    Total lengde mm: 266.50
    Drev: uten
    Spenningsregulator type: IR
    Prod.info: BN
    Merknader: For batteriløst system

    Filer

  • Spesifikasjon
    B+ 5/16" UNC
    Mount. bracket dist. 102.20
    Belt. adj. bracket hole 1 1/2" UNC
    Bracket hole 13.00
    Position/B+ in min. 30
    Prod. info BN
    Pulley w/o
    Radius 108.00
    Radius 2 103.00
    Regulator type IR
    Remarks For batteryless system
    Rotation CW
    Voltage 28
    W plug type 10-24 UNC
    Total length 266.50 mm
    Width/holder arm 13.00
    Amp 150
  • Kjøretøymatching

    • OEM
      ATS92905, F032114348, L8SC3110VC, 8SC3110V, 8SC3110VC, 8SC3110VC09, 8SC3110VC111, 8SC3110VC117, 8SC3110VC118, 8SC3110VC120, 8SC3110VC120E, 8SC3110VC17, 8SC3110VC18, 8SC3110VC23, 8SC3110VC37, 8SC3110VC39, 8SC3110VC40, 8SC3110VC42, 8SC3110VC43, 8SC3110VC64, 8SC3110VC65, 8SC3110VC79, 8SC3110VC80, 8SC3110VC81S, 8SC3110VC83, 8SC3110VC91, 8SC3110VC94, 8SC3110VC98, 8SC3110VCH114, 8SC3150VC, 8SC3150VC30, 8SC3150VC30A, 8SC3150VC95, 8SC3151VCA49, 8SC3151VCA59, 8SC3151VCA7, 8SC3151VCA77, 8SC3151VCB7, 8SC3200V, 110-568, 37018000002

    • Konkurrentreferens
      A9302S, ALT-0191, CAL11611, CAL11636, DRA0268, F042308016, F042308017, F042A08016, 553809RI

    • NormaliseratArtNr
      a9302s, alt0191, ats92905, cal11611, cal11636, dra0268, f032114348, f042308016, f042308017, f042a08016, l8sc3110vc, 8sc3110v, 8sc3110vc, 8sc3110vc09, 8sc3110vc111, 8sc3110vc117, 8sc3110vc118, 8sc3110vc120, 8sc3110vc120e, 8sc3110vc17, 8sc3110vc18, 8sc3110vc23, 8sc3110vc37, 8sc3110vc39, 8sc3110vc40, 8sc3110vc42, 8sc3110vc43, 8sc3110vc64, 8sc3110vc65, 8sc3110vc79, 8sc3110vc80, 8sc3110vc81s, 8sc3110vc83, 8sc3110vc91, 8sc3110vc94, 8sc3110vc98, 8sc3110vch114, 8sc3150vc, 8sc3150vc30, 8sc3150vc30a, 8sc3150vc95, 8sc3151vca49, 8sc3151vca59, 8sc3151vca7, 8sc3151vca77, 8sc3151vcb7, 8sc3200v, 110568, 553809ri, 37018000002

    • Passar modeller
      Thermo King Model: Various Models Model series: Various Models Approved: Yes
