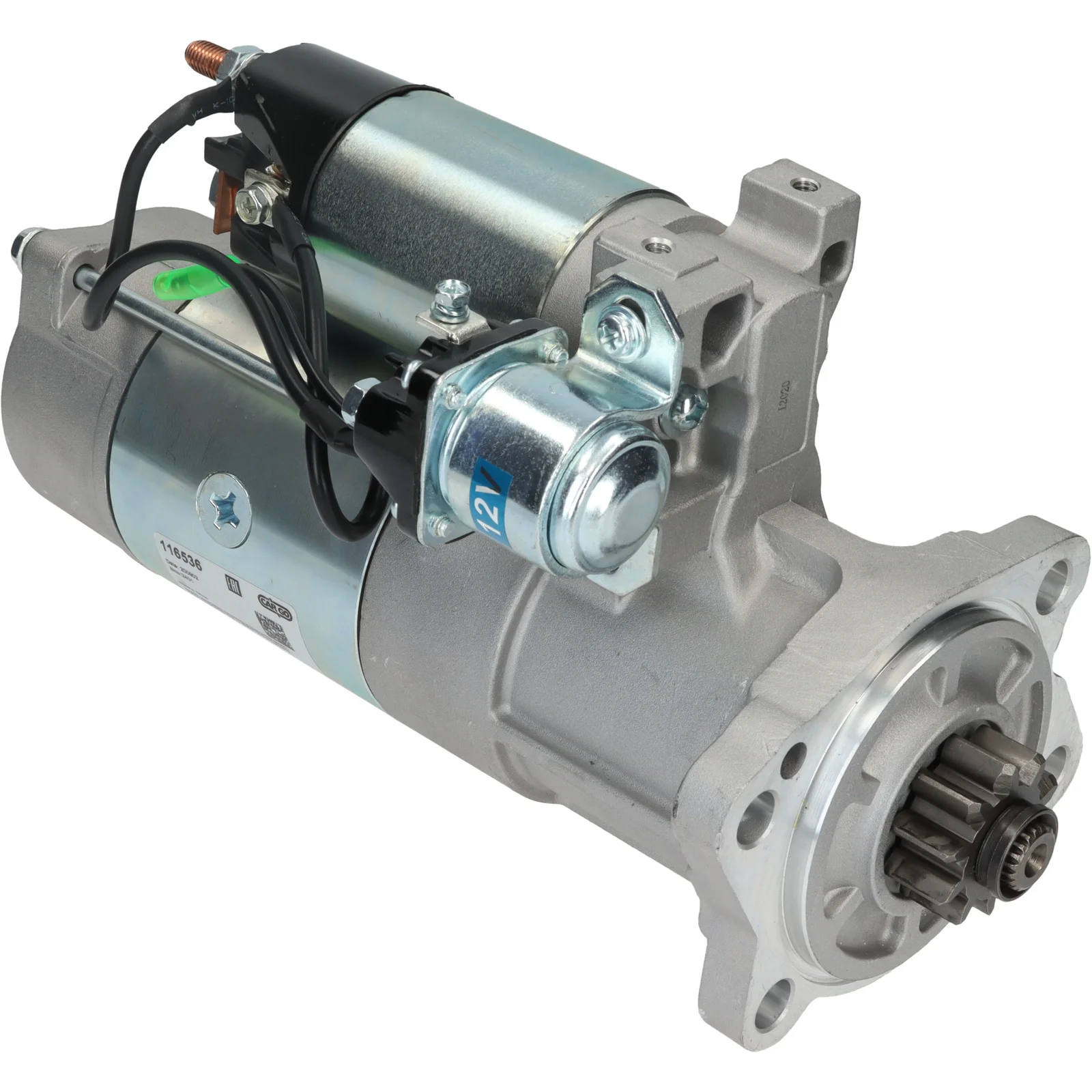

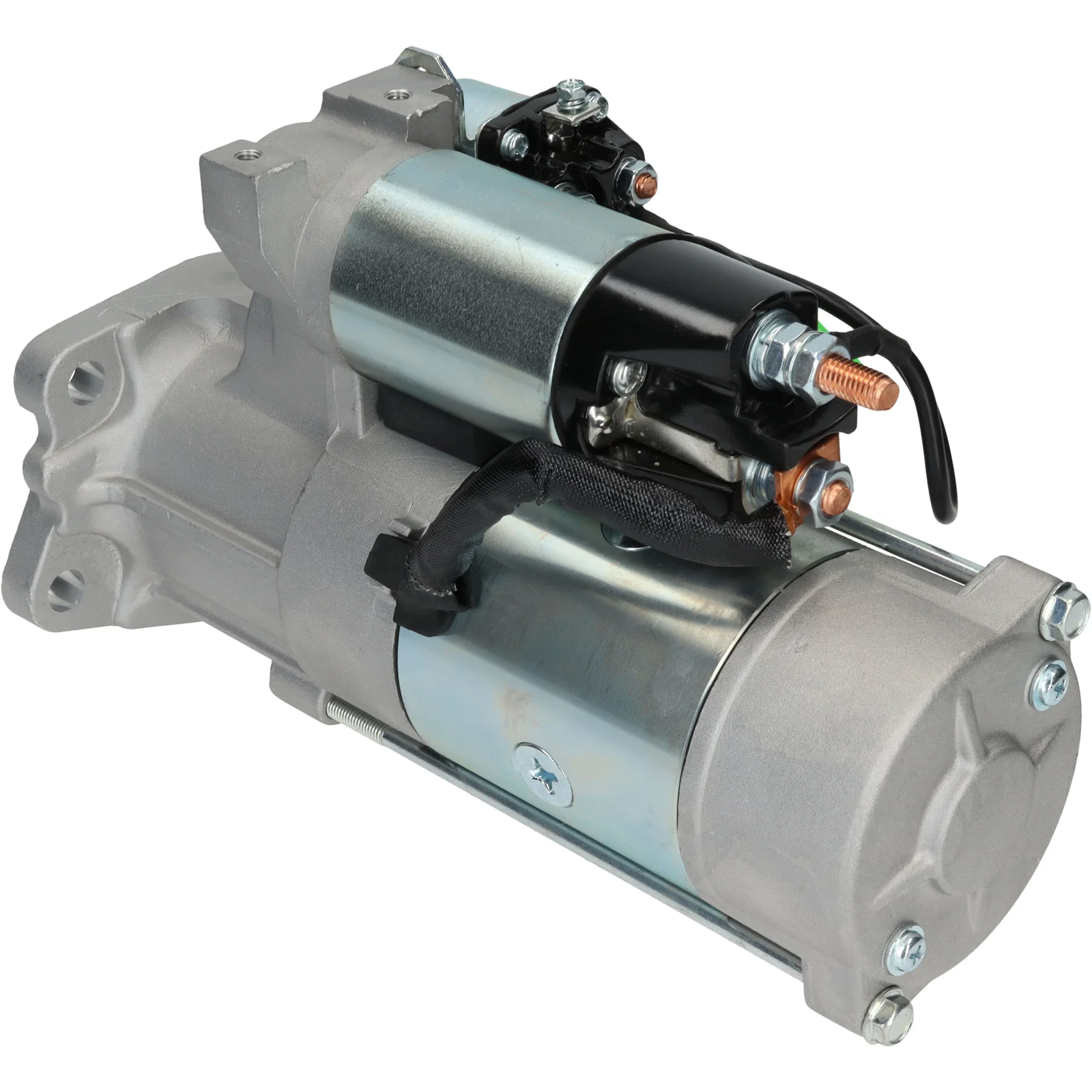

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116536

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 3,0kW, Antall tann: 10, Rotasjon: CW

Beskrivelse

Spenningsspenning: 12
kW: 3,0
Festeflens: 82,50
Drivlengde: 22,00
Festehull 2 mm: 11,00
Festehull 1 mm: 11,00
Avstand/bak: 258,00
Avstand/frem: 30,00
Antall/tenner: 10
B+: M8
Posisjon/B+: 60
Girtype: GR
Avstand mm: 115,00
Rotasjon: medur
Total lengde mm: 288,00
Antall/festehull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (0)
Position/B+ 60
Rotation CW
Dist./back 258.00
Dist./front 30.00
Drive dist. 22.00
Gear type GR
kW 3.0
Voltage 12
Total length 288.00 mm
Dist. 115.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116536, M008T55471, M008T55472, M008T55473, M8T55471, M8T55472, M8T55473, 32B66-20300

  • Konkurrentreferens
    CST35305, S5191, 150.923.102, 640.536.102, 256039

  • NormaliseratArtNr
    cst35305, f032116536, m008t55471, m008t55472, m008t55473, m8t55471, m8t55472, m8t55473, s5191, 32b6620300, 256039, 150923102, 640536102

  • Passar modeller
    Caterpillar Model: DP40K Model series: DP40K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40K, DP40KL, DP45K & DP50K Model series: DP40K, DP40KL, DP45K & DP50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40N Model series: DP40N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40NM1 MEXICO Model series: DP40NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45K Model series: DP45K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45N Model series: DP45N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45NM1 MEXICO Model series: DP45NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50CN Model series: DP50CN Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50CNM1 MEXICO Model series: DP50CNM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50K Model series: DP50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50N Model series: DP50N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50NM1 MEXICO Model series: DP50NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP55N Model series: DP55N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP55NM1 MEXICO Model series: DP55NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP70 Model series: DP70 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD10000 Model series: PD10000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD11000 Model series: PD11000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD12000 Model series: PD12000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD8000 Model series: PD8000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD9000 Model series: PD9000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD35 Model series: FD35 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40 Model series: FD40 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40K Model series: FD40K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40KL Model series: FD40KL Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40N Model series: FD40N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45 Model series: FD45 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45K Model series: FD45K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45N Model series: FD45N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50(C) Model series: FD50(C) Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50CN Model series: FD50CN Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50K Model series: FD50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50N Model series: FD50N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD55N Model series: FD55N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD60 - FD70 Model series: FD60 - FD70 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: PG87QX Model series: PG87QX Model type: Generator Sets Brand of engine: S6S Approved: Yes
    Nissan Model: JPD100Y Model series: JPD100Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD110H Model series: JPD110H Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD80Y Model series: JPD80Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD90Y Model series: JPD90Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD35T9 & FD40T9 Model series: FD35T9 & FD40T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD40T9 Model series: FD40T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD45T9 Model series: FD45T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
    1 / 9
  • Beskrivelse
    Spenningsspenning: 12
    kW: 3,0
    Festeflens: 82,50
    Drivlengde: 22,00
    Festehull 2 mm: 11,00
    Festehull 1 mm: 11,00
    Avstand/bak: 258,00
    Avstand/frem: 30,00
    Antall/tenner: 10
    B+: M8
    Posisjon/B+: 60
    Girtype: GR
    Avstand mm: 115,00
    Rotasjon: medur
    Total lengde mm: 288,00
    Antall/festehull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/B+ 60
    Rotation CW
    Dist./back 258.00
    Dist./front 30.00
    Drive dist. 22.00
    Gear type GR
    kW 3.0
    Voltage 12
    Total length 288.00 mm
    Dist. 115.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032116536, M008T55471, M008T55472, M008T55473, M8T55471, M8T55472, M8T55473, 32B66-20300

    • Konkurrentreferens
      CST35305, S5191, 150.923.102, 640.536.102, 256039

    • NormaliseratArtNr
      cst35305, f032116536, m008t55471, m008t55472, m008t55473, m8t55471, m8t55472, m8t55473, s5191, 32b6620300, 256039, 150923102, 640536102

    • Passar modeller
      Caterpillar Model: DP40K Model series: DP40K Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP40K, DP40KL, DP45K & DP50K Model series: DP40K, DP40KL, DP45K & DP50K Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP40N Model series: DP40N Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP40NM1 MEXICO Model series: DP40NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP45K Model series: DP45K Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP45N Model series: DP45N Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP45NM1 MEXICO Model series: DP45NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP50CN Model series: DP50CN Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP50CNM1 MEXICO Model series: DP50CNM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP50K Model series: DP50K Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP50N Model series: DP50N Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP50NM1 MEXICO Model series: DP50NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP55N Model series: DP55N Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP55NM1 MEXICO Model series: DP55NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: DP70 Model series: DP70 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: PD10000 Model series: PD10000 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: PD11000 Model series: PD11000 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: PD12000 Model series: PD12000 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: PD8000 Model series: PD8000 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Caterpillar Model: PD9000 Model series: PD9000 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD35 Model series: FD35 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD40 Model series: FD40 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD40K Model series: FD40K Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD40KL Model series: FD40KL Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD40N Model series: FD40N Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD45 Model series: FD45 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD45K Model series: FD45K Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD45N Model series: FD45N Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD50(C) Model series: FD50(C) Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD50CN Model series: FD50CN Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD50K Model series: FD50K Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD50N Model series: FD50N Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD55N Model series: FD55N Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: FD60 - FD70 Model series: FD60 - FD70 Model type: Forklifts Brand of engine: S6S Approved: Yes
      Mitsubishi Model: PG87QX Model series: PG87QX Model type: Generator Sets Brand of engine: S6S Approved: Yes
      Nissan Model: JPD100Y Model series: JPD100Y Model type: Forklifts Brand of engine: S6S Approved: Yes
      Nissan Model: JPD110H Model series: JPD110H Model type: Forklifts Brand of engine: S6S Approved: Yes
      Nissan Model: JPD80Y Model series: JPD80Y Model type: Forklifts Brand of engine: S6S Approved: Yes
      Nissan Model: JPD90Y Model series: JPD90Y Model type: Forklifts Brand of engine: S6S Approved: Yes
      TCM Model: FD35T9 & FD40T9 Model series: FD35T9 & FD40T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
      TCM Model: FD40T9 Model series: FD40T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
      TCM Model: FD45T9 Model series: FD45T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
      1 / 9
