HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114815

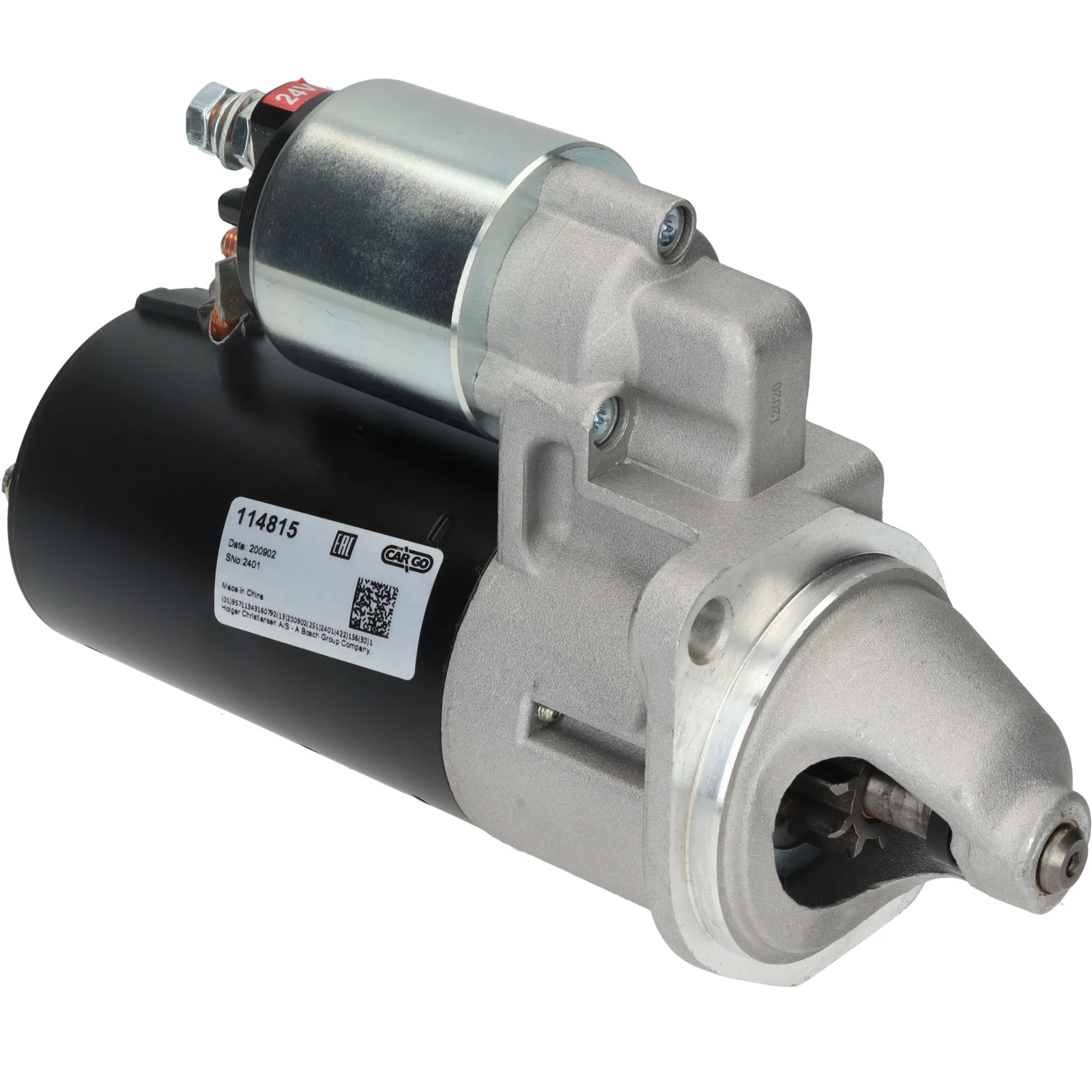

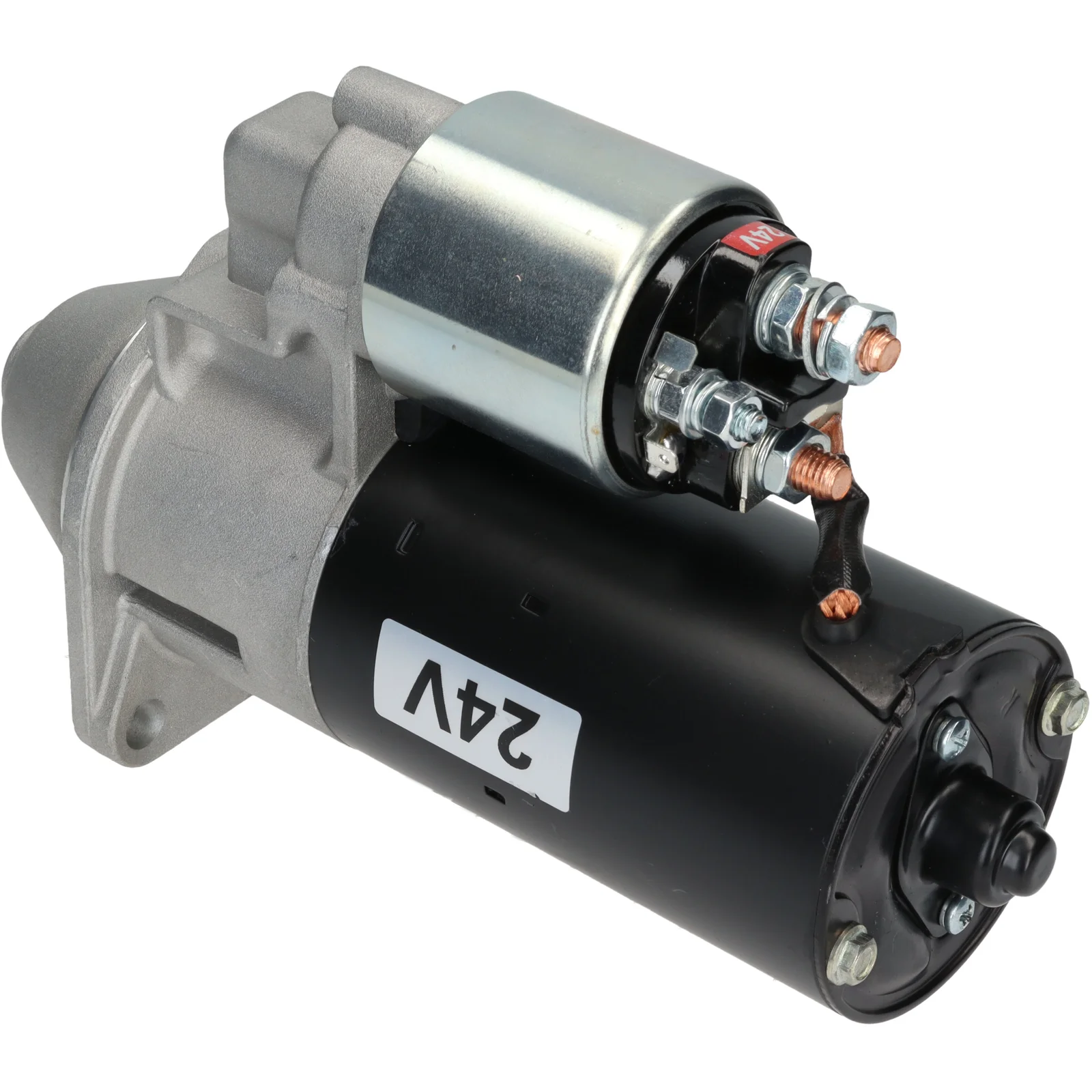

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 1,6, Tannhjul: 9, Roter: Høyre-rotasjon

Beskrivelse

Spennings: 24
kW: 1,6
Monteringsflens: 76,20
Driveavstand: 15,00
Monteringshull 2 mm: 10,50
Monteringshull 1 mm: 10,50
Avstand/bak: 189,00
Avstand/frem: 54,50
Nummer/tann: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 45
Terminal 50: M6
Gaveltype: GR
Avstand mm: 105,00
Rotasjon: medurs
Total lengde mm: 244,00
Nummer/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 76.20
No./mount. holes 2 (0)
Position/50 45
Position/B+ 60
Rotation CW
Dist./back 189.00
Dist./front 54.50
Drive dist. 15.00
Gear type GR
kW 1.6
Terminal 50 M6
Voltage 24
Total length 244.00 mm
Dist. 105.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032114815, 0001111003, 58401720

  • Konkurrentreferens
    CST10766, DRS0005, LRS04274, S0641S, 45-5436

  • NormaliseratArtNr
    cst10766, drs0005, f032114815, lrs04274, s0641s, 455436, 0001111003, 58401720

  • Passar modeller
    Lombardini Model: Engine Model series: Various Models Size of motor: 0.5 Brand of engine: LDW502 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 0.6 Brand of engine: LDW602 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 0.9 Brand of engine: LDW903 From date: 01-06-1989 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spennings: 24
    kW: 1,6
    Monteringsflens: 76,20
    Driveavstand: 15,00
    Monteringshull 2 mm: 10,50
    Monteringshull 1 mm: 10,50
    Avstand/bak: 189,00
    Avstand/frem: 54,50
    Nummer/tann: 9
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 45
    Terminal 50: M6
    Gaveltype: GR
    Avstand mm: 105,00
    Rotasjon: medurs
    Total lengde mm: 244,00
    Nummer/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 76.20
    No./mount. holes 2 (0)
    Position/50 45
    Position/B+ 60
    Rotation CW
    Dist./back 189.00
    Dist./front 54.50
    Drive dist. 15.00
    Gear type GR
    kW 1.6
    Terminal 50 M6
    Voltage 24
    Total length 244.00 mm
    Dist. 105.00 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      F032114815, 0001111003, 58401720

    • Konkurrentreferens
      CST10766, DRS0005, LRS04274, S0641S, 45-5436

    • NormaliseratArtNr
      cst10766, drs0005, f032114815, lrs04274, s0641s, 455436, 0001111003, 58401720

    • Passar modeller
      Lombardini Model: Engine Model series: Various Models Size of motor: 0.5 Brand of engine: LDW502 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      Lombardini Model: Engine Model series: Various Models Size of motor: 0.6 Brand of engine: LDW602 From date: 01-06-1989 Fuel: Diesel Approved: Yes
      Lombardini Model: Engine Model series: Various Models Size of motor: 0.9 Brand of engine: LDW903 From date: 01-06-1989 Fuel: Diesel Approved: Yes
