HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115447

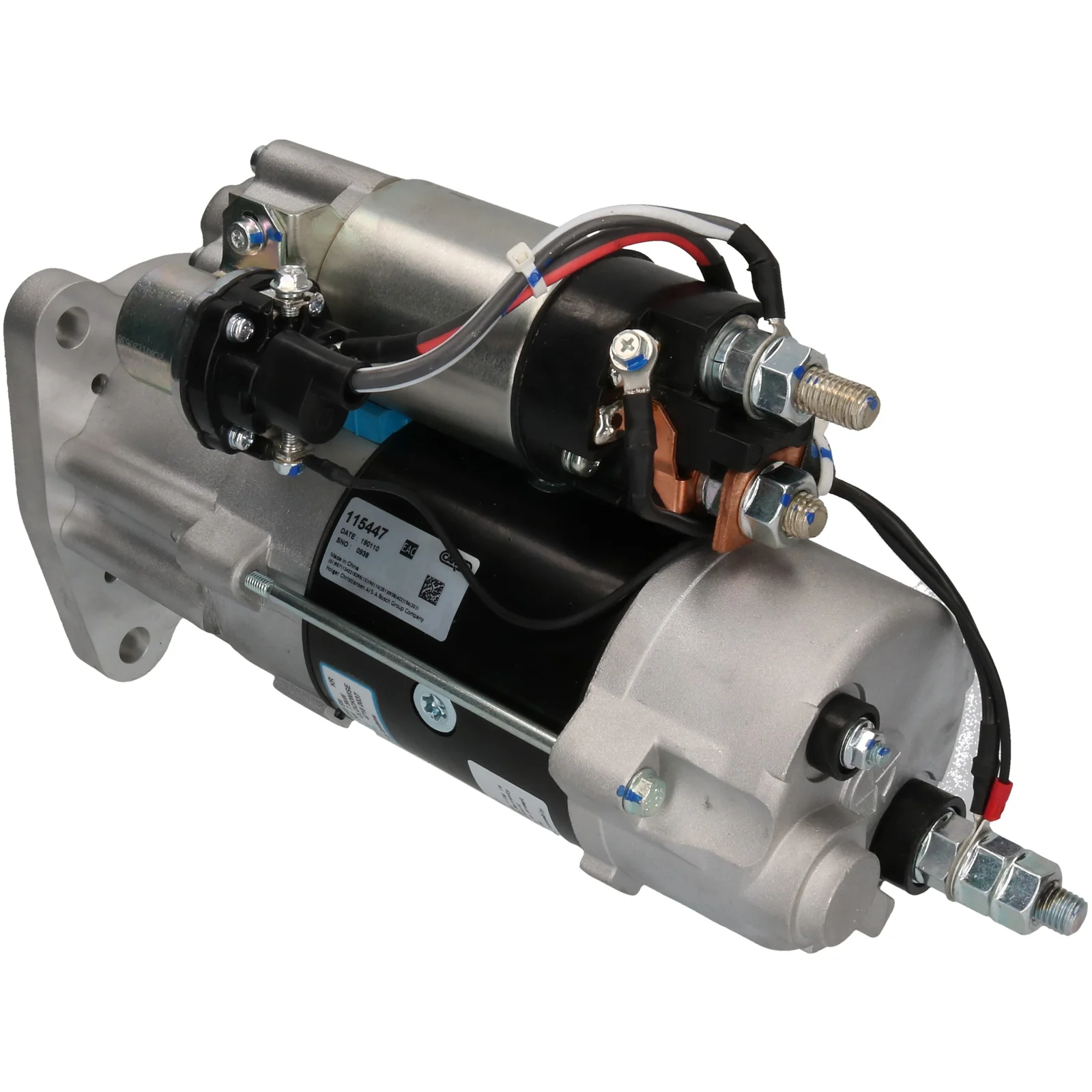

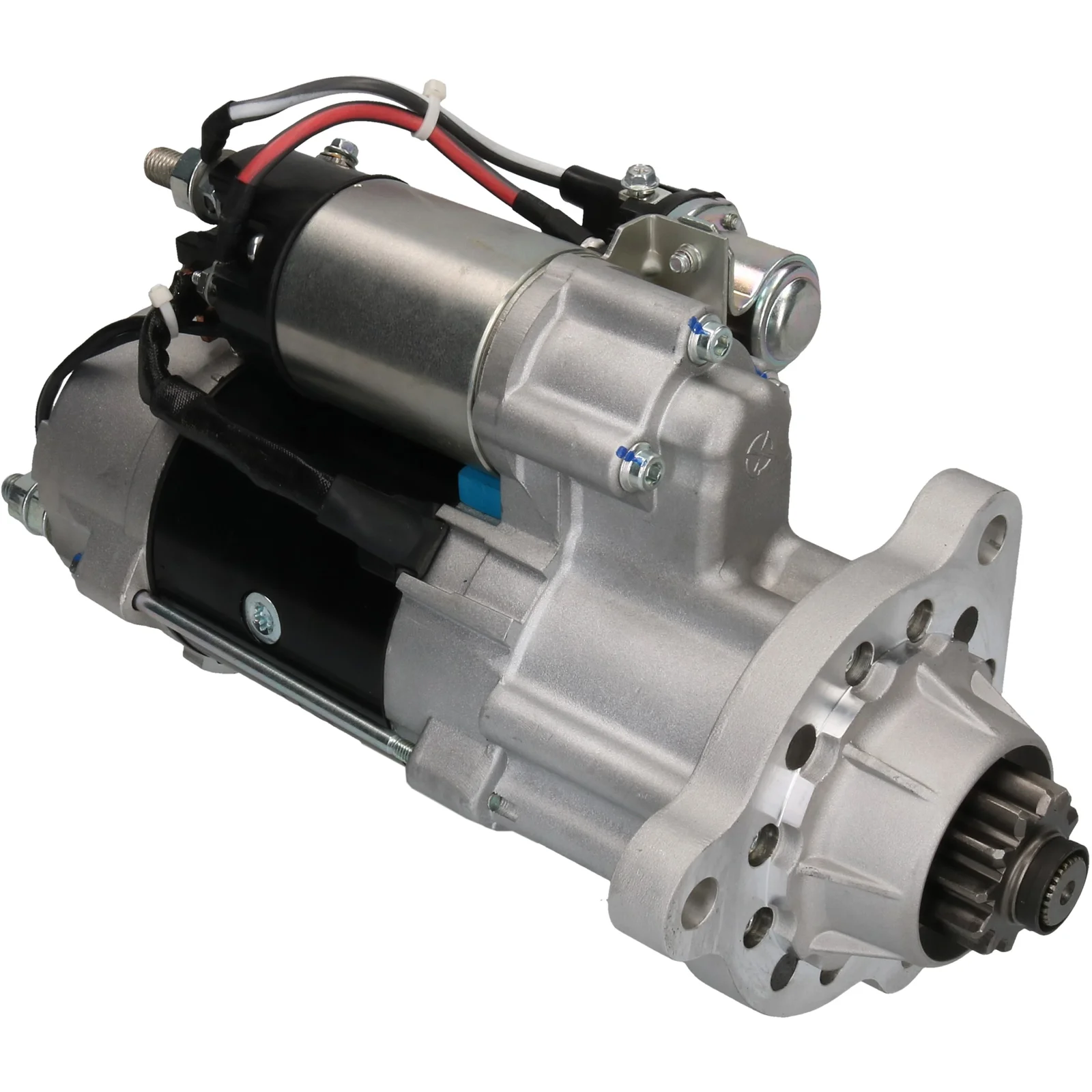

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 24, kW: 7.5, Nr./tenner: 12, Rotasjon: HØYRE/MCENNTRERT

Beskrivelse

Spenning: 24
kW: 7.5
Isolert retur: Ja
Monteringsflens: 92,00
Drevavstand: 47,50
Monteringshull (3 mm): 16,70
Monteringshull (2 mm): 16,70
Monteringshull (1 mm): 16,70
Avstand/tilbake: 310,00
Avstand/foran: 55,00
Antall/tannhjul: 12
B+: M12
Posisjon/B+: 60
Gjenge lengde mm: 34,00
Terminal 50: M5
Gear type: GR
Avstand 2: 126,50
Avstand 3: 126,50
Avstand mm: 126,50
Rotasjon: medur
B-: M12
Total lengde mm: 413,00
Oljeskiftet: Ja
Merknader: Erstattning: 39MT.
Antall monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M12
B- M12
No./teeth 12
Mount. flange 92.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/B+ 60
Dist. 2 126.50
Remarks Replacing: 39MT.
Dist. 3 126.50
Rotation CW
Dist./back 310.00
Dist./front 55.00
Drive dist. 47.50
Gear type GR
Insulated return Yes
kW 7.5
Terminal 50 M5
Voltage 24
Total length 413.00 mm
Dist. 126.50 mm
Thread length 34.00 mm
Mount. hole 3 16.70 mm
Mount. hole 2 16.70 mm
Mount. hole 1 16.70 mm

  • OEM
    F032115447, M105R3505SE, M105R3509, M105R3509SE, M9T81971, 8200435, 8200702, 8300011

  • Konkurrentreferens
    F042003126, F042S03126, S1028, STR-4398, 641.536.123, 641.542.123, 811.524.123, 6823, 255569

  • NormaliseratArtNr
    f032115447, f042003126, f042s03126, m105r3505se, m105r3509, m105r3509se, m9t81971, s1028, str4398, 6823, 255569, 8200435, 8200702, 8300011, 641536123, 641542123, 811524123

  • Passar modeller
    Case Model: Various Models Model series: Various Models Approved: Yes
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
    Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Lister Model: Tractors Model series: Various Models Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Various Industrial applications Model: Various Industrial applications Approved: Yes
    1 / 2
