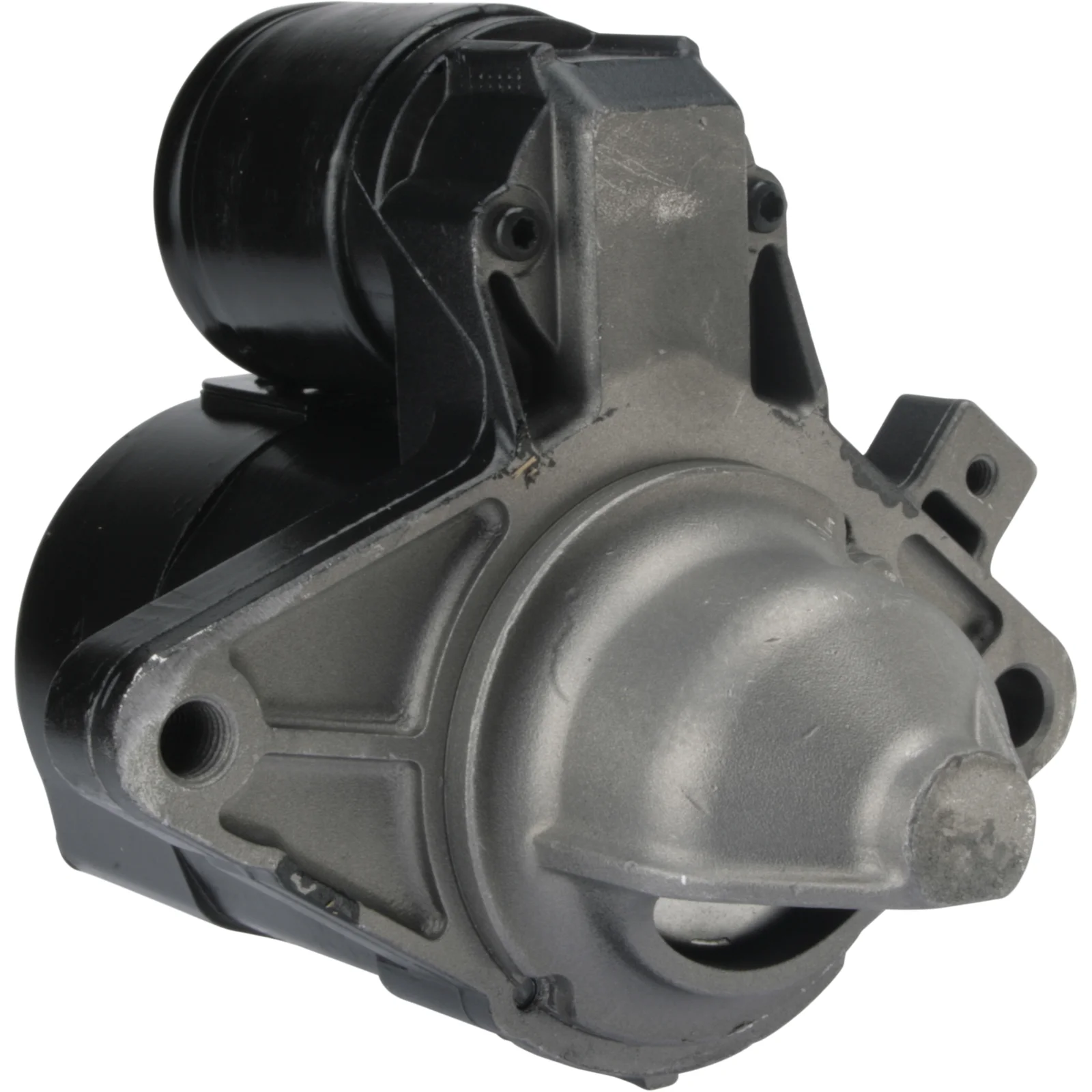

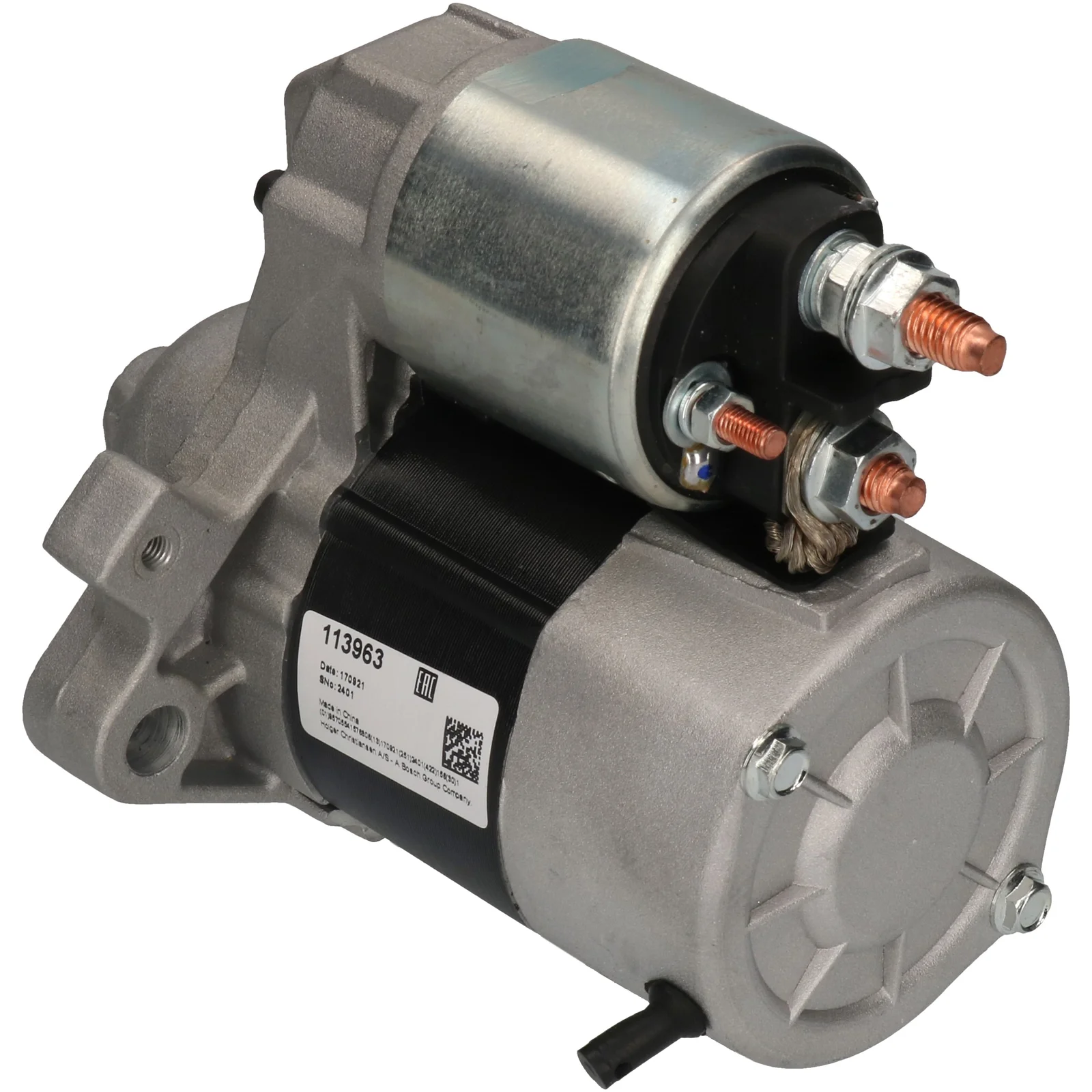

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032113963

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1,1, Ant./tenner: 8, Rotasjon: CW

Beskrivelse

Toyota/PSA Startmotor 12V-1.0kW 12V - 1.0kW, 8k A - 74mm, B - 25mm for Yourex produktordre 91-450-2155.

Volt: 12
kW: 1.1
Montasjonsflens: 74,00
Drivavstand: 25,00
Monteringshull 1 mm: 11,00
Avstand/bak: 114,00
Avstand/frem: 52,00
Antall/tannhjul: 8
B+: M8
Posisjon/50: 40
Terminal 50: M5
Tann type: DD/GR
Avstand mm: 130,00
Rotasjon: med urviseren
Total lengde mm: 168,50
Antall/montasjons hull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 40
Rotation CW
Dist./back 114.00
Dist./front 52.00
Drive dist. 25.00
Gear type DD/GR
kW 1.1
Terminal 50 M5
Voltage 12
Total length 168.50 mm
Dist. 130.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1407, CS1407, CST10176, CST15198, D06133990B, DRS0006, DRS0006N, DRS0006X, F032113963, F042202504, F042S02162, F042S02208, F042S0H079, J5212120, LES0358, LRS02295, LRS04254, RGO 113963, S0121, S0121(BOSCH), S3023, S3023PR, STR-2119, STR-H079, TS10 E1, TS10E1, TS10E11, 0001 107 439, 8EA012527-581, 8EA738258-501, 25-3466, 25-5416, 190.554.092, 190.946.082, 300.058.082, 0986 021 550, 1986S00672, 5802AL, 5802AN, 5802EY, 5802EZ, 9731, 28100-0Q012, 28100-0Q012D, 28100-0Q021, 28100-0Q02100, 28100-0Q090-84, 28100-0Q100, 30598-OS, 33295N, 33295R, 101407, 106205, 106508, 113963, 201085, 220395, 220395A, 281000Q01284, 281000Q012C, 281000Q090, 281000Q10084, 281000Q100B, 438192, 458248, 726091, 726891, 838027, 0001107438, 0001107439, 8021550, 8213157, 11040689, 42021550, 0986021550, 1612092880, 1612092980, 1612350580, 1637179880, 063521074380

  • Konkurrentreferens
    CST10176, CST15198, DRS0006, DRS0006N, DRS0006X, F042202504, F042S02162, F042S02208, F042S0H079, J5212120, LES0358, LRS02295, LRS04254, S0121, S0121(BOSCH), S3023, S3023PR, STR-2119, STR-H079, 8EA012527-581, 8EA738258-501, 25-3466, 25-5416, 190.554.092, 190.946.082, 300.058.082, 5802AL, 5802AN, 5802EY, 5802EZ, 9731, 30598-OS, 33295N, 33295R, 101407, 106205, 106508, 201085, 220395, 220395A, 458248, 726091, 726891, 838027, 8021550, 8213157, 11040689, 42021550, 0986021550, 063521074380

  • Bilmärken
    CITROËN, PEUGEOT, TOYOTA

  • NormaliseratArtNr
    cs1407, cst10176, cst15198, d06133990b, drs0006, drs0006n, drs0006x, f032113963, f042202504, f042s02162, f042s02208, f042s0h079, j5212120, les0358, lrs02295, lrs04254, rgo113963, s0121, s0121bosch, s3023, s3023pr, str2119, strh079, ts10e1, ts10e11, 8ea012527581, 8ea738258501, 1986s00672, 5802al, 5802an, 5802ey, 5802ez, 9731, 30598os, 33295n, 33295r, 101407, 106205, 106508, 113963, 201085, 220395, 220395a, 253466, 255416, 281000q012, 281000q01284, 281000q012c, 281000q012d, 281000q021, 281000q02100, 281000q090, 281000q09084, 281000q100, 281000q10084, 281000q100b, 438192, 458248, 726091, 726891, 838027, 0001107438, 0001107439, 8021550, 8213157, 11040689, 42021550, 190554092, 190946082, 300058082, 0986021550, 1612092880, 1612092980, 1612350580, 1637179880, 063521074380

  • Passar modeller
    CITROËN C1 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-09.14
    CITROËN C1 II (PA_, PS_) 1.0 VTi 68 Engine volume: 1.0 Engine type: CFB (1KR) Year: 04.14-04.18
    CITROËN C1 II (PA_, PS_) 1.0 VTi 72 Engine volume: 1.0 Engine type: CFB (1KR) Year: 06.18-07.21
    PEUGEOT 107 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-05.14
    PEUGEOT 108 1.0 VTi 72 Engine volume: 1.0 Engine type: CFB (1KR) Year: 05.18-
    PEUGEOT 108 1.0 VTi Engine volume: 1.0 Engine type: CFB (1KR) Year: 05.14-
    TOYOTA AYGO (_B1_) 1.0 (KGB10_, KGB10R) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14
    TOYOTA AYGO (_B4_) 1.0 (KGB40) Engine volume: 1.0 Engine type: 1KR-FE Year: 05.14-
    TOYOTA AYGO (_B4_) 1.0 VVTi (KGB40) Engine volume: 1.0 Engine type: 1KR-FE Year: 03.18-
    TOYOTA AYGO Skåp/halvkombi (_B1_) 1.0 VVTi (KGB10) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14
    1 / 2
  • Beskrivelse
    Toyota/PSA Startmotor 12V-1.0kW 12V - 1.0kW, 8k A - 74mm, B - 25mm for Yourex produktordre 91-450-2155.

    Volt: 12
    kW: 1.1
    Montasjonsflens: 74,00
    Drivavstand: 25,00
    Monteringshull 1 mm: 11,00
    Avstand/bak: 114,00
    Avstand/frem: 52,00
    Antall/tannhjul: 8
    B+: M8
    Posisjon/50: 40
    Terminal 50: M5
    Tann type: DD/GR
    Avstand mm: 130,00
    Rotasjon: med urviseren
    Total lengde mm: 168,50
    Antall/montasjons hull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 40
    Rotation CW
    Dist./back 114.00
    Dist./front 52.00
    Drive dist. 25.00
    Gear type DD/GR
    kW 1.1
    Terminal 50 M5
    Voltage 12
    Total length 168.50 mm
    Dist. 130.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      cs1407, CS1407, CST10176, CST15198, D06133990B, DRS0006, DRS0006N, DRS0006X, F032113963, F042202504, F042S02162, F042S02208, F042S0H079, J5212120, LES0358, LRS02295, LRS04254, RGO 113963, S0121, S0121(BOSCH), S3023, S3023PR, STR-2119, STR-H079, TS10 E1, TS10E1, TS10E11, 0001 107 439, 8EA012527-581, 8EA738258-501, 25-3466, 25-5416, 190.554.092, 190.946.082, 300.058.082, 0986 021 550, 1986S00672, 5802AL, 5802AN, 5802EY, 5802EZ, 9731, 28100-0Q012, 28100-0Q012D, 28100-0Q021, 28100-0Q02100, 28100-0Q090-84, 28100-0Q100, 30598-OS, 33295N, 33295R, 101407, 106205, 106508, 113963, 201085, 220395, 220395A, 281000Q01284, 281000Q012C, 281000Q090, 281000Q10084, 281000Q100B, 438192, 458248, 726091, 726891, 838027, 0001107438, 0001107439, 8021550, 8213157, 11040689, 42021550, 0986021550, 1612092880, 1612092980, 1612350580, 1637179880, 063521074380

    • Konkurrentreferens
      CST10176, CST15198, DRS0006, DRS0006N, DRS0006X, F042202504, F042S02162, F042S02208, F042S0H079, J5212120, LES0358, LRS02295, LRS04254, S0121, S0121(BOSCH), S3023, S3023PR, STR-2119, STR-H079, 8EA012527-581, 8EA738258-501, 25-3466, 25-5416, 190.554.092, 190.946.082, 300.058.082, 5802AL, 5802AN, 5802EY, 5802EZ, 9731, 30598-OS, 33295N, 33295R, 101407, 106205, 106508, 201085, 220395, 220395A, 458248, 726091, 726891, 838027, 8021550, 8213157, 11040689, 42021550, 0986021550, 063521074380

    • Bilmärken
      CITROËN, PEUGEOT, TOYOTA

    • NormaliseratArtNr
      cs1407, cst10176, cst15198, d06133990b, drs0006, drs0006n, drs0006x, f032113963, f042202504, f042s02162, f042s02208, f042s0h079, j5212120, les0358, lrs02295, lrs04254, rgo113963, s0121, s0121bosch, s3023, s3023pr, str2119, strh079, ts10e1, ts10e11, 8ea012527581, 8ea738258501, 1986s00672, 5802al, 5802an, 5802ey, 5802ez, 9731, 30598os, 33295n, 33295r, 101407, 106205, 106508, 113963, 201085, 220395, 220395a, 253466, 255416, 281000q012, 281000q01284, 281000q012c, 281000q012d, 281000q021, 281000q02100, 281000q090, 281000q09084, 281000q100, 281000q10084, 281000q100b, 438192, 458248, 726091, 726891, 838027, 0001107438, 0001107439, 8021550, 8213157, 11040689, 42021550, 190554092, 190946082, 300058082, 0986021550, 1612092880, 1612092980, 1612350580, 1637179880, 063521074380

    • Passar modeller
      CITROËN C1 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-09.14
      CITROËN C1 II (PA_, PS_) 1.0 VTi 68 Engine volume: 1.0 Engine type: CFB (1KR) Year: 04.14-04.18
      CITROËN C1 II (PA_, PS_) 1.0 VTi 72 Engine volume: 1.0 Engine type: CFB (1KR) Year: 06.18-07.21
      PEUGEOT 107 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-05.14
      PEUGEOT 108 1.0 VTi 72 Engine volume: 1.0 Engine type: CFB (1KR) Year: 05.18-
      PEUGEOT 108 1.0 VTi Engine volume: 1.0 Engine type: CFB (1KR) Year: 05.14-
      TOYOTA AYGO (_B1_) 1.0 (KGB10_, KGB10R) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14
      TOYOTA AYGO (_B4_) 1.0 (KGB40) Engine volume: 1.0 Engine type: 1KR-FE Year: 05.14-
      TOYOTA AYGO (_B4_) 1.0 VVTi (KGB40) Engine volume: 1.0 Engine type: 1KR-FE Year: 03.18-
      TOYOTA AYGO Skåp/halvkombi (_B1_) 1.0 VVTi (KGB10) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14
