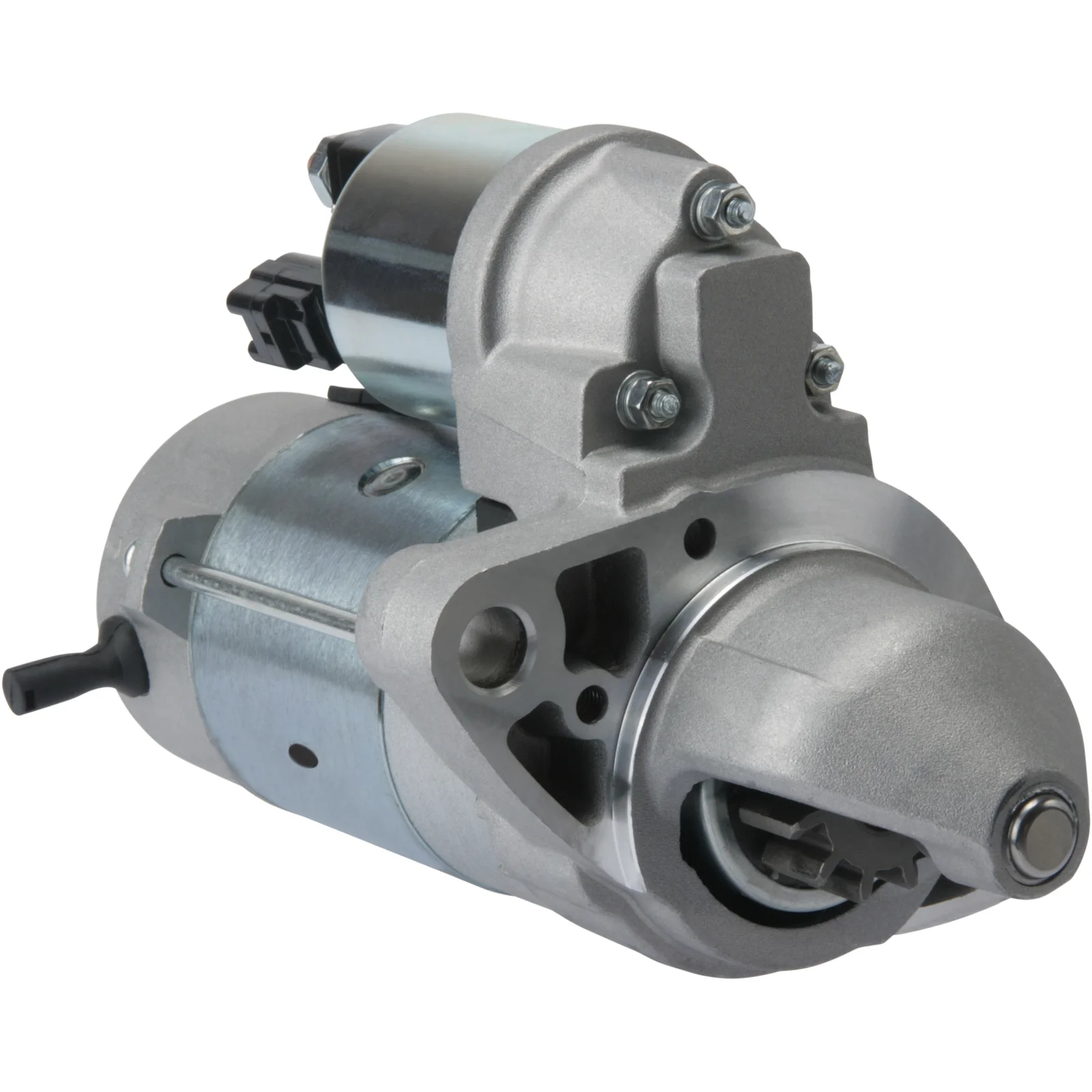

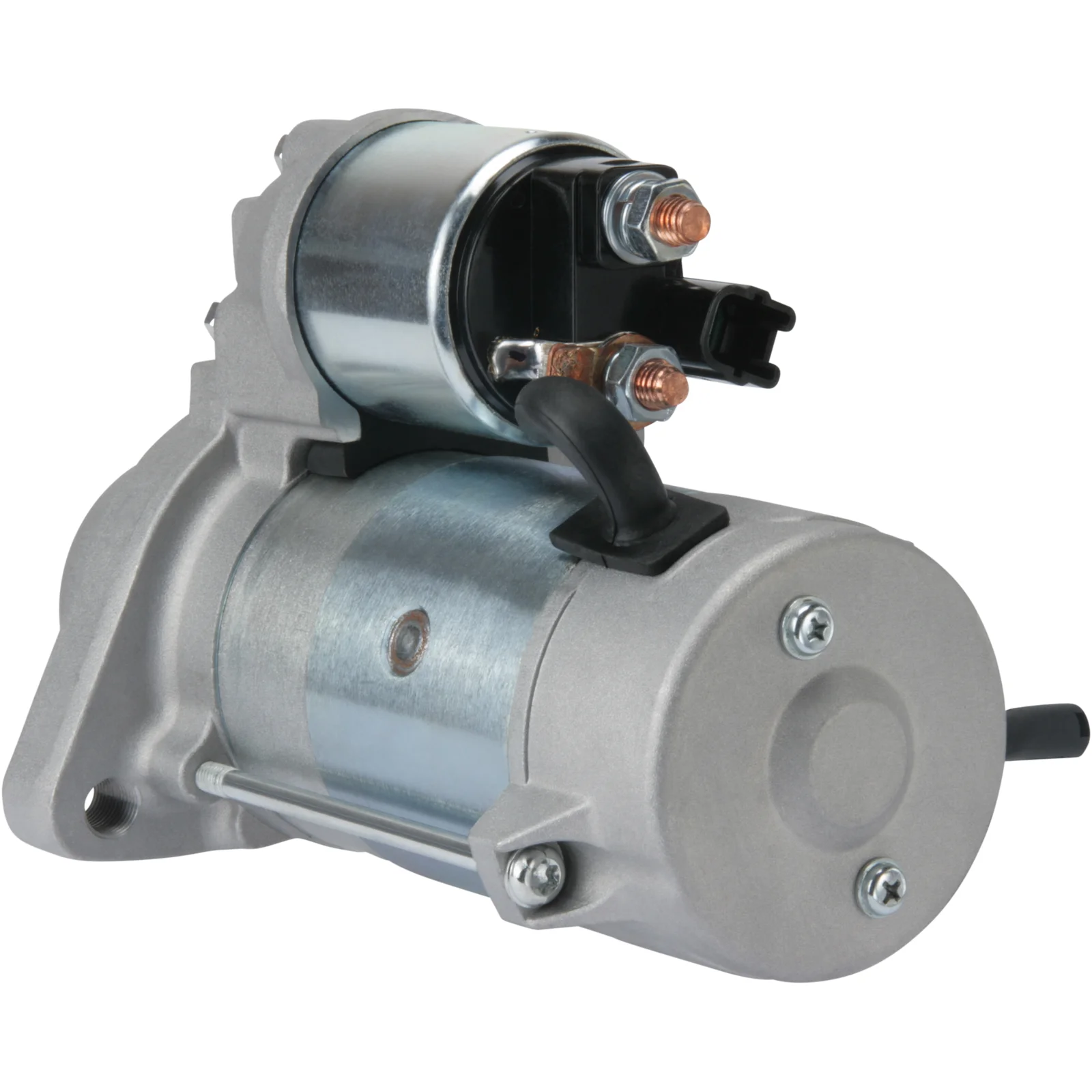

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114216

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 2,0 kW, Antall tenner: 11, Rotasjon: med urviseren

Beskrivelse

Spenning: 12
kW: 2.0
Festebrustning: 74.00
Drive avstand: 24.00
Festebore 2 mm: 13.50
Festebore 1 mm: M12-1.25
Avstand/bak: 174.50
Avstand/fram: 62.50
Nr./tenner: 11
B+: M8
Posisjon/50: 20
Terminal 50: 4.80
Geværtype: GR
Avstand mm: 121.50
Rotasjon: CW
Total lengde mm: 232.50
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Olje tetthet: Nei
Nr./festebor: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 11
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 20
Prod. info BN
Rotation CW
Dist./back 174.50
Dist./front 62.50
Drive dist. 24.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 4.80
Voltage 12
Total length 232.50 mm
Waterproof No
Dist. 121.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    F032114216, js1369, RGO 114216, 1986S00924, 28100-0G040, 28100-0r010, 28100-0R030, 428000-3180, 428000-4920

  • Konkurrentreferens
    CST40249, DRS0288, DSN984, F042S0H103, LRS02265, S4042, S6248(DENSO), S6248S, STR-H103, 8EA012527-711, 8EA738259-041, 25-3436, 335.216.112, 9732, 33265N, 106849, 201369, 220664, 220664A, 8080257, 063280059, 0986023240, 063280059010

  • NormaliseratArtNr
    cst40249, drs0288, dsn984, f032114216, f042s0h103, js1369, lrs02265, rgo114216, s4042, s6248denso, s6248s, strh103, 8ea012527711, 8ea738259041, 1986s00924, 9732, 33265n, 106849, 201369, 220664, 220664a, 253436, 281000g040, 281000r010, 281000r030, 8080257, 063280059, 335216112, 0986023240, 4280003180, 4280004920, 063280059010

  • Passar modeller
    Lexus Model: IS Model series: IS 220 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ALE20 From date: 01-08-2005 To date: 01-07-2012 Fuel: Diesel Approved: Yes
    Lexus Model: IS Model series: IS Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ALE20 From date: 01-07-2010 To date: 01-07-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: ADE150 Body: Hatchback From date: 01-10-2006 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ADE157 Body: Hatchback From date: 01-11-2006 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Model type: CAT Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: T25 Body: Estate From date: 01-07-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Model type: CAT Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: T25 Body: Hatchback From date: 01-07-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Model type: CAT Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: T25 From date: 01-07-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T25 Body: Estate From date: 01-03-2006 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T25 Body: Hatchback From date: 01-03-2006 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T25 From date: 01-03-2006 To date: 01-10-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 Body: Estate From date: 01-11-2011 To date: 01-10-2018 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: T27 From date: 01-11-2011 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: T25 Body: Estate From date: 01-10-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: T25 Body: Hatchback From date: 01-10-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: T25 From date: 01-10-2005 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ZER_, ZZE_ Body: MPV From date: 01-10-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ZER_, ZZE_ Body: MPV From date: 01-10-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: ADE150R From date: 01-11-2006 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _E12J_, _E12T_ From date: 01-11-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Model type: CAT Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ALA30 From date: 01-02-2006 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ACA_, ACE_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: ACA_, ACE_, ALA_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ACA_, ACE_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ACA_, ACE_, ALA_ From date: 01-12-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FTV Type description: ALA30 From date: 01-02-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Model type: D-CAT (AUR21_) Type of engine: Diesel Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: AUR20 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: _AUR2_, _ZGR2_ Body: MPV From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: AUR21 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: D-4D Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 2.0 Brand of engine: 1AD-FTV Type description: _R2_ Body: Van From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 2.2 Brand of engine: 2AD-FHV Type description: _R2_ Body: Van From date: 01-04-2009 To date: 01-08-2018 Fuel: Diesel Approved: Yes
