HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032111221

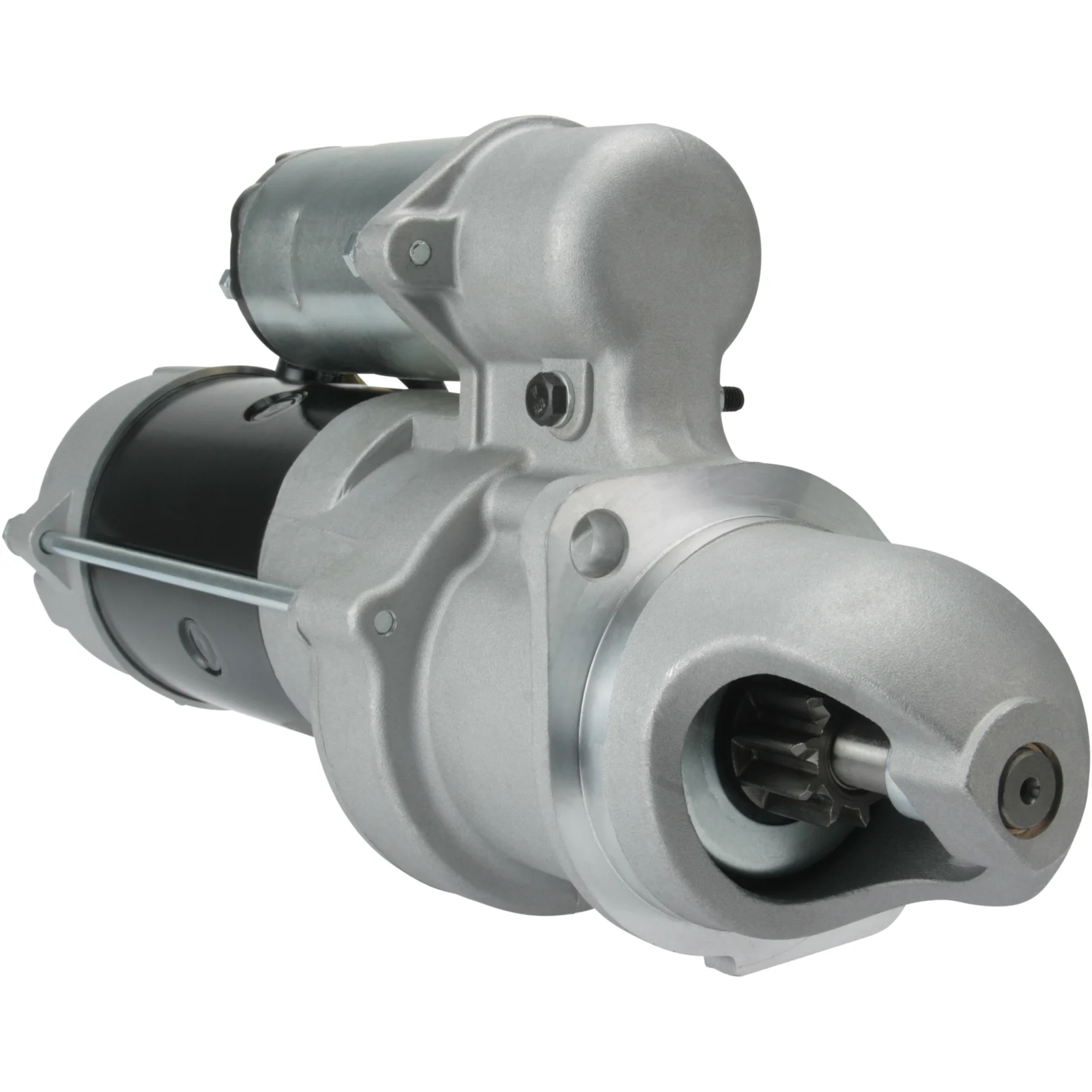

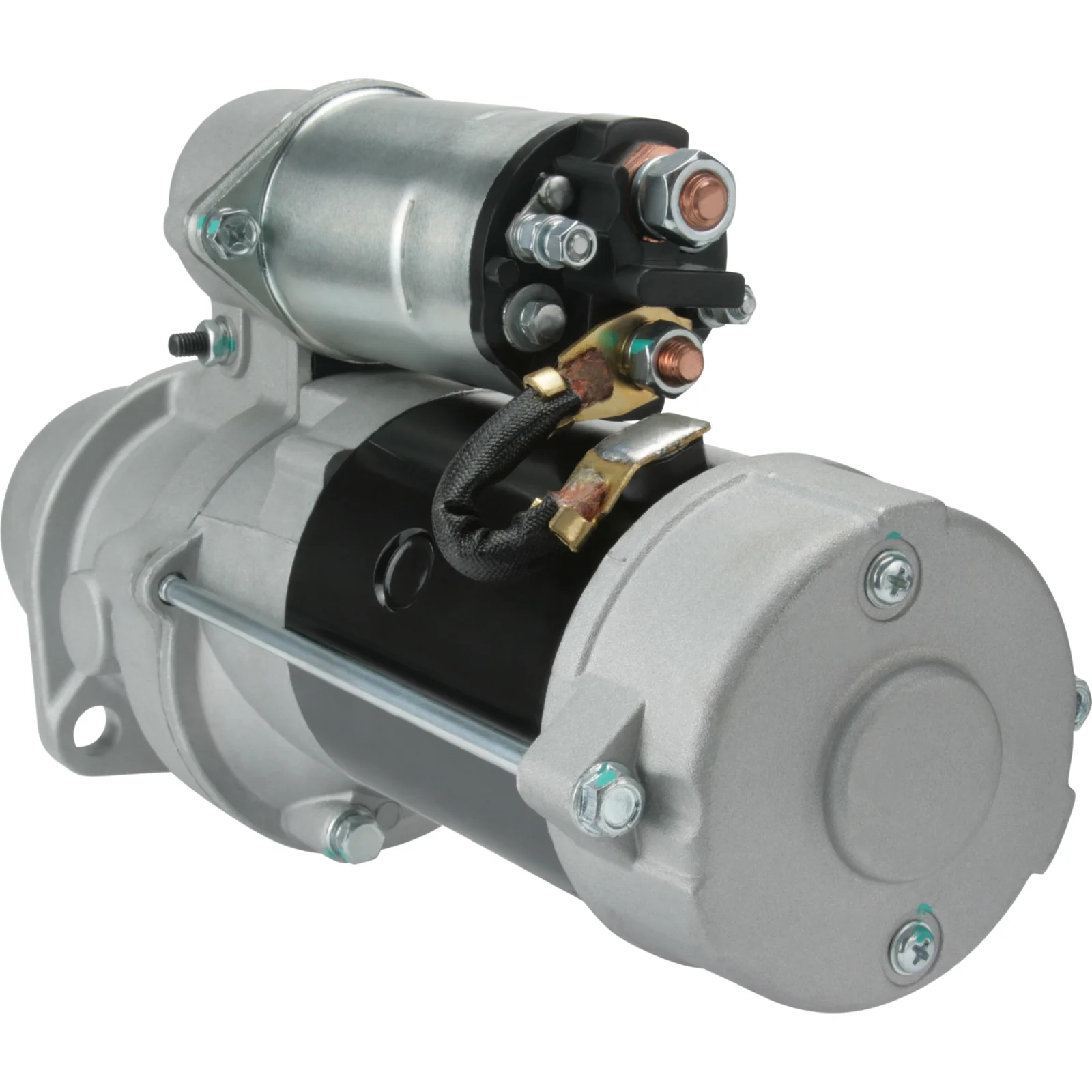

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.5, Tannantall: 10, Rotasjon: Høyre (CW)

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2.5
Monteringsflens: 82.50
Drivingsavstand: 33.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Avstand/bak: 262.00
Avstand/frem: 76.00
Antall/tenner: 10
B+: M10
Posisjon/15a: 20
Terminal 15a: M5
Posisjon/50: 50
Terminal 50: M5
Gavltype: GR
Avstand mm: 105.00
Rotasjon: Høyre
Total lengde mm: 340.00
Kopplingstype: Tørr
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
OljeForseilet: Nei
Merkes: Erstatter: 28MT.
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/15a 20
Position/50 50
Clutch type Dry
Prod. info BN
Remarks Replacing: 28MT.
Rotation CW
Dist./back 262.00
Dist./front 76.00
Drive dist. 33.00
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 340.00 mm
Waterproof No
Dist. 105.00 mm
Terminal 15A M5 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    0-23000-2060, F032111221, re509658, RE62916, 501400, 1107577, 1107599, 1107863, 1107871, 1109251, 1113271, 35259580

  • Konkurrentreferens
    CST50116, drz5133, F042003105, F042S03105, S1066, STR-7072, STR7072, 25-0227, 50-154-9, 50-8422, 686.001.102, 4000, 4960, 6570, 6570R, 6601N, 18422N, 33788, 254203, 35258810

  • NormaliseratArtNr
    cst50116, drz5133, f032111221, f042003105, f042s03105, re509658, re62916, s1066, str7072, 4000, 4960, 6570, 6570r, 6601n, 18422n, 33788, 250227, 254203, 501400, 501549, 508422, 1107577, 1107599, 1107863, 1107871, 1109251, 1113271, 35258810, 35259580, 0230002060, 686001102

  • Passar modeller
    Bobcat Model: 900 Model series: 975 From date: 01-01-1989 Approved: Yes
    Bobcat Model: Various Models Model series: Various Models Approved: Yes
    Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
    John Deere Model: 300 Model series: 350C Model type: Crawlers From date: 01-01-1975 Fuel: Diesel Approved: Yes
    John Deere Model: 400 Model series: 450C Model type: Crawlers From date: 01-01-1974 Fuel: Diesel Approved: Yes
    John Deere Model: 400 Model series: 482 Model type: Cotton Pickers From date: 01-01-1980 Fuel: Diesel Approved: Yes
    John Deere Model: 400 Model series: 484 Model type: Cotton Pickers From date: 01-01-1980 Approved: Yes
    John Deere Model: 6000 Model series: 6329D Approved: Yes
    John Deere Model: 9000 Model series: 9910 Model type: Cotton Pickers From date: 01-01-1979 Fuel: Diesel Approved: Yes
    John Deere Model: 9000 Model series: 9920 Model type: Cotton Pickers From date: 01-01-1983 Fuel: Diesel Approved: Yes
    John Deere Model: Farm Model series: 2630 From date: 01-01-1974 Fuel: Diesel Approved: Yes
    John Deere Model: Farm Model series: 2640 From date: 01-01-1976 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 2.5
    Monteringsflens: 82.50
    Drivingsavstand: 33.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 262.00
    Avstand/frem: 76.00
    Antall/tenner: 10
    B+: M10
    Posisjon/15a: 20
    Terminal 15a: M5
    Posisjon/50: 50
    Terminal 50: M5
    Gavltype: GR
    Avstand mm: 105.00
    Rotasjon: Høyre
    Total lengde mm: 340.00
    Kopplingstype: Tørr
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    OljeForseilet: Nei
    Merkes: Erstatter: 28MT.
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/15a 20
    Position/50 50
    Clutch type Dry
    Prod. info BN
    Remarks Replacing: 28MT.
    Rotation CW
    Dist./back 262.00
    Dist./front 76.00
    Drive dist. 33.00
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 340.00 mm
    Waterproof No
    Dist. 105.00 mm
    Terminal 15A M5 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      0-23000-2060, F032111221, re509658, RE62916, 501400, 1107577, 1107599, 1107863, 1107871, 1109251, 1113271, 35259580

    • Konkurrentreferens
      CST50116, drz5133, F042003105, F042S03105, S1066, STR-7072, STR7072, 25-0227, 50-154-9, 50-8422, 686.001.102, 4000, 4960, 6570, 6570R, 6601N, 18422N, 33788, 254203, 35258810

    • NormaliseratArtNr
      cst50116, drz5133, f032111221, f042003105, f042s03105, re509658, re62916, s1066, str7072, 4000, 4960, 6570, 6570r, 6601n, 18422n, 33788, 250227, 254203, 501400, 501549, 508422, 1107577, 1107599, 1107863, 1107871, 1109251, 1113271, 35258810, 35259580, 0230002060, 686001102

    • Passar modeller
      Bobcat Model: 900 Model series: 975 From date: 01-01-1989 Approved: Yes
      Bobcat Model: Various Models Model series: Various Models Approved: Yes
      Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
      John Deere Model: 300 Model series: 350C Model type: Crawlers From date: 01-01-1975 Fuel: Diesel Approved: Yes
      John Deere Model: 400 Model series: 450C Model type: Crawlers From date: 01-01-1974 Fuel: Diesel Approved: Yes
      John Deere Model: 400 Model series: 482 Model type: Cotton Pickers From date: 01-01-1980 Fuel: Diesel Approved: Yes
      John Deere Model: 400 Model series: 484 Model type: Cotton Pickers From date: 01-01-1980 Approved: Yes
      John Deere Model: 6000 Model series: 6329D Approved: Yes
      John Deere Model: 9000 Model series: 9910 Model type: Cotton Pickers From date: 01-01-1979 Fuel: Diesel Approved: Yes
      John Deere Model: 9000 Model series: 9920 Model type: Cotton Pickers From date: 01-01-1983 Fuel: Diesel Approved: Yes
      John Deere Model: Farm Model series: 2630 From date: 01-01-1974 Fuel: Diesel Approved: Yes
      John Deere Model: Farm Model series: 2640 From date: 01-01-1976 Fuel: Diesel Approved: Yes
      1 / 3
