- Startmotor
-
HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Varenr.: F032114060

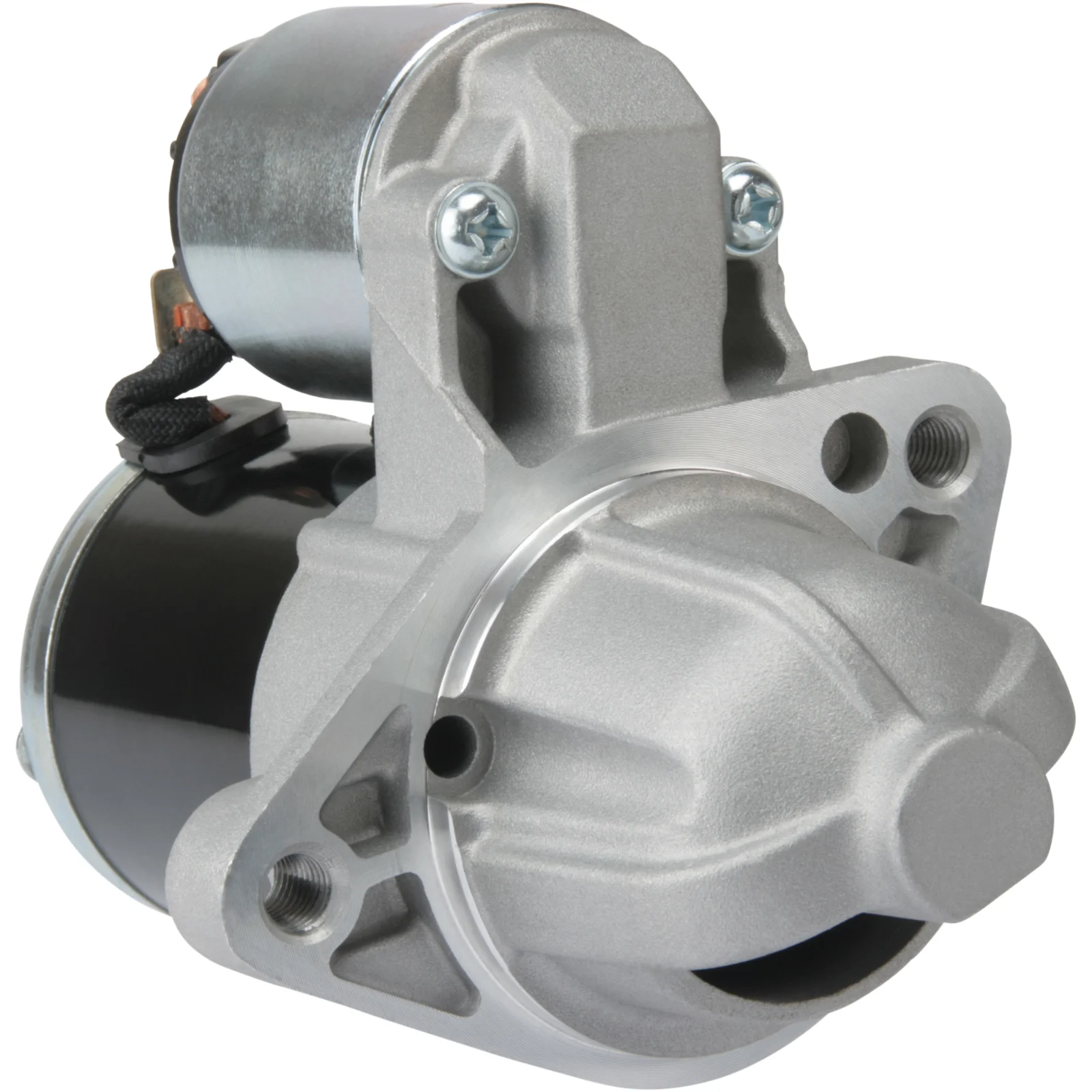

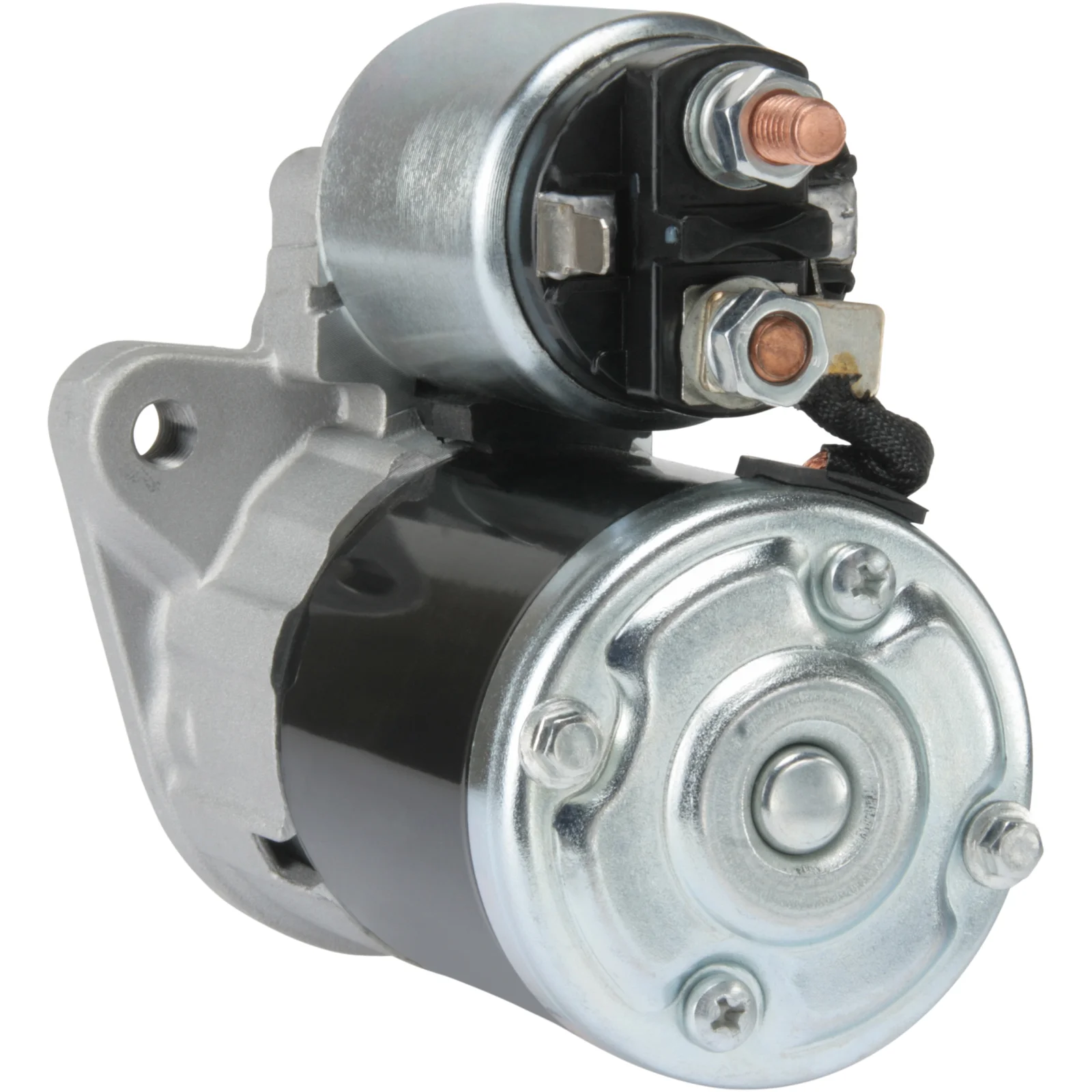

HC-Cargo Startmotor
Spenningsregulator: 12, kW: 1.0, Ant./tenner: 8, Rotasjon: Døgngående (CW)
Beskrivelse
Suzuki Startmotor 12V-1.0kW, 8K 12V - 1.0kW, 8K A - 70mm, B - 29mm For lengre motor se 91-528-8658! For Yourex produkt bestilling 91-528-2323
Spenningsposisjon: 12
kW: 1.0
Monteringsflens: 70.00
Drevavstand: 28.00
Avstand/bak: 122.00
Avstand/frem: 60.00
Antall/tænder: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Gavltype: DD/GR
Avstand mm: 101.00
Rotasjon: medur
Total lengde mm: 183.00
Prod. info: BN
Antall/monteringshull: 2 (2)
Spenningsposisjon: 12
kW: 1.0
Monteringsflens: 70.00
Drevavstand: 28.00
Avstand/bak: 122.00
Avstand/frem: 60.00
Antall/tænder: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Gavltype: DD/GR
Avstand mm: 101.00
Rotasjon: medur
Total lengde mm: 183.00
Prod. info: BN
Antall/monteringshull: 2 (2)
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| No./teeth | 8 |
| Mount. flange | 70.00 |
| No./mount. holes | 2 (2) |
| Position/50 | 45 |
| Prod. info | BN |
| Rotation | CW |
| Dist./back | 122.00 |
| Dist./front | 60.00 |
| Drive dist. | 28.00 |
| Gear type | DD/GR |
| kW | 1.0 |
| Terminal 50 | 6.30 |
| Voltage | 12 |
| Total length | 183.00 mm |
| Dist. | 101.00 mm |
-
OEM
CST35180, CST40207, DRS0101, DRS0873, F032114060, F042200130, J5218026, M000T36071, M000T36071AM, M000T36071ZE, M000T36073, M000T36073AM, M000T84981, M000T86581, M001T86681, M002T46781, M002T46781ZE, M002T47681, M0T-36071, M0T36071, M0T36071AM, M0T36071ZE, M0T36073, M0T36073AM, M0T84981, M0T86581, M1T86681, M2T-46781, M2T46781, M2T46781ZE, M2T47681, S5234, 8EA012528-631, 8EA738154-001, 25-3146, 25-4227, 180.524.082, 345.017.082, 345.022.082, 0986 023 230, 1986S00923, 9764, 31100 86G00 000, 31100-63J00, 31100-63J10, 31100-75F60, 31100-80G0, 31100-80G00, 31100-80G10, 31100-80G20, 31100-86G00, 32620, 32620N, 32621N, 105440, 114060, 201310, 220826, 220826A, 228000-8930, 428000-3600, 446505, 446518, 446532, 458700, 3110081A30, 8080243, 11040713, 31100080G1, 71742375, 71750026, 71792034, 71792036, 71793347, 717922031, 717922033, 0986023230, 64529217869 -
Konkurrentreferens
CST35180, CST40207, DRS0101, DRS0873, F042200130, J5218026, S5234, 8EA012528-631, 8EA738154-001, 25-3146, 25-4227, 180.524.082, 345.017.082, 345.022.082, 9764, 32620, 32620N, 32621N, 105440, 201310, 220826, 220826A, 446505, 446518, 446532, 458700, 8080243, 11040713, 0986023230 -
Bilmärken
FIAT, SUBARU, SUZUKI -
NormaliseratArtNr
cst35180, cst40207, drs0101, drs0873, f032114060, f042200130, j5218026, m000t36071, m000t36071am, m000t36071ze, m000t36073, m000t36073am, m000t84981, m000t86581, m001t86681, m002t46781, m002t46781ze, m002t47681, m0t36071, m0t36071am, m0t36071ze, m0t36073, m0t36073am, m0t84981, m0t86581, m1t86681, m2t46781, m2t46781ze, m2t47681, s5234, 8ea012528631, 8ea738154001, 1986s00923, 9764, 32620, 32620n, 32621n, 105440, 114060, 201310, 220826, 220826a, 253146, 254227, 446505, 446518, 446532, 458700, 3110063j00, 3110063j10, 3110075f60, 3110080g0, 3110080g00, 3110080g10, 3110080g20, 3110081a30, 3110086g00, 3110086g00000, 8080243, 11040713, 31100080g1, 71742375, 71750026, 71792034, 71792036, 71793347, 180524082, 345017082, 345022082, 717922031, 717922033, 0986023230, 2280008930, 4280003600, 64529217869 -
Passar modeller
FIAT SEDICI (189_) 1.6 16V 4x4 Engine volume: 1.6 Engine type: M16A Year: 06.06-10.14 FIAT SEDICI (189_) 1.6 16V Engine volume: 1.6 Engine type: M16A Year: 06.06-10.14 SUBARU JUSTY II (JMA, MS) 1.3 4x4 Engine volume: 1.3 Engine type: G13BB Year: 04.01-11.03 SUBARU JUSTY II (JMA, MS) 1.3 GX 4x4 Engine volume: 1.3 Engine type: EF13 Year: 10.95-11.03 SUBARU JUSTY III (G3X) 1.3 AWD (G3X413) Engine volume: 1.3 Engine type: M13A Year: 09.03- SUBARU JUSTY III (G3X) 1.5 AWD (G3X413) Engine volume: 1.5 Engine type: M15A Year: 09.03- SUZUKI GRAND VITARA II (JT, TE, TD) 1.6 (JB416) Engine volume: 1.6 Engine type: M16A Year: 10.05- SUZUKI GRAND VITARA II (JT, TE, TD) 1.6 Allhjulsdrift (JB416) Engine volume: 1.6 Engine type: M16A Year: 03.13- SUZUKI GRAND VITARA II (JT, TE, TD) 1.6 Allhjulsdrift (JB416) Engine volume: 1.6 Engine type: M16A Year: 04.05-02.15 SUZUKI GRAND VITARA II (JT, TE, TD) 1.6 Allhjulsdrift (TA74, JB416) Engine volume: 1.6 Engine type: M16A Year: 09.05-02.15 SUZUKI IGNIS I (FH) 1.3 (HV51, HX51, RG413) Engine volume: 1.3 Engine type: M13A Year: 10.00-09.03 SUZUKI IGNIS I (FH) 1.3 4WD (RG413) Engine volume: 1.3 Engine type: M13A Year: 10.00-09.03 SUZUKI IGNIS I (FH) 1.5 Sport (RG415) Engine volume: 1.5 Engine type: M15A Year: 12.03-12.05 SUZUKI IGNIS II (MH) 1.3 (RM413) Engine volume: 1.3 Engine type: M13A Year: 09.03- SUZUKI IGNIS II (MH) 1.3 4x4 (RM413) Engine volume: 1.3 Engine type: M13A Year: 09.03- SUZUKI IGNIS II (MH) 1.5 (RM415) Engine volume: 1.5 Engine type: M15A Year: 09.03- SUZUKI IGNIS II (MH) 1.5 4x4 (RM415) Engine volume: 1.5 Engine type: M15A Year: 09.03- SUZUKI JIMNY Terrängbil öppen (SN) 1.3 (SN413) Engine volume: 1.3 Engine type: M13A Year: 08.04- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 (SN413) Engine volume: 1.3 Engine type: M13A Year: 08.04- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 16V (SN413) Engine volume: 1.3 Engine type: M13A Year: 02.01- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 16V 4WD (SN413, JB43) Engine volume: 1.3 Engine type: M13A Year: 02.01- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 16V 4x4 (SN413, JB43) Engine volume: 1.3 Engine type: M13A Year: 08.05- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 4WD (SN413) Engine volume: 1.3 Engine type: M13A Year: 05.14- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.5 DDiS 4WD (SN415D) Engine volume: 1.5 Engine type: K9K 700 Year: 12.03- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.5 DDiS 4x4 Engine volume: 1.5 Engine type: K9K 266 Year: 08.05- SUZUKI LIANA (ER, RH_) 1.3 (RH 413) Engine volume: 1.3 Engine type: M13A Year: 03.02- SUZUKI LIANA (ER, RH_) 1.6 (RH416) Engine volume: 1.6 Engine type: M16A Year: 01.05- SUZUKI LIANA (ER, RH_) 1.6 (RH416) Engine volume: 1.6 Engine type: M16A Year: 03.02- SUZUKI LIANA (ER, RH_) 1.6 4WD (RH416) Engine volume: 1.6 Engine type: M16A Year: 01.05-12.07 SUZUKI LIANA (ER, RH_) 1.6 4WD (RH416) Engine volume: 1.6 Engine type: M16A Year: 03.02- SUZUKI LIANA (ER, RH_) 1.6 4WD (RH416) Engine volume: 1.6 Engine type: M16A Year: 04.02- SUZUKI LIANA (ER, RH_) 1.6 i (RH416) Engine volume: 1.6 Engine type: M16A Year: 04.02- SUZUKI LIANA Halvkombi 1.3 Engine volume: 1.3 Engine type: M13A Year: 07.01-12.07 SUZUKI LIANA Halvkombi 1.6 (RH416) Engine volume: 1.6 Engine type: M16A Year: 07.01-12.07 SUZUKI LIANA Halvkombi 1.6 4WD Engine volume: 1.6 Engine type: M16A Year: 01.05-12.07 SUZUKI LIANA Halvkombi 1.6 4WD Engine volume: 1.6 Engine type: M16A Year: 04.02-12.07 SUZUKI LIANA Halvkombi 1.6 4WD Engine volume: 1.6 Engine type: M16A Year: 07.01-12.07 SUZUKI LIANA Halvkombi 1.6 Engine volume: 1.6 Engine type: M16A Year: 01.05-08.07 SUZUKI LIANA Halvkombi 1.6 i (RH416) Engine volume: 1.6 Engine type: M16A Year: 04.02-12.07 SUZUKI SWIFT III (MZ, EZ) 1.3 (RS413, ZC11S) Engine volume: 1.3 Engine type: M13A Year: 02.05-06.12 SUZUKI SWIFT III (MZ, EZ) 1.3 4x4 (RS 413, ZD11S) Engine volume: 1.3 Engine type: M13A Year: 02.05-06.12 SUZUKI SWIFT III (MZ, EZ) 1.3 4x4 (RS413, ZD11S) Engine volume: 1.3 Engine type: M13A Year: 01.06-06.12 SUZUKI SWIFT III (MZ, EZ) 1.5 (RS415, ZC21S) Engine volume: 1.5 Engine type: M15A Year: 02.05-12.11 SUZUKI SWIFT III (MZ, EZ) 1.6 (RS416, RR 416, ZC31S) Engine volume: 1.6 Engine type: M16A Year: 05.06-12.15 SUZUKI SWIFT IV (FZ, NZ) 1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S) Engine volume: 1.6 Engine type: M16A Year: 01.12-04.17 SUZUKI SX4 (EY, GY) 1.5 (RW 415) Engine volume: 1.5 Engine type: M15A Year: 06.06-07.10 SUZUKI SX4 (EY, GY) 1.5 VVT (RW415, YA11S) Engine volume: 1.5 Engine type: M15A Year: 07.10- SUZUKI SX4 (EY, GY) 1.5 VVTi (YA11S) Engine volume: 1.5 Engine type: M15A Year: 07.07-12.15 SUZUKI SX4 (EY, GY) 1.6 VVT (RW416, YA21S) Engine volume: 1.6 Engine type: M16A Year: 06.06- SUZUKI SX4 (EY, GY) 1.6 VVT (RW416, YA21S) Engine volume: 1.6 Engine type: M16A Year: 07.09- SUZUKI SX4 (EY, GY) 1.6 VVT 4x4 (RW416) Engine volume: 1.6 Engine type: M16A Year: 06.06- SUZUKI SX4 (EY, GY) 1.6 VVT 4x4 (RW416) Engine volume: 1.6 Engine type: M16A Year: 07.09- SUZUKI SX4 (EY, GY) 1.6 VVT Engine volume: 1.6 Engine type: M16A Year: 11.10-12.15 SUZUKI SX4 S-CROSS (JY) 1.6 (AKK 416) Engine volume: 1.6 Engine type: M16A Year: 08.13-06.22 SUZUKI SX4 S-CROSS (JY) 1.6 (AKK416, YA22S) Engine volume: 1.6 Engine type: M16A Year: 12.13-06.22 SUZUKI SX4 S-CROSS (JY) 1.6 AllGrip (AKK 416) Engine volume: 1.6 Engine type: M16A Year: 08.13-06.22 SUZUKI SX4 S-CROSS (JY) 1.6 AllGrip (AKK416, YB22S) Engine volume: 1.6 Engine type: M16A Year: 12.13-06.22 SUZUKI SX4 Sedan (GY, RW) 1.6 (RW416) Engine volume: 1.6 Engine type: M16A Year: 10.07- SUZUKI WAGON R (MH21, MH22) 1.3 (RB413) Engine volume: 1.3 Engine type: M13A Year: 09.03-12.10 SUZUKI WAGON R+ (MA) 1.3 (RB413) Engine volume: 1.3 Engine type: M13A Year: 09.03-08.06 SUZUKI WAGON R+ (MA) 1.3 4WD (RB413) Engine volume: 1.3 Engine type: M13A Year: 09.03- 1 / 13
-
Beskrivelse
Suzuki Startmotor 12V-1.0kW, 8K 12V - 1.0kW, 8K A - 70mm, B - 29mm For lengre motor se 91-528-8658! For Yourex produkt bestilling 91-528-2323
Spenningsposisjon: 12
kW: 1.0
Monteringsflens: 70.00
Drevavstand: 28.00
Avstand/bak: 122.00
Avstand/frem: 60.00
Antall/tænder: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Gavltype: DD/GR
Avstand mm: 101.00
Rotasjon: medur
Total lengde mm: 183.00
Prod. info: BN
Antall/monteringshull: 2 (2)Filer
-
Spesifikasjon
B+ M8 No./teeth 8 Mount. flange 70.00 No./mount. holes 2 (2) Position/50 45 Prod. info BN Rotation CW Dist./back 122.00 Dist./front 60.00 Drive dist. 28.00 Gear type DD/GR kW 1.0 Terminal 50 6.30 Voltage 12 Total length 183.00 mm Dist. 101.00 mm -
Kjøretøymatching
-
OEM
CST35180, CST40207, DRS0101, DRS0873, F032114060, F042200130, J5218026, M000T36071, M000T36071AM, M000T36071ZE, M000T36073, M000T36073AM, M000T84981, M000T86581, M001T86681, M002T46781, M002T46781ZE, M002T47681, M0T-36071, M0T36071, M0T36071AM, M0T36071ZE, M0T36073, M0T36073AM, M0T84981, M0T86581, M1T86681, M2T-46781, M2T46781, M2T46781ZE, M2T47681, S5234, 8EA012528-631, 8EA738154-001, 25-3146, 25-4227, 180.524.082, 345.017.082, 345.022.082, 0986 023 230, 1986S00923, 9764, 31100 86G00 000, 31100-63J00, 31100-63J10, 31100-75F60, 31100-80G0, 31100-80G00, 31100-80G10, 31100-80G20, 31100-86G00, 32620, 32620N, 32621N, 105440, 114060, 201310, 220826, 220826A, 228000-8930, 428000-3600, 446505, 446518, 446532, 458700, 3110081A30, 8080243, 11040713, 31100080G1, 71742375, 71750026, 71792034, 71792036, 71793347, 717922031, 717922033, 0986023230, 64529217869 -
Konkurrentreferens
CST35180, CST40207, DRS0101, DRS0873, F042200130, J5218026, S5234, 8EA012528-631, 8EA738154-001, 25-3146, 25-4227, 180.524.082, 345.017.082, 345.022.082, 9764, 32620, 32620N, 32621N, 105440, 201310, 220826, 220826A, 446505, 446518, 446532, 458700, 8080243, 11040713, 0986023230 -
Bilmärken
FIAT, SUBARU, SUZUKI -
NormaliseratArtNr
cst35180, cst40207, drs0101, drs0873, f032114060, f042200130, j5218026, m000t36071, m000t36071am, m000t36071ze, m000t36073, m000t36073am, m000t84981, m000t86581, m001t86681, m002t46781, m002t46781ze, m002t47681, m0t36071, m0t36071am, m0t36071ze, m0t36073, m0t36073am, m0t84981, m0t86581, m1t86681, m2t46781, m2t46781ze, m2t47681, s5234, 8ea012528631, 8ea738154001, 1986s00923, 9764, 32620, 32620n, 32621n, 105440, 114060, 201310, 220826, 220826a, 253146, 254227, 446505, 446518, 446532, 458700, 3110063j00, 3110063j10, 3110075f60, 3110080g0, 3110080g00, 3110080g10, 3110080g20, 3110081a30, 3110086g00, 3110086g00000, 8080243, 11040713, 31100080g1, 71742375, 71750026, 71792034, 71792036, 71793347, 180524082, 345017082, 345022082, 717922031, 717922033, 0986023230, 2280008930, 4280003600, 64529217869 -
Passar modeller
FIAT SEDICI (189_) 1.6 16V 4x4 Engine volume: 1.6 Engine type: M16A Year: 06.06-10.14 FIAT SEDICI (189_) 1.6 16V Engine volume: 1.6 Engine type: M16A Year: 06.06-10.14 SUBARU JUSTY II (JMA, MS) 1.3 4x4 Engine volume: 1.3 Engine type: G13BB Year: 04.01-11.03 SUBARU JUSTY II (JMA, MS) 1.3 GX 4x4 Engine volume: 1.3 Engine type: EF13 Year: 10.95-11.03 SUBARU JUSTY III (G3X) 1.3 AWD (G3X413) Engine volume: 1.3 Engine type: M13A Year: 09.03- SUBARU JUSTY III (G3X) 1.5 AWD (G3X413) Engine volume: 1.5 Engine type: M15A Year: 09.03- SUZUKI GRAND VITARA II (JT, TE, TD) 1.6 (JB416) Engine volume: 1.6 Engine type: M16A Year: 10.05- SUZUKI GRAND VITARA II (JT, TE, TD) 1.6 Allhjulsdrift (JB416) Engine volume: 1.6 Engine type: M16A Year: 03.13- SUZUKI GRAND VITARA II (JT, TE, TD) 1.6 Allhjulsdrift (JB416) Engine volume: 1.6 Engine type: M16A Year: 04.05-02.15 SUZUKI GRAND VITARA II (JT, TE, TD) 1.6 Allhjulsdrift (TA74, JB416) Engine volume: 1.6 Engine type: M16A Year: 09.05-02.15 SUZUKI IGNIS I (FH) 1.3 (HV51, HX51, RG413) Engine volume: 1.3 Engine type: M13A Year: 10.00-09.03 SUZUKI IGNIS I (FH) 1.3 4WD (RG413) Engine volume: 1.3 Engine type: M13A Year: 10.00-09.03 SUZUKI IGNIS I (FH) 1.5 Sport (RG415) Engine volume: 1.5 Engine type: M15A Year: 12.03-12.05 SUZUKI IGNIS II (MH) 1.3 (RM413) Engine volume: 1.3 Engine type: M13A Year: 09.03- SUZUKI IGNIS II (MH) 1.3 4x4 (RM413) Engine volume: 1.3 Engine type: M13A Year: 09.03- SUZUKI IGNIS II (MH) 1.5 (RM415) Engine volume: 1.5 Engine type: M15A Year: 09.03- SUZUKI IGNIS II (MH) 1.5 4x4 (RM415) Engine volume: 1.5 Engine type: M15A Year: 09.03- SUZUKI JIMNY Terrängbil öppen (SN) 1.3 (SN413) Engine volume: 1.3 Engine type: M13A Year: 08.04- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 (SN413) Engine volume: 1.3 Engine type: M13A Year: 08.04- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 16V (SN413) Engine volume: 1.3 Engine type: M13A Year: 02.01- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 16V 4WD (SN413, JB43) Engine volume: 1.3 Engine type: M13A Year: 02.01- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 16V 4x4 (SN413, JB43) Engine volume: 1.3 Engine type: M13A Year: 08.05- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.3 4WD (SN413) Engine volume: 1.3 Engine type: M13A Year: 05.14- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.5 DDiS 4WD (SN415D) Engine volume: 1.5 Engine type: K9K 700 Year: 12.03- SUZUKI JIMNY Terrängbil täckt (SN, JB_) 1.5 DDiS 4x4 Engine volume: 1.5 Engine type: K9K 266 Year: 08.05- SUZUKI LIANA (ER, RH_) 1.3 (RH 413) Engine volume: 1.3 Engine type: M13A Year: 03.02- SUZUKI LIANA (ER, RH_) 1.6 (RH416) Engine volume: 1.6 Engine type: M16A Year: 01.05- SUZUKI LIANA (ER, RH_) 1.6 (RH416) Engine volume: 1.6 Engine type: M16A Year: 03.02- SUZUKI LIANA (ER, RH_) 1.6 4WD (RH416) Engine volume: 1.6 Engine type: M16A Year: 01.05-12.07 SUZUKI LIANA (ER, RH_) 1.6 4WD (RH416) Engine volume: 1.6 Engine type: M16A Year: 03.02- SUZUKI LIANA (ER, RH_) 1.6 4WD (RH416) Engine volume: 1.6 Engine type: M16A Year: 04.02- SUZUKI LIANA (ER, RH_) 1.6 i (RH416) Engine volume: 1.6 Engine type: M16A Year: 04.02- SUZUKI LIANA Halvkombi 1.3 Engine volume: 1.3 Engine type: M13A Year: 07.01-12.07 SUZUKI LIANA Halvkombi 1.6 (RH416) Engine volume: 1.6 Engine type: M16A Year: 07.01-12.07 SUZUKI LIANA Halvkombi 1.6 4WD Engine volume: 1.6 Engine type: M16A Year: 01.05-12.07 SUZUKI LIANA Halvkombi 1.6 4WD Engine volume: 1.6 Engine type: M16A Year: 04.02-12.07 SUZUKI LIANA Halvkombi 1.6 4WD Engine volume: 1.6 Engine type: M16A Year: 07.01-12.07 SUZUKI LIANA Halvkombi 1.6 Engine volume: 1.6 Engine type: M16A Year: 01.05-08.07 SUZUKI LIANA Halvkombi 1.6 i (RH416) Engine volume: 1.6 Engine type: M16A Year: 04.02-12.07 SUZUKI SWIFT III (MZ, EZ) 1.3 (RS413, ZC11S) Engine volume: 1.3 Engine type: M13A Year: 02.05-06.12 SUZUKI SWIFT III (MZ, EZ) 1.3 4x4 (RS 413, ZD11S) Engine volume: 1.3 Engine type: M13A Year: 02.05-06.12 SUZUKI SWIFT III (MZ, EZ) 1.3 4x4 (RS413, ZD11S) Engine volume: 1.3 Engine type: M13A Year: 01.06-06.12 SUZUKI SWIFT III (MZ, EZ) 1.5 (RS415, ZC21S) Engine volume: 1.5 Engine type: M15A Year: 02.05-12.11 SUZUKI SWIFT III (MZ, EZ) 1.6 (RS416, RR 416, ZC31S) Engine volume: 1.6 Engine type: M16A Year: 05.06-12.15 SUZUKI SWIFT IV (FZ, NZ) 1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S) Engine volume: 1.6 Engine type: M16A Year: 01.12-04.17 SUZUKI SX4 (EY, GY) 1.5 (RW 415) Engine volume: 1.5 Engine type: M15A Year: 06.06-07.10 SUZUKI SX4 (EY, GY) 1.5 VVT (RW415, YA11S) Engine volume: 1.5 Engine type: M15A Year: 07.10- SUZUKI SX4 (EY, GY) 1.5 VVTi (YA11S) Engine volume: 1.5 Engine type: M15A Year: 07.07-12.15 SUZUKI SX4 (EY, GY) 1.6 VVT (RW416, YA21S) Engine volume: 1.6 Engine type: M16A Year: 06.06- SUZUKI SX4 (EY, GY) 1.6 VVT (RW416, YA21S) Engine volume: 1.6 Engine type: M16A Year: 07.09- SUZUKI SX4 (EY, GY) 1.6 VVT 4x4 (RW416) Engine volume: 1.6 Engine type: M16A Year: 06.06- SUZUKI SX4 (EY, GY) 1.6 VVT 4x4 (RW416) Engine volume: 1.6 Engine type: M16A Year: 07.09- SUZUKI SX4 (EY, GY) 1.6 VVT Engine volume: 1.6 Engine type: M16A Year: 11.10-12.15 SUZUKI SX4 S-CROSS (JY) 1.6 (AKK 416) Engine volume: 1.6 Engine type: M16A Year: 08.13-06.22 SUZUKI SX4 S-CROSS (JY) 1.6 (AKK416, YA22S) Engine volume: 1.6 Engine type: M16A Year: 12.13-06.22 SUZUKI SX4 S-CROSS (JY) 1.6 AllGrip (AKK 416) Engine volume: 1.6 Engine type: M16A Year: 08.13-06.22 SUZUKI SX4 S-CROSS (JY) 1.6 AllGrip (AKK416, YB22S) Engine volume: 1.6 Engine type: M16A Year: 12.13-06.22 SUZUKI SX4 Sedan (GY, RW) 1.6 (RW416) Engine volume: 1.6 Engine type: M16A Year: 10.07- SUZUKI WAGON R (MH21, MH22) 1.3 (RB413) Engine volume: 1.3 Engine type: M13A Year: 09.03-12.10 SUZUKI WAGON R+ (MA) 1.3 (RB413) Engine volume: 1.3 Engine type: M13A Year: 09.03-08.06 SUZUKI WAGON R+ (MA) 1.3 4WD (RB413) Engine volume: 1.3 Engine type: M13A Year: 09.03- 1 / 13
-
