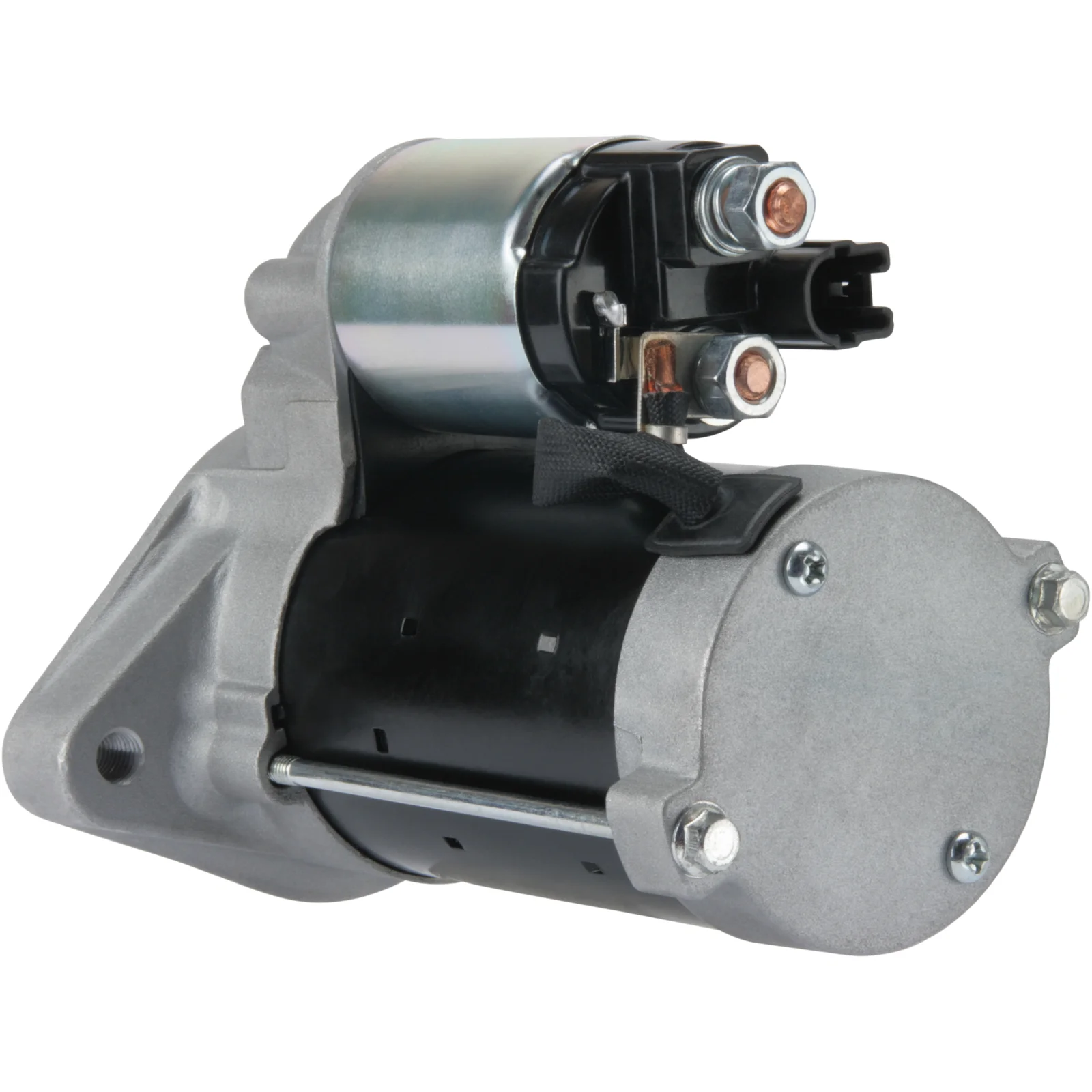

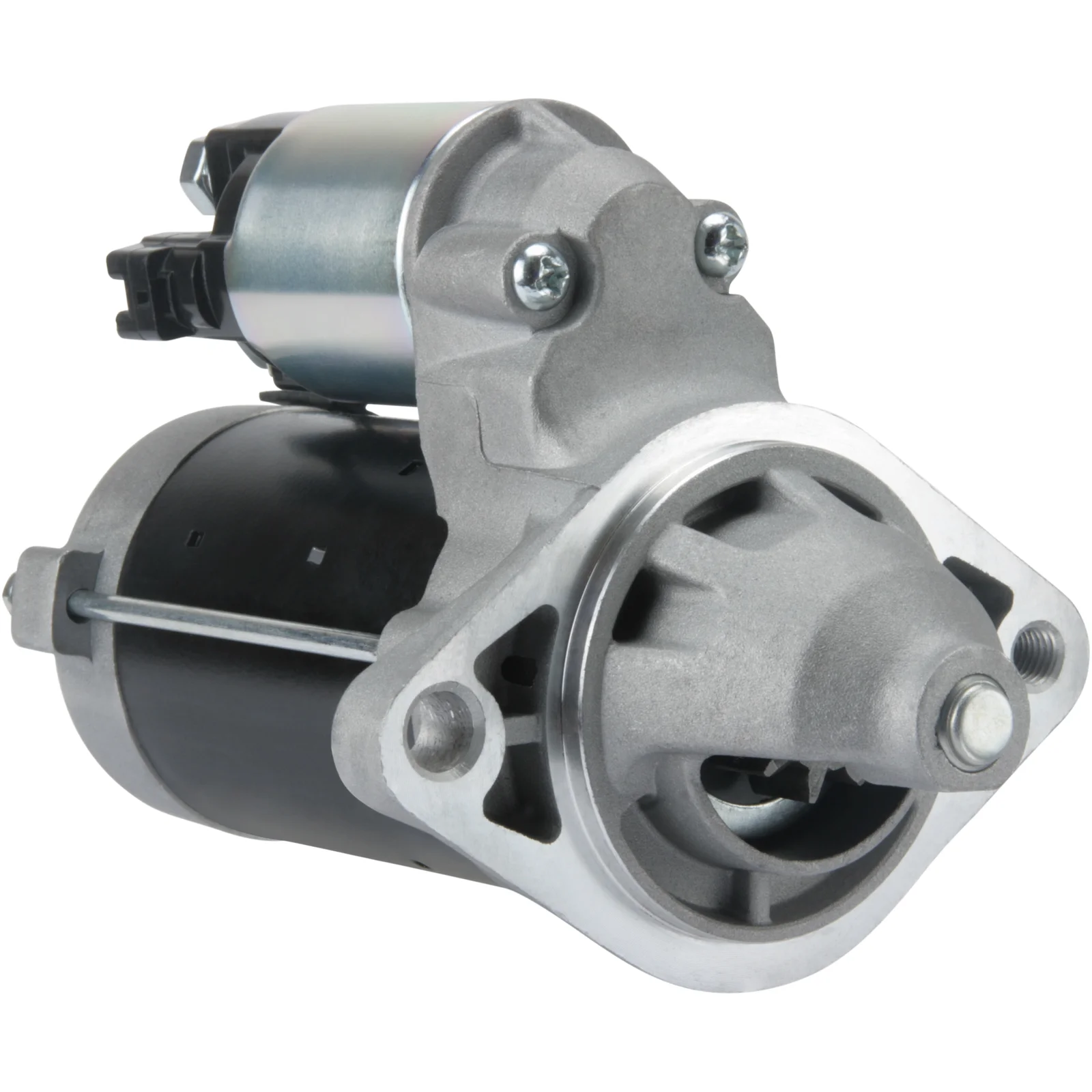

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114056

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.3, Nr./tenner: 9, Rotasjon: CW

Beskrivelse

Toyota Startmotor 12V-1,3kW 12V - 1,3kW, 9k A - 74 mm, B - 15 mm For Yourex produkt bestilling 91-555-4450

Spenningsverdi: 12
kW: 1,3
Festebrakk: 74,00
Dreieavstand: 15,50
Festebore 2 mm: 11,00
Avstand/bak: 145,00
Avstand/framp: 47,00
Antall/tannhjul: 9
B+: M8
Posisjon/50: 20
Terminal 50: Plugg
Girtype: GR
Avstand mm: 114,00
Rotasjon: CW
Total lengde mm: 196,00
Drevetype: Stål
Prod. info: BN
Vannbestandig: Nei
Olje forseglet: Nei
Antall/festeborrelser: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 20
Prod. info BN
Rotation CW
Dist./back 145.00
Dist./front 47.00
Drive dist. 15.50
Drive type Steel
Gear type GR
kW 1.3
Terminal 50 Plug
Voltage 12
Total length 196.00 mm
Waterproof No
Dist. 114.00 mm
Mount. hole 2 11.00 mm

  • OEM
    DSN 920, F032114056, js1362, MS428000-0680, RGO 114056, 1986S01021, 28100-0D090, 28100-0D180, 114056, 428000-0680, 428000-4500, 428000-7710

  • Konkurrentreferens
    CST40268, DENDSN920, DRS0347, dsn920, F042S00281, J5212122, LRS02399, S6061, S6061(DENSO), S6061PR, 8EA012528-941, 25-4071, 335.226.092, 9715, 31346N, 106586, 201362, 220542, 220542A, 446527, 11040602, 063280048, 0986023260, 063280048010

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    cst40268, dendsn920, drs0347, dsn920, f032114056, f042s00281, j5212122, js1362, lrs02399, ms4280000680, rgo114056, s6061, s6061denso, s6061pr, 8ea012528941, 1986s01021, 9715, 31346n, 106586, 114056, 201362, 220542, 220542a, 254071, 281000d090, 281000d180, 446527, 11040602, 063280048, 335226092, 0986023260, 4280000680, 4280004500, 4280007710, 063280048010

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.8 Type description: ZER_, ZZE_ Body: MPV From date: 01-03-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    Toyota Series: Avensis (T25) Kombi Model: 1.8 Engine volume: 1.8 Engine type: 1ZZ-FE Year: 04.03-
    Toyota Series: Avensis (T25) Model: 1.8 Engine volume: 1.8 Engine type: 1ZZ-FE Year: 04.03-
    Toyota Series: Avensis (T25) Model: 1.8 Engine volume: 1.8 Engine type: 1ZZ-FE Year: 04.03-11.08
    Toyota Series: Corolla Verso Model: 1.6 Engine volume: 1.6 Engine type: 3ZZ-FE Year: 04.04-
    Toyota Series: Corolla Verso Model: 1.8 Engine volume: 1.8 Engine type: 1ZZ-FE Year: 04.04-
    1 / 3
  • Beskrivelse
    Toyota Startmotor 12V-1,3kW 12V - 1,3kW, 9k A - 74 mm, B - 15 mm For Yourex produkt bestilling 91-555-4450

    Spenningsverdi: 12
    kW: 1,3
    Festebrakk: 74,00
    Dreieavstand: 15,50
    Festebore 2 mm: 11,00
    Avstand/bak: 145,00
    Avstand/framp: 47,00
    Antall/tannhjul: 9
    B+: M8
    Posisjon/50: 20
    Terminal 50: Plugg
    Girtype: GR
    Avstand mm: 114,00
    Rotasjon: CW
    Total lengde mm: 196,00
    Drevetype: Stål
    Prod. info: BN
    Vannbestandig: Nei
    Olje forseglet: Nei
    Antall/festeborrelser: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 20
    Prod. info BN
    Rotation CW
    Dist./back 145.00
    Dist./front 47.00
    Drive dist. 15.50
    Drive type Steel
    Gear type GR
    kW 1.3
    Terminal 50 Plug
    Voltage 12
    Total length 196.00 mm
    Waterproof No
    Dist. 114.00 mm
    Mount. hole 2 11.00 mm
  • Kjøretøymatching

    • OEM
      DSN 920, F032114056, js1362, MS428000-0680, RGO 114056, 1986S01021, 28100-0D090, 28100-0D180, 114056, 428000-0680, 428000-4500, 428000-7710

    • Konkurrentreferens
      CST40268, DENDSN920, DRS0347, dsn920, F042S00281, J5212122, LRS02399, S6061, S6061(DENSO), S6061PR, 8EA012528-941, 25-4071, 335.226.092, 9715, 31346N, 106586, 201362, 220542, 220542A, 446527, 11040602, 063280048, 0986023260, 063280048010

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      cst40268, dendsn920, drs0347, dsn920, f032114056, f042s00281, j5212122, js1362, lrs02399, ms4280000680, rgo114056, s6061, s6061denso, s6061pr, 8ea012528941, 1986s01021, 9715, 31346n, 106586, 114056, 201362, 220542, 220542a, 254071, 281000d090, 281000d180, 446527, 11040602, 063280048, 335226092, 0986023260, 4280000680, 4280004500, 4280007710, 063280048010

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.6 Brand of engine: 3ZZ-FE Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: Verso Size of motor: 1.8 Type description: ZER_, ZZE_ Body: MPV From date: 01-03-2004 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
      Toyota Series: Avensis (T25) Kombi Model: 1.8 Engine volume: 1.8 Engine type: 1ZZ-FE Year: 04.03-
      Toyota Series: Avensis (T25) Model: 1.8 Engine volume: 1.8 Engine type: 1ZZ-FE Year: 04.03-
      Toyota Series: Avensis (T25) Model: 1.8 Engine volume: 1.8 Engine type: 1ZZ-FE Year: 04.03-11.08
      Toyota Series: Corolla Verso Model: 1.6 Engine volume: 1.6 Engine type: 3ZZ-FE Year: 04.04-
      Toyota Series: Corolla Verso Model: 1.8 Engine volume: 1.8 Engine type: 1ZZ-FE Year: 04.04-
