Varenr.: F032112103

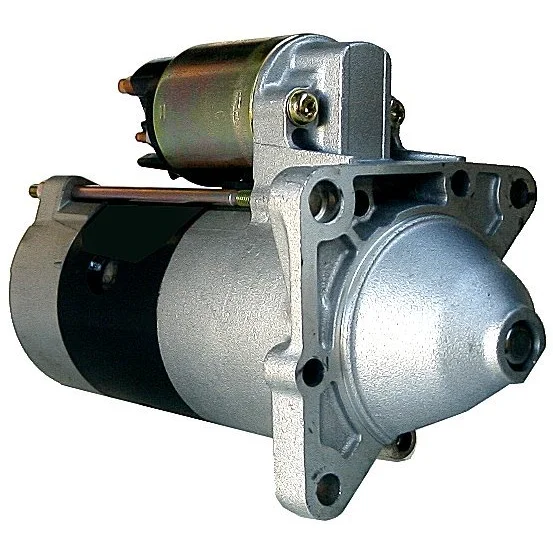

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Beskrivelse

Spenningsspenningsspenning: 12
kW: 2.2
Feste flens: 72.00
Drivingsavstand: 0.50
Feste hull 3 mm: 9.00
Feste hull 2 mm: 9.00
Feste hull 1 mm: 9.00
Avstand/bak: 232.00
Avstand/frontal: 35.50
Antall./tenner: 9
B+: M8
Posisjon/50: 15
Terminal 50: M5
Gavl type: GR
Avstand 2: 80.00
Avstand 3: 82.50
Avstand mm: 115.00
Rotasjon: CW
Total lengde mm: 272.50
Kraftoverføringstype: Tørr
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Olje forseglet: Nei
Antal./festehull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 72.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 80.00
Dist. 3 82.50
Rotation CW
Dist./back 232.00
Dist./front 35.50
Drive dist. 0.50
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 M5
Voltage 12
Total length 272.50 mm
Waterproof No
Dist. 115.00 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    cs1160, F032112103, M002T87671, m2t87671, R1540002, RGO 112103, 4200256, 4500256, 4502433, 9160556, 09198664, 9198664, 09198665, 9198665, 9512521, 7700300522, 7700313447, 7701067297, 7711134622

  • Konkurrentreferens
    BSO7247, CST35125, DRS3735, DRS3735X, F042001183, F042S01183, IS9335, LES0088, LRT00187, MS668, QS2504, S5009, STR-7037, STR10038, STR7037, 8EA011350-171, 8EA011610-951, 8ea737656-001, 25-2370, 330.016.092, 3538, 4598, 31187N, 101160, 104557, 201072, 220031, 220031A, 458501, 726121, 726921, 8080085, 8212796, 11020090, 42458501, 0986020091, 0986020093, 944280800850

  • NormaliseratArtNr
    bso7247, cs1160, cst35125, drs3735, drs3735x, f032112103, f042001183, f042s01183, is9335, les0088, lrt00187, m002t87671, m2t87671, ms668, qs2504, r1540002, rgo112103, s5009, str10038, str7037, 8ea011350171, 8ea011610951, 8ea737656001, 3538, 4598, 31187n, 101160, 104557, 201072, 220031, 220031a, 252370, 458501, 726121, 726921, 4200256, 4500256, 4502433, 8080085, 8212796, 9160556, 09198664, 9198664, 09198665, 9198665, 9512521, 11020090, 42458501, 330016092, 0986020091, 0986020093, 7700300522, 7700313447, 7701067297, 7711134622, 944280800850

  • Passar modeller
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: U9,E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: U9,E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Bus From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Platform / Chassis From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Van From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W702 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master Van Type of engine: Diesel Size of motor: 2.8 Brand of engine: S8W700 Type description: FD Body: Van From date: 01-01-2002 To date: 01-09-2004 Fuel: Diesel Approved: Yes
    Vauxhall Model: Movano Model series: Movano Type of engine: TDi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-10-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Vectra Model series: Vectra Type of engine: i V6 Size of motor: 2.5 Brand of engine: X25XE From date: 01-03-1998 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spenningsspenningsspenning: 12
    kW: 2.2
    Feste flens: 72.00
    Drivingsavstand: 0.50
    Feste hull 3 mm: 9.00
    Feste hull 2 mm: 9.00
    Feste hull 1 mm: 9.00
    Avstand/bak: 232.00
    Avstand/frontal: 35.50
    Antall./tenner: 9
    B+: M8
    Posisjon/50: 15
    Terminal 50: M5
    Gavl type: GR
    Avstand 2: 80.00
    Avstand 3: 82.50
    Avstand mm: 115.00
    Rotasjon: CW
    Total lengde mm: 272.50
    Kraftoverføringstype: Tørr
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Olje forseglet: Nei
    Antal./festehull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 72.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Dist. 2 80.00
    Dist. 3 82.50
    Rotation CW
    Dist./back 232.00
    Dist./front 35.50
    Drive dist. 0.50
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 M5
    Voltage 12
    Total length 272.50 mm
    Waterproof No
    Dist. 115.00 mm
    Mount. hole 3 9.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Kjøretøymatching

    • OEM
      cs1160, F032112103, M002T87671, m2t87671, R1540002, RGO 112103, 4200256, 4500256, 4502433, 9160556, 09198664, 9198664, 09198665, 9198665, 9512521, 7700300522, 7700313447, 7701067297, 7711134622

    • Konkurrentreferens
      BSO7247, CST35125, DRS3735, DRS3735X, F042001183, F042S01183, IS9335, LES0088, LRT00187, MS668, QS2504, S5009, STR-7037, STR10038, STR7037, 8EA011350-171, 8EA011610-951, 8ea737656-001, 25-2370, 330.016.092, 3538, 4598, 31187N, 101160, 104557, 201072, 220031, 220031A, 458501, 726121, 726921, 8080085, 8212796, 11020090, 42458501, 0986020091, 0986020093, 944280800850

    • NormaliseratArtNr
      bso7247, cs1160, cst35125, drs3735, drs3735x, f032112103, f042001183, f042s01183, is9335, les0088, lrt00187, m002t87671, m2t87671, ms668, qs2504, r1540002, rgo112103, s5009, str10038, str7037, 8ea011350171, 8ea011610951, 8ea737656001, 3538, 4598, 31187n, 101160, 104557, 201072, 220031, 220031a, 252370, 458501, 726121, 726921, 4200256, 4500256, 4502433, 8080085, 8212796, 9160556, 09198664, 9198664, 09198665, 9198665, 9512521, 11020090, 42458501, 330016092, 0986020091, 0986020093, 7700300522, 7700313447, 7701067297, 7711134622, 944280800850

    • Passar modeller
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U772 Type description: U9, E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W700 Type description: U9,E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: F9 Body: Van From date: 01-01-1999 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: J9 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Movano Model series: Movano Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Type description: U9,E9 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Bus From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Platform / Chassis From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U770 Body: Van From date: 01-07-1998 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: Diesel Size of motor: 2.8 Brand of engine: S9W702 Body: Platform / Chassis From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Bus From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Type of engine: DTi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-07-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Renault Model: Master Model series: Master Van Type of engine: Diesel Size of motor: 2.8 Brand of engine: S8W700 Type description: FD Body: Van From date: 01-01-2002 To date: 01-09-2004 Fuel: Diesel Approved: Yes
      Vauxhall Model: Movano Model series: Movano Type of engine: TDi Size of motor: 2.8 Brand of engine: S9W702 Body: Van From date: 01-10-1998 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Vectra Model series: Vectra Type of engine: i V6 Size of motor: 2.5 Brand of engine: X25XE From date: 01-03-1998 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      1 / 5
