- Startmotor
-

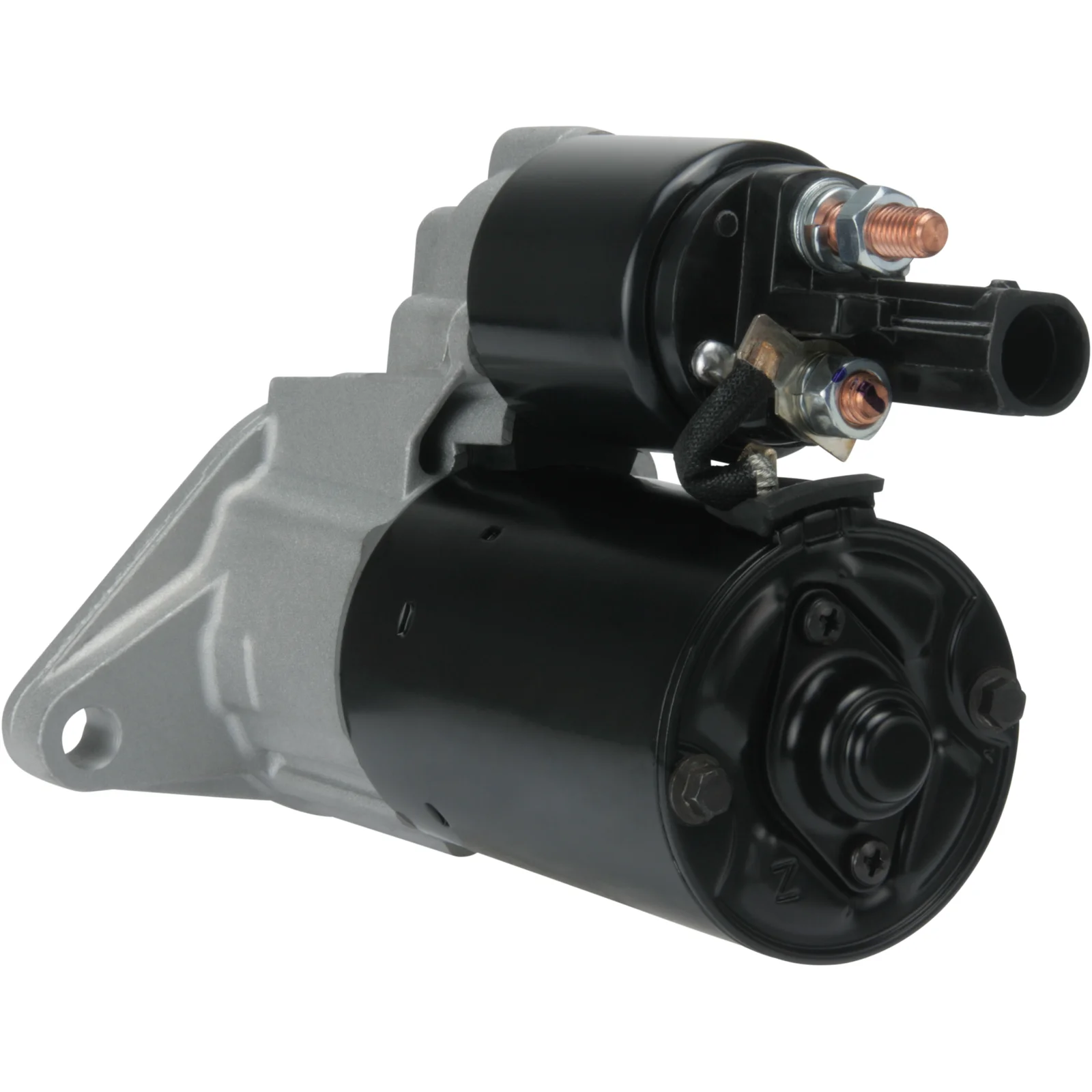

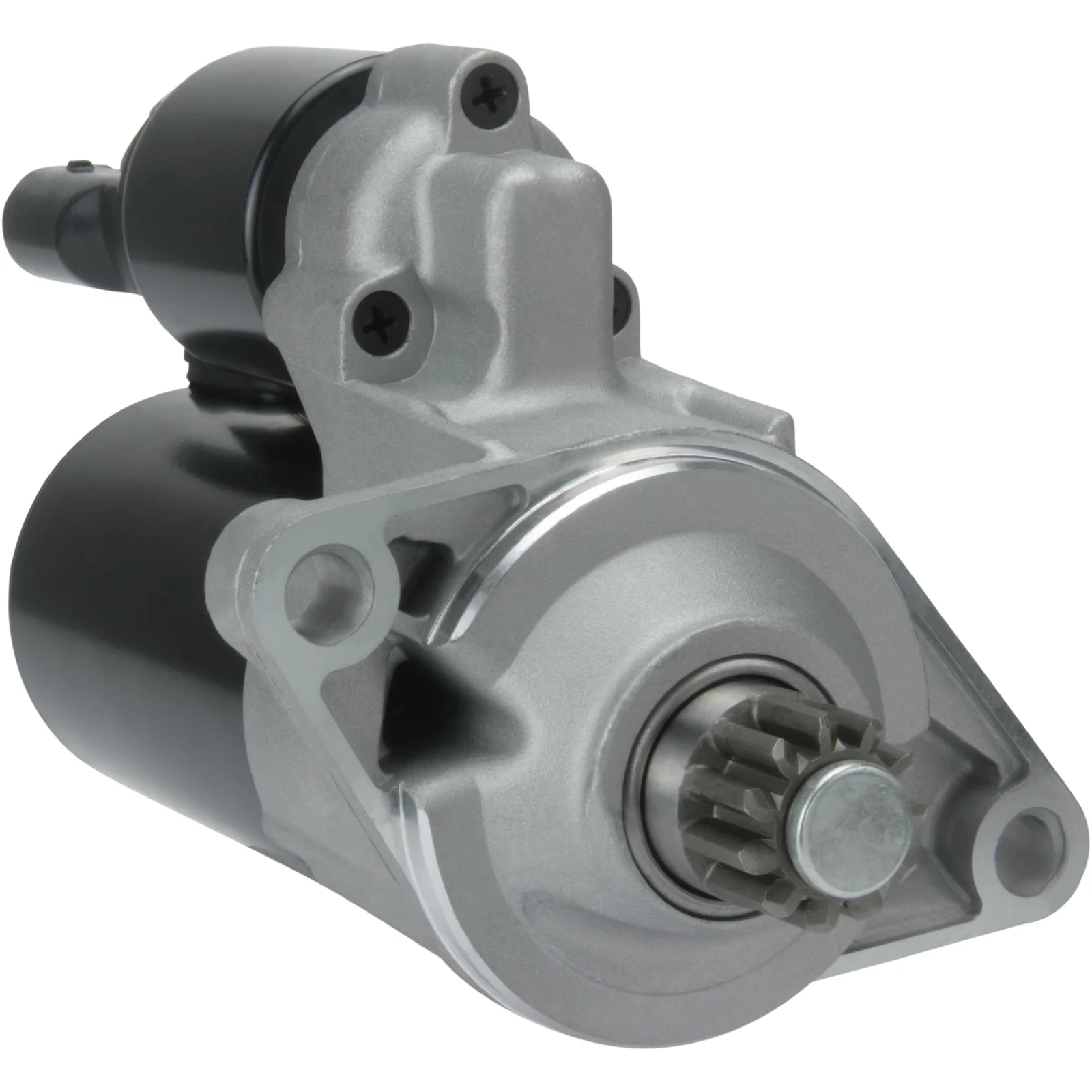

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Varenr.: F032115900
HC-Cargo Startmotor
Spenningsregulator: 12, kW: 1.1, Antall/tenner: 11, Rotasjon: Moturs
Beskrivelse
Spenningsspenning: 12
kW: 1.1
Feste flens: 79.00
Drevavstand: 42.50
Feste hull 2 mm: 11.00
Feste hull 1 mm: 11.00
Avstand/tilbake: 158.00
Avstand/frem: 48.00
Antall./tenner: 11
B+: M8
Posisjon/50: 15
Terminal 50: Kontakt
Girtype: GR
Avstand mm: 119.00
Rotasjon: mot urviseren
Total lengde mm: 216.00
Produsentinfo: BN
Antall./feste hull: 2 (0)
kW: 1.1
Feste flens: 79.00
Drevavstand: 42.50
Feste hull 2 mm: 11.00
Feste hull 1 mm: 11.00
Avstand/tilbake: 158.00
Avstand/frem: 48.00
Antall./tenner: 11
B+: M8
Posisjon/50: 15
Terminal 50: Kontakt
Girtype: GR
Avstand mm: 119.00
Rotasjon: mot urviseren
Total lengde mm: 216.00
Produsentinfo: BN
Antall./feste hull: 2 (0)
Filer
Spesifikasjon
| B+ | M8 |
|---|---|
| No./teeth | 11 |
| Mount. flange | 79.00 |
| No./mount. holes | 2 (0) |
| Position/50 | 15 |
| Prod. info | BN |
| Rotation | CCW |
| Dist./back | 158.00 |
| Dist./front | 48.00 |
| Drive dist. | 42.50 |
| Gear type | GR |
| kW | 1.1 |
| Terminal 50 | Plug |
| Voltage | 12 |
| Total length | 216.00 mm |
| Dist. | 119.00 mm |
| Mount. hole 2 | 11.00 mm |
| Mount. hole 1 | 11.00 mm |
-
OEM
CST10554, DRS0461, F00E100282, F032115900, LRS02547, S0567, S0567PR, 02E911023, 02E911023S, 02E911023SX, 8EA011612-361, 25-4219, 200.544.112, 311.274.112, 1986S00791, 19214N, 19214R, 220886, 220886A, 438432, 438603, 458839, 458932, 0001121435, 0001121436, 8080313, 11090195, 42025360, 0986025360 -
Konkurrentreferens
CST10554, DRS0461, LRS02547, S0567, S0567PR, 8EA011612-361, 25-4219, 200.544.112, 311.274.112, 19214N, 19214R, 220886, 220886A, 438432, 438603, 458839, 458932, 8080313, 11090195, 42025360, 0986025360 -
Bilmärken
AUDI, SEAT, SKODA, VW -
NormaliseratArtNr
cst10554, drs0461, f00e100282, f032115900, lrs02547, s0567, s0567pr, 02e911023, 02e911023s, 02e911023sx, 8ea011612361, 1986s00791, 19214n, 19214r, 220886, 220886a, 254219, 438432, 438603, 458839, 458932, 0001121435, 0001121436, 8080313, 11090195, 42025360, 200544112, 311274112, 0986025360 -
Passar modeller
AUDI A3 (8V1, 8VK) S3 quattro Engine volume: 2.0 Engine type: CJXB Year: 02.13-07.14 AUDI A3 (8V1, 8VK) S3 quattro Engine volume: 2.0 Engine type: CJXC Year: 11.12-08.16 AUDI A3 (8V1, 8VK) S3 quattro Engine volume: 2.0 Engine type: CJXF Year: 05.14-08.16 AUDI A3 Cabriolet (8V7, 8VE) 1.8 TFSI Engine volume: 1.8 Engine type: CNSB Year: 05.14-10.20 AUDI A3 Cabriolet (8V7, 8VE) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CNTC Year: 05.14-10.20 AUDI A3 Cabriolet (8V7, 8VE) S3 quattro Engine volume: 2.0 Engine type: CJXC, DNUE Year: 04.14-10.20 AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI Engine volume: 1.8 Engine type: CNSB Year: 11.13-10.20 AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI Engine volume: 2.0 Engine type: CHHB Year: 11.15-10.20 AUDI A3 Limousine (8VS, 8VM) S3 quattro Engine volume: 2.0 Engine type: CJXB Year: 10.13-05.14 AUDI A3 Limousine (8VS, 8VM) S3 quattro Engine volume: 2.0 Engine type: CJXC, DNUE Year: 10.13-10.20 AUDI A3 Limousine (8VS, 8VM) S3 quattro Engine volume: 2.0 Engine type: CJXF Year: 05.14-08.16 AUDI A3 Sportback (8VA, 8VF) S3 quattro Engine volume: 2.0 Engine type: CJXB Year: 05.13-08.16 AUDI A3 Sportback (8VA, 8VF) S3 quattro Engine volume: 2.0 Engine type: CJXC, DNUE Year: 11.12-10.20 AUDI A3 Sportback (8VA, 8VF) S3 quattro Engine volume: 2.0 Engine type: CJXF Year: 05.14-08.16 AUDI Q3 (8UB, 8UG) 1.4 TFSI Engine volume: 1.4 Engine type: CZDB Year: 07.16-10.18 AUDI Q3 (8UB, 8UG) 1.4 TSI Engine volume: 1.4 Engine type: CZEA, CZDA, CHPB Year: 10.13-10.18 AUDI Q3 (8UB, 8UG) 2.0 TFSI Engine volume: 2.0 Engine type: CULB Year: 05.15-10.18 AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CCZC Year: 06.11-04.15 AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CPSA Year: 06.11-04.15 AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CULB Year: 11.14-10.18 AUDI Q3 (F3B) 40 TFSI quattro Engine volume: 2.0 Engine type: DKTC Year: 07.18-06.21 AUDI Q3 (F3B) 45 TFSI quattro Engine volume: 2.0 Engine type: DKTA Year: 07.18- AUDI Q3 Sportback (F3N) 40 TFSI quattro Engine volume: 2.0 Engine type: DKTC Year: 11.19-06.21 AUDI Q3 Sportback (F3N) 45 TFSI quattro Engine volume: 2.0 Engine type: DKTA Year: 06.19- AUDI TT (8J3) 2.0 TFSI Engine volume: 2.0 Engine type: CESA Year: 05.10-06.14 AUDI TT (8J3) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CESA, CETA Year: 05.10-06.14 AUDI TT (FV3, FVP) 2.0 TFSI Engine volume: 2.0 Engine type: CHHC Year: 07.14- AUDI TT (FV3, FVP) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CHHC Year: 07.14- AUDI TT (FV3, FVP) 2.0 TTS quattro Engine volume: 2.0 Engine type: CJXG Year: 11.14- AUDI TT (FV3, FVP) 2.0 TTS TFSI quattro Engine volume: 2.0 Engine type: CJXF Year: 02.15- AUDI TT Roadster (8J9) 2.0 TFSI Engine volume: 2.0 Engine type: CESA Year: 05.10-06.14 AUDI TT Roadster (8J9) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CESA, CETA Year: 05.10-06.14 AUDI TT Roadster (FV9, FVR) 2.0 TFSI Engine volume: 2.0 Engine type: CHHC Year: 11.14- AUDI TT Roadster (FV9, FVR) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CHHC Year: 11.14- AUDI TT Roadster (FV9, FVR) 2.0 TTS TFSI quattro Engine volume: 2.0 Engine type: CJXF Year: 02.15- AUDI TT Roadster (FV9, FVR) 2.0 TTS TFSI quattro Engine volume: 2.0 Engine type: CJXG Year: 11.14- SEAT ALHAMBRA (710, 711) 1.8 TSI Engine volume: 1.8 Engine type: CDAA Year: 11.12-04.15 SEAT ALHAMBRA (710, 711) 2.0 TSI Engine volume: 2.0 Engine type: CCZA Year: 11.10-05.12 SEAT ALTEA XL (5P5, 5P8) 2.0 TFSI Engine volume: 2.0 Engine type: CCZB Year: 05.09-07.15 SEAT LEON (1P1) 2.0 TFSI Engine volume: 2.0 Engine type: CCZB Year: 06.09-12.12 SEAT LEON (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXA Year: 10.13-08.20 SEAT LEON (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 01.17-08.18 SEAT LEON (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXE Year: 10.13-08.20 SEAT LEON (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXH, DNUC Year: 10.15-08.20 SEAT LEON SC (5F5) 2.0 Cupra Engine volume: 2.0 Engine type: CJXA Year: 10.13-11.16 SEAT LEON SC (5F5) 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 01.17-08.18 SEAT LEON SC (5F5) 2.0 Cupra Engine volume: 2.0 Engine type: CJXE Year: 10.13-11.16 SEAT LEON SC (5F5) 2.0 Cupra Engine volume: 2.0 Engine type: CJXH Year: 10.15-11.16 SEAT LEON Skåpbil/halvkombi (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 01.17-08.18 SEAT LEON Skåpbil/halvkombi (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXH Year: 09.15-10.16 SEAT LEON ST (5F8) 2.0 Cupra Engine volume: 2.0 Engine type: CJXE Year: 10.13-08.20 SEAT LEON ST (5F8) 2.0 Cupra Engine volume: 2.0 Engine type: CJXH, DNUC Year: 10.15-08.20 SEAT LEON ST Skåp / kombi (5F8) 2.0 Cupra 4Drive Engine volume: 2.0 Engine type: CJXC Year: 11.16-08.18 SEAT LEON ST Skåp / kombi (5F8) 2.0 Cupra Engine volume: 2.0 Engine type: CJXA Year: 10.13-08.20 SEAT LEON ST Skåp / kombi (5F8) 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 11.16-08.18 SKODA KODIAQ I (NS6, NS7, NV7) 2.0 TSI 4x4 Engine volume: 2.0 Engine type: DKZA Year: 02.19- SKODA OCTAVIA II (1Z3) 2.0 TFSI Engine volume: 2.0 Engine type: BWA, CCZA Year: 10.05-02.13 SKODA OCTAVIA II Combi (1Z5) 2.0 TFSI Engine volume: 2.0 Engine type: BWA, CCZA Year: 10.05-02.13 SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TSI RS Engine volume: 2.0 Engine type: CHHA Year: 05.15-10.20 SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TSI RS Engine volume: 2.0 Engine type: CHHB Year: 05.13-02.17 SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TSI RS Engine volume: 2.0 Engine type: CHHA Year: 05.15-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TSI RS Engine volume: 2.0 Engine type: CHHB Year: 11.12-02.17 SKODA SUPERB II (3T4) 2.0 TFSI Engine volume: 2.0 Engine type: CCZA Year: 05.10-05.15 SKODA SUPERB II Kombi (3T5) 2.0 TFSI Engine volume: 2.0 Engine type: CCZA Year: 05.10-05.15 SKODA SUPERB III (3V3) 2.0 TFSI 4x4 Engine volume: 2.0 Engine type: DNFE, CJXA Year: 03.15-06.24 SKODA SUPERB III (3V3) 2.0 TFSI Engine volume: 2.0 Engine type: CHHB Year: 03.15-06.24 SKODA SUPERB III (3V3) 2.0 TSI 4x4 Engine volume: 2.0 Engine type: DNUA Year: 03.15-06.24 SKODA SUPERB III Kombi (3V5) 2.0 TSI 4x4 Engine volume: 2.0 Engine type: DNUA Year: 03.15-06.24 SKODA SUPERB III Kombi (3V5) 2.0 TSI Engine volume: 2.0 Engine type: CHHB Year: 03.15-06.24 SKODA YETI (5L) 1.8 TSI 4x4 Engine volume: 1.8 Engine type: CDAA Year: 05.09-12.17 VW ARTEON (3H7, 3H8) 2.0 TSI Engine volume: 2.0 Engine type: DKZA, CZPB Year: 05.17-06.21 VW BEETLE (5C1, 5C2) 2.0 TFSI Engine volume: 2.0 Engine type: CCTA, CCZA, CBFA Year: 04.11-07.16 VW BEETLE (5C1, 5C2) 2.0 TSI Engine volume: 2.0 Engine type: CPLA, CPPA Year: 12.12-07.19 VW BEETLE Cabriolet (5C7, 5C8) 2.0 TFSI Engine volume: 2.0 Engine type: CCTA, CCZA, CBFA Year: 12.11-07.16 VW BEETLE Cabriolet (5C7, 5C8) 2.0 TSI Engine volume: 2.0 Engine type: CPLA, CPPA Year: 12.12-07.19 VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 07.11-08.15 VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 05.11-08.15 VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 06.15-07.19 VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 04.15-07.19 VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 07.11-08.15 VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 05.11-08.15 VW CC B7 (358) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.11-12.16 VW EOS (1F7, 1F8) 2.0 TFSI Engine volume: 2.0 Engine type: CAWB, CCZA, BWA, CBFA Year: 03.06-08.15 VW EOS (1F7, 1F8) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.09-08.15 VW GOLF VI (5K1) 2.0 GTi Engine volume: 2.0 Engine type: CCZB Year: 04.09-11.12 VW GOLF VI (5K1) 2.0 GTi Engine volume: 2.0 Engine type: CDLG Year: 05.11-11.12 VW GOLF VI Cabriolet (517) 2.0 GTI Engine volume: 2.0 Engine type: CCZB Year: 05.12-05.16 VW GOLF VI Cabriolet (517) 2.0 R Engine volume: 2.0 Engine type: CDLA Year: 01.13-05.16 VW GOLF VI Van (5K1) 2.0 GTi Engine volume: 2.0 Engine type: CCZB Year: 02.09-11.12 VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI Engine volume: 2.0 Engine type: CHHA Year: 04.13-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI Engine volume: 2.0 Engine type: CXCB, CNTC, CXDA, CHHB Year: 04.13-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion Engine volume: 2.0 Engine type: CJXB Year: 11.13-03.17 VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion Engine volume: 2.0 Engine type: DNUE, CJXC Year: 11.13-08.20 VW GOLF VII Van (5G1, BQ1) 2.0 GTi Engine volume: 2.0 Engine type: CHHA Year: 04.15-03.17 VW GOLF VII Van (5G1, BQ1) 2.0 GTi Engine volume: 2.0 Engine type: CHHB Year: 04.13-03.17 VW GOLF VII Variant (BA5, BV5) 2.0 R 4motion Engine volume: 2.0 Engine type: CJXB Year: 03.15-03.17 VW GOLF VII Variant (BA5, BV5) 2.0 R 4motion Engine volume: 2.0 Engine type: DNUE, CJXC Year: 03.15-08.20 VW JETTA IV (162, 163, AV3, AV2) 2.0 TFSI Engine volume: 2.0 Engine type: CCTA, CCZA, CBFA Year: 12.10-07.14 VW JETTA IV (162, 163, AV3, AV2) 2.0 TSI Engine volume: 2.0 Engine type: CPLA, CPPA Year: 12.12-12.17 VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 07.11-08.15 VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 05.11-08.15 VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 06.15-07.19 VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 04.15-07.19 VW PASSAT ALLTRACK B7 Variant (365) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CCZB Year: 01.12-12.14 VW PASSAT ALLTRACK B8 Variant (3G5, CB5) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CHHB Year: 07.15-03.24 VW PASSAT ALLTRACK B8 Variant (3G5, CB5) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DNUA Year: 08.18-11.20 VW PASSAT B7 (362) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.10-12.14 VW PASSAT B7 Skåp / kombi (365) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.10-12.14 VW PASSAT B7 Variant (365) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.10-12.15 VW PASSAT B8 (3G2, CB2) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJXA, DNFE Year: 05.15-03.24 VW PASSAT B8 (3G2, CB2) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DNUA Year: 09.18-11.20 VW PASSAT B8 (3G2, CB2) 2.0 TSI Engine volume: 2.0 Engine type: CXDA, CHHB Year: 02.15-03.24 VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJXA, DNFE Year: 05.15-03.24 VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DNUA Year: 09.18-11.20 VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI Engine volume: 2.0 Engine type: CXDA, CHHB Year: 08.14-03.24 VW PASSAT CC B6 (357) 2.0 TFSI Engine volume: 2.0 Engine type: CAWB, CCZA Year: 06.08-01.12 VW PASSAT CC B6 (357) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.10-01.12 VW SCIROCCO III (137, 138) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.09-11.17 VW SCIROCCO Van (137) 2.0 TFSi Engine volume: 2.0 Engine type: CCZB Year: 11.09-05.14 VW SHARAN (7N1, 7N2) 2.0 TFSI Engine volume: 2.0 Engine type: CCZA Year: 12.10-11.15 VW SHARAN Skåpbil/minivan (7N1, 7N2) 2.0 TSI Engine volume: 2.0 Engine type: CCZA Year: 12.10-11.15 VW TIGUAN (5N_) 2.0 TFSI 4motion Engine volume: 2.0 Engine type: CCTA, CAWB, CCZA Year: 09.07-07.18 VW TIGUAN (5N_) 2.0 TFSI 4motion Engine volume: 2.0 Engine type: CCZC, CCTB, CAWA Year: 09.07-07.18 VW TIGUAN (5N_) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CCZB Year: 05.11-07.18 VW TIGUAN (5N_) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CCZD Year: 05.11-07.18 VW TIGUAN (AD1, AX1) 1.4 TSI 4motion Engine volume: 1.4 Engine type: CZDA, CZEA Year: 05.16-03.22 VW TIGUAN (AD1, AX1) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DKTA Year: 09.18-07.20 VW TIGUAN (AD1, AX1) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DKZA Year: 09.18-11.22 VW TIGUAN ALLSPACE (BW2, BJ2) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 06.17- VW TIGUAN ALLSPACE (BW2, BJ2) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DGVA Year: 03.17- VW TIGUAN ALLSPACE (BW2, BJ2) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DNJA, CXDA Year: 07.17- VW TIGUAN VAN (5N_) 2.0 TSI 4motion (5N1) Engine volume: 2.0 Engine type: CCZA Year: 11.09-05.11 VW TIGUAN VAN (5N_) 2.0 TSI 4motion (5N1) Engine volume: 2.0 Engine type: CCZC Year: 11.09-05.11 VW TIGUAN VAN (5N_) 2.0 TSI 4motion (5N2) Engine volume: 2.0 Engine type: CCZB Year: 05.11-07.18 VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 07.11-08.15 VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 05.11-08.15 VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 06.15-07.19 VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 04.15-07.19 VW TRANSPORTER T6 Skåp (SGA, SGH, SHA, SHH) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 04.15-07.19 1 / 28
-
Beskrivelse
Spenningsspenning: 12
kW: 1.1
Feste flens: 79.00
Drevavstand: 42.50
Feste hull 2 mm: 11.00
Feste hull 1 mm: 11.00
Avstand/tilbake: 158.00
Avstand/frem: 48.00
Antall./tenner: 11
B+: M8
Posisjon/50: 15
Terminal 50: Kontakt
Girtype: GR
Avstand mm: 119.00
Rotasjon: mot urviseren
Total lengde mm: 216.00
Produsentinfo: BN
Antall./feste hull: 2 (0)Filer
-
Spesifikasjon
B+ M8 No./teeth 11 Mount. flange 79.00 No./mount. holes 2 (0) Position/50 15 Prod. info BN Rotation CCW Dist./back 158.00 Dist./front 48.00 Drive dist. 42.50 Gear type GR kW 1.1 Terminal 50 Plug Voltage 12 Total length 216.00 mm Dist. 119.00 mm Mount. hole 2 11.00 mm Mount. hole 1 11.00 mm -
Kjøretøymatching
-
OEM
CST10554, DRS0461, F00E100282, F032115900, LRS02547, S0567, S0567PR, 02E911023, 02E911023S, 02E911023SX, 8EA011612-361, 25-4219, 200.544.112, 311.274.112, 1986S00791, 19214N, 19214R, 220886, 220886A, 438432, 438603, 458839, 458932, 0001121435, 0001121436, 8080313, 11090195, 42025360, 0986025360 -
Konkurrentreferens
CST10554, DRS0461, LRS02547, S0567, S0567PR, 8EA011612-361, 25-4219, 200.544.112, 311.274.112, 19214N, 19214R, 220886, 220886A, 438432, 438603, 458839, 458932, 8080313, 11090195, 42025360, 0986025360 -
Bilmärken
AUDI, SEAT, SKODA, VW -
NormaliseratArtNr
cst10554, drs0461, f00e100282, f032115900, lrs02547, s0567, s0567pr, 02e911023, 02e911023s, 02e911023sx, 8ea011612361, 1986s00791, 19214n, 19214r, 220886, 220886a, 254219, 438432, 438603, 458839, 458932, 0001121435, 0001121436, 8080313, 11090195, 42025360, 200544112, 311274112, 0986025360 -
Passar modeller
AUDI A3 (8V1, 8VK) S3 quattro Engine volume: 2.0 Engine type: CJXB Year: 02.13-07.14 AUDI A3 (8V1, 8VK) S3 quattro Engine volume: 2.0 Engine type: CJXC Year: 11.12-08.16 AUDI A3 (8V1, 8VK) S3 quattro Engine volume: 2.0 Engine type: CJXF Year: 05.14-08.16 AUDI A3 Cabriolet (8V7, 8VE) 1.8 TFSI Engine volume: 1.8 Engine type: CNSB Year: 05.14-10.20 AUDI A3 Cabriolet (8V7, 8VE) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CNTC Year: 05.14-10.20 AUDI A3 Cabriolet (8V7, 8VE) S3 quattro Engine volume: 2.0 Engine type: CJXC, DNUE Year: 04.14-10.20 AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI Engine volume: 1.8 Engine type: CNSB Year: 11.13-10.20 AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI Engine volume: 2.0 Engine type: CHHB Year: 11.15-10.20 AUDI A3 Limousine (8VS, 8VM) S3 quattro Engine volume: 2.0 Engine type: CJXB Year: 10.13-05.14 AUDI A3 Limousine (8VS, 8VM) S3 quattro Engine volume: 2.0 Engine type: CJXC, DNUE Year: 10.13-10.20 AUDI A3 Limousine (8VS, 8VM) S3 quattro Engine volume: 2.0 Engine type: CJXF Year: 05.14-08.16 AUDI A3 Sportback (8VA, 8VF) S3 quattro Engine volume: 2.0 Engine type: CJXB Year: 05.13-08.16 AUDI A3 Sportback (8VA, 8VF) S3 quattro Engine volume: 2.0 Engine type: CJXC, DNUE Year: 11.12-10.20 AUDI A3 Sportback (8VA, 8VF) S3 quattro Engine volume: 2.0 Engine type: CJXF Year: 05.14-08.16 AUDI Q3 (8UB, 8UG) 1.4 TFSI Engine volume: 1.4 Engine type: CZDB Year: 07.16-10.18 AUDI Q3 (8UB, 8UG) 1.4 TSI Engine volume: 1.4 Engine type: CZEA, CZDA, CHPB Year: 10.13-10.18 AUDI Q3 (8UB, 8UG) 2.0 TFSI Engine volume: 2.0 Engine type: CULB Year: 05.15-10.18 AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CCZC Year: 06.11-04.15 AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CPSA Year: 06.11-04.15 AUDI Q3 (8UB, 8UG) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CULB Year: 11.14-10.18 AUDI Q3 (F3B) 40 TFSI quattro Engine volume: 2.0 Engine type: DKTC Year: 07.18-06.21 AUDI Q3 (F3B) 45 TFSI quattro Engine volume: 2.0 Engine type: DKTA Year: 07.18- AUDI Q3 Sportback (F3N) 40 TFSI quattro Engine volume: 2.0 Engine type: DKTC Year: 11.19-06.21 AUDI Q3 Sportback (F3N) 45 TFSI quattro Engine volume: 2.0 Engine type: DKTA Year: 06.19- AUDI TT (8J3) 2.0 TFSI Engine volume: 2.0 Engine type: CESA Year: 05.10-06.14 AUDI TT (8J3) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CESA, CETA Year: 05.10-06.14 AUDI TT (FV3, FVP) 2.0 TFSI Engine volume: 2.0 Engine type: CHHC Year: 07.14- AUDI TT (FV3, FVP) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CHHC Year: 07.14- AUDI TT (FV3, FVP) 2.0 TTS quattro Engine volume: 2.0 Engine type: CJXG Year: 11.14- AUDI TT (FV3, FVP) 2.0 TTS TFSI quattro Engine volume: 2.0 Engine type: CJXF Year: 02.15- AUDI TT Roadster (8J9) 2.0 TFSI Engine volume: 2.0 Engine type: CESA Year: 05.10-06.14 AUDI TT Roadster (8J9) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CESA, CETA Year: 05.10-06.14 AUDI TT Roadster (FV9, FVR) 2.0 TFSI Engine volume: 2.0 Engine type: CHHC Year: 11.14- AUDI TT Roadster (FV9, FVR) 2.0 TFSI quattro Engine volume: 2.0 Engine type: CHHC Year: 11.14- AUDI TT Roadster (FV9, FVR) 2.0 TTS TFSI quattro Engine volume: 2.0 Engine type: CJXF Year: 02.15- AUDI TT Roadster (FV9, FVR) 2.0 TTS TFSI quattro Engine volume: 2.0 Engine type: CJXG Year: 11.14- SEAT ALHAMBRA (710, 711) 1.8 TSI Engine volume: 1.8 Engine type: CDAA Year: 11.12-04.15 SEAT ALHAMBRA (710, 711) 2.0 TSI Engine volume: 2.0 Engine type: CCZA Year: 11.10-05.12 SEAT ALTEA XL (5P5, 5P8) 2.0 TFSI Engine volume: 2.0 Engine type: CCZB Year: 05.09-07.15 SEAT LEON (1P1) 2.0 TFSI Engine volume: 2.0 Engine type: CCZB Year: 06.09-12.12 SEAT LEON (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXA Year: 10.13-08.20 SEAT LEON (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 01.17-08.18 SEAT LEON (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXE Year: 10.13-08.20 SEAT LEON (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXH, DNUC Year: 10.15-08.20 SEAT LEON SC (5F5) 2.0 Cupra Engine volume: 2.0 Engine type: CJXA Year: 10.13-11.16 SEAT LEON SC (5F5) 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 01.17-08.18 SEAT LEON SC (5F5) 2.0 Cupra Engine volume: 2.0 Engine type: CJXE Year: 10.13-11.16 SEAT LEON SC (5F5) 2.0 Cupra Engine volume: 2.0 Engine type: CJXH Year: 10.15-11.16 SEAT LEON Skåpbil/halvkombi (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 01.17-08.18 SEAT LEON Skåpbil/halvkombi (5F1) 2.0 Cupra Engine volume: 2.0 Engine type: CJXH Year: 09.15-10.16 SEAT LEON ST (5F8) 2.0 Cupra Engine volume: 2.0 Engine type: CJXE Year: 10.13-08.20 SEAT LEON ST (5F8) 2.0 Cupra Engine volume: 2.0 Engine type: CJXH, DNUC Year: 10.15-08.20 SEAT LEON ST Skåp / kombi (5F8) 2.0 Cupra 4Drive Engine volume: 2.0 Engine type: CJXC Year: 11.16-08.18 SEAT LEON ST Skåp / kombi (5F8) 2.0 Cupra Engine volume: 2.0 Engine type: CJXA Year: 10.13-08.20 SEAT LEON ST Skåp / kombi (5F8) 2.0 Cupra Engine volume: 2.0 Engine type: CJXC Year: 11.16-08.18 SKODA KODIAQ I (NS6, NS7, NV7) 2.0 TSI 4x4 Engine volume: 2.0 Engine type: DKZA Year: 02.19- SKODA OCTAVIA II (1Z3) 2.0 TFSI Engine volume: 2.0 Engine type: BWA, CCZA Year: 10.05-02.13 SKODA OCTAVIA II Combi (1Z5) 2.0 TFSI Engine volume: 2.0 Engine type: BWA, CCZA Year: 10.05-02.13 SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TSI RS Engine volume: 2.0 Engine type: CHHA Year: 05.15-10.20 SKODA OCTAVIA III (5E3, NL3, NR3) 2.0 TSI RS Engine volume: 2.0 Engine type: CHHB Year: 05.13-02.17 SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TSI RS Engine volume: 2.0 Engine type: CHHA Year: 05.15-10.20 SKODA OCTAVIA III Combi (5E5, 5E6) 2.0 TSI RS Engine volume: 2.0 Engine type: CHHB Year: 11.12-02.17 SKODA SUPERB II (3T4) 2.0 TFSI Engine volume: 2.0 Engine type: CCZA Year: 05.10-05.15 SKODA SUPERB II Kombi (3T5) 2.0 TFSI Engine volume: 2.0 Engine type: CCZA Year: 05.10-05.15 SKODA SUPERB III (3V3) 2.0 TFSI 4x4 Engine volume: 2.0 Engine type: DNFE, CJXA Year: 03.15-06.24 SKODA SUPERB III (3V3) 2.0 TFSI Engine volume: 2.0 Engine type: CHHB Year: 03.15-06.24 SKODA SUPERB III (3V3) 2.0 TSI 4x4 Engine volume: 2.0 Engine type: DNUA Year: 03.15-06.24 SKODA SUPERB III Kombi (3V5) 2.0 TSI 4x4 Engine volume: 2.0 Engine type: DNUA Year: 03.15-06.24 SKODA SUPERB III Kombi (3V5) 2.0 TSI Engine volume: 2.0 Engine type: CHHB Year: 03.15-06.24 SKODA YETI (5L) 1.8 TSI 4x4 Engine volume: 1.8 Engine type: CDAA Year: 05.09-12.17 VW ARTEON (3H7, 3H8) 2.0 TSI Engine volume: 2.0 Engine type: DKZA, CZPB Year: 05.17-06.21 VW BEETLE (5C1, 5C2) 2.0 TFSI Engine volume: 2.0 Engine type: CCTA, CCZA, CBFA Year: 04.11-07.16 VW BEETLE (5C1, 5C2) 2.0 TSI Engine volume: 2.0 Engine type: CPLA, CPPA Year: 12.12-07.19 VW BEETLE Cabriolet (5C7, 5C8) 2.0 TFSI Engine volume: 2.0 Engine type: CCTA, CCZA, CBFA Year: 12.11-07.16 VW BEETLE Cabriolet (5C7, 5C8) 2.0 TSI Engine volume: 2.0 Engine type: CPLA, CPPA Year: 12.12-07.19 VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 07.11-08.15 VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 05.11-08.15 VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 06.15-07.19 VW CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 04.15-07.19 VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 07.11-08.15 VW CARAVELLE T5 Buss (7HB, 7HJ, 7EB, 7EJ) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 05.11-08.15 VW CC B7 (358) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.11-12.16 VW EOS (1F7, 1F8) 2.0 TFSI Engine volume: 2.0 Engine type: CAWB, CCZA, BWA, CBFA Year: 03.06-08.15 VW EOS (1F7, 1F8) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.09-08.15 VW GOLF VI (5K1) 2.0 GTi Engine volume: 2.0 Engine type: CCZB Year: 04.09-11.12 VW GOLF VI (5K1) 2.0 GTi Engine volume: 2.0 Engine type: CDLG Year: 05.11-11.12 VW GOLF VI Cabriolet (517) 2.0 GTI Engine volume: 2.0 Engine type: CCZB Year: 05.12-05.16 VW GOLF VI Cabriolet (517) 2.0 R Engine volume: 2.0 Engine type: CDLA Year: 01.13-05.16 VW GOLF VI Van (5K1) 2.0 GTi Engine volume: 2.0 Engine type: CCZB Year: 02.09-11.12 VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI Engine volume: 2.0 Engine type: CHHA Year: 04.13-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 GTI Engine volume: 2.0 Engine type: CXCB, CNTC, CXDA, CHHB Year: 04.13-08.20 VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion Engine volume: 2.0 Engine type: CJXB Year: 11.13-03.17 VW GOLF VII (5G1, BQ1, BE1, BE2) 2.0 R 4motion Engine volume: 2.0 Engine type: DNUE, CJXC Year: 11.13-08.20 VW GOLF VII Van (5G1, BQ1) 2.0 GTi Engine volume: 2.0 Engine type: CHHA Year: 04.15-03.17 VW GOLF VII Van (5G1, BQ1) 2.0 GTi Engine volume: 2.0 Engine type: CHHB Year: 04.13-03.17 VW GOLF VII Variant (BA5, BV5) 2.0 R 4motion Engine volume: 2.0 Engine type: CJXB Year: 03.15-03.17 VW GOLF VII Variant (BA5, BV5) 2.0 R 4motion Engine volume: 2.0 Engine type: DNUE, CJXC Year: 03.15-08.20 VW JETTA IV (162, 163, AV3, AV2) 2.0 TFSI Engine volume: 2.0 Engine type: CCTA, CCZA, CBFA Year: 12.10-07.14 VW JETTA IV (162, 163, AV3, AV2) 2.0 TSI Engine volume: 2.0 Engine type: CPLA, CPPA Year: 12.12-12.17 VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 07.11-08.15 VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 05.11-08.15 VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 06.15-07.19 VW MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 04.15-07.19 VW PASSAT ALLTRACK B7 Variant (365) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CCZB Year: 01.12-12.14 VW PASSAT ALLTRACK B8 Variant (3G5, CB5) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CHHB Year: 07.15-03.24 VW PASSAT ALLTRACK B8 Variant (3G5, CB5) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DNUA Year: 08.18-11.20 VW PASSAT B7 (362) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.10-12.14 VW PASSAT B7 Skåp / kombi (365) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.10-12.14 VW PASSAT B7 Variant (365) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.10-12.15 VW PASSAT B8 (3G2, CB2) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJXA, DNFE Year: 05.15-03.24 VW PASSAT B8 (3G2, CB2) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DNUA Year: 09.18-11.20 VW PASSAT B8 (3G2, CB2) 2.0 TSI Engine volume: 2.0 Engine type: CXDA, CHHB Year: 02.15-03.24 VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJXA, DNFE Year: 05.15-03.24 VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DNUA Year: 09.18-11.20 VW PASSAT B8 Variant (3G5, CB5) 2.0 TSI Engine volume: 2.0 Engine type: CXDA, CHHB Year: 08.14-03.24 VW PASSAT CC B6 (357) 2.0 TFSI Engine volume: 2.0 Engine type: CAWB, CCZA Year: 06.08-01.12 VW PASSAT CC B6 (357) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.10-01.12 VW SCIROCCO III (137, 138) 2.0 TSI Engine volume: 2.0 Engine type: CCZB Year: 11.09-11.17 VW SCIROCCO Van (137) 2.0 TFSi Engine volume: 2.0 Engine type: CCZB Year: 11.09-05.14 VW SHARAN (7N1, 7N2) 2.0 TFSI Engine volume: 2.0 Engine type: CCZA Year: 12.10-11.15 VW SHARAN Skåpbil/minivan (7N1, 7N2) 2.0 TSI Engine volume: 2.0 Engine type: CCZA Year: 12.10-11.15 VW TIGUAN (5N_) 2.0 TFSI 4motion Engine volume: 2.0 Engine type: CCTA, CAWB, CCZA Year: 09.07-07.18 VW TIGUAN (5N_) 2.0 TFSI 4motion Engine volume: 2.0 Engine type: CCZC, CCTB, CAWA Year: 09.07-07.18 VW TIGUAN (5N_) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CCZB Year: 05.11-07.18 VW TIGUAN (5N_) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CCZD Year: 05.11-07.18 VW TIGUAN (AD1, AX1) 1.4 TSI 4motion Engine volume: 1.4 Engine type: CZDA, CZEA Year: 05.16-03.22 VW TIGUAN (AD1, AX1) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DKTA Year: 09.18-07.20 VW TIGUAN (AD1, AX1) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DKZA Year: 09.18-11.22 VW TIGUAN ALLSPACE (BW2, BJ2) 1.4 TSI Engine volume: 1.4 Engine type: CZDA, CZEA Year: 06.17- VW TIGUAN ALLSPACE (BW2, BJ2) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DGVA Year: 03.17- VW TIGUAN ALLSPACE (BW2, BJ2) 2.0 TSI 4motion Engine volume: 2.0 Engine type: DNJA, CXDA Year: 07.17- VW TIGUAN VAN (5N_) 2.0 TSI 4motion (5N1) Engine volume: 2.0 Engine type: CCZA Year: 11.09-05.11 VW TIGUAN VAN (5N_) 2.0 TSI 4motion (5N1) Engine volume: 2.0 Engine type: CCZC Year: 11.09-05.11 VW TIGUAN VAN (5N_) 2.0 TSI 4motion (5N2) Engine volume: 2.0 Engine type: CCZB Year: 05.11-07.18 VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 07.11-08.15 VW TRANSPORTER T5 Skåp (7HA, 7HH, 7EA, 7EH) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 05.11-08.15 VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TSI 4motion Engine volume: 2.0 Engine type: CJKA Year: 06.15-07.19 VW TRANSPORTER T6 / CARAVELLE T6 Buss (SGB, SGJ, SHB, SHJ) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 04.15-07.19 VW TRANSPORTER T6 Skåp (SGA, SGH, SHA, SHH) 2.0 TSI Engine volume: 2.0 Engine type: CJKA Year: 04.15-07.19 1 / 28
-
