HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115426

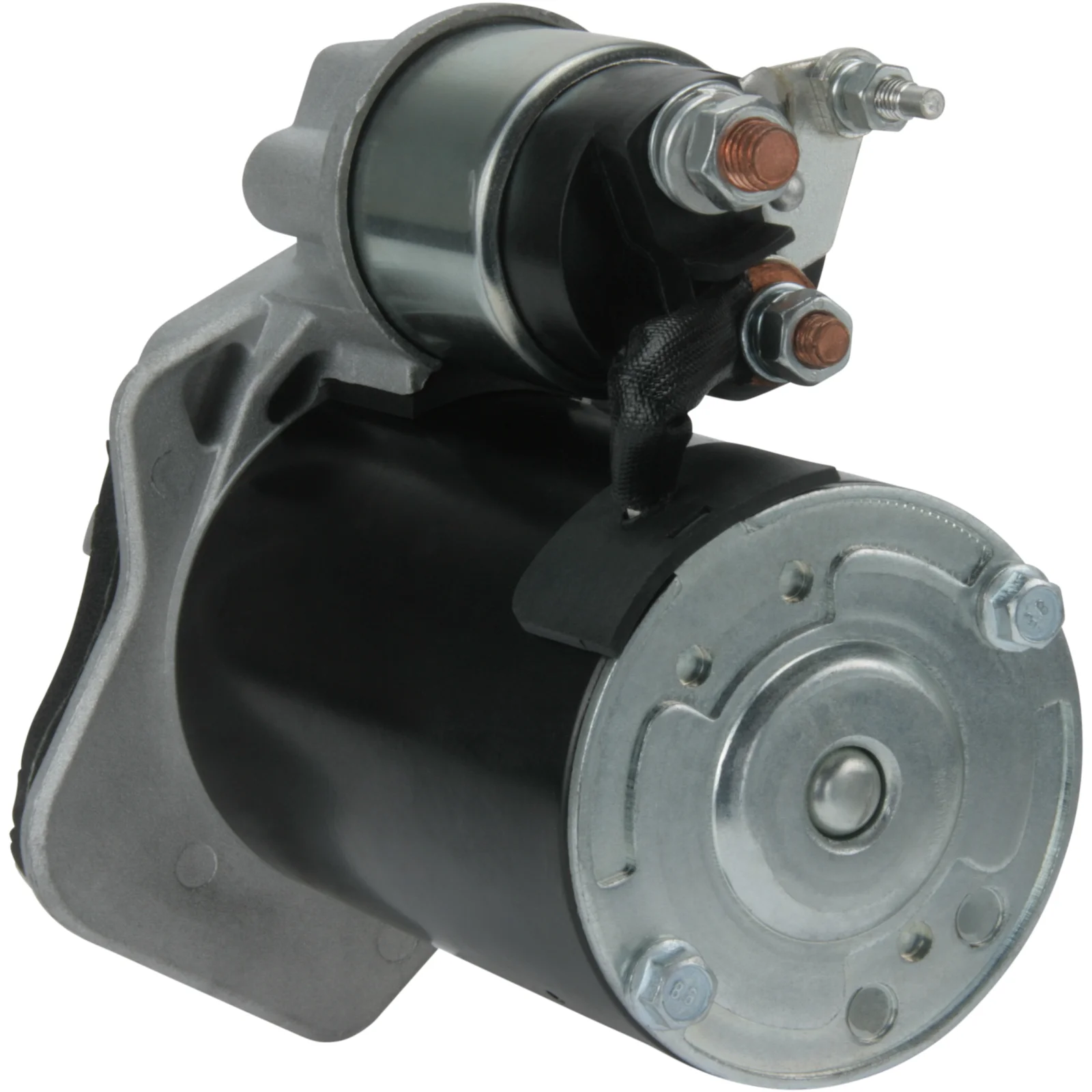

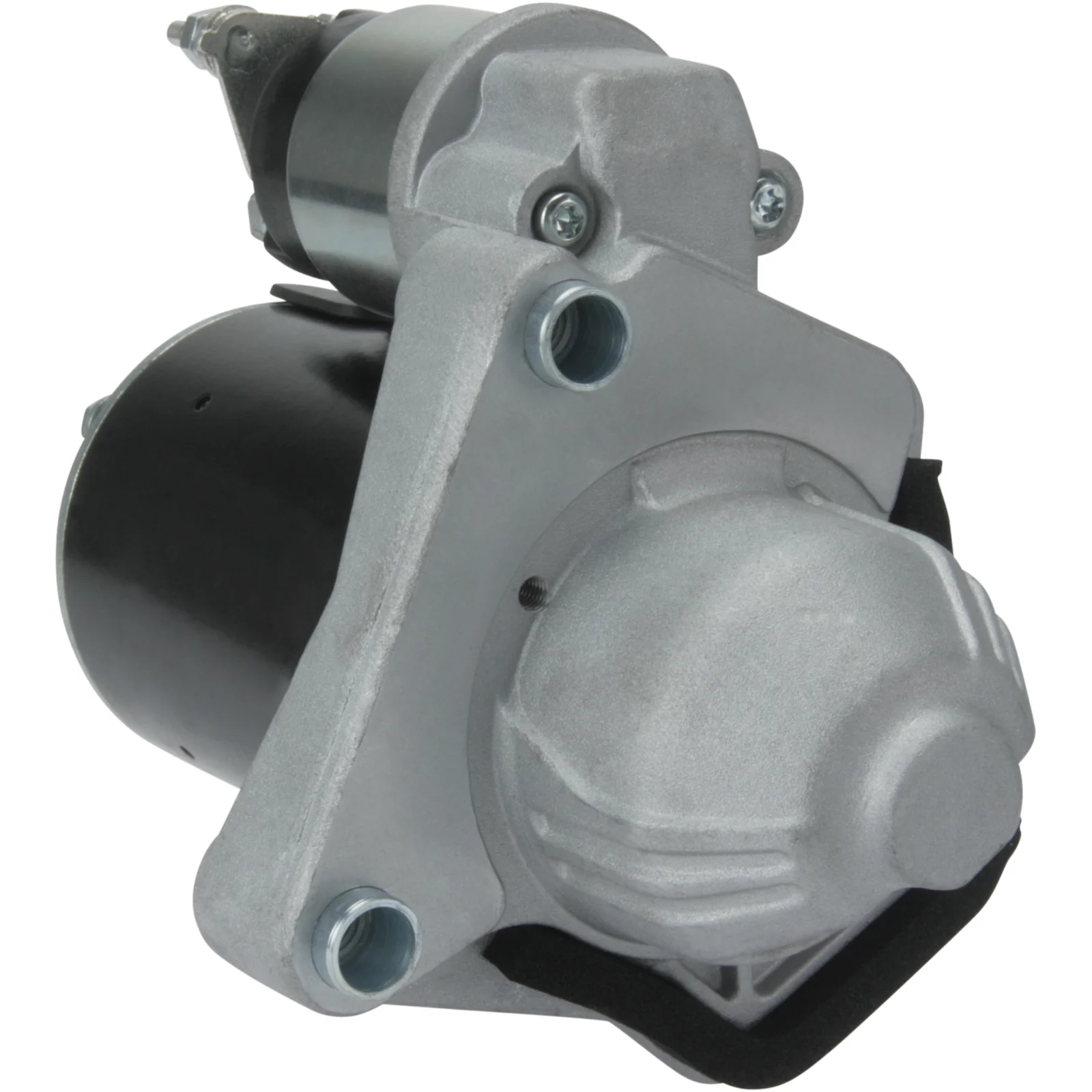

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kumulert effekt: 1,0 kW, Antall tennplugger/tenner: 9, Rotasjon: medur

Beskrivelse

Nissan Micra Startmotor 12V-1.0kW 12V - 1.0kW, 8/9k A - 70mm, B - 20mm for Yourex produktordre 91-400-0378

Spenning: 12
kW: 1.0
Drive avstand: 21.00
Avstand/tilbake: 120.00
Avstand/frem: 50.00
Antall/tenner: 9
B+: M8
Posisjon/50: 10
Terminal 50: M5
Gjentak️ type: DD
Avstand mm: 76.50
Rotasjon: CW
Total lengde mm: 170.00
Prod. info: BN
Antall/beslagshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
No./mount. holes 2 (2)
Position/50 10
Prod. info BN
Rotation CW
Dist./back 120.00
Dist./front 50.00
Drive dist. 21.00
Gear type DD
kW 1.0
Terminal 50 M5
Voltage 12
Total length 170.00 mm
Dist. 76.50 mm

  • OEM
    cs1540, F032115426, FS10M 3, FS10M3, M000T33671ZT, M000T37871, M000T37871ZE, M000TD0971, M0T-37871, M0T37871, M0T37871ZE, M0TD0971, RGO 115426, 23300-1HC0B, 23300-1HC0D, 23300-1HC1A, 23300-1HC1AB1, 23300-1HC1B, 23300-1HC1C, 115426, 1196052, 1196052A

  • Konkurrentreferens
    CST15265, CST35328, DRS0651, DRS0731, LRS02687, S3148, S5271S, 8EA011611-761, 25-4359, 160.586.092, 327.224.092, 30267N, 30275R, 220895, 220895A, 446507, 460235, 11040832, 0986028080

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    cs1540, cst15265, cst35328, drs0651, drs0731, f032115426, fs10m3, lrs02687, m000t33671zt, m000t37871, m000t37871ze, m000td0971, m0t37871, m0t37871ze, m0td0971, rgo115426, s3148, s5271s, 8ea011611761, 30267n, 30275r, 115426, 220895, 220895a, 233001hc0b, 233001hc0d, 233001hc1a, 233001hc1ab1, 233001hc1b, 233001hc1c, 254359, 446507, 460235, 1196052, 1196052a, 11040832, 160586092, 327224092, 0986028080

  • Passar modeller
    Datsun Model: Go Model series: Go Size of motor: 1.2 Brand of engine: HR12DE Body: Hatchback From date: 01-03-2014 Fuel: Petrol Approved: Yes
    Datsun Model: Go+ Model series: Go+ Size of motor: 1.2 Brand of engine: HR12DE Body: Estate From date: 01-01-2015 Fuel: Petrol Approved: Yes
    Nissan Model: March Model series: March Model type: LPG Type of engine: LPG Size of motor: 1.2 Brand of engine: HR12DE Type description: K13_ Body: Hatchback From date: 01-05-2010 Fuel: Petrol/Electro Approved: Yes
    Nissan Model: Micra Model series: Micra Model type: Active Size of motor: 1.2 Brand of engine: HR12DE Type description: K13K Body: Hatchback From date: 01-07-2013 Fuel: Petrol Approved: Yes
    Nissan Model: Micra Model series: Micra Size of motor: 1.2 Brand of engine: HR12DE Type description: K13 Body: Hatchback From date: 01-05-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Note Model series: Note Model type: 4WD Size of motor: 1.2 Brand of engine: HR12DE Type description: E12 Body: MPV From date: 01-08-2012 Fuel: Petrol Approved: Yes
    Nissan Model: Note Model series: Note Size of motor: 1.2 Brand of engine: HR12DE Type description: E12 Body: MPV From date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Nissan Model: Versa Model series: Versa Model type: Flex Size of motor: 1.0 Brand of engine: HR10DE Type description: N17_ Body: Saloon From date: 01-02-2015 To date: 01-08-2021 Fuel: Petrol/Ethanol Approved: Yes
    Nissan Model: Versa Model series: Versa Type of engine: DIG-S Size of motor: 1.2 Type description: E12 Body: MPV From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Nissan Series: Micra IV (K13) Model: 1.2 DIG-S Engine volume: 1.2 Engine type: HR12DDR/HR12DR Year: 03.11-
    Nissan Series: Micra IV (K13) Model: 1.2 Engine volume: 1.2 Engine type: HR 12 DE Year: 04.11-
    Nissan Series: Micra IV (K13) Model: 1.2 Engine volume: 1.2 Engine type: HR 12 DE Year: 07.10-
    Nissan Series: Note (E12) Model: 1.2 DIG-S Engine volume: 1.2 Year: 06.13-
    Nissan Series: Note (E12) Model: 1.2 Engine volume: 1.2 Engine type: HR 12 DE Year: 06.13-
