HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032113846

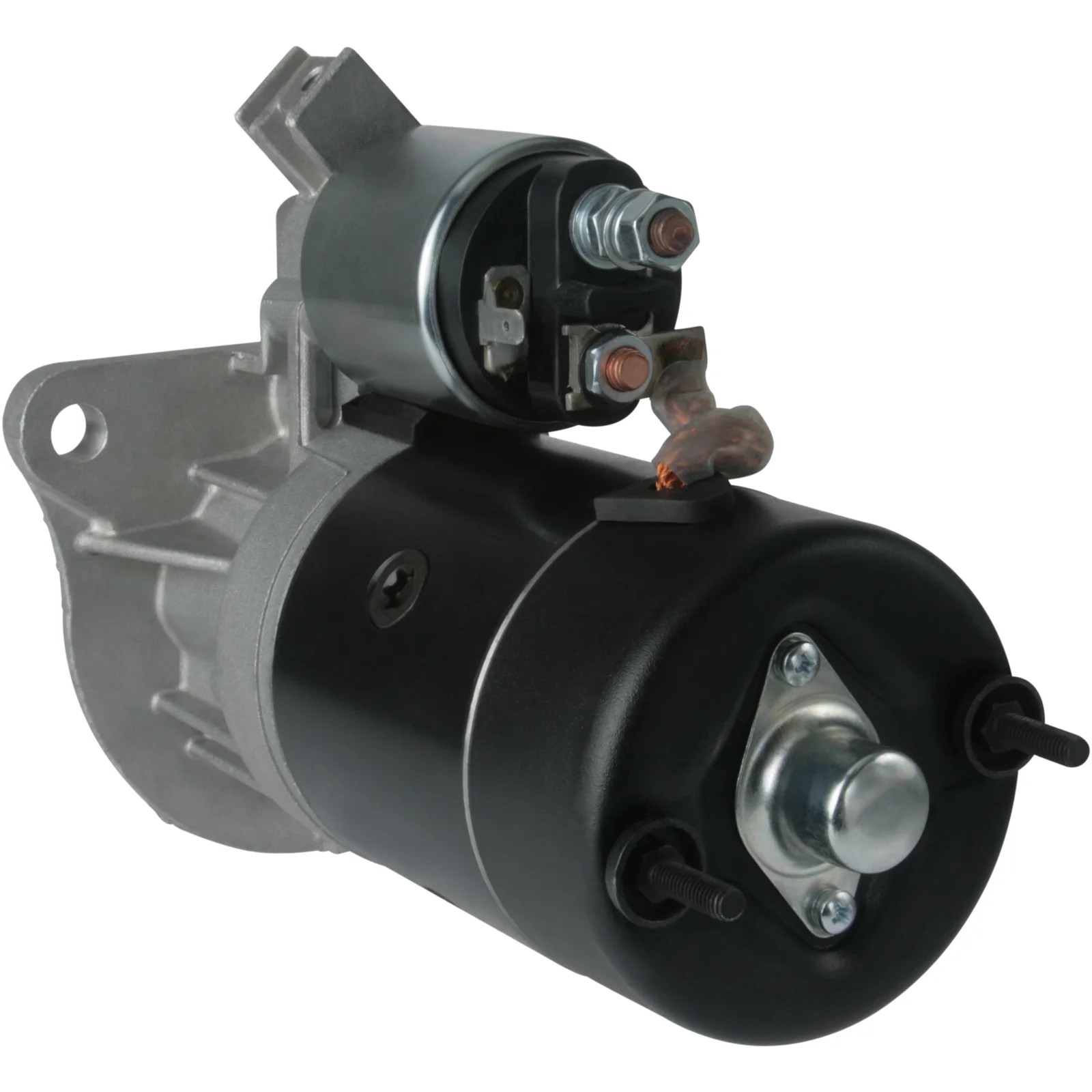

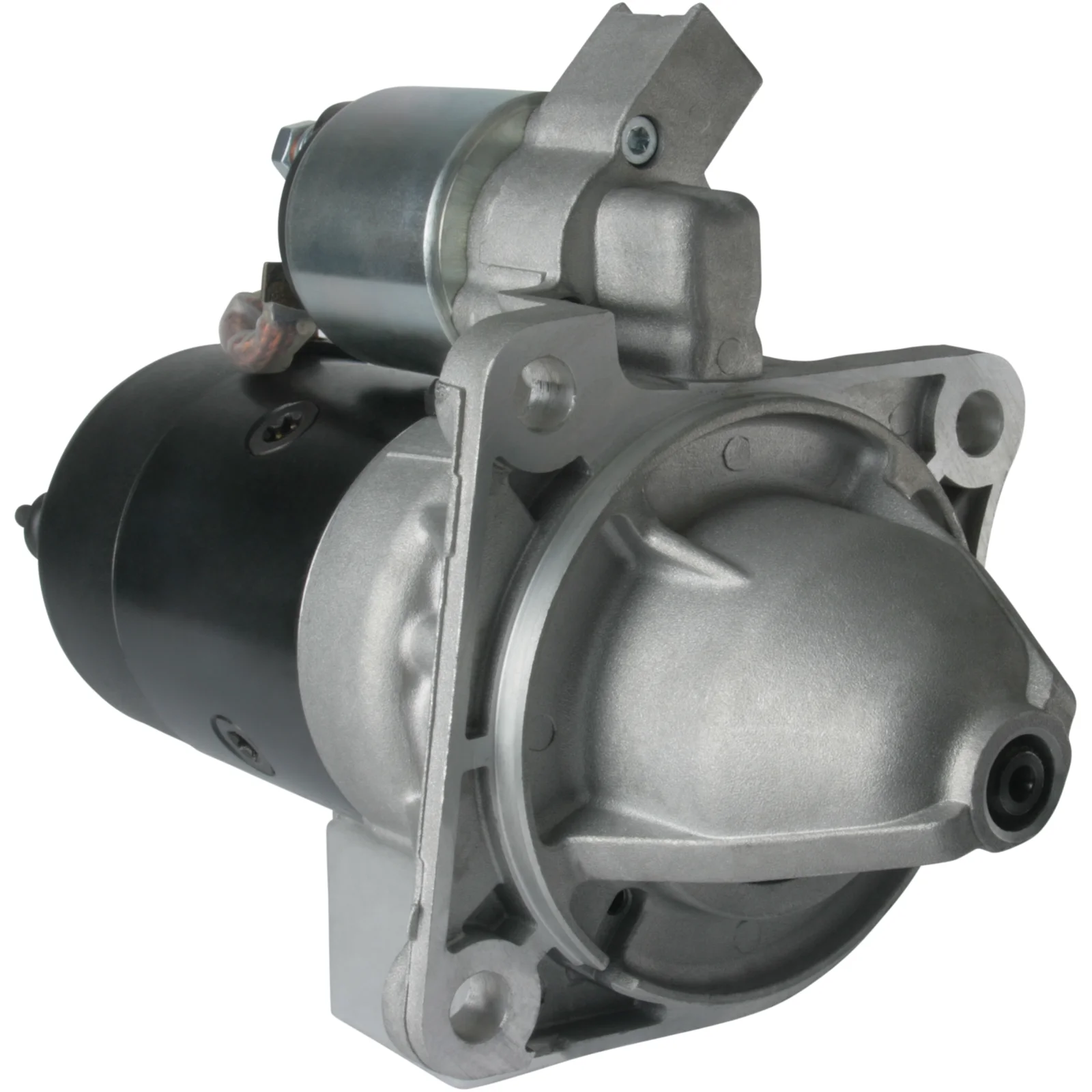

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Beskrivelse

Spenningsverdi: 12
Kraft: 2.2
Monteringsflens: 110.00
Drivingsavstand: 27.00
Monteringshull 3 mm: 12.00
Monteringshull 2 mm: 12.00
Monteringshull 1 mm: 12.00
Avstand/bak: 203.50
Avstand/frem: 70.00
Antall/tenner: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 45
Terminal 50: 6.30
Gavltype: GR
Avstand 2: 73.00
Avstand 3: 73.00
Avstand mm: 73.00
Roters: med urasjon
Total lengde mm: 282.00
Koplings_type: Tørr
Drev_type: Stål
Prod. info: BN/OE
Vannmotstandig: Nei
Olje forseglet: Nei
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 110.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Position/B+ 60
Prod. info BN/OE
Dist. 2 73.00
Dist. 3 73.00
Rotation CW
Dist./back 203.50
Dist./front 70.00
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 282.00 mm
Waterproof No
Dist. 73.00 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    cs510, F032113846, RGO 113846, 0001218024, 0001218103, 0001218703, 1516765R, 7580575, 7666135, 46231642

  • Konkurrentreferens
    CST10140, drs3660, lrs00828, LRS01160, S0148, 8ea726158-001, 25-1147, 88-13.660, 318.029.092, 500.505.093, 1628, 10510, 32160R, 33545, 103401, 220050, 220050A, 436045, 8813660, 11013660, 943252858, 0986013660, 063522187030, 943252858010

  • NormaliseratArtNr
    cs510, cst10140, drs3660, f032113846, lrs00828, lrs01160, rgo113846, s0148, 8ea726158001, 1628, 10510, 32160r, 33545, 103401, 220050, 220050a, 251147, 436045, 0001218024, 0001218103, 0001218703, 1516765r, 7580575, 7666135, 8813660, 11013660, 46231642, 318029092, 500505093, 943252858, 0986013660, 063522187030, 943252858010

  • Passar modeller
    Alfa Romeo Model: AR 6 Model series: AR 6 Type of engine: TD Size of motor: 2.4 Brand of engine: 8144.21.220 Type description: 280 Body: Van From date: 01-09-1986 To date: 01-12-1989 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8144.67 Type description: 280 Body: Van From date: 01-03-1989 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8144.67 Type description: 290 Body: Platform / Chassis From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8144.67 Type description: 290 Body: Van From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.4 Brand of engine: 8144.21 Type description: 280_ Body: Platform / Chassis From date: 01-01-1986 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 280 Body: Van From date: 01-09-1986 To date: 01-05-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Platform / Chassis From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Van From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: Panorama 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Bus From date: 01-01-1991 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: Panorama 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.21 Type description: 280 Body: Bus From date: 01-01-1986 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: Panorama 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Bus From date: 01-06-1990 To date: 01-05-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: Panorama Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Bus From date: 01-06-1990 To date: 01-05-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Model type: Panorama Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.21 Type description: 280 Body: Bus From date: 01-01-1987 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8144.67 Type description: 280 Body: Platform / Chassis From date: 01-07-1982 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: CRD93L Type description: 280 Body: Platform / Chassis From date: 01-07-1982 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Body: Platform / Chassis From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Van From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.21 Type description: 280 Body: Platform / Chassis From date: 01-01-1986 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Van Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.21 Type description: 280_ Body: Van From date: 01-02-1987 To date: 01-02-1991 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Size of motor: 1.6 Brand of engine: CFNA Body: MPV From date: 01-09-2006 To date: 01-05-2015 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsverdi: 12
    Kraft: 2.2
    Monteringsflens: 110.00
    Drivingsavstand: 27.00
    Monteringshull 3 mm: 12.00
    Monteringshull 2 mm: 12.00
    Monteringshull 1 mm: 12.00
    Avstand/bak: 203.50
    Avstand/frem: 70.00
    Antall/tenner: 9
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 45
    Terminal 50: 6.30
    Gavltype: GR
    Avstand 2: 73.00
    Avstand 3: 73.00
    Avstand mm: 73.00
    Roters: med urasjon
    Total lengde mm: 282.00
    Koplings_type: Tørr
    Drev_type: Stål
    Prod. info: BN/OE
    Vannmotstandig: Nei
    Olje forseglet: Nei
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 110.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Position/B+ 60
    Prod. info BN/OE
    Dist. 2 73.00
    Dist. 3 73.00
    Rotation CW
    Dist./back 203.50
    Dist./front 70.00
    Drive dist. 27.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 282.00 mm
    Waterproof No
    Dist. 73.00 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Kjøretøymatching

    • OEM
      cs510, F032113846, RGO 113846, 0001218024, 0001218103, 0001218703, 1516765R, 7580575, 7666135, 46231642

    • Konkurrentreferens
      CST10140, drs3660, lrs00828, LRS01160, S0148, 8ea726158-001, 25-1147, 88-13.660, 318.029.092, 500.505.093, 1628, 10510, 32160R, 33545, 103401, 220050, 220050A, 436045, 8813660, 11013660, 943252858, 0986013660, 063522187030, 943252858010

    • NormaliseratArtNr
      cs510, cst10140, drs3660, f032113846, lrs00828, lrs01160, rgo113846, s0148, 8ea726158001, 1628, 10510, 32160r, 33545, 103401, 220050, 220050a, 251147, 436045, 0001218024, 0001218103, 0001218703, 1516765r, 7580575, 7666135, 8813660, 11013660, 46231642, 318029092, 500505093, 943252858, 0986013660, 063522187030, 943252858010

    • Passar modeller
      Alfa Romeo Model: AR 6 Model series: AR 6 Type of engine: TD Size of motor: 2.4 Brand of engine: 8144.21.220 Type description: 280 Body: Van From date: 01-09-1986 To date: 01-12-1989 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8144.67 Type description: 280 Body: Van From date: 01-03-1989 To date: 01-08-1990 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8144.67 Type description: 290 Body: Platform / Chassis From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8144.67 Type description: 290 Body: Van From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.4 Brand of engine: 8144.21 Type description: 280_ Body: Platform / Chassis From date: 01-01-1986 To date: 01-08-1990 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 280 Body: Van From date: 01-09-1986 To date: 01-05-1990 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Platform / Chassis From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Van From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: Panorama 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Bus From date: 01-01-1991 To date: 01-03-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: Panorama 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.21 Type description: 280 Body: Bus From date: 01-01-1986 To date: 01-08-1990 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: Panorama 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Bus From date: 01-06-1990 To date: 01-05-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: Panorama Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Bus From date: 01-06-1990 To date: 01-05-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Model type: Panorama Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.21 Type description: 280 Body: Bus From date: 01-01-1987 To date: 01-08-1990 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8144.67 Type description: 280 Body: Platform / Chassis From date: 01-07-1982 To date: 01-08-1990 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Diesel Size of motor: 2.5 Brand of engine: CRD93L Type description: 280 Body: Platform / Chassis From date: 01-07-1982 To date: 01-08-1990 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Body: Platform / Chassis From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27 Type description: 290 Body: Van From date: 01-07-1990 To date: 01-03-1994 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.21 Type description: 280 Body: Platform / Chassis From date: 01-01-1986 To date: 01-08-1990 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Van Type of engine: TD Size of motor: 2.5 Brand of engine: 8144.21 Type description: 280_ Body: Van From date: 01-02-1987 To date: 01-02-1991 Fuel: Diesel Approved: Yes
      Skoda Model: Roomster Model series: Roomster Size of motor: 1.6 Brand of engine: CFNA Body: MPV From date: 01-09-2006 To date: 01-05-2015 Fuel: Gasoline Approved: Yes
