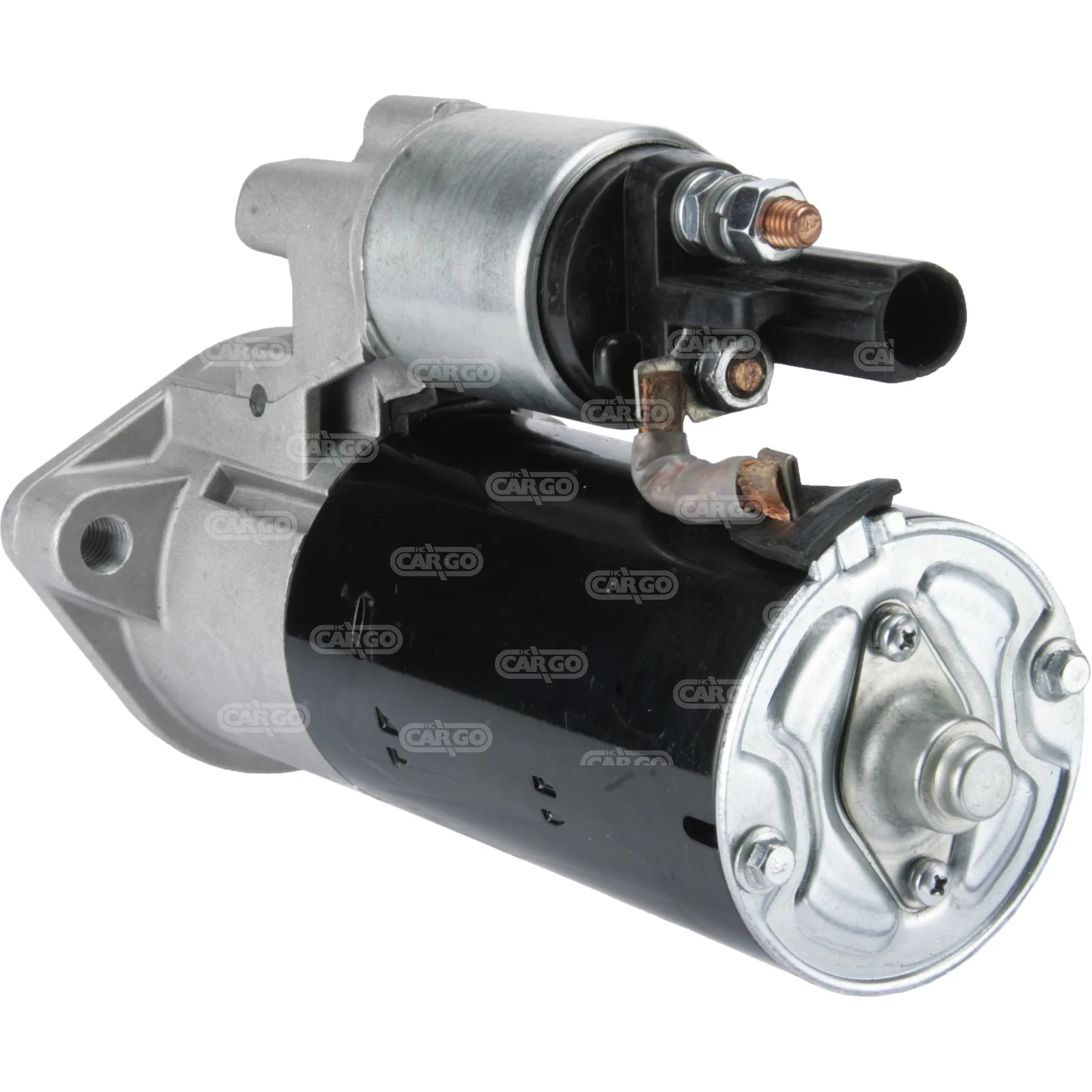

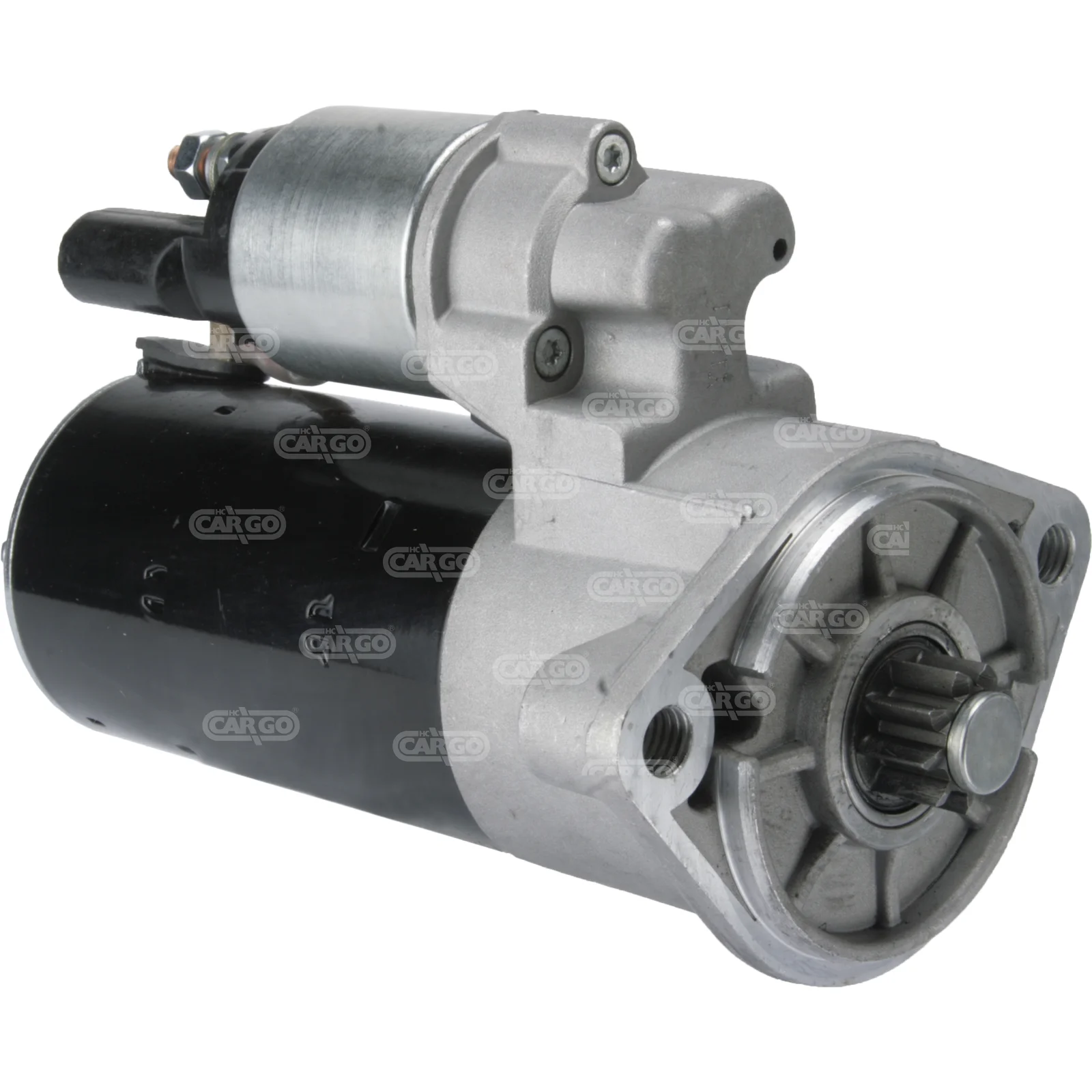

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114317

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

VW Crafter Startmotor 12V-2.0kW 12V - 2.0kW, 9k A - 82.5mm B - 21mm For Yourrex produktordre 91-620-2163

Spenningsnivå: 12
kW: 2.0
Monteringsflens: 82,50
Dreven avstand: 20,00
Avstand/tilbaketrukket: 197,00
Avstand/fremre: 23,00
Antall/tann: 9
B+: M8
Posisjon/50: 15
Terminal 50: Plugg
Gavltype: GR
Drev. mm: 105,00
Rotasjon: CW
Total lengde mm: 234,00
Drevtype: Stål
Antall/monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (2)
Position/50 15
Rotation CW
Dist./back 197.00
Dist./front 23.00
Drive dist. 20.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 234.00 mm
Dist. 105.00 mm

  • OEM
    A6461510101, A646151010180, cs1435, F032114317, HVW6461510101, RGO 114317, 0001 125 055, 0001 125 056, 076 911 023A, 646 151 0101, 0986 021 630, 1986S00815, 114317, 0001125055, 0001125056, 076911023A, 076911023AX, 6461510101, 646151010180

  • Konkurrentreferens
    CST10390, DRT1630, F042S0H108, LRS02327, S0193, S0193PR, STR-H108, 8EA011611-261, 25-3499, 311.243.092, 3061, 33220N, 101435, 106243, 220684, 220684A, 458827, 8021630, 8213012, 11021630, 42021630, 0986021630

  • Bilmärken
    VW Trucks & Vans

  • NormaliseratArtNr
    a6461510101, a646151010180, cs1435, cst10390, drt1630, f032114317, f042s0h108, hvw6461510101, lrs02327, rgo114317, s0193, s0193pr, strh108, 8ea011611261, 1986s00815, 3061, 33220n, 101435, 106243, 114317, 220684, 220684a, 253499, 458827, 0001125055, 0001125056, 8021630, 8213012, 11021630, 42021630, 076911023a, 076911023ax, 311243092, 0986021630, 6461510101, 646151010180

  • Passar modeller
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E_ Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E_ Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL Year: 04.06-
    VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM Year: 04.06-
    1 / 6
  • Beskrivelse
    VW Crafter Startmotor 12V-2.0kW 12V - 2.0kW, 9k A - 82.5mm B - 21mm For Yourrex produktordre 91-620-2163

    Spenningsnivå: 12
    kW: 2.0
    Monteringsflens: 82,50
    Dreven avstand: 20,00
    Avstand/tilbaketrukket: 197,00
    Avstand/fremre: 23,00
    Antall/tann: 9
    B+: M8
    Posisjon/50: 15
    Terminal 50: Plugg
    Gavltype: GR
    Drev. mm: 105,00
    Rotasjon: CW
    Total lengde mm: 234,00
    Drevtype: Stål
    Antall/monteringshull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (2)
    Position/50 15
    Rotation CW
    Dist./back 197.00
    Dist./front 23.00
    Drive dist. 20.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 234.00 mm
    Dist. 105.00 mm
  • Kjøretøymatching

    • OEM
      A6461510101, A646151010180, cs1435, F032114317, HVW6461510101, RGO 114317, 0001 125 055, 0001 125 056, 076 911 023A, 646 151 0101, 0986 021 630, 1986S00815, 114317, 0001125055, 0001125056, 076911023A, 076911023AX, 6461510101, 646151010180

    • Konkurrentreferens
      CST10390, DRT1630, F042S0H108, LRS02327, S0193, S0193PR, STR-H108, 8EA011611-261, 25-3499, 311.243.092, 3061, 33220N, 101435, 106243, 220684, 220684A, 458827, 8021630, 8213012, 11021630, 42021630, 0986021630

    • Bilmärken
      VW Trucks & Vans

    • NormaliseratArtNr
      a6461510101, a646151010180, cs1435, cst10390, drt1630, f032114317, f042s0h108, hvw6461510101, lrs02327, rgo114317, s0193, s0193pr, strh108, 8ea011611261, 1986s00815, 3061, 33220n, 101435, 106243, 114317, 220684, 220684a, 253499, 458827, 0001125055, 0001125056, 8021630, 8213012, 11021630, 42021630, 076911023a, 076911023ax, 311243092, 0986021630, 6461510101, 646151010180

    • Passar modeller
      VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E_ Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E_ Body: Bus From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Bus From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJJ Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJK Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJL Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: BJM Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBA Type description: 2E Body: Van From date: 01-04-2006 To date: 01-07-2011 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CEBB Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Platform / Chassis From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Model: Crafter Model series: Crafter 30-50 Type of engine: TDi Size of motor: 2.5 Brand of engine: CECA Type description: 2E Body: Van From date: 01-04-2006 To date: 01-05-2013 Fuel: Diesel Approved: Yes
      VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK Year: 04.06-
      VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL Year: 04.06-
      VW Trucks & Vans Series: Crafter 30-35 Buss Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM Year: 04.06-
      VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK Year: 04.06-
      VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL Year: 04.06-
      VW Trucks & Vans Series: Crafter 30-50 Flak Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM Year: 04.06-
      VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJK Year: 04.06-
      VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJL Year: 04.06-
      VW Trucks & Vans Series: Crafter 30-50 Skåp Model: 2.5 TDI Engine volume: 2.5 Engine type: BJM Year: 04.06-
