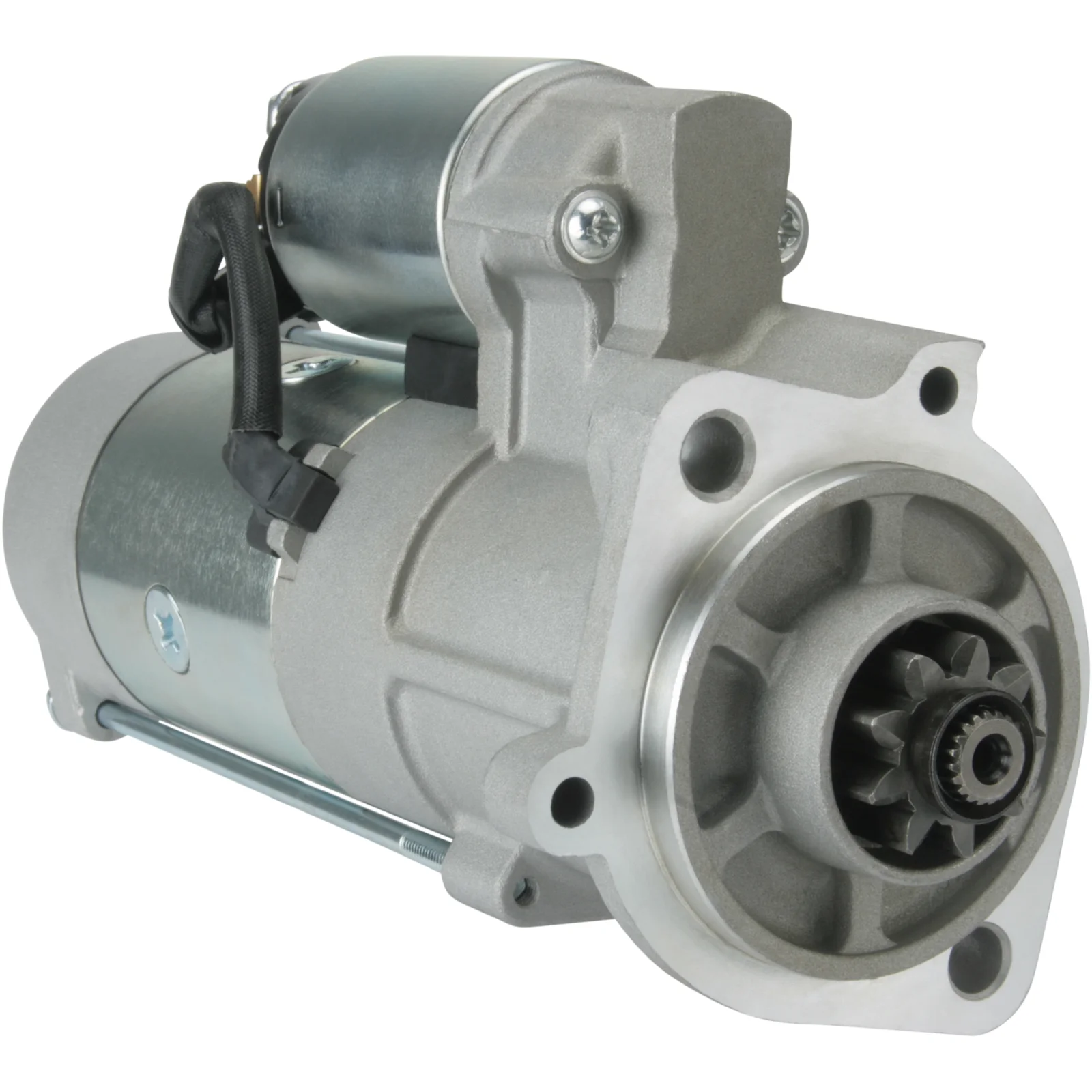

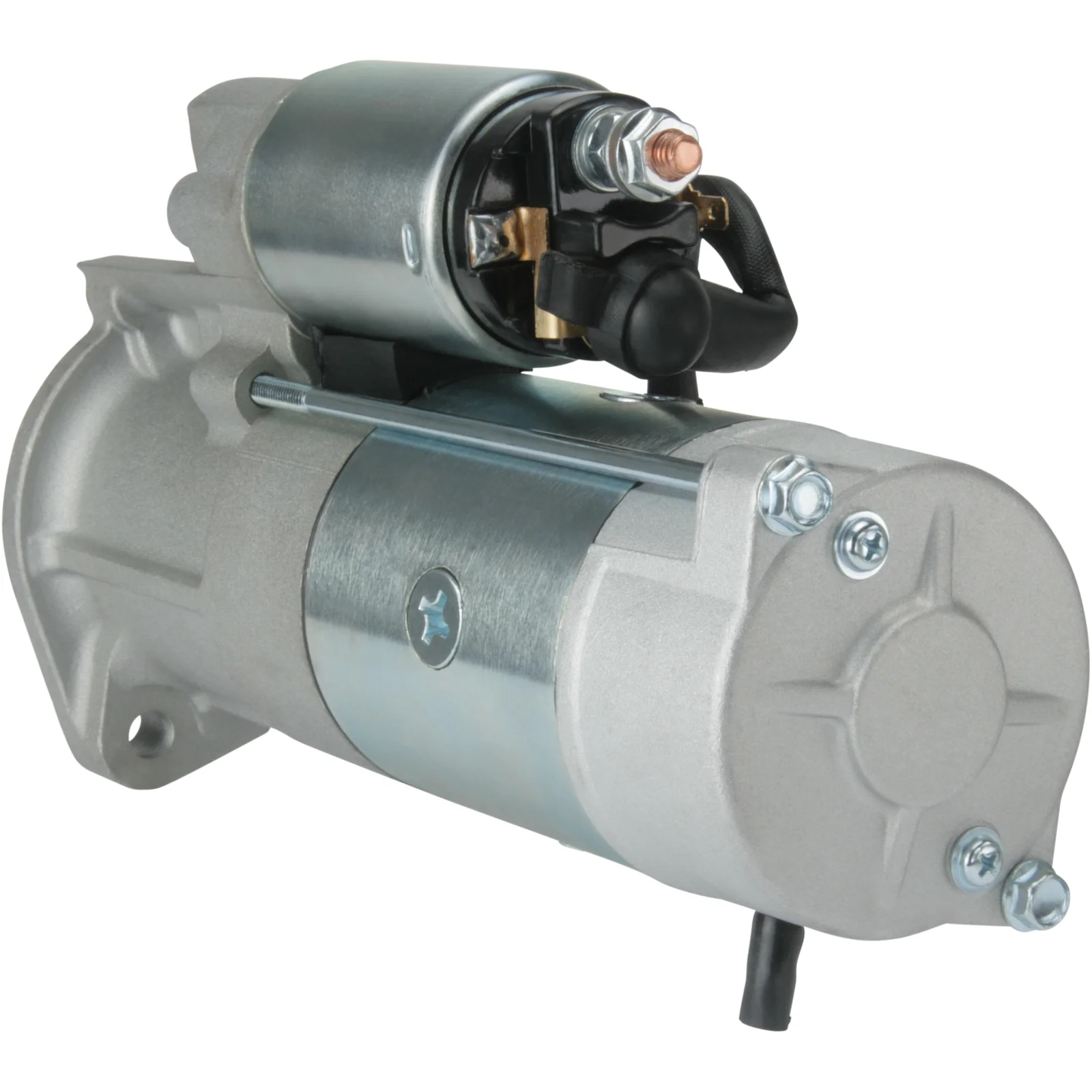

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114167

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 3.0, Nr./tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 3.0
Monteringsflens: 82.50
Drivelsesong: 27.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Avstand/bak: 253.50
Avstand/frem: 34.00
Nr./tenner: 9
B+: M8
Posisjon/50: 15
Terminal 50: M5-6.30
Girtype: GR
Avstand mm: 104.00
Rotasjon: CW
Total lengde mm: 287.50
Prod. info: BN
Nr./monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 253.50
Dist./front 34.00
Drive dist. 27.00
Gear type GR
kW 3.0
Terminal 50 M5-6.30
Voltage 12
Total length 287.50 mm
Dist. 104.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114167, M008T50471, M008T50671, M008T50672, M008T50674, m8t50471, m8t50473, M8T50671, M8T50672, M8T50674, 1G77-763012, 1G777-63010, 1G777-63011, 1G777-63013, 1k012-63010, 1K012-63011, 1K012-63012, 05741747

  • Konkurrentreferens
    CST35215, DRS0519, LRS02436, S5162, 8EA015642-171, 25-4108, 690.554.092, 17586N, 255363

  • NormaliseratArtNr
    cst35215, drs0519, f032114167, lrs02436, m008t50471, m008t50671, m008t50672, m008t50674, m8t50471, m8t50473, m8t50671, m8t50672, m8t50674, s5162, 1g77763010, 1g77763011, 1g77763012, 1g77763013, 1k01263010, 1k01263011, 1k01263012, 8ea015642171, 17586n, 254108, 255363, 05741747, 690554092

  • Passar modeller
    Aebi Model: TP48 Model series: TP48 Model type: Utility Vehicles Brand of engine: V3307-DI-T Approved: Yes
    Aebi Model: TP48P Model series: TP48P Model type: Utility Vehicles Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: S 630 Model series: S 630 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: S 650 Model series: S 650 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: S630 M SERIES Model series: S630 M SERIES Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: S630 Model series: S630 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: S650 M SERIES Model series: S650 M SERIES Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: S650 Model series: S650 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: T 650 Model series: T 650 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: T 770 Model series: T 770 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: T630 M SERIES Model series: T630 M SERIES Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: T630 Model series: T630 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: T650 M SERIES Model series: T650 M SERIES Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bobcat Model: T650 Model series: T650 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
    Bomag Model: BW 141 AD-50 Model series: BW 141 AD-50 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
    Bomag Model: BW 151 AC-50 Model series: BW 151 AC-50 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
    Bomag Model: BW 151 AD-50 Model series: BW 151 AD-50 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
    Bomag Model: BW 154 ACP-4 Model series: BW 154 ACP-4 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
    Bomag Model: BW 154 ACP-4AM Model series: BW 154 ACP-4AM Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
    Bomag Model: BW 154 AP-4 AM Model series: BW 154 AP-4 AM Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
    Bomag Model: BW 154 AP-4 Model series: BW 154 AP-4 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
    Caterpillar Model: 308E CR Model series: 308E CR Model type: Excavators Brand of engine: V3307-DI-T Approved: Yes
    Hyundai Model: 25D-9 Model series: 25D-9 Model type: Forklifts Brand of engine: V3307-DI-T Approved: Yes
    Hyundai Model: 30D-9 Model series: 30D-9 Model type: Forklifts Brand of engine: V3307-DI-T Approved: Yes
    Hyundai Model: 33D-9 Model series: 33D-9 Model type: Forklifts Brand of engine: V3307-DI-T Approved: Yes
    Hyundai Model: 35DA-9 Model series: 35DA-9 Model type: Forklifts Brand of engine: V3307-DI-T Approved: Yes
    Kawasaki Model: 45ZV-2 Model series: 45ZV-2 Model type: Wheel Loaders and Dozers Brand of engine: V3307-DI-T Approved: Yes
    Kubota Model: KX080-3 / SUPER DOUBLE BOOM Model series: KX080-3 / SUPER DOUBLE BOOM Model type: Excavators Brand of engine: V3307-DI-T Approved: Yes
    Kubota Model: KX183-3 Model series: KX183-3 Model type: Excavators Brand of engine: V3307-DI-T Approved: Yes
    Kubota Model: M7040 Model series: M7040 Model type: Ag Tractors Brand of engine: V3307-DI-T Body: Tractor Approved: Yes
    Manitou Model: MLT 523 T Model series: MLT 523 T Model type: Rough Terrain Forklifts Brand of engine: V3307-DI-T Approved: Yes
    Manitou Model: MLT 625 / MLT 625 75H Model series: MLT 625 / MLT 625 75H Model type: Rough Terrain Forklifts Brand of engine: V3307-DI-T Approved: Yes
    Mitsubishi Model: VG570RET Model series: VG570RET Model type: Combines Brand of engine: V3307-DI-T Approved: Yes
    Mitsubishi Model: VY570R Model series: VY570R Model type: Combines Brand of engine: V3307-DI-T Approved: Yes
    TCM Model: Various Models Model series: Various Models Brand of engine: Kubota V3300 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivelse
    Spenning: 12
    kW: 3.0
    Monteringsflens: 82.50
    Drivelsesong: 27.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 253.50
    Avstand/frem: 34.00
    Nr./tenner: 9
    B+: M8
    Posisjon/50: 15
    Terminal 50: M5-6.30
    Girtype: GR
    Avstand mm: 104.00
    Rotasjon: CW
    Total lengde mm: 287.50
    Prod. info: BN
    Nr./monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 253.50
    Dist./front 34.00
    Drive dist. 27.00
    Gear type GR
    kW 3.0
    Terminal 50 M5-6.30
    Voltage 12
    Total length 287.50 mm
    Dist. 104.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032114167, M008T50471, M008T50671, M008T50672, M008T50674, m8t50471, m8t50473, M8T50671, M8T50672, M8T50674, 1G77-763012, 1G777-63010, 1G777-63011, 1G777-63013, 1k012-63010, 1K012-63011, 1K012-63012, 05741747

    • Konkurrentreferens
      CST35215, DRS0519, LRS02436, S5162, 8EA015642-171, 25-4108, 690.554.092, 17586N, 255363

    • NormaliseratArtNr
      cst35215, drs0519, f032114167, lrs02436, m008t50471, m008t50671, m008t50672, m008t50674, m8t50471, m8t50473, m8t50671, m8t50672, m8t50674, s5162, 1g77763010, 1g77763011, 1g77763012, 1g77763013, 1k01263010, 1k01263011, 1k01263012, 8ea015642171, 17586n, 254108, 255363, 05741747, 690554092

    • Passar modeller
      Aebi Model: TP48 Model series: TP48 Model type: Utility Vehicles Brand of engine: V3307-DI-T Approved: Yes
      Aebi Model: TP48P Model series: TP48P Model type: Utility Vehicles Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: S 630 Model series: S 630 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: S 650 Model series: S 650 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: S630 M SERIES Model series: S630 M SERIES Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: S630 Model series: S630 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: S650 M SERIES Model series: S650 M SERIES Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: S650 Model series: S650 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: T 650 Model series: T 650 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: T 770 Model series: T 770 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: T630 M SERIES Model series: T630 M SERIES Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: T630 Model series: T630 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: T650 M SERIES Model series: T650 M SERIES Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bobcat Model: T650 Model series: T650 Model type: Skid Steer Loaders Brand of engine: V3307-DI-T Approved: Yes
      Bomag Model: BW 141 AD-50 Model series: BW 141 AD-50 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
      Bomag Model: BW 151 AC-50 Model series: BW 151 AC-50 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
      Bomag Model: BW 151 AD-50 Model series: BW 151 AD-50 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
      Bomag Model: BW 154 ACP-4 Model series: BW 154 ACP-4 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
      Bomag Model: BW 154 ACP-4AM Model series: BW 154 ACP-4AM Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
      Bomag Model: BW 154 AP-4 AM Model series: BW 154 AP-4 AM Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
      Bomag Model: BW 154 AP-4 Model series: BW 154 AP-4 Model type: Rollers Brand of engine: V3307-DI-T Approved: Yes
      Caterpillar Model: 308E CR Model series: 308E CR Model type: Excavators Brand of engine: V3307-DI-T Approved: Yes
      Hyundai Model: 25D-9 Model series: 25D-9 Model type: Forklifts Brand of engine: V3307-DI-T Approved: Yes
      Hyundai Model: 30D-9 Model series: 30D-9 Model type: Forklifts Brand of engine: V3307-DI-T Approved: Yes
      Hyundai Model: 33D-9 Model series: 33D-9 Model type: Forklifts Brand of engine: V3307-DI-T Approved: Yes
      Hyundai Model: 35DA-9 Model series: 35DA-9 Model type: Forklifts Brand of engine: V3307-DI-T Approved: Yes
      Kawasaki Model: 45ZV-2 Model series: 45ZV-2 Model type: Wheel Loaders and Dozers Brand of engine: V3307-DI-T Approved: Yes
      Kubota Model: KX080-3 / SUPER DOUBLE BOOM Model series: KX080-3 / SUPER DOUBLE BOOM Model type: Excavators Brand of engine: V3307-DI-T Approved: Yes
      Kubota Model: KX183-3 Model series: KX183-3 Model type: Excavators Brand of engine: V3307-DI-T Approved: Yes
      Kubota Model: M7040 Model series: M7040 Model type: Ag Tractors Brand of engine: V3307-DI-T Body: Tractor Approved: Yes
      Manitou Model: MLT 523 T Model series: MLT 523 T Model type: Rough Terrain Forklifts Brand of engine: V3307-DI-T Approved: Yes
      Manitou Model: MLT 625 / MLT 625 75H Model series: MLT 625 / MLT 625 75H Model type: Rough Terrain Forklifts Brand of engine: V3307-DI-T Approved: Yes
      Mitsubishi Model: VG570RET Model series: VG570RET Model type: Combines Brand of engine: V3307-DI-T Approved: Yes
      Mitsubishi Model: VY570R Model series: VY570R Model type: Combines Brand of engine: V3307-DI-T Approved: Yes
      TCM Model: Various Models Model series: Various Models Brand of engine: Kubota V3300 Fuel: Diesel Approved: Yes
      1 / 7
