HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032113702

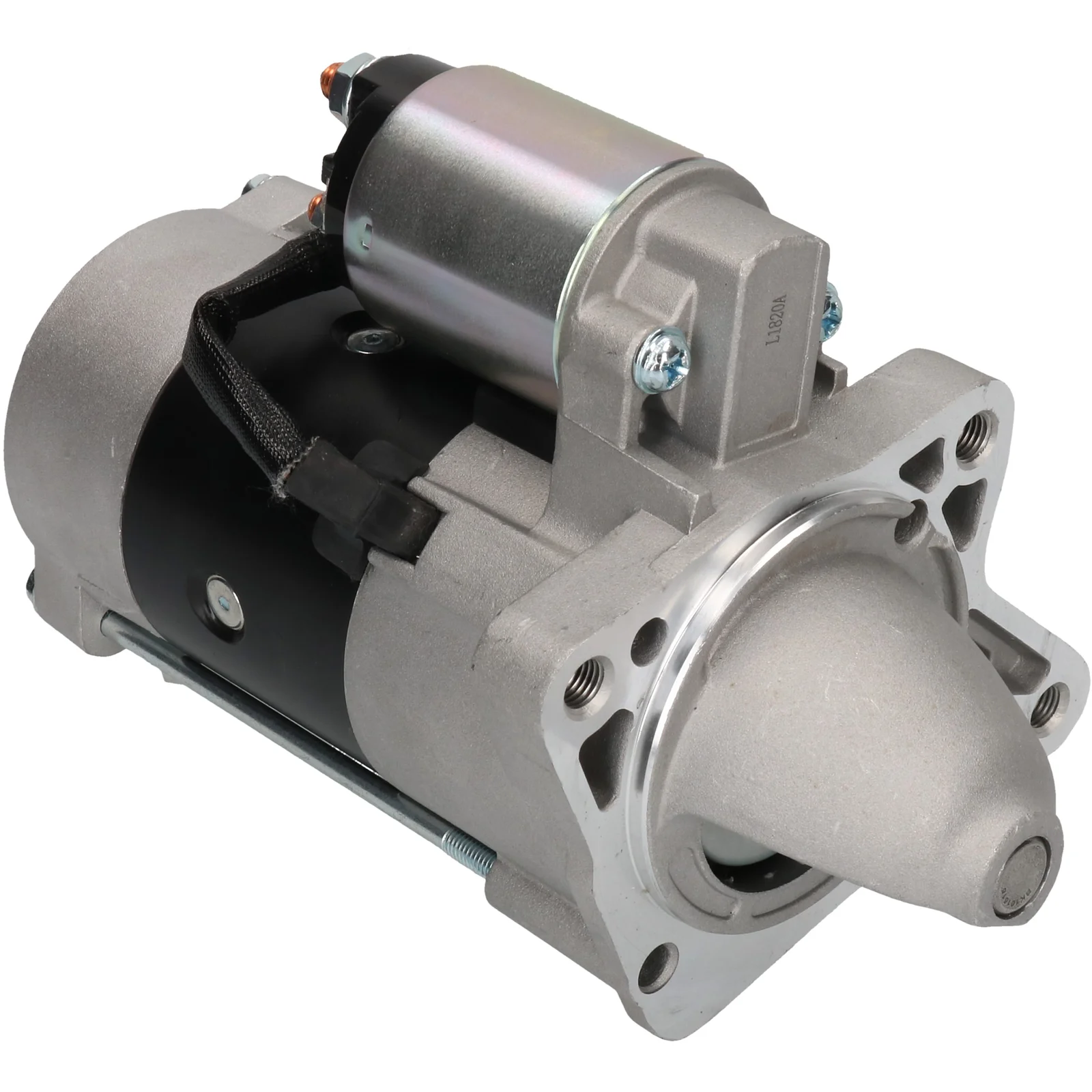

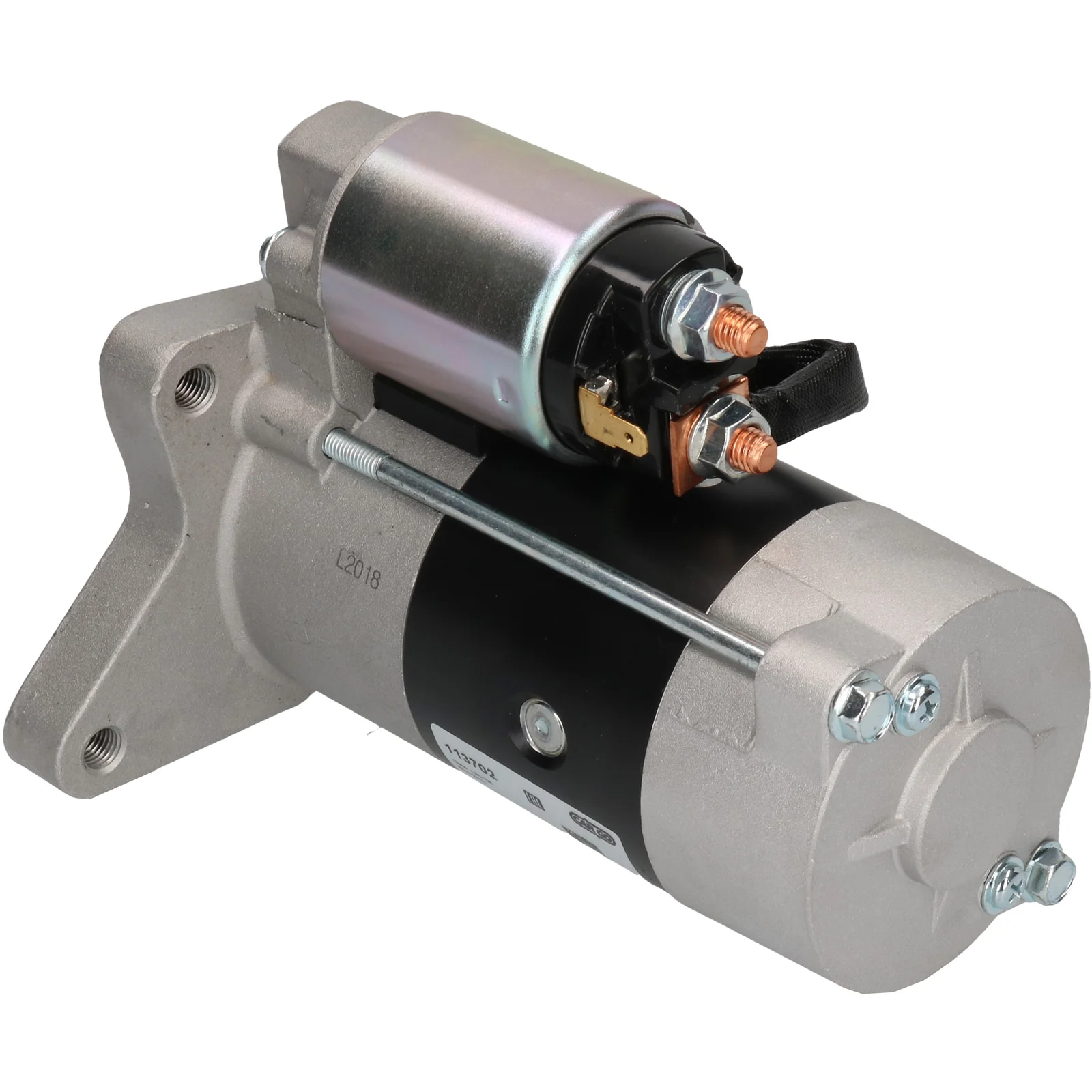

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Beskrivelse

Ford/Mazda Startmotor 12V-2.2kW 12V - 2.2kW, 9/10k For Yourex produkt bestilling 91-360-7271

Spenning: 12
kW: 2.2
Monteringsflens: 81,50
Drivingsavstand: 17,50
Monteringshull 3 mm: M10-1.00
Monteringshull 2 mm: M10-1.00
Monteringshull 1 mm: M10-1.00
Avstand/bak: 153,00
Avstand/frem: 31,00
Nummer/tannhjul: 9
B+: M8
Posisjon/50: 45
Terminal 50: 6,30
Geværtype: GR
Avstand 2: 136,50
Avstand 3: 94,50
Avstand mm: 75,00
Rotasjon: medur (CW)
Total lengde mm: 234,00
Koblingstype: Tørr
Drivetype: Stål
Prod. info: BN
Vanntett: Nei
Oljelukket: Nei
Nummer/monteringshull: 3 (3)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 81.50
Oil sealed No
No./mount. holes 3 (3)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 136.50
Dist. 3 94.50
Rotation CW
Dist./back 153.00
Dist./front 31.00
Drive dist. 17.50
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 234.00 mm
Waterproof No
Dist. 75.00 mm
Mount. hole 3 M10-1.00 mm
Mount. hole 2 M10-1.00 mm
Mount. hole 1 M10-1.00 mm

  • OEM
    F032113702, F8RU-11000AA, f8ru11000aa, F8RU11131CA, js1352, M002T87271, M002T87271ZT, M2T-87271, m2t87271, M2T87271ZT, RGO 113702, WL01-18-400, WL02-18-400, WL02-18-400A, WL61-18-400, WL61-18-400A, WL81-18-400, WL91-18-400, XM34-11002CA, XM3411002AA, xm3411002ca, 0986 023 180, 1986S00608, 1986S00922, 113702, 228000-4830, 228000-4831, 228000-6480, 228000-6481, 228000-6482, 1756803, 3601369, 4348654

  • Konkurrentreferens
    CST35201, CST40225, DRS0048, DRS0442, F042000043, F042000044, F042S00043, J5213042, J5213055, LRS01351, LRS02160, S5106, S6081, STR-5032, 8EA012526-041, 8EA738258-181, 25-2162, 25-3336, 319.064.122, 324.026.092, 9665, 32351N, 32351R, 32352N, 32352R, 105506, 201352, 220423, 220423A, 254400, 458743, 8080197, 8212782, 11040690, 0986023180

  • Bilmärken
    Ford USA, Ford USA Trucks & Vans, Mazda

  • NormaliseratArtNr
    cst35201, cst40225, drs0048, drs0442, f032113702, f042000043, f042000044, f042s00043, f8ru11000aa, f8ru11131ca, j5213042, j5213055, js1352, lrs01351, lrs02160, m002t87271, m002t87271zt, m2t87271, m2t87271zt, rgo113702, s5106, s6081, str5032, wl0118400, wl0218400, wl0218400a, wl6118400, wl6118400a, wl8118400, wl9118400, xm3411002aa, xm3411002ca, 8ea012526041, 8ea738258181, 1986s00608, 1986s00922, 9665, 32351n, 32351r, 32352n, 32352r, 105506, 113702, 201352, 220423, 220423a, 252162, 253336, 254400, 458743, 1756803, 3601369, 4348654, 8080197, 8212782, 11040690, 319064122, 324026092, 0986023180, 2280004830, 2280004831, 2280006480, 2280006481, 2280006482

  • Passar modeller
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-04-2002 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 3.0 Brand of engine: WEAT Body: Pick Up From date: 01-05-2006 To date: 01-07-2012 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-04-2002 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.5 Brand of engine: WLAA Type description: TU_ Body: Pick Up From date: 01-05-2006 To date: 01-07-2012 Fuel: Diesel Approved: Yes
    Ford USA Trucks & Vans Series: Ranger (TU_) Model: 2.5 TD 4x4 Engine volume: 2.5 Engine type: WL-T Year: 10.99-
    Ford USA Trucks & Vans Series: Ranger Model: 2.5 D 4x4 Engine volume: 2.5 Engine type: WL Year: 10.99-04.02
    Ford USA Trucks & Vans Series: Ranger Model: 2.5 TD 4x4 Engine volume: 2.5 Engine type: WL-T Year: 04.02-06.06
    Ford USA Trucks & Vans Series: Ranger Model: 2.5 TDCi 4x4 Engine volume: 2.5 Engine type: WLAA Year: 05.06-12.11
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: MD25NA Body: Pick Up From date: 01-06-1999 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: UF Body: Pick Up From date: 01-09-1998 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UN Body: Pick Up From date: 01-12-2002 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: MD25TI Body: Pick Up From date: 01-06-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Type of engine: Diesel Size of motor: 2.5 Brand of engine: MD25NA Type description: UN Body: Pick Up From date: 01-06-1999 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B 2500 Model series: B 2500 Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UN Body: Pick Up From date: 01-12-2002 To date: 01-11-2006 Fuel: Diesel Approved: Yes
    Mazda Model: B-Serie Model series: B-Serie Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UF Body: Pickup From date: 01-02-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Mazda Model: B-Serie Model series: B-Serie Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UF Body: Pickup From date: 01-04-1996 To date: 01-01-1999 Fuel: Diesel Approved: Yes
    Mazda Model: BT-50 Model series: BT-50 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLAA Body: Pick Up From date: 01-12-2006 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mazda Model: MPV Model series: MPV Type of engine: TD Size of motor: 2.5 Brand of engine: WLT Body: MPV From date: 01-05-1996 To date: 01-09-1999 Fuel: Diesel Approved: Yes
    Mazda Series: B 2500 (Pick-up) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: WL Year: 02.96-04.99
    Mazda Series: B-modell (Pick-up) Model: 2.5 D 4WD Engine volume: 2.5 Year: 02.96-06.99
    Mazda Series: B-modell (Pick-up) Model: 2.5 D Engine volume: 2.5 Engine type: WLE7 Year: 12.02-
    Mazda Series: B-modell (Pick-up) Model: 2.5 D Engine volume: 2.5 Year: 02.96-06.99
    Mazda Series: B-modell (Pick-up) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: MD25TI Year: 06.99-
    Mazda Series: BT-50 Model: 2.5 CD 4WD Engine volume: 2.5 Engine type: WLAA Year: 12.06-
    Mazda Series: MPV Model: 2.5 TD Engine volume: 2.5 Year: 05.96-09.99
    1 / 6
  • Beskrivelse
    Ford/Mazda Startmotor 12V-2.2kW 12V - 2.2kW, 9/10k For Yourex produkt bestilling 91-360-7271

    Spenning: 12
    kW: 2.2
    Monteringsflens: 81,50
    Drivingsavstand: 17,50
    Monteringshull 3 mm: M10-1.00
    Monteringshull 2 mm: M10-1.00
    Monteringshull 1 mm: M10-1.00
    Avstand/bak: 153,00
    Avstand/frem: 31,00
    Nummer/tannhjul: 9
    B+: M8
    Posisjon/50: 45
    Terminal 50: 6,30
    Geværtype: GR
    Avstand 2: 136,50
    Avstand 3: 94,50
    Avstand mm: 75,00
    Rotasjon: medur (CW)
    Total lengde mm: 234,00
    Koblingstype: Tørr
    Drivetype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljelukket: Nei
    Nummer/monteringshull: 3 (3)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 81.50
    Oil sealed No
    No./mount. holes 3 (3)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 136.50
    Dist. 3 94.50
    Rotation CW
    Dist./back 153.00
    Dist./front 31.00
    Drive dist. 17.50
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 234.00 mm
    Waterproof No
    Dist. 75.00 mm
    Mount. hole 3 M10-1.00 mm
    Mount. hole 2 M10-1.00 mm
    Mount. hole 1 M10-1.00 mm
  • Kjøretøymatching

    • OEM
      F032113702, F8RU-11000AA, f8ru11000aa, F8RU11131CA, js1352, M002T87271, M002T87271ZT, M2T-87271, m2t87271, M2T87271ZT, RGO 113702, WL01-18-400, WL02-18-400, WL02-18-400A, WL61-18-400, WL61-18-400A, WL81-18-400, WL91-18-400, XM34-11002CA, XM3411002AA, xm3411002ca, 0986 023 180, 1986S00608, 1986S00922, 113702, 228000-4830, 228000-4831, 228000-6480, 228000-6481, 228000-6482, 1756803, 3601369, 4348654

    • Konkurrentreferens
      CST35201, CST40225, DRS0048, DRS0442, F042000043, F042000044, F042S00043, J5213042, J5213055, LRS01351, LRS02160, S5106, S6081, STR-5032, 8EA012526-041, 8EA738258-181, 25-2162, 25-3336, 319.064.122, 324.026.092, 9665, 32351N, 32351R, 32352N, 32352R, 105506, 201352, 220423, 220423A, 254400, 458743, 8080197, 8212782, 11040690, 0986023180

    • Bilmärken
      Ford USA, Ford USA Trucks & Vans, Mazda

    • NormaliseratArtNr
      cst35201, cst40225, drs0048, drs0442, f032113702, f042000043, f042000044, f042s00043, f8ru11000aa, f8ru11131ca, j5213042, j5213055, js1352, lrs01351, lrs02160, m002t87271, m002t87271zt, m2t87271, m2t87271zt, rgo113702, s5106, s6081, str5032, wl0118400, wl0218400, wl0218400a, wl6118400, wl6118400a, wl8118400, wl9118400, xm3411002aa, xm3411002ca, 8ea012526041, 8ea738258181, 1986s00608, 1986s00922, 9665, 32351n, 32351r, 32352n, 32352r, 105506, 113702, 201352, 220423, 220423a, 252162, 253336, 254400, 458743, 1756803, 3601369, 4348654, 8080197, 8212782, 11040690, 319064122, 324026092, 0986023180, 2280004830, 2280004831, 2280006480, 2280006481, 2280006482

    • Passar modeller
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-04-2002 To date: 01-06-2006 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-06-2006 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 3.0 Brand of engine: WEAT Body: Pick Up From date: 01-05-2006 To date: 01-07-2012 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: TU_ Body: Pick Up From date: 01-10-1999 To date: 01-04-2002 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TD Size of motor: 2.5 Brand of engine: WL-T Type description: TU_ Body: Pick Up From date: 01-04-2002 To date: 01-06-2006 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.5 Brand of engine: WLAA Type description: TU_ Body: Pick Up From date: 01-05-2006 To date: 01-07-2012 Fuel: Diesel Approved: Yes
      Ford USA Trucks & Vans Series: Ranger (TU_) Model: 2.5 TD 4x4 Engine volume: 2.5 Engine type: WL-T Year: 10.99-
      Ford USA Trucks & Vans Series: Ranger Model: 2.5 D 4x4 Engine volume: 2.5 Engine type: WL Year: 10.99-04.02
      Ford USA Trucks & Vans Series: Ranger Model: 2.5 TD 4x4 Engine volume: 2.5 Engine type: WL-T Year: 04.02-06.06
      Ford USA Trucks & Vans Series: Ranger Model: 2.5 TDCi 4x4 Engine volume: 2.5 Engine type: WLAA Year: 05.06-12.11
      Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: MD25NA Body: Pick Up From date: 01-06-1999 To date: 01-11-2006 Fuel: Diesel Approved: Yes
      Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WL Type description: UF Body: Pick Up From date: 01-09-1998 To date: 01-06-1999 Fuel: Diesel Approved: Yes
      Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UN Body: Pick Up From date: 01-12-2002 To date: 01-11-2006 Fuel: Diesel Approved: Yes
      Mazda Model: B 2500 Model series: B 2500 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: MD25TI Body: Pick Up From date: 01-06-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      Mazda Model: B 2500 Model series: B 2500 Type of engine: Diesel Size of motor: 2.5 Brand of engine: MD25NA Type description: UN Body: Pick Up From date: 01-06-1999 To date: 01-11-2006 Fuel: Diesel Approved: Yes
      Mazda Model: B 2500 Model series: B 2500 Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UN Body: Pick Up From date: 01-12-2002 To date: 01-11-2006 Fuel: Diesel Approved: Yes
      Mazda Model: B-Serie Model series: B-Serie Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UF Body: Pickup From date: 01-02-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
      Mazda Model: B-Serie Model series: B-Serie Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLE7 Type description: UF Body: Pickup From date: 01-04-1996 To date: 01-01-1999 Fuel: Diesel Approved: Yes
      Mazda Model: BT-50 Model series: BT-50 Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: WLAA Body: Pick Up From date: 01-12-2006 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mazda Model: MPV Model series: MPV Type of engine: TD Size of motor: 2.5 Brand of engine: WLT Body: MPV From date: 01-05-1996 To date: 01-09-1999 Fuel: Diesel Approved: Yes
      Mazda Series: B 2500 (Pick-up) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: WL Year: 02.96-04.99
      Mazda Series: B-modell (Pick-up) Model: 2.5 D 4WD Engine volume: 2.5 Year: 02.96-06.99
      Mazda Series: B-modell (Pick-up) Model: 2.5 D Engine volume: 2.5 Engine type: WLE7 Year: 12.02-
      Mazda Series: B-modell (Pick-up) Model: 2.5 D Engine volume: 2.5 Year: 02.96-06.99
      Mazda Series: B-modell (Pick-up) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: MD25TI Year: 06.99-
      Mazda Series: BT-50 Model: 2.5 CD 4WD Engine volume: 2.5 Engine type: WLAA Year: 12.06-
      Mazda Series: MPV Model: 2.5 TD Engine volume: 2.5 Year: 05.96-09.99
      1 / 6
