Varenr.: F032113521

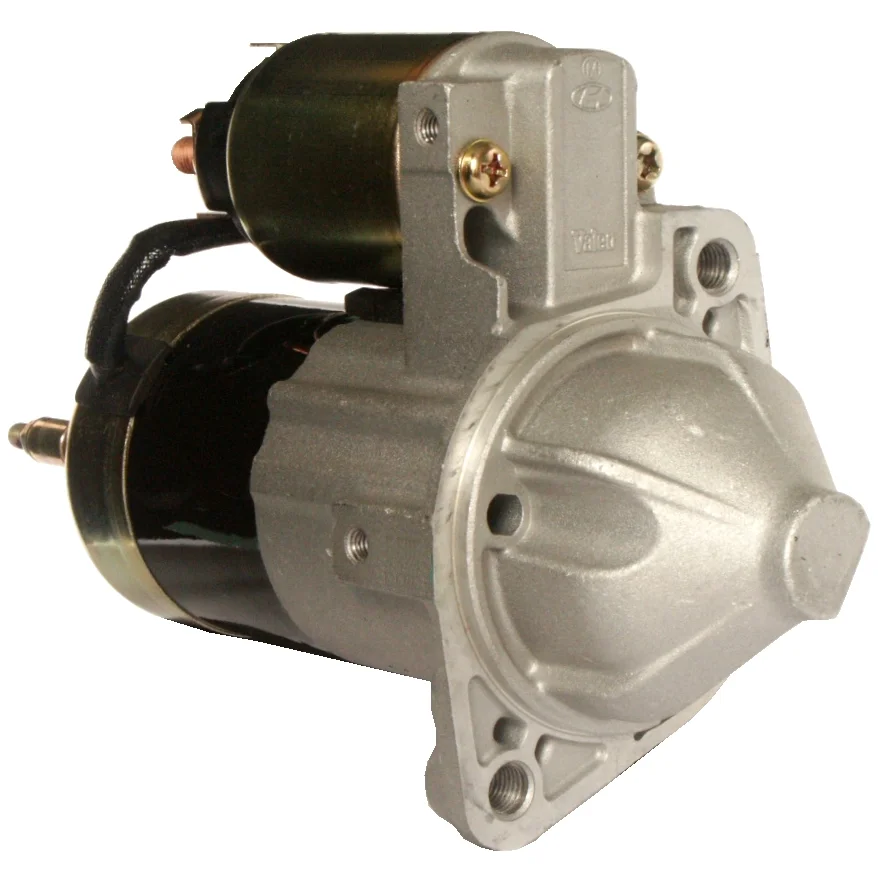

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.2, No./tenner: 8, Rotasjon: CW

Beskrivelse

Hyundai Sonata/Trajet Startm. 12V - 1.2kW, 8k. A - 77mm, B - 17mm 12V - 1.2kW, 8k. For Yourex produktordre 91-228-3809

Spenning: 12
kW: 1.2
Monteringsflens: 77.00
Driveavstand: 18.00
Avstand/bak: 151.00
Avstand/frem: 53.50
Antall/tenner: 8
B+: M8
Gjenge lengde mm: 8.50
Posisjon/50: 60
Terminal 50: 6.30
Girtype: GR
Avstand mm: 105.00
Rotasjon: CW
Total lengde mm: 213.00
Drevetype: Stål
Prod. informasjon: BN
Vanntett: Nei
Oljetett: Nei
Antall/montasjehull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 60
Prod. info BN
Rotation CW
Dist./back 151.00
Dist./front 53.50
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 213.00 mm
Waterproof No
Dist. 105.00 mm
Thread length 8.50 mm

  • OEM
    F032113521, js1304, m60062, M60082, RGO 113521, tm000a13901, 6869, 36100-38090, 113521, 438099, 455965

  • Konkurrentreferens
    CST32104, DRS3888, F042202017, F042S0H056, J5210504, LRS01655, PBNS3046, s-8774, S3195S, sm-00108r, smn0003, sr4120x, STR-3106, STR-H056, 2-1970-md, 8EA011611-281, 25-3200, 326.041.082, 17762, 17762N, 17762R, 105416, 201304, 220381, 220381A, 438099, 600709, 8070504, 8212877, 11040731, 20513046, 063522619, 0986023980, 063522619010, 944280705040

  • Bilmärken
    Hyundai, Kia

  • NormaliseratArtNr
    cst32104, drs3888, f032113521, f042202017, f042s0h056, j5210504, js1304, lrs01655, m60062, m60082, pbns3046, rgo113521, s3195s, s8774, sm00108r, smn0003, sr4120x, str3106, strh056, tm000a13901, 8ea011611281, 6869, 17762, 17762n, 17762r, 21970md, 105416, 113521, 201304, 220381, 220381a, 253200, 438099, 455965, 600709, 8070504, 8212877, 11040731, 20513046, 063522619, 326041082, 0986023980, 3610038090, 063522619010, 944280705040

  • Passar modeller
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: 16V Size of motor: 2.4 Brand of engine: G4JS-G Type description: SM Body: SUV From date: 01-02-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Size of motor: 2.4 Brand of engine: G4JS Type description: SM Body: Box Body / Estate From date: 01-08-2000 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Size of motor: 2.0 Brand of engine: G4BP Type description: SM Body: SUV From date: 01-08-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: 16V Size of motor: 2.4 Brand of engine: G4JS-G Type description: SM Body: SUV From date: 01-02-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.0 Brand of engine: G4JP Type description: EF Body: Saloon From date: 01-04-2001 To date: 01-11-2004 Fuel: Petrol Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.0 Brand of engine: G4JP-EG Type description: EU4 From date: 01-10-2001 To date: 01-11-2004 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: NF Body: Saloon From date: 01-01-2005 To date: 01-12-2008 Fuel: Petrol Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Hyundai Model: Sonata Model series: Sonata Type of engine: 16V Size of motor: 2.0 Brand of engine: G4JP-G From date: 01-06-1998 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Hyundai Model: Trajet Model series: Trajet Size of motor: 2.0 Brand of engine: G4GC-G Type description: FO Body: MPV From date: 01-01-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Hyundai Model: Trajet Model series: Trajet Size of motor: 2.0 Brand of engine: G4JP-G Body: MPV From date: 01-03-2000 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Hyundai Series: Santa-Fe (SM) Model: 2.4 16V 4x4 Engine volume: 2.4 Engine type: G4JS-G Year: 02.01-
    Hyundai Series: Santa-Fe (SM) Model: 2.4 16V Engine volume: 2.4 Engine type: G4JS-G Year: 02.01-02.06
    Hyundai Series: Sonata IV Model: 2.0 16V Engine volume: 2.0 Engine type: G4JP-EG Year: 10.01-01.03
    Hyundai Series: Sonata IV Model: 2.0 16V Engine volume: 2.0 Engine type: G4JP-G Year: 08.98-06.01
    Hyundai Series: Sonata IV Model: 2.4 16V Engine volume: 2.4 Engine type: G4BS Year: 10.98-06.01
    Hyundai Series: Trajet Model: 2.0 Engine volume: 2.0 Engine type: G4JP-G Year: 03.00-
    Kia Model: Magentis Model series: Magentis Size of motor: 2.0 Brand of engine: G4JP Type description: GD From date: 01-05-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Kia Model: Optima Model series: Optima Size of motor: 2.4 From date: 01-01-2001 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Kia Model: Sorento Model series: Sorento Size of motor: 2.4 Brand of engine: G4JS Type description: JC Body: SUV From date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: 4WD Type of engine: 16V Size of motor: 2.0 Brand of engine: G4GC Type description: JE_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Sportage Model series: Sportage Type of engine: 16V Size of motor: 2.0 Brand of engine: G4GC Type description: JE_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Kia Series: Magentis Model: 2.0 Engine volume: 2.0 Engine type: G4JP Year: 05.01-12.05
    Kia Series: Sorento (JC) Model: 2.4 Engine volume: 2.4 Engine type: G4 JS Year: 05.03-05.06
    1 / 5
  • Beskrivelse
    Hyundai Sonata/Trajet Startm. 12V - 1.2kW, 8k. A - 77mm, B - 17mm 12V - 1.2kW, 8k. For Yourex produktordre 91-228-3809

    Spenning: 12
    kW: 1.2
    Monteringsflens: 77.00
    Driveavstand: 18.00
    Avstand/bak: 151.00
    Avstand/frem: 53.50
    Antall/tenner: 8
    B+: M8
    Gjenge lengde mm: 8.50
    Posisjon/50: 60
    Terminal 50: 6.30
    Girtype: GR
    Avstand mm: 105.00
    Rotasjon: CW
    Total lengde mm: 213.00
    Drevetype: Stål
    Prod. informasjon: BN
    Vanntett: Nei
    Oljetett: Nei
    Antall/montasjehull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 77.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 60
    Prod. info BN
    Rotation CW
    Dist./back 151.00
    Dist./front 53.50
    Drive dist. 18.00
    Drive type Steel
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 213.00 mm
    Waterproof No
    Dist. 105.00 mm
    Thread length 8.50 mm
  • Kjøretøymatching

    • OEM
      F032113521, js1304, m60062, M60082, RGO 113521, tm000a13901, 6869, 36100-38090, 113521, 438099, 455965

    • Konkurrentreferens
      CST32104, DRS3888, F042202017, F042S0H056, J5210504, LRS01655, PBNS3046, s-8774, S3195S, sm-00108r, smn0003, sr4120x, STR-3106, STR-H056, 2-1970-md, 8EA011611-281, 25-3200, 326.041.082, 17762, 17762N, 17762R, 105416, 201304, 220381, 220381A, 438099, 600709, 8070504, 8212877, 11040731, 20513046, 063522619, 0986023980, 063522619010, 944280705040

    • Bilmärken
      Hyundai, Kia

    • NormaliseratArtNr
      cst32104, drs3888, f032113521, f042202017, f042s0h056, j5210504, js1304, lrs01655, m60062, m60082, pbns3046, rgo113521, s3195s, s8774, sm00108r, smn0003, sr4120x, str3106, strh056, tm000a13901, 8ea011611281, 6869, 17762, 17762n, 17762r, 21970md, 105416, 113521, 201304, 220381, 220381a, 253200, 438099, 455965, 600709, 8070504, 8212877, 11040731, 20513046, 063522619, 326041082, 0986023980, 3610038090, 063522619010, 944280705040

    • Passar modeller
      Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: 16V Size of motor: 2.4 Brand of engine: G4JS-G Type description: SM Body: SUV From date: 01-02-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Size of motor: 2.4 Brand of engine: G4JS Type description: SM Body: Box Body / Estate From date: 01-08-2000 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Size of motor: 2.0 Brand of engine: G4BP Type description: SM Body: SUV From date: 01-08-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: 16V Size of motor: 2.4 Brand of engine: G4JS-G Type description: SM Body: SUV From date: 01-02-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.0 Brand of engine: G4JP Type description: EF Body: Saloon From date: 01-04-2001 To date: 01-11-2004 Fuel: Petrol Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.0 Brand of engine: G4JP-EG Type description: EU4 From date: 01-10-2001 To date: 01-11-2004 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 Brand of engine: G4KC Type description: NF Body: Saloon From date: 01-01-2005 To date: 01-12-2008 Fuel: Petrol Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Size of motor: 2.4 From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Hyundai Model: Sonata Model series: Sonata Type of engine: 16V Size of motor: 2.0 Brand of engine: G4JP-G From date: 01-06-1998 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Hyundai Model: Trajet Model series: Trajet Size of motor: 2.0 Brand of engine: G4GC-G Type description: FO Body: MPV From date: 01-01-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Hyundai Model: Trajet Model series: Trajet Size of motor: 2.0 Brand of engine: G4JP-G Body: MPV From date: 01-03-2000 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Hyundai Series: Santa-Fe (SM) Model: 2.4 16V 4x4 Engine volume: 2.4 Engine type: G4JS-G Year: 02.01-
      Hyundai Series: Santa-Fe (SM) Model: 2.4 16V Engine volume: 2.4 Engine type: G4JS-G Year: 02.01-02.06
      Hyundai Series: Sonata IV Model: 2.0 16V Engine volume: 2.0 Engine type: G4JP-EG Year: 10.01-01.03
      Hyundai Series: Sonata IV Model: 2.0 16V Engine volume: 2.0 Engine type: G4JP-G Year: 08.98-06.01
      Hyundai Series: Sonata IV Model: 2.4 16V Engine volume: 2.4 Engine type: G4BS Year: 10.98-06.01
      Hyundai Series: Trajet Model: 2.0 Engine volume: 2.0 Engine type: G4JP-G Year: 03.00-
      Kia Model: Magentis Model series: Magentis Size of motor: 2.0 Brand of engine: G4JP Type description: GD From date: 01-05-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Kia Model: Optima Model series: Optima Size of motor: 2.4 From date: 01-01-2001 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Kia Model: Sorento Model series: Sorento Size of motor: 2.4 Brand of engine: G4JS Type description: JC Body: SUV From date: 01-08-2002 Fuel: Gasoline Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: 4WD Type of engine: 16V Size of motor: 2.0 Brand of engine: G4GC Type description: JE_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Kia Model: Sportage Model series: Sportage Type of engine: 16V Size of motor: 2.0 Brand of engine: G4GC Type description: JE_ From date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Kia Series: Magentis Model: 2.0 Engine volume: 2.0 Engine type: G4JP Year: 05.01-12.05
      Kia Series: Sorento (JC) Model: 2.4 Engine volume: 2.4 Engine type: G4 JS Year: 05.03-05.06
