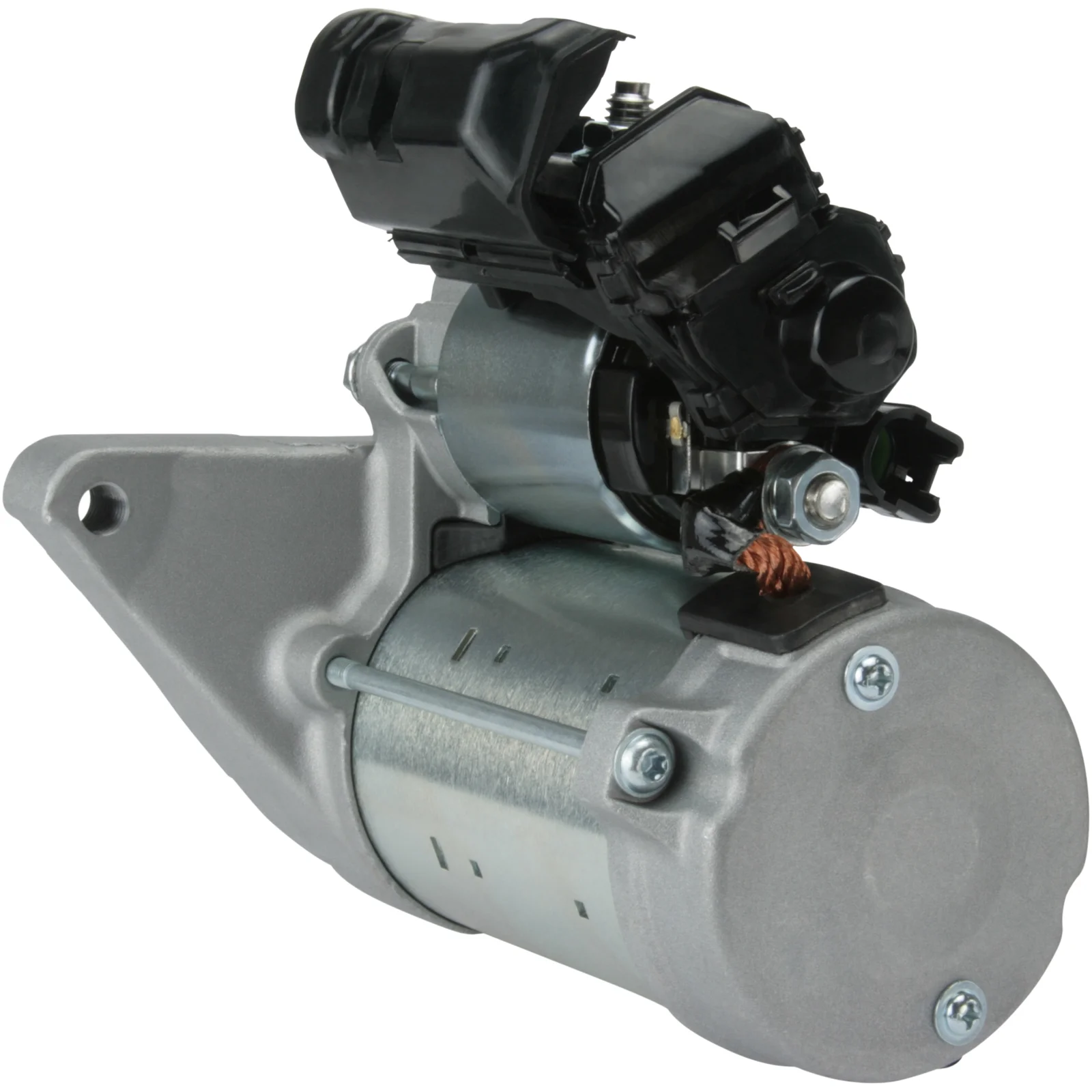

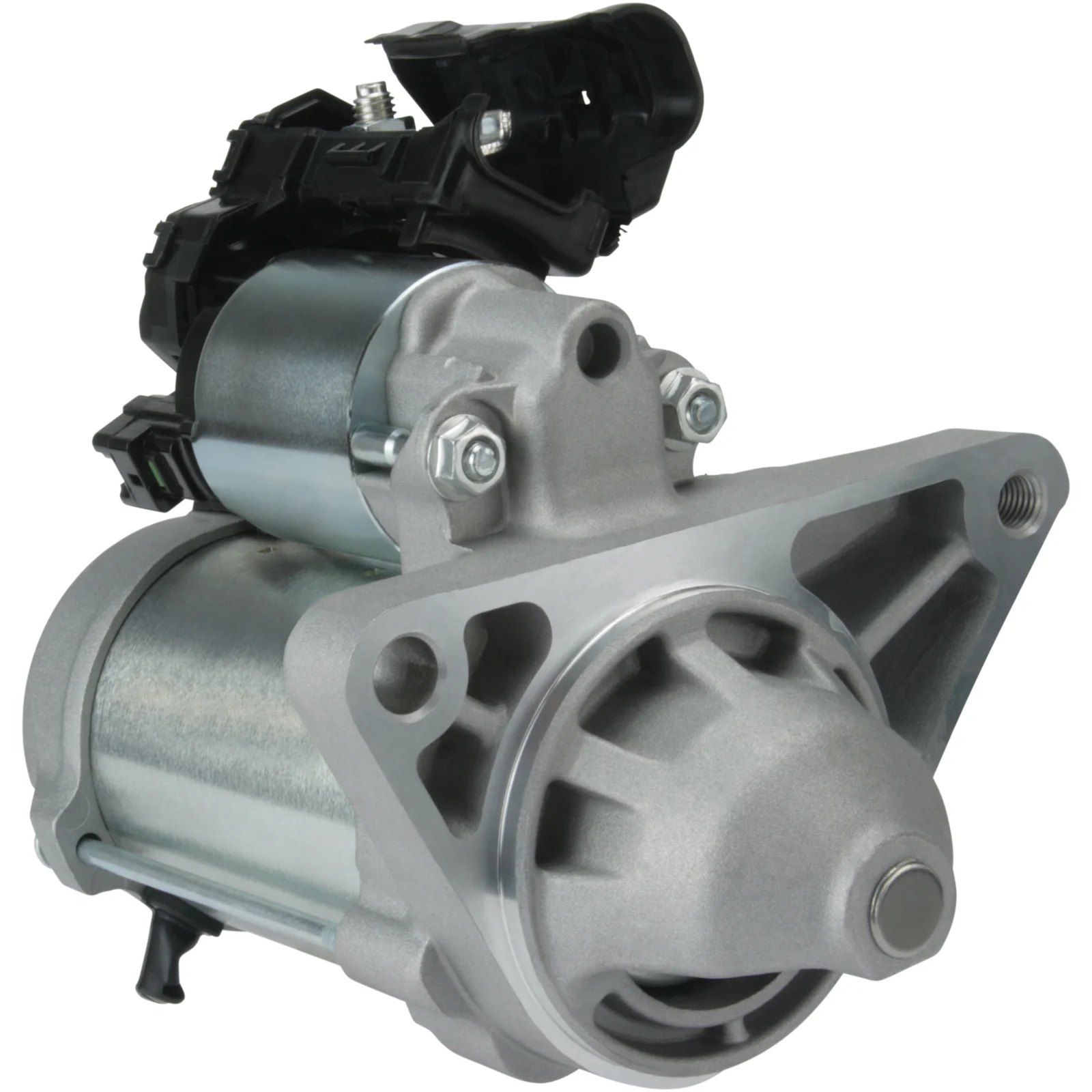

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115723

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.4, No./tenner: 9, Rotasjon: CW

Beskrivelse

Spenningsverdi: 12
kW: 1,4
Festebransje: 74,00
Drivingsavstand: 13,00
Festeboring 2 mm: 11,50
Avstand/bak: 150,00
Avstand/frem: 46,50
Antall./tenner: 9
B+: M8
Posisjon/50: 20
Terminal 50: Plugg
Gafletype: GR
Avstand mm: 121,00
Rotasjon: med urviseren
Total lengde mm: 196,50
Prod.informasjon: BN
Antall./festeboringer: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 20
Prod. info BN
Rotation CW
Dist./back 150.00
Dist./front 46.50
Drive dist. 13.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 196.50 mm
Dist. 121.00 mm
Mount. hole 2 11.50 mm

  • OEM
    F032115723, RGO 115723, 1986S00607, 28100-0n040, 28100-0N060, 28100-33090, 28100-33110, 428000-6060, 428000-6061, 428000-6080, 428000-6190, 428000-6191, 428000-6220

  • Konkurrentreferens
    CST40288, DRS0522, DSN945, LRS02579, S6039, S6039(DENSO), 8EA011612-051, 25-4251, 190.594.092, 335.237.092, 30403N, 220676, 220676A, 458859, 8080338, 11040828, 0986026110

  • NormaliseratArtNr
    cst40288, drs0522, dsn945, f032115723, lrs02579, rgo115723, s6039, s6039denso, 8ea011612051, 1986s00607, 30403n, 220676, 220676a, 254251, 281000n040, 281000n060, 458859, 8080338, 11040828, 190594092, 335237092, 0986026110, 2810033090, 2810033110, 4280006060, 4280006061, 4280006080, 4280006190, 4280006191, 4280006220

  • Passar modeller
    Toyota Model: Auris Model series: Auris Touring Sports Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes Manufacture type: Touring Sp
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: ZRE18_, NZE18_ Body: Van From date: 01-03-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 12
    kW: 1,4
    Festebransje: 74,00
    Drivingsavstand: 13,00
    Festeboring 2 mm: 11,50
    Avstand/bak: 150,00
    Avstand/frem: 46,50
    Antall./tenner: 9
    B+: M8
    Posisjon/50: 20
    Terminal 50: Plugg
    Gafletype: GR
    Avstand mm: 121,00
    Rotasjon: med urviseren
    Total lengde mm: 196,50
    Prod.informasjon: BN
    Antall./festeboringer: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 20
    Prod. info BN
    Rotation CW
    Dist./back 150.00
    Dist./front 46.50
    Drive dist. 13.00
    Gear type GR
    kW 1.4
    Terminal 50 Plug
    Voltage 12
    Total length 196.50 mm
    Dist. 121.00 mm
    Mount. hole 2 11.50 mm
  • Kjøretøymatching

    • OEM
      F032115723, RGO 115723, 1986S00607, 28100-0n040, 28100-0N060, 28100-33090, 28100-33110, 428000-6060, 428000-6061, 428000-6080, 428000-6190, 428000-6191, 428000-6220

    • Konkurrentreferens
      CST40288, DRS0522, DSN945, LRS02579, S6039, S6039(DENSO), 8EA011612-051, 25-4251, 190.594.092, 335.237.092, 30403N, 220676, 220676A, 458859, 8080338, 11040828, 0986026110

    • NormaliseratArtNr
      cst40288, drs0522, dsn945, f032115723, lrs02579, rgo115723, s6039, s6039denso, 8ea011612051, 1986s00607, 30403n, 220676, 220676a, 254251, 281000n040, 281000n060, 458859, 8080338, 11040828, 190594092, 335237092, 0986026110, 2810033090, 2810033110, 4280006060, 4280006061, 4280006080, 4280006190, 4280006191, 4280006220

    • Passar modeller
      Toyota Model: Auris Model series: Auris Touring Sports Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Body: Estate From date: 01-07-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes Manufacture type: Touring Sp
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NZE18_, ZRE18_ Body: Hatchback From date: 01-10-2012 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: ZRE18_, NZE18_ Body: Van From date: 01-03-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NRE18_, ZRE18_, NDE18_ From date: 01-06-2013 To date: 01-12-2018 Fuel: Diesel Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
