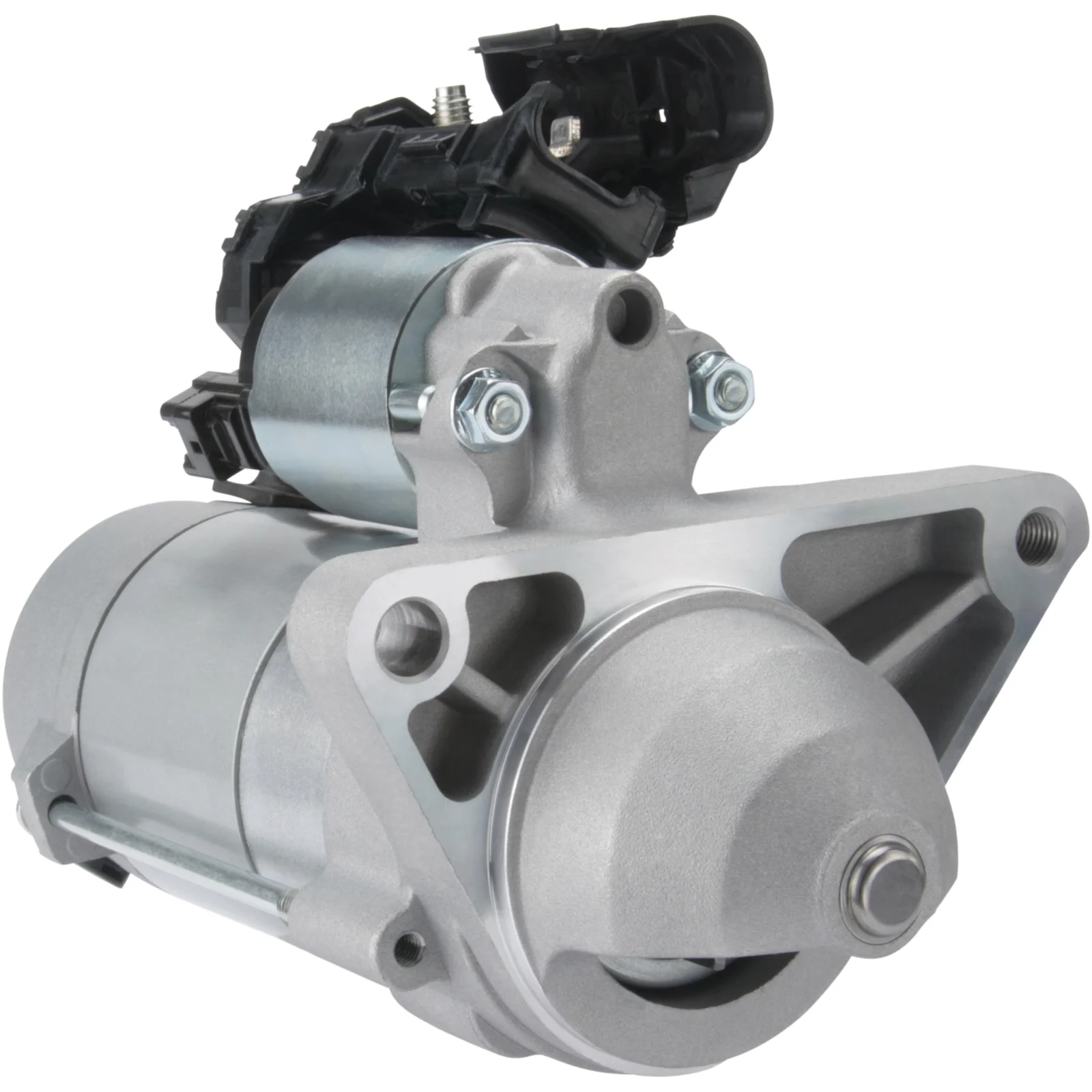

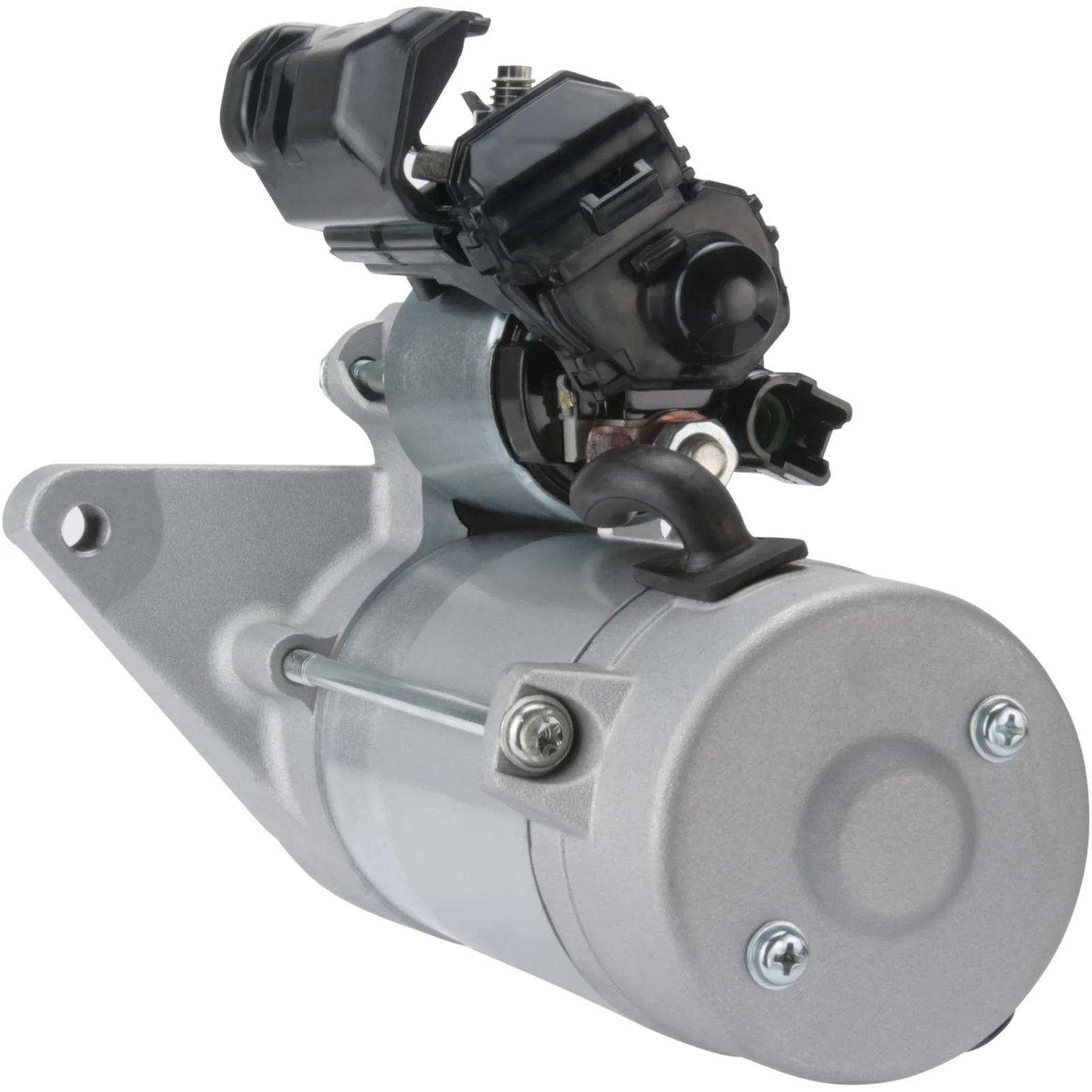

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115644

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.0, Ant./tenner: 10, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 2.0
Montasjeb. flange: 74.00
Drive avstand: 13.00
Montasjeb. hull 2 mm: 11.00
Avstand/bak: 182.50
Avstand/frem: 48.00
Nr./tenner: 10
B+: M8
Posisjon/50: 20
Terminal 50: Plugg
Geværtype: GR
Avstand mm: 121.50
Rotasjon: CW
Total lengde mm: 229.00
Prod. info: BN
Nr./montasjehull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 20
Prod. info BN
Rotation CW
Dist./back 182.50
Dist./front 48.00
Drive dist. 13.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 229.00 mm
Dist. 121.50 mm
Mount. hole 2 11.00 mm

  • OEM
    cs1549, F032115644, RGO 115644, 1986S00592, 28100-0n050, 28100-33100, 28100-33120, 28100-33121, 428000-6070, 428000-6071, 428000-6090, 428000-6200

  • Konkurrentreferens
    CST40319, DRS0657, DSN946, LRS02511, S6040, S6040(DENSO), S6316S, 25-4183, 190.902.102, 335.233.102, 31239N, 220928, 220928A, 438373, 458942, 11040842, 0986027050

  • NormaliseratArtNr
    cs1549, cst40319, drs0657, dsn946, f032115644, lrs02511, rgo115644, s6040, s6040denso, s6316s, 1986s00592, 31239n, 220928, 220928a, 254183, 281000n050, 438373, 458942, 11040842, 190902102, 335233102, 0986027050, 2810033100, 2810033120, 2810033121, 4280006070, 4280006071, 4280006090, 4280006200

  • Passar modeller
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 2.0
    Montasjeb. flange: 74.00
    Drive avstand: 13.00
    Montasjeb. hull 2 mm: 11.00
    Avstand/bak: 182.50
    Avstand/frem: 48.00
    Nr./tenner: 10
    B+: M8
    Posisjon/50: 20
    Terminal 50: Plugg
    Geværtype: GR
    Avstand mm: 121.50
    Rotasjon: CW
    Total lengde mm: 229.00
    Prod. info: BN
    Nr./montasjehull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 20
    Prod. info BN
    Rotation CW
    Dist./back 182.50
    Dist./front 48.00
    Drive dist. 13.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 229.00 mm
    Dist. 121.50 mm
    Mount. hole 2 11.00 mm
  • Kjøretøymatching

    • OEM
      cs1549, F032115644, RGO 115644, 1986S00592, 28100-0n050, 28100-33100, 28100-33120, 28100-33121, 428000-6070, 428000-6071, 428000-6090, 428000-6200

    • Konkurrentreferens
      CST40319, DRS0657, DSN946, LRS02511, S6040, S6040(DENSO), S6316S, 25-4183, 190.902.102, 335.233.102, 31239N, 220928, 220928A, 438373, 458942, 11040842, 0986027050

    • NormaliseratArtNr
      cs1549, cst40319, drs0657, dsn946, f032115644, lrs02511, rgo115644, s6040, s6040denso, s6316s, 1986s00592, 31239n, 220928, 220928a, 254183, 281000n050, 438373, 458942, 11040842, 190902102, 335233102, 0986027050, 2810033100, 2810033120, 2810033121, 4280006070, 4280006071, 4280006090, 4280006200

    • Passar modeller
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
      1 / 2
