HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114071

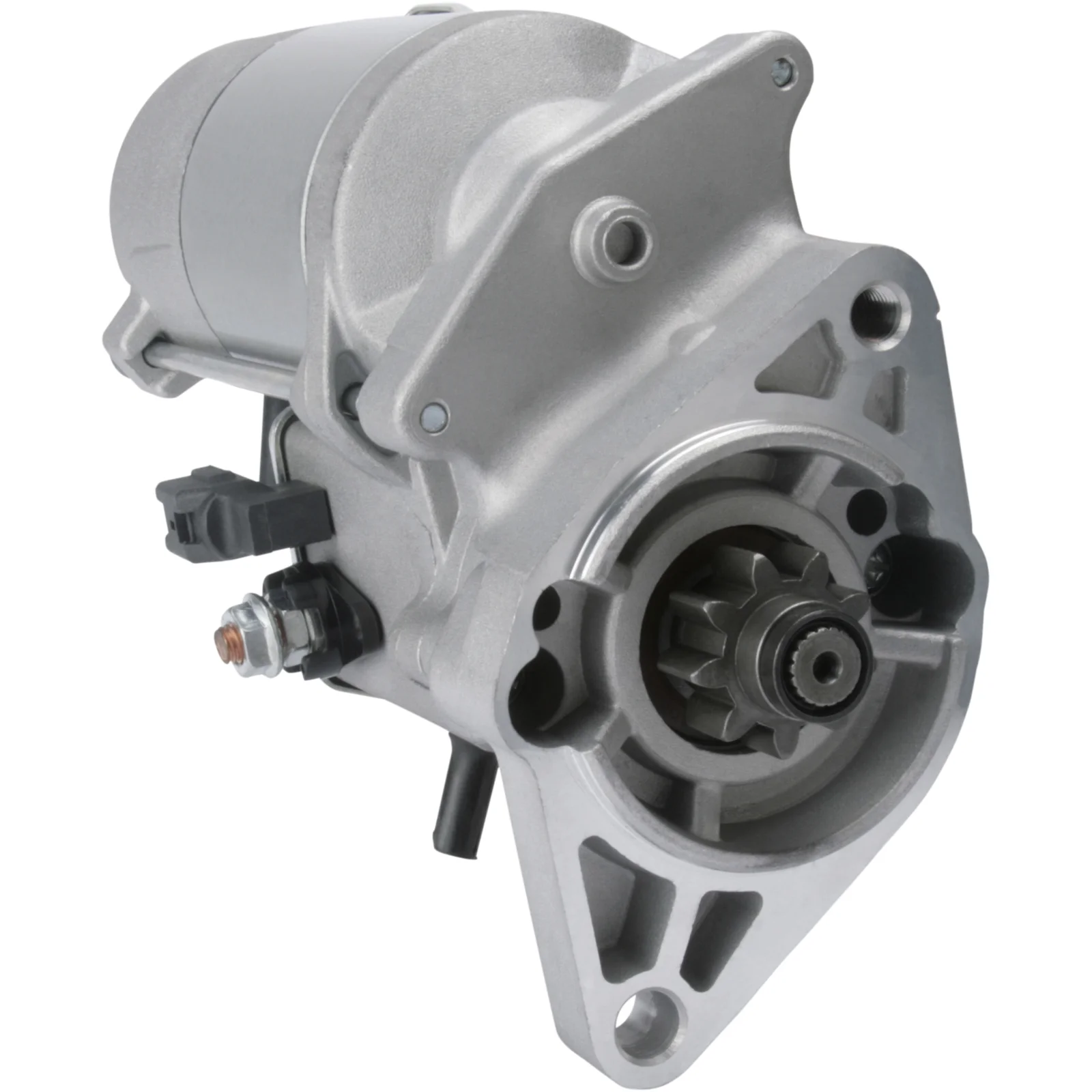

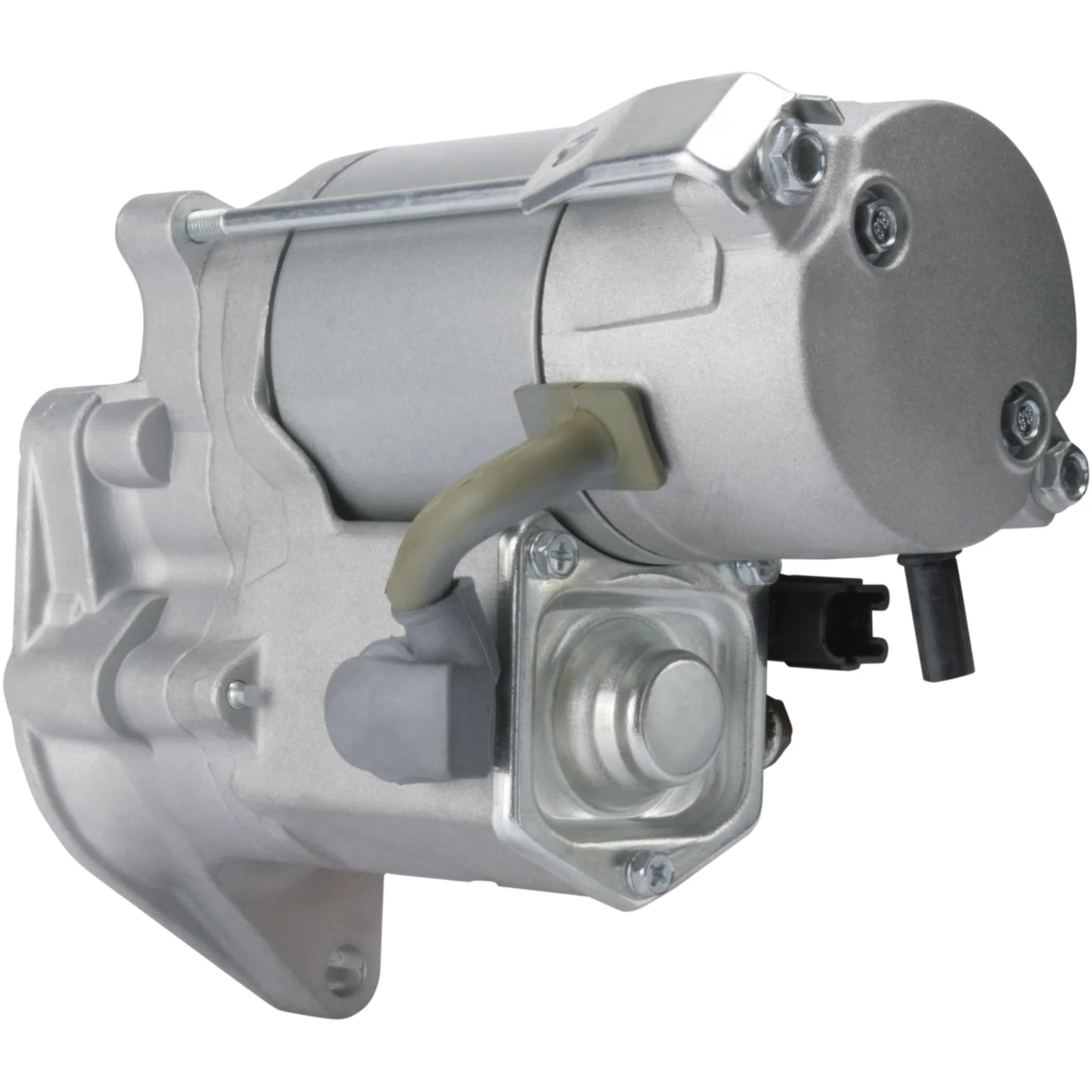

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenningsspenning: 12
kW: 2.0
Monteringsflens: 74.00
Drevavstand: 14.00
Monteringshull 2 mm: 11.50
Avstand/bak: 195.00
Avstand/forside: 26.00
Nummer/tannhjul: 9
B+: M8
Posisjon/50: 40
Terminal 50: Plugg
Gears type: GR
Avstand mm: 123.00
Rotasjon: med uret
Total lengde mm: 222.00
Info: 1.1 kw-versjon = HC-CARGO 114068.
Nummer/monteringshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 40
Rotation CW
Dist./back 195.00
Dist./front 26.00
Drive dist. 14.00
Gear type GR
Info 1.1 kw version = HC-CARGO 114068.
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 222.00 mm
Dist. 123.00 mm
Mount. hole 2 11.50 mm

  • OEM
    F032114071, js1358, RGO 114071, 1986S00986, 1986S00997, 28100-0N031, 28100-0W080, 28100-21040, 28100-33040, 28100-33080, 228000-8711, 428000-0500, 428000-1280, 428000-2730, 428000-5470, 428000-7800, 12417791335

  • Konkurrentreferens
    CST40186, CST40258, CST44109, DENDSN926, DENDSN937, DRS0379, DRS0477, DSN926, dsn937, F042202527, F042S00283, F042S0H086, LRS01965, S6032, S6032(DENSO), STR-5004, STR-H086, 8EA012140-481, 8EA012528-381, 25-3327, 25-3364, 315.042.092, 335.209.092, 9738, 32965, 32965R, 33193N, 33193R, 106587, 201358, 220652, 220652A, 254182, 8023560, 8080312, 8212864, 11040766, 063280058, 0986023560, 063280058010

  • NormaliseratArtNr
    cst40186, cst40258, cst44109, dendsn926, dendsn937, drs0379, drs0477, dsn926, dsn937, f032114071, f042202527, f042s00283, f042s0h086, js1358, lrs01965, rgo114071, s6032, s6032denso, str5004, strh086, 8ea012140481, 8ea012528381, 1986s00986, 1986s00997, 9738, 32965, 32965r, 33193n, 33193r, 106587, 201358, 220652, 220652a, 253327, 253364, 254182, 281000n031, 281000w080, 8023560, 8080312, 8212864, 11040766, 063280058, 315042092, 335209092, 0986023560, 2280008711, 2810021040, 2810033040, 2810033080, 4280000500, 4280001280, 4280002730, 4280005470, 4280007800, 12417791335, 063280058010

  • Passar modeller
    Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: E12_, 12J_ Body: Estate From date: 01-06-2004 To date: 01-10-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-07-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E12_ From date: 01-06-2004 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P2_ Body: Box From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: _P2_ Body: Box From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsspenning: 12
    kW: 2.0
    Monteringsflens: 74.00
    Drevavstand: 14.00
    Monteringshull 2 mm: 11.50
    Avstand/bak: 195.00
    Avstand/forside: 26.00
    Nummer/tannhjul: 9
    B+: M8
    Posisjon/50: 40
    Terminal 50: Plugg
    Gears type: GR
    Avstand mm: 123.00
    Rotasjon: med uret
    Total lengde mm: 222.00
    Info: 1.1 kw-versjon = HC-CARGO 114068.
    Nummer/monteringshull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 40
    Rotation CW
    Dist./back 195.00
    Dist./front 26.00
    Drive dist. 14.00
    Gear type GR
    Info 1.1 kw version = HC-CARGO 114068.
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 222.00 mm
    Dist. 123.00 mm
    Mount. hole 2 11.50 mm
  • Kjøretøymatching

    • OEM
      F032114071, js1358, RGO 114071, 1986S00986, 1986S00997, 28100-0N031, 28100-0W080, 28100-21040, 28100-33040, 28100-33080, 228000-8711, 428000-0500, 428000-1280, 428000-2730, 428000-5470, 428000-7800, 12417791335

    • Konkurrentreferens
      CST40186, CST40258, CST44109, DENDSN926, DENDSN937, DRS0379, DRS0477, DSN926, dsn937, F042202527, F042S00283, F042S0H086, LRS01965, S6032, S6032(DENSO), STR-5004, STR-H086, 8EA012140-481, 8EA012528-381, 25-3327, 25-3364, 315.042.092, 335.209.092, 9738, 32965, 32965R, 33193N, 33193R, 106587, 201358, 220652, 220652A, 254182, 8023560, 8080312, 8212864, 11040766, 063280058, 0986023560, 063280058010

    • NormaliseratArtNr
      cst40186, cst40258, cst44109, dendsn926, dendsn937, drs0379, drs0477, dsn926, dsn937, f032114071, f042202527, f042s00283, f042s0h086, js1358, lrs01965, rgo114071, s6032, s6032denso, str5004, strh086, 8ea012140481, 8ea012528381, 1986s00986, 1986s00997, 9738, 32965, 32965r, 33193n, 33193r, 106587, 201358, 220652, 220652a, 253327, 253364, 254182, 281000n031, 281000w080, 8023560, 8080312, 8212864, 11040766, 063280058, 315042092, 335209092, 0986023560, 2280008711, 2810021040, 2810033040, 2810033080, 4280000500, 4280001280, 4280002730, 4280005470, 4280007800, 12417791335, 063280058010

    • Passar modeller
      Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Mini Model: One Model series: One Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: R50 Body: Hatchback From date: 01-06-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: E12_, 12J_ Body: Estate From date: 01-06-2004 To date: 01-10-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-07-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E12_ From date: 01-06-2004 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P2_ Body: Box From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: _P2_ Body: Box From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      1 / 3
