Varenr.: F032112443

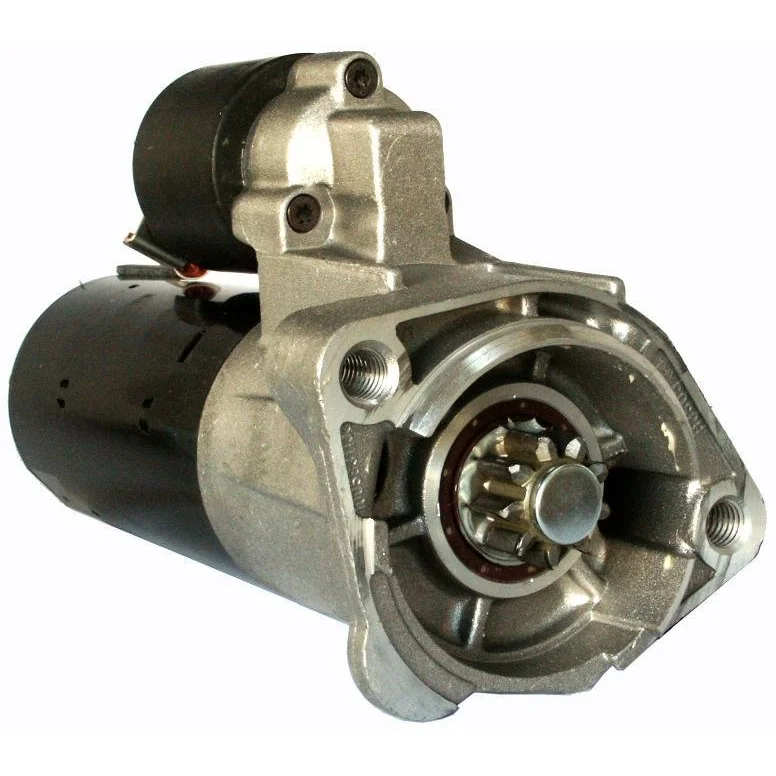

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.8, Nr./tenner: 9, Rotasjon: HØYRERUNN

Beskrivelse

Spenningsverdi: 12
kW: 1.8
Festningsflens: 82,50
Drevenhet: 3,00
Avstand/rygg: 235,00
Avstand/frontal: 6,50
Antall./tenner: 9
B+: M8
Posisjon/B+: 55
Posisjon/50: 40
Terminal 50: 6,30
Girtype: GR
Avstand mm: 101,00
Rotasjon: med uret
Total lengde mm: 255,00
Antall./festningshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (2)
Position/50 40
Position/B+ 55
Rotation CW
Dist./back 235.00
Dist./front 6.50
Drive dist. 3.00
Gear type GR
kW 1.8
Terminal 50 6.30
Voltage 12
Total length 255.00 mm
Dist. 101.00 mm

  • OEM
    CS1208, F032112443, RGO 112443, 0001124020, 0001124021, 068911024H, 068911024HX

  • Konkurrentreferens
    CST10221, DRS3819, LES0308, LRS01605, S0234, 25-3125, 300.541.092, 311.091.092, 32605N, 101208, 105347, 438404, 438546, 458461, 8080092, 8212265, 11020370, 42020370, 063521240, 944280800, 0986020370, 063521240200, 944280800920

  • NormaliseratArtNr
    cs1208, cst10221, drs3819, f032112443, les0308, lrs01605, rgo112443, s0234, 32605n, 101208, 105347, 253125, 438404, 438546, 458461, 0001124020, 0001124021, 8080092, 8212265, 11020370, 42020370, 063521240, 068911024h, 068911024hx, 300541092, 311091092, 944280800, 0986020370, 063521240200, 944280800920

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B2 From date: 01-08-1999 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B Body: Estate From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B Body: Estate From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
    1 / 6
  • Beskrivelse
    Spenningsverdi: 12
    kW: 1.8
    Festningsflens: 82,50
    Drevenhet: 3,00
    Avstand/rygg: 235,00
    Avstand/frontal: 6,50
    Antall./tenner: 9
    B+: M8
    Posisjon/B+: 55
    Posisjon/50: 40
    Terminal 50: 6,30
    Girtype: GR
    Avstand mm: 101,00
    Rotasjon: med uret
    Total lengde mm: 255,00
    Antall./festningshull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (2)
    Position/50 40
    Position/B+ 55
    Rotation CW
    Dist./back 235.00
    Dist./front 6.50
    Drive dist. 3.00
    Gear type GR
    kW 1.8
    Terminal 50 6.30
    Voltage 12
    Total length 255.00 mm
    Dist. 101.00 mm
  • Kjøretøymatching

    • OEM
      CS1208, F032112443, RGO 112443, 0001124020, 0001124021, 068911024H, 068911024HX

    • Konkurrentreferens
      CST10221, DRS3819, LES0308, LRS01605, S0234, 25-3125, 300.541.092, 311.091.092, 32605N, 101208, 105347, 438404, 438546, 458461, 8080092, 8212265, 11020370, 42020370, 063521240, 944280800, 0986020370, 063521240200, 944280800920

    • NormaliseratArtNr
      cs1208, cst10221, drs3819, f032112443, les0308, lrs01605, rgo112443, s0234, 32605n, 101208, 105347, 253125, 438404, 438546, 458461, 0001124020, 0001124021, 8080092, 8212265, 11020370, 42020370, 063521240, 068911024h, 068911024hx, 300541092, 311091092, 944280800, 0986020370, 063521240200, 944280800920

    • Passar modeller
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2 From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-11-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 8E5 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E2,B6 From date: 01-11-2000 To date: 01-12-2004 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 8E5, B6 Body: Estate From date: 01-09-2001 To date: 01-12-2004 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 4B,C5 Body: Estate From date: 01-08-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B2 From date: 01-08-1999 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B Body: Estate From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B Body: Estate From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: ATJ Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AVF Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B3 From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AWX Type description: 3B6 Body: Estate From date: 01-11-2000 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGH Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B3 From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 2.0 Brand of engine: BGW Type description: 3B6 Body: Estate From date: 01-12-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: variant
