HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114304

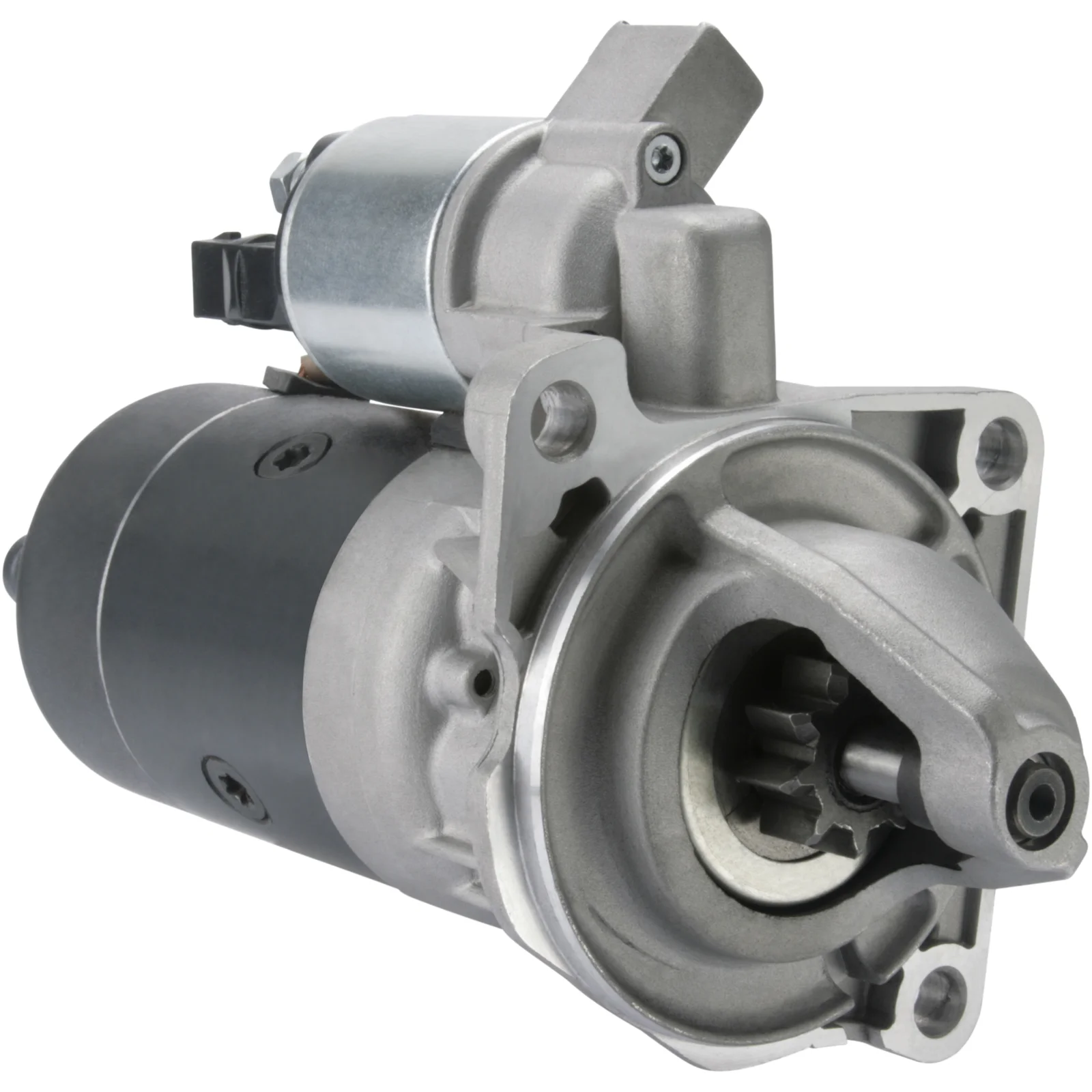

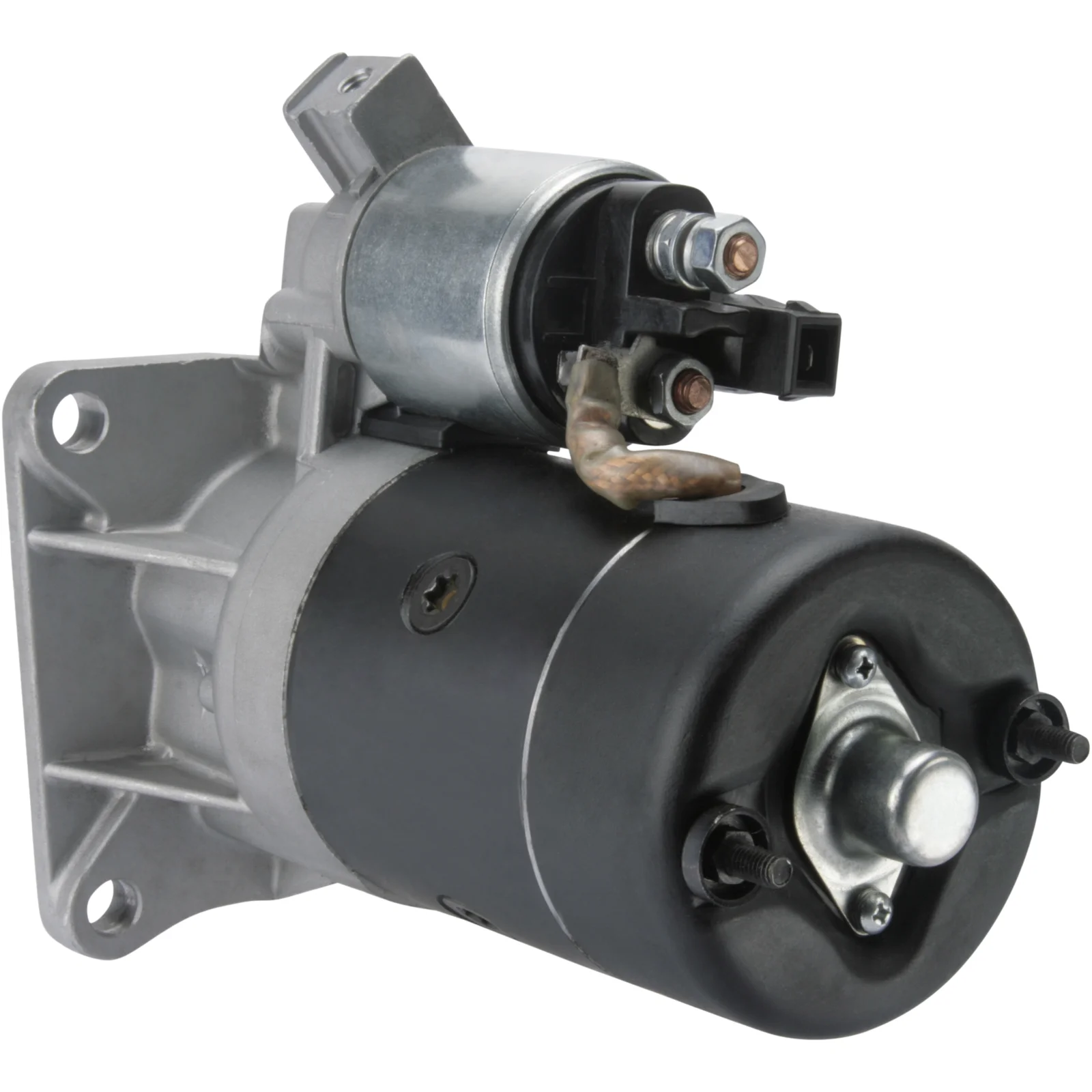

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, Katt/vermogen: 2,3, Antall/tenner: 9, Rotasjon: CW

Beskrivelse

VW LT 2.8 TDI Start. 12V-2.3kW 12V - 2.3kW, 9k 12V - 2.3kW, 9k For Yourrex produktordre 91-620-6223

Spenningsalternativ: 12
kW: 2.3
Gevindfeste: 110,00
Distanse for drev: 27,00
Gevindhull 3 mm: 12,00
Gevindhull 2 mm: 12,00
Gevindhull 1 mm: 12,00
Distanse/tilbake: 205,00
Distanse/fram: 67,00
Antall/molar: 9
B+: M8
Posisjon/50: 20
Terminal 50: 5,00
Gjentakelsestype: GR
Distanse 2: 146,00
Distanse 3: 103,00
Distanse mm: 103,00
Rotasjon: med urviseren
Total lengde mm: 272,00
Clutch-type: Tørr
Drivtyp: Stål
Antall/gevindhull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 110.00
No./mount. holes 3 (0)
Position/50 20
Clutch type Dry
Dist. 2 146.00
Dist. 3 103.00
Rotation CW
Dist./back 205.00
Dist./front 67.00
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 2.3
Terminal 50 5.00
Voltage 12
Total length 272.00 mm
Dist. 103.00 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032114304, RGO 114304, 0001 218 822, 062 911 023, 0986 023 860, 0986 B05 500, 6033 AB1 J00, 6033ab1j00, 114304, 0001109417, 0001218822, 062911023, 062911023X, 905720100082

  • Konkurrentreferens
    CST10380, DRS0044, S0153, S0588, 25-3265, 3111, 32710R, 254148, 460220, 11090142, 0986023860

  • Bilmärken
    VW Trucks & Vans

  • NormaliseratArtNr
    cst10380, drs0044, f032114304, rgo114304, s0153, s0588, 0986b05500, 3111, 6033ab1j00, 32710r, 114304, 253265, 254148, 460220, 0001109417, 0001218822, 11090142, 062911023, 062911023x, 0986023860, 905720100082

  • Passar modeller
    VW Model: LT 28-35 Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Type description: 2DM Body: Bus From date: 01-07-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Platform / Chassis From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Van From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Platform / Chassis From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Van From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Type description: 2DM Body: Bus From date: 01-01-1999 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Type description: 2DM Body: Bus From date: 01-05-2001 To date: 01-06-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Platform / Chassis From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Van From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Platform / Chassis From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Van From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Trucks & Vans Series: LT 28-46 II Buss Model: 2.8 TDI Engine volume: 2.8 Engine type: BCQ Year: 05.01-06.06
    VW Trucks & Vans Series: LT 28-46 II Flak Model: 2.8 TDI Engine volume: 2.8 Engine type: ATA Year: 01.99-01.02
    VW Trucks & Vans Series: LT 28-46 II Flak Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH / BCQ Year: 04.02-04.06
    VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: AGK Year: 06.97-12.98
    VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: ATA Year: 01.99-12.02
    VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH / BCQ Year: 04.02-04.06
    VW Trucks & Vans Series: LT 28-46 II Buss Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH Year: 01.99-01.02
    VW Trucks & Vans Series: LT 28-46 II Model: 2.8 TDI Engine volume: 2.8 Engine type: AGK Year: 07.97-12.98
    1 / 6
  • Beskrivelse
    VW LT 2.8 TDI Start. 12V-2.3kW 12V - 2.3kW, 9k 12V - 2.3kW, 9k For Yourrex produktordre 91-620-6223

    Spenningsalternativ: 12
    kW: 2.3
    Gevindfeste: 110,00
    Distanse for drev: 27,00
    Gevindhull 3 mm: 12,00
    Gevindhull 2 mm: 12,00
    Gevindhull 1 mm: 12,00
    Distanse/tilbake: 205,00
    Distanse/fram: 67,00
    Antall/molar: 9
    B+: M8
    Posisjon/50: 20
    Terminal 50: 5,00
    Gjentakelsestype: GR
    Distanse 2: 146,00
    Distanse 3: 103,00
    Distanse mm: 103,00
    Rotasjon: med urviseren
    Total lengde mm: 272,00
    Clutch-type: Tørr
    Drivtyp: Stål
    Antall/gevindhull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 110.00
    No./mount. holes 3 (0)
    Position/50 20
    Clutch type Dry
    Dist. 2 146.00
    Dist. 3 103.00
    Rotation CW
    Dist./back 205.00
    Dist./front 67.00
    Drive dist. 27.00
    Drive type Steel
    Gear type GR
    kW 2.3
    Terminal 50 5.00
    Voltage 12
    Total length 272.00 mm
    Dist. 103.00 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Kjøretøymatching

    • OEM
      F032114304, RGO 114304, 0001 218 822, 062 911 023, 0986 023 860, 0986 B05 500, 6033 AB1 J00, 6033ab1j00, 114304, 0001109417, 0001218822, 062911023, 062911023X, 905720100082

    • Konkurrentreferens
      CST10380, DRS0044, S0153, S0588, 25-3265, 3111, 32710R, 254148, 460220, 11090142, 0986023860

    • Bilmärken
      VW Trucks & Vans

    • NormaliseratArtNr
      cst10380, drs0044, f032114304, rgo114304, s0153, s0588, 0986b05500, 3111, 6033ab1j00, 32710r, 114304, 253265, 254148, 460220, 0001109417, 0001218822, 11090142, 062911023, 062911023x, 0986023860, 905720100082

    • Passar modeller
      VW Model: LT 28-35 Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Type description: 2DM Body: Bus From date: 01-07-1997 To date: 01-05-2003 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Platform / Chassis From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Van From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Platform / Chassis From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Van From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Type description: 2DM Body: Bus From date: 01-01-1999 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Type description: 2DM Body: Bus From date: 01-05-2001 To date: 01-06-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Platform / Chassis From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AGK Body: Van From date: 01-07-1997 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Platform / Chassis From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Van From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: AUH Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Platform / Chassis From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: BCQ Body: Van From date: 01-04-2002 To date: 01-07-2006 Fuel: Diesel Approved: Yes
      VW Trucks & Vans Series: LT 28-46 II Buss Model: 2.8 TDI Engine volume: 2.8 Engine type: BCQ Year: 05.01-06.06
      VW Trucks & Vans Series: LT 28-46 II Flak Model: 2.8 TDI Engine volume: 2.8 Engine type: ATA Year: 01.99-01.02
      VW Trucks & Vans Series: LT 28-46 II Flak Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH / BCQ Year: 04.02-04.06
      VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: AGK Year: 06.97-12.98
      VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: ATA Year: 01.99-12.02
      VW Trucks & Vans Series: LT 28-46 II Skåp Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH / BCQ Year: 04.02-04.06
      VW Trucks & Vans Series: LT 28-46 II Buss Model: 2.8 TDI Engine volume: 2.8 Engine type: AUH Year: 01.99-01.02
      VW Trucks & Vans Series: LT 28-46 II Model: 2.8 TDI Engine volume: 2.8 Engine type: AGK Year: 07.97-12.98
      1 / 6
