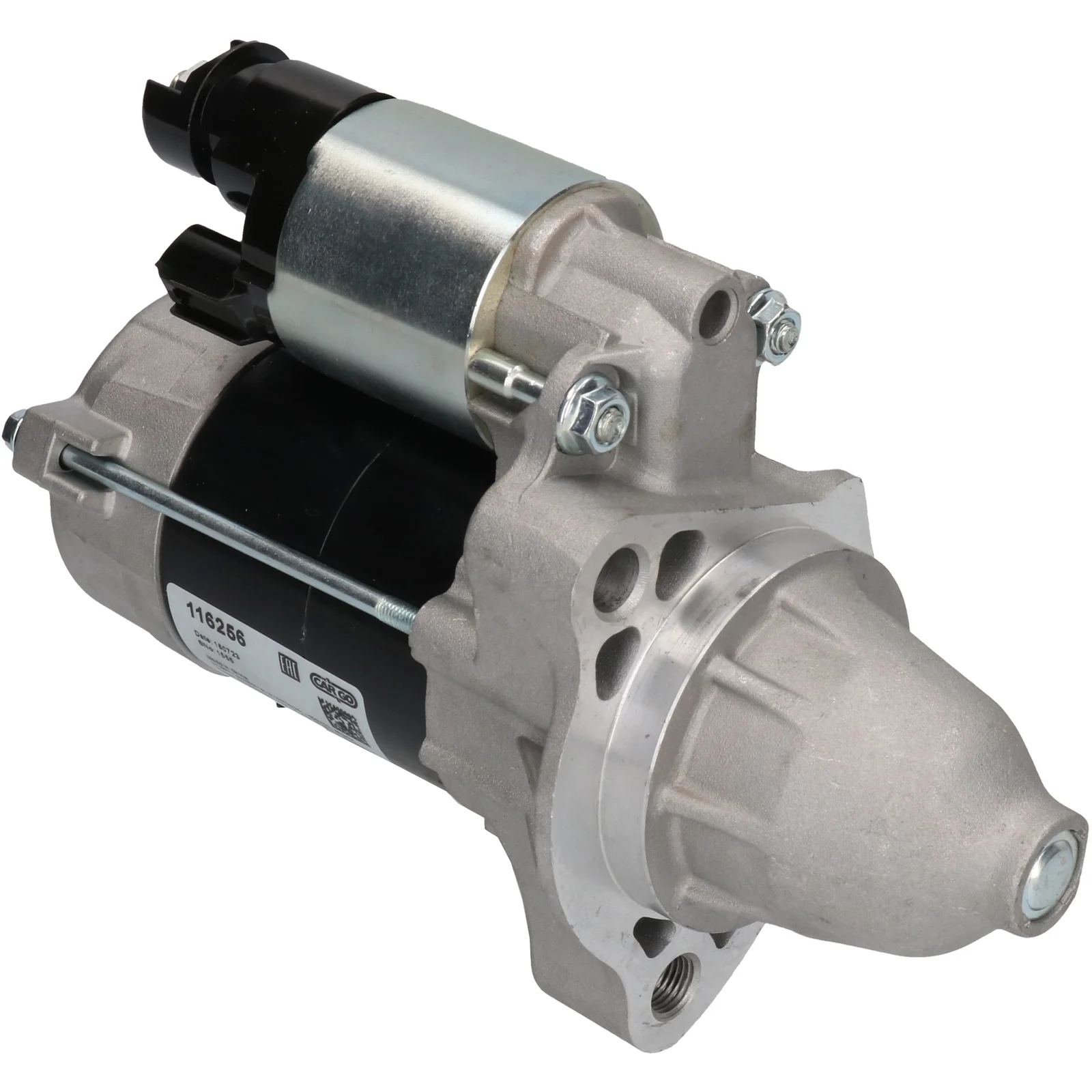

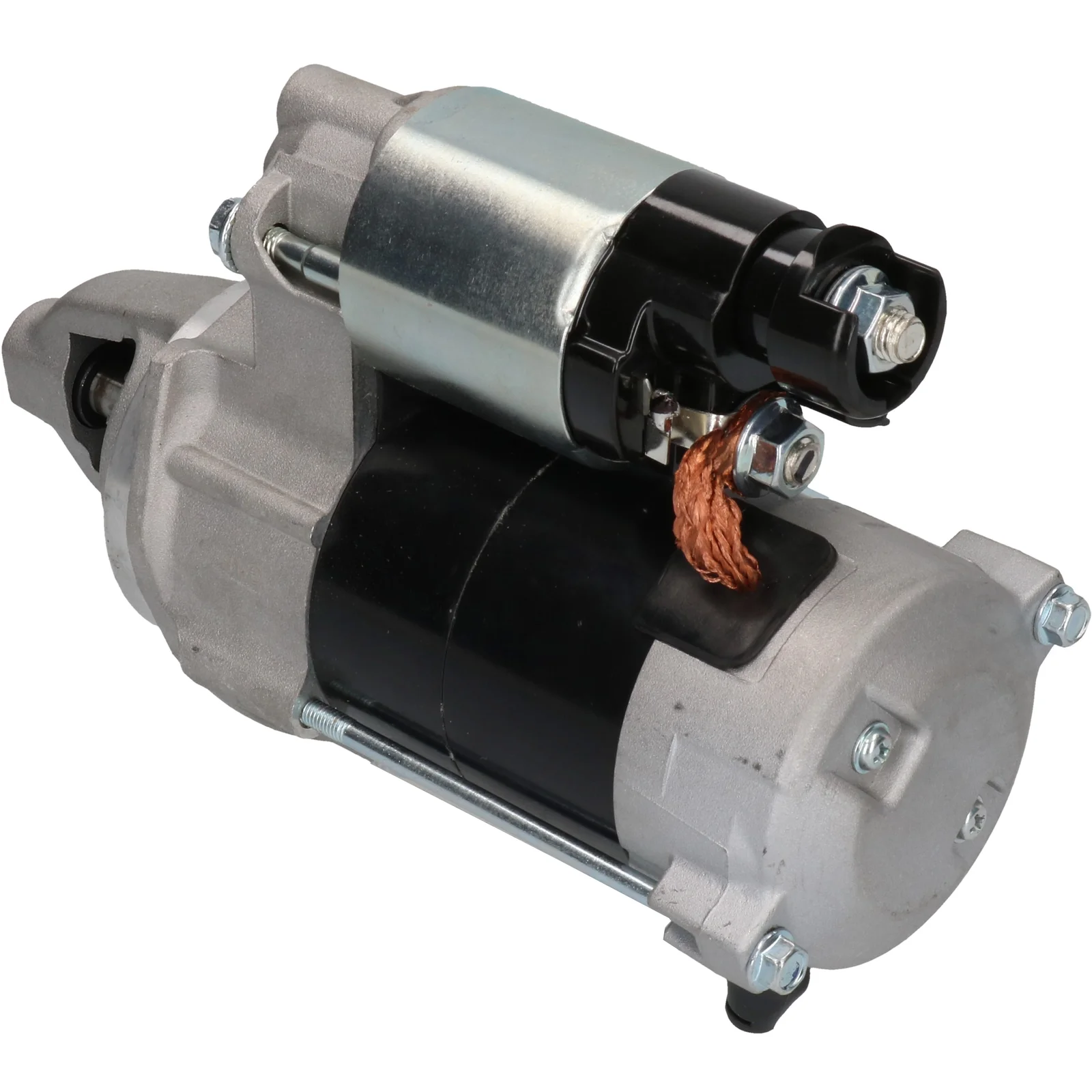

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116256

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, Ktr.: 0,8, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenningsverdi: 12
kW: 0.8
Monteringsflens: 70.00
Drivingsavstand: 33.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: M12-1.25
Avstand/bak: 147.00
Avstand/frem: 66.50
Antall/tänder: 9
B+: M8
Posisjon/50: 22
Terminal 50: Plugg
Geværtype: GR
Avstand mm: 91.50
Rotasjon: medur
Total lengde mm: 213.50
Antall/monteringshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 70.00
No./mount. holes 2 (1)
Position/50 22
Rotation CW
Dist./back 147.00
Dist./front 66.50
Drive dist. 33.00
Gear type GR
kW 0.8
Terminal 50 Plug
Voltage 12
Total length 213.50 mm
Dist. 91.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    F032116256, RGO 116256, 1986S00593, 31200-rb1-003, 31200-rb1-013, 31200R-3RE01, 428000-5410

  • Konkurrentreferens
    DRS0673, DSN1385, F042200500, S6215S, 8EA011612-321, 25-4441, 19013N, 220998, 220998A, 458943, 11040865, 0986027060

  • NormaliseratArtNr
    drs0673, dsn1385, f032116256, f042200500, rgo116256, s6215s, 8ea011612321, 1986s00593, 19013n, 31200r3re01, 31200rb1003, 31200rb1013, 220998, 220998a, 254441, 458943, 11040865, 0986027060, 4280005410

  • Passar modeller
    Honda Model: Freed Spike Model series: Freed Spike Model type: (GB3) Size of motor: 1.5 Brand of engine: L15A Type description: GB3, GB4, GP3 Body: MPV Fuel: Petrol Approved: Yes
    Honda Model: Jazz Model series: Jazz Model type: 4WD Size of motor: 1.5 Brand of engine: L15-A7 Type description: GE_, GG_, GP_, ZA_ Body: Hatchback From date: 01-10-2007 To date: 01-03-2014 Fuel: Petrol Approved: Yes
    Honda Model: Jazz Model series: Jazz Model type: Flexfuel Size of motor: 1.5 Brand of engine: L15A3 Type description: GE Body: Hatchback From date: 01-07-2008 Fuel: Bi-Fuel Approved: Yes
    Honda Model: Jazz Model series: Jazz Shuttle Model type: 4WD (GG8) Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate Fuel: Petrol Approved: Yes
    Honda Model: Jazz Model series: Jazz Shuttle Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate From date: 01-03-2011 To date: 01-03-2014 Fuel: Gasoline Approved: Yes Manufacture type: Shuttle
    Honda Model: Jazz Model series: Jazz Size of motor: 1.2 Brand of engine: L12B1 Type description: GE/GG Body: Hatchback From date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Jazz Model series: Jazz Size of motor: 1.3 Type description: GE Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Jazz Model series: Jazz Size of motor: 1.4 Brand of engine: L13Z1 Type description: GE/GG Body: Hatchback From date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Jazz Model series: Jazz Size of motor: 1.5 Brand of engine: L15A7 Type description: GE Body: Hatchback From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Jazz Model series: Jazz Type of engine: i Size of motor: 1.5 Brand of engine: L15A3 Type description: GE Body: Hatchback From date: 01-07-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Honda Model: Jazz Model series: Jazz Type of engine: i Size of motor: 1.5 Brand of engine: L15A7 Type description: GE Body: Hatchback From date: 01-07-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsverdi: 12
    kW: 0.8
    Monteringsflens: 70.00
    Drivingsavstand: 33.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: M12-1.25
    Avstand/bak: 147.00
    Avstand/frem: 66.50
    Antall/tänder: 9
    B+: M8
    Posisjon/50: 22
    Terminal 50: Plugg
    Geværtype: GR
    Avstand mm: 91.50
    Rotasjon: medur
    Total lengde mm: 213.50
    Antall/monteringshull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 70.00
    No./mount. holes 2 (1)
    Position/50 22
    Rotation CW
    Dist./back 147.00
    Dist./front 66.50
    Drive dist. 33.00
    Gear type GR
    kW 0.8
    Terminal 50 Plug
    Voltage 12
    Total length 213.50 mm
    Dist. 91.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 M12-1.25 mm
  • Kjøretøymatching

    • OEM
      F032116256, RGO 116256, 1986S00593, 31200-rb1-003, 31200-rb1-013, 31200R-3RE01, 428000-5410

    • Konkurrentreferens
      DRS0673, DSN1385, F042200500, S6215S, 8EA011612-321, 25-4441, 19013N, 220998, 220998A, 458943, 11040865, 0986027060

    • NormaliseratArtNr
      drs0673, dsn1385, f032116256, f042200500, rgo116256, s6215s, 8ea011612321, 1986s00593, 19013n, 31200r3re01, 31200rb1003, 31200rb1013, 220998, 220998a, 254441, 458943, 11040865, 0986027060, 4280005410

    • Passar modeller
      Honda Model: Freed Spike Model series: Freed Spike Model type: (GB3) Size of motor: 1.5 Brand of engine: L15A Type description: GB3, GB4, GP3 Body: MPV Fuel: Petrol Approved: Yes
      Honda Model: Jazz Model series: Jazz Model type: 4WD Size of motor: 1.5 Brand of engine: L15-A7 Type description: GE_, GG_, GP_, ZA_ Body: Hatchback From date: 01-10-2007 To date: 01-03-2014 Fuel: Petrol Approved: Yes
      Honda Model: Jazz Model series: Jazz Model type: Flexfuel Size of motor: 1.5 Brand of engine: L15A3 Type description: GE Body: Hatchback From date: 01-07-2008 Fuel: Bi-Fuel Approved: Yes
      Honda Model: Jazz Model series: Jazz Shuttle Model type: 4WD (GG8) Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate Fuel: Petrol Approved: Yes
      Honda Model: Jazz Model series: Jazz Shuttle Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate From date: 01-03-2011 To date: 01-03-2014 Fuel: Gasoline Approved: Yes Manufacture type: Shuttle
      Honda Model: Jazz Model series: Jazz Size of motor: 1.2 Brand of engine: L12B1 Type description: GE/GG Body: Hatchback From date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Jazz Model series: Jazz Size of motor: 1.3 Type description: GE Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Jazz Model series: Jazz Size of motor: 1.4 Brand of engine: L13Z1 Type description: GE/GG Body: Hatchback From date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Jazz Model series: Jazz Size of motor: 1.5 Brand of engine: L15A7 Type description: GE Body: Hatchback From date: 01-09-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Jazz Model series: Jazz Type of engine: i Size of motor: 1.5 Brand of engine: L15A3 Type description: GE Body: Hatchback From date: 01-07-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
      Honda Model: Jazz Model series: Jazz Type of engine: i Size of motor: 1.5 Brand of engine: L15A7 Type description: GE Body: Hatchback From date: 01-07-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
