Varenr.: F032112167

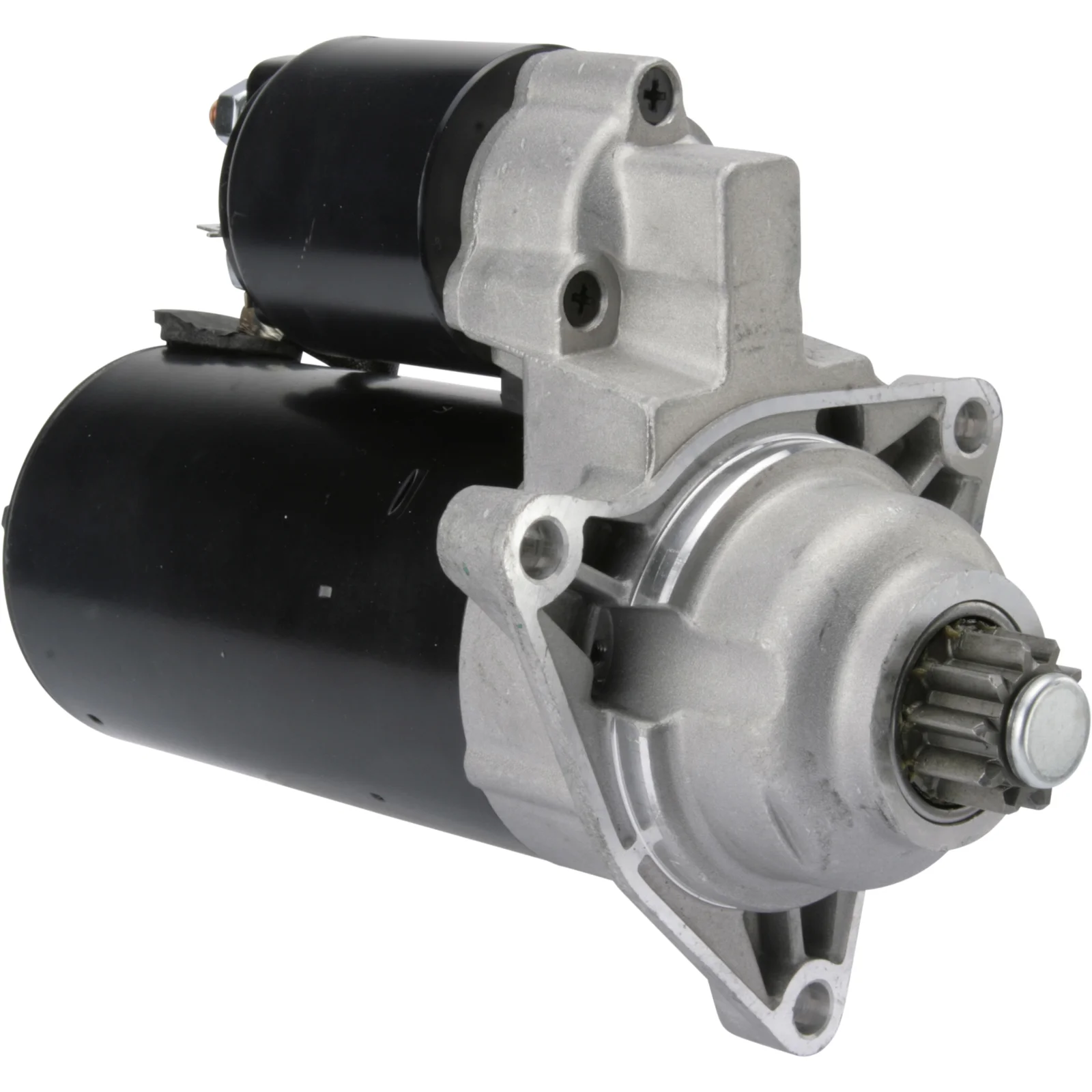

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.8, Antall/tann: 10, Rotasjon: VSK

Beskrivelse

Spenning: 12
kW: 1,8
Monteringsflens: 76,00
Drivemål: 52,00
Monteringshull 3 mm: 9,00
Monteringshull 2 mm: 9,00
Monteringshull 1 mm: 9,00
Mål/bak: 165,00
Mål/frem: 55,50
Antall/tænder: 10
B+: M8
Posisjon/50: 15
Terminal 50: 6,30
Kjærretype: GR
Mål 2: 106,00
Mål 3: 101,50
Mål mm: 101,50
Rotasjon: Mot med klokka
Total lengde mm: 236,00
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Olje forseglet: Nei
Anmerkninger: Bøssing D.E. (clutch housing): HC-CARGO 140018.
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 76.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 106.00
Remarks Bushing D.E. (clutch housing): HC-CARGO 140018.
Dist. 3 101.50
Rotation CCW
Dist./back 165.00
Dist./front 55.50
Drive dist. 52.00
Drive type Steel
Gear type GR
kW 1.8
Terminal 50 6.30
Voltage 12
Total length 236.00 mm
Waterproof No
Dist. 101.50 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    cs598, F032112167, RGO 112167, 02b911023c, 02B911023CX, 1986S00593, 1986S00808, 0001110061, 0001110062, 1516782R, 9141319

  • Konkurrentreferens
    BSO7179, CST10211, drs6190, F042002060, F042S02060, LES0269, lrs00964, MS384, QS2074, QS2635, S0005PR, S0005SR, S0495, STR-2205, 2-1531-BO, 8ea726222-001, 25-1311, 41-16.190, 311.041.102, 1456, 10598, 11718, 17231N, 17231R, 103412, 220085, 220085A, 455628, 726991, 8016190, 11016190, 943251225, 0986016190, 0986016194, 0986016197, 943251225010, 944280161900

  • NormaliseratArtNr
    bso7179, cs598, cst10211, drs6190, f032112167, f042002060, f042s02060, les0269, lrs00964, ms384, qs2074, qs2635, rgo112167, s0005pr, s0005sr, s0495, str2205, 02b911023c, 02b911023cx, 8ea726222001, 1456, 1986s00593, 1986s00808, 10598, 11718, 17231n, 17231r, 21531bo, 103412, 220085, 220085a, 251311, 455628, 726991, 0001110061, 0001110062, 1516782r, 4116190, 8016190, 9141319, 11016190, 311041102, 943251225, 0986016190, 0986016194, 0986016197, 943251225010, 944280161900

  • Passar modeller
    Honda Model: Jazz Model series: Jazz Shuttle Model type: 4WD (GG8) Size of motor: 1.5 Brand of engine: L15A Type description: GG8, GG7, GP2 Body: Estate Fuel: Petrol Approved: Yes
    VW Model: California Model series: California T4 Camper Model type: TD Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Type description: 7DJ, 7DK, 70J Body: Bus From date: 01-07-1994 To date: 01-04-2002 Fuel: Diesel Approved: Yes
    VW Model: Eurovan Model series: Eurovan Model type: Camper Size of motor: 2.8 Brand of engine: AES From date: 01-01-1997 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    VW Model: Eurovan Model series: Eurovan Size of motor: 2.5 Brand of engine: ACU From date: 01-01-1996 Fuel: Gasoline Approved: Yes
    VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: AET Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: APL Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Multivan Model series: Multivan Size of motor: 2.5 Brand of engine: AVT Body: Bus From date: 01-08-1996 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter IV Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Type description: 70XA Body: Van From date: 01-09-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter IV Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Type description: 70XB, 70XC, 7DB, 7DW Body: Bus From date: 01-09-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter IV Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Type description: 70XD Body: Platform / Chassis From date: 01-09-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Bus From date: 01-09-1990 To date: 01-06-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AAF Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: ACU Body: Bus From date: 01-09-1990 To date: 01-06-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: ACU Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: ACU Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEN Body: Platform / Chassis From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.5 Brand of engine: AEN Body: Van From date: 01-11-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AAF Body: Bus From date: 01-08-1992 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AAF Body: Platform / Chassis From date: 01-11-1992 To date: 01-11-2001 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: AAF Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: ACU Body: Bus From date: 01-08-1992 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: ACU Body: Platform / Chassis From date: 01-11-1992 To date: 01-11-2001 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Size of motor: 2.5 Brand of engine: ACU Body: Van From date: 01-01-1996 To date: 01-11-2001 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Syncro Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-10-1992 To date: 01-09-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Body: Bus From date: 01-09-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Body: Platform / Chassis From date: 01-07-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 1.9 Brand of engine: 1X Body: Van From date: 01-07-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Bus From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Platform / Chassis From date: 01-09-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: Diesel Size of motor: 2.4 Brand of engine: AAB Body: Van From date: 01-07-1990 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Bus From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Platform / Chassis From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TD Size of motor: 1.9 Brand of engine: ABL Body: Van From date: 01-10-1992 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Type of engine: TDi Size of motor: 2.5 Brand of engine: ACV Body: Bus From date: 01-09-1995 To date: 01-04-2003 Fuel: Diesel Approved: Yes
