HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114173

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.7, Antall/tenner: 10, Rotasjon: CCW

Beskrivelse

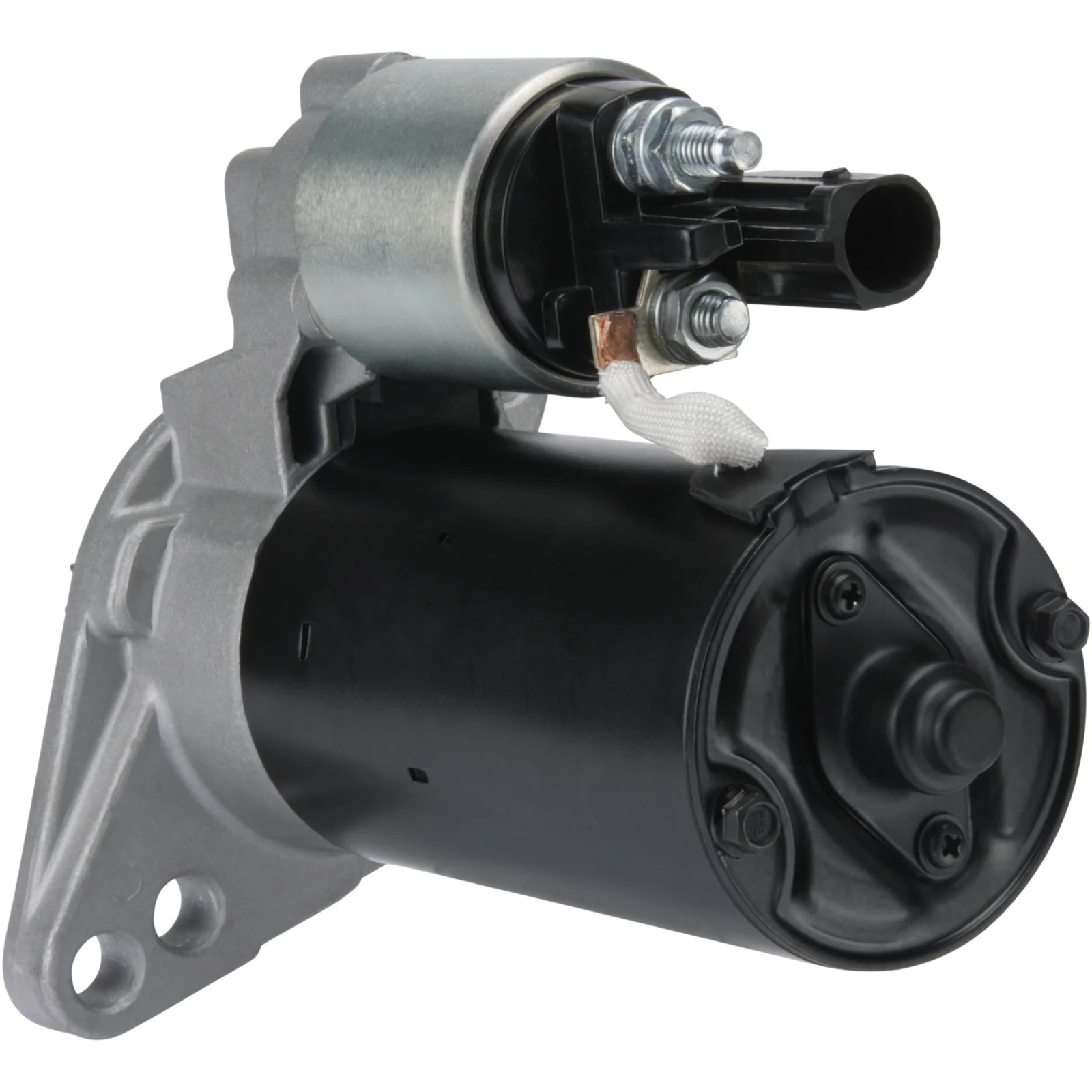

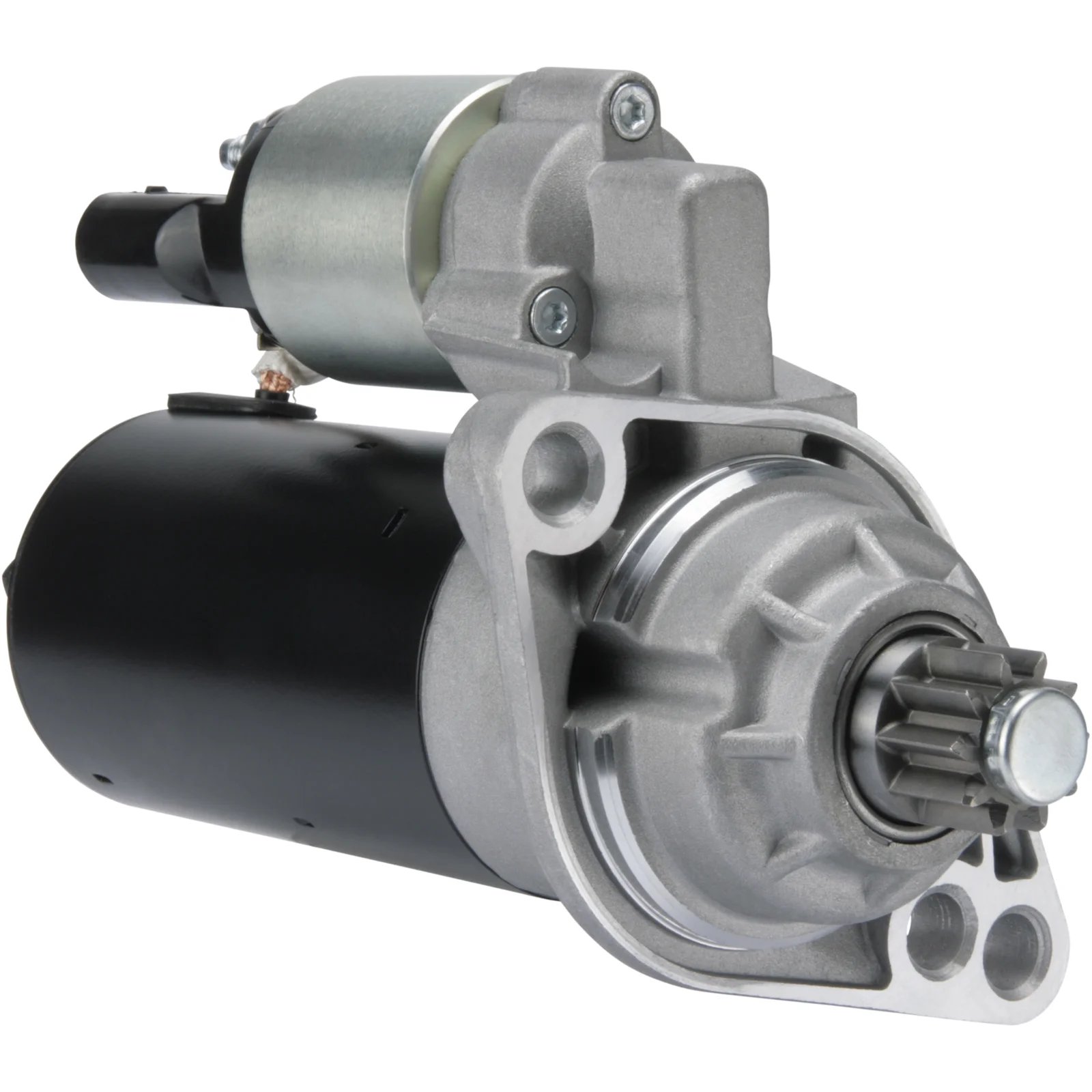

VW Caddy Startmotor 12V-1.7kW 12V - 1.7kW, 10k, CCW A - 76mm, B - 57 For Yourex produkt bestilling 91-620-2032

Spenningskilde: 12
kW: 1.7
Monteringsplate: 76.00
Drivingsavstand: 58.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Avstand/bak: 168.00
Avstand/frem: 63.00
Antall/tannhjul: 10
B+: M8
Posisjon/50: 15
Terminal 50: Plugg
Girkastype: GR
Avstand mm: 111.00
Rotasjon: CCW
Total lengde mm: 244.00
Koblingstype: Tørr
Drevtype: Stål
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 76.00
No./mount. holes 2 (0)
Position/50 15
Clutch type Dry
Rotation CCW
Dist./back 168.00
Dist./front 63.00
Drive dist. 58.00
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 Plug
Voltage 12
Total length 244.00 mm
Dist. 111.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    0AH 911 023B, 0AH911023B, 0AH911023BX, cs1397, F032114173, RGO 114173, 0001 123 020, 0001 123 021, 0986 020 320, 1986S00800, 114173, 0001123020, 0001123021

  • Konkurrentreferens
    CST10445, DRT0320, DRT0320X, F042S0H096, LRS02473, S0229, S0229PR, STR-H096, 8EA012528-051, 25-4145, 311.264.102, 3043, 32688N, 101397, 105510, 458875, 8213300, 11020320, 0986020320

  • Bilmärken
    VW

  • NormaliseratArtNr
    0ah911023b, 0ah911023bx, cs1397, cst10445, drt0320, drt0320x, f032114173, f042s0h096, lrs02473, rgo114173, s0229, s0229pr, strh096, 8ea012528051, 1986s00800, 3043, 32688n, 101397, 105510, 114173, 254145, 458875, 0001123020, 0001123021, 8213300, 11020320, 311264102, 0986020320

  • Passar modeller
    VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BDJ Type description: 2KA, 2KH Body: Van From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BDJ Type description: 2KB, 2KJ Body: Estate From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BST Type description: 2KA, 2KH Body: Van From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BST Type description: 2KB, 2KJ Body: Estate From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
    VW Series: Caddy III Skåp (2K_) Model: 2.0 SDI Skåp Engine volume: 2.0 Engine type: BDJ / BST Year: 03.04-05.08
    VW Series: Caddy III Variant Model: 2.0 SDI Engine volume: 2.0 Engine type: BDJ / BST Year: 03.04-05.08
    VW Series: Caddy III Variant Model: 2.0 SDI Engine volume: 2.0 Engine type: BDJ / BST Year: 06.05-05.08
    1 / 2
  • Beskrivelse
    VW Caddy Startmotor 12V-1.7kW 12V - 1.7kW, 10k, CCW A - 76mm, B - 57 For Yourex produkt bestilling 91-620-2032

    Spenningskilde: 12
    kW: 1.7
    Monteringsplate: 76.00
    Drivingsavstand: 58.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 168.00
    Avstand/frem: 63.00
    Antall/tannhjul: 10
    B+: M8
    Posisjon/50: 15
    Terminal 50: Plugg
    Girkastype: GR
    Avstand mm: 111.00
    Rotasjon: CCW
    Total lengde mm: 244.00
    Koblingstype: Tørr
    Drevtype: Stål
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 76.00
    No./mount. holes 2 (0)
    Position/50 15
    Clutch type Dry
    Rotation CCW
    Dist./back 168.00
    Dist./front 63.00
    Drive dist. 58.00
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 Plug
    Voltage 12
    Total length 244.00 mm
    Dist. 111.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      0AH 911 023B, 0AH911023B, 0AH911023BX, cs1397, F032114173, RGO 114173, 0001 123 020, 0001 123 021, 0986 020 320, 1986S00800, 114173, 0001123020, 0001123021

    • Konkurrentreferens
      CST10445, DRT0320, DRT0320X, F042S0H096, LRS02473, S0229, S0229PR, STR-H096, 8EA012528-051, 25-4145, 311.264.102, 3043, 32688N, 101397, 105510, 458875, 8213300, 11020320, 0986020320

    • Bilmärken
      VW

    • NormaliseratArtNr
      0ah911023b, 0ah911023bx, cs1397, cst10445, drt0320, drt0320x, f032114173, f042s0h096, lrs02473, rgo114173, s0229, s0229pr, strh096, 8ea012528051, 1986s00800, 3043, 32688n, 101397, 105510, 114173, 254145, 458875, 0001123020, 0001123021, 8213300, 11020320, 311264102, 0986020320

    • Passar modeller
      VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BDJ Type description: 2KA, 2KH Body: Van From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BDJ Type description: 2KB, 2KJ Body: Estate From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BST Type description: 2KA, 2KH Body: Van From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Model: Caddy Model series: Caddy Type of engine: SDi Size of motor: 2.0 Brand of engine: BST Type description: 2KB, 2KJ Body: Estate From date: 01-03-2004 To date: 01-08-2010 Fuel: Diesel Approved: Yes
      VW Series: Caddy III Skåp (2K_) Model: 2.0 SDI Skåp Engine volume: 2.0 Engine type: BDJ / BST Year: 03.04-05.08
      VW Series: Caddy III Variant Model: 2.0 SDI Engine volume: 2.0 Engine type: BDJ / BST Year: 03.04-05.08
      VW Series: Caddy III Variant Model: 2.0 SDI Engine volume: 2.0 Engine type: BDJ / BST Year: 06.05-05.08
      1 / 2
