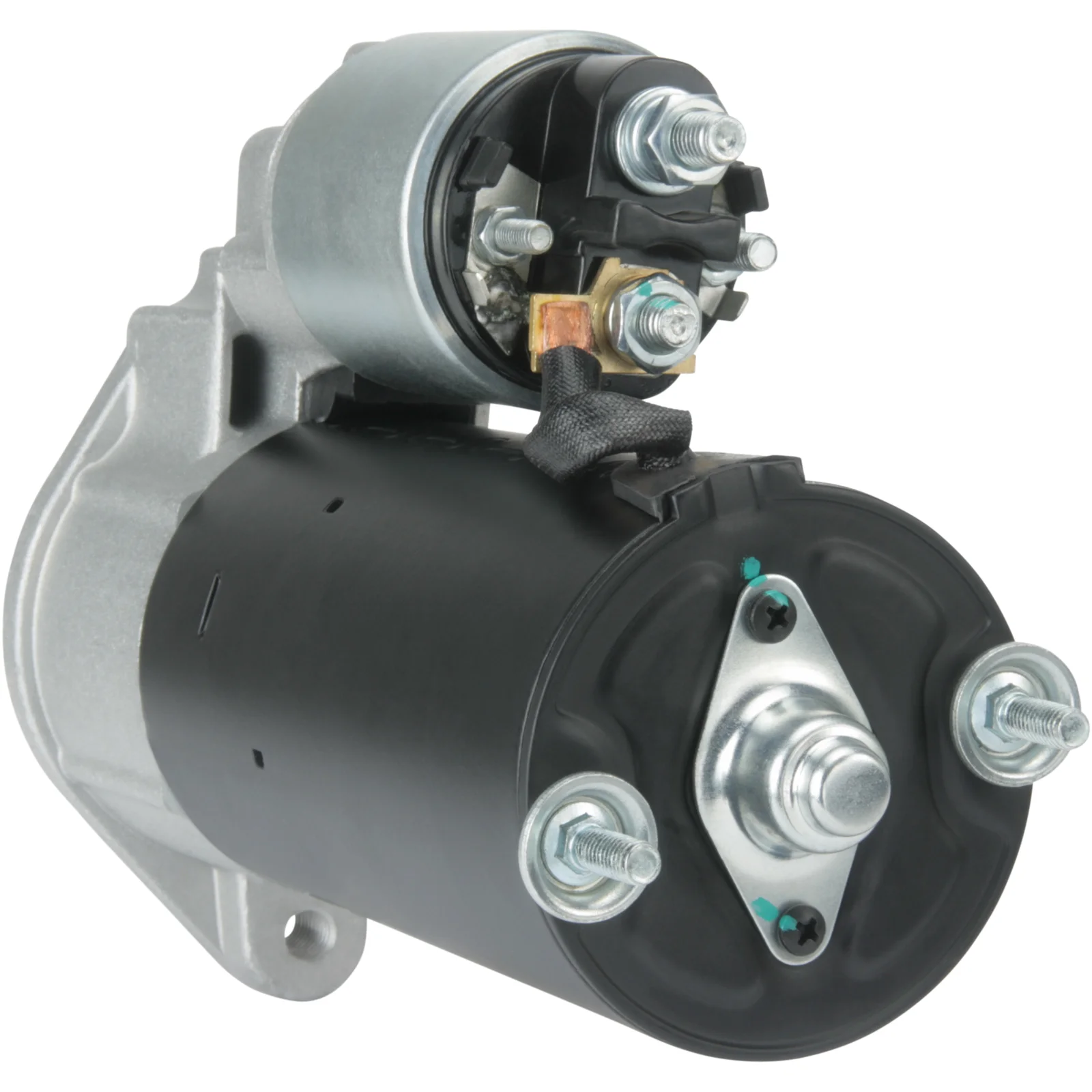

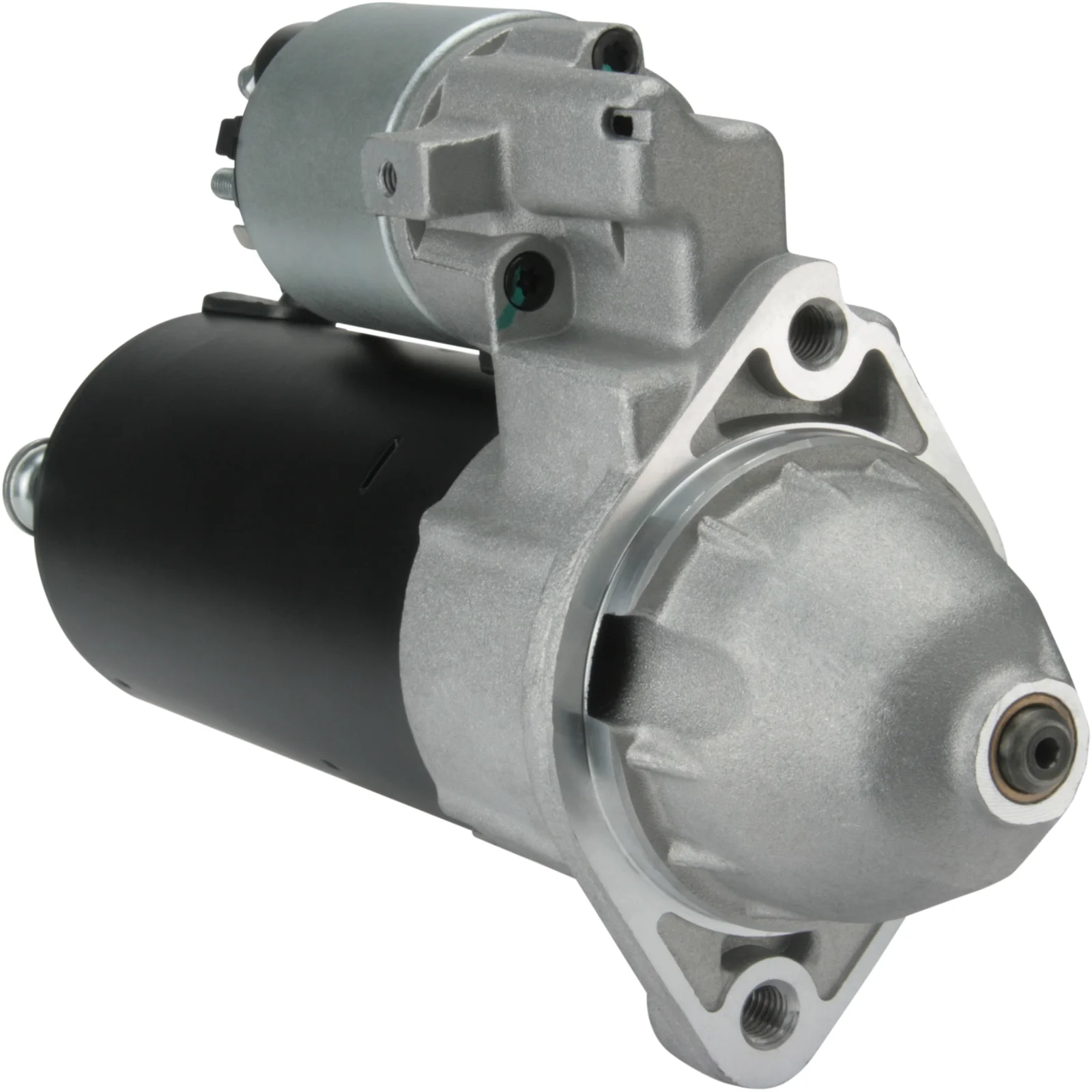

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112553

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.7, Antall/tenner: 9, Roteringsretning: medur

Beskrivelse

Spenningsverdi: 12
KW: 1,7
Feste brakett: 76,20
Drevavstand: 21,50
Avstand/bak: 196,00
Avstand/fram: 60,00
Antall/tannhjul: 9
B+: M8
Trådlengde mm: 14,00
Posisjon/50: 15
Terminal 50: M6
Gavltype: GR
Avstand mm: 105,00
Vridning: CW
Total lengde mm: 269,00
Terminal 30h: M5
Posisjon/30h: 40
Drevtype: Stål
Prod. info: BN
Værbestandig: Nei
Olje forseglet: Nei
Antall/festehull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 76.20
Oil sealed No
No./mount. holes 2 (2)
Position/30h 40
Position/50 15
Prod. info BN
Rotation CW
Dist./back 196.00
Dist./front 60.00
Drive dist. 21.50
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 M6
Voltage 12
Total length 269.00 mm
Waterproof No
Dist. 105.00 mm
Thread length 14.00 mm
Terminal 30H M5 mm

  • OEM
    A002T26391, A002T26391G, A002T27091, A002T27091A, A002T27091B, A002T27091C, A002T27091D, A002T27091E, A002T27091F, A002T27091G, A2T26391, A2T26391G, A2T27091, A2T27091A, A2T27091B, A2T27091C, A2T27091D, A2T27091E, A2T27091F, A2T27091G, aze2210, AZE2210, cs792, CS792, CST10411, drs6920, DRS6920, F032112553, F042002073, F042S02073, IS9439, LRT00228, MS15, RGO 112553, S0394, S0723S, STR-2219, STR2219, 2-1539-BO, 8EA012528-131, 8ea731782-001, 8EA731782001, 11.139.447, 15-16.920, 25-2254, 315.118.092, 1986S01136, 3669, 4127, 5705JQ, 5705Q5, 10792, 17497, 17497N, 17497R, 103372, 220332, 220332A, 458473, 555724, 557024, 570525, 570580, 0001110072, 1729981, 1736921, 8016920, 11016920, 11017170, 42016920, 91517981, 91517982, 91517983, 95611523, 95619191, 0986016920, 0986016923, 0986016924, 0986016927, 9151095080, 9151798080, 9151798180, 9151798380, 12411428622, 12411468622, 12411729981, 12411729982, 12411736921, 12411736922, 943253133010, 944280169200

  • Konkurrentreferens
    CST10411, drs6920, F042002073, F042S02073, IS9439, LRT00228, MS15, S0394, S0723S, STR-2219, STR2219, 2-1539-BO, 8EA012528-131, 8ea731782-001, 15-16.920, 25-2254, 315.118.092, 3669, 4127, 10792, 17497, 17497N, 17497R, 103372, 220332, 220332A, 458473, 8016920, 11016920, 11017170, 42016920, 0986016920, 0986016923, 0986016924, 0986016927, 943253133010, 944280169200

  • Bilmärken
    ALPINA, BMW

  • NormaliseratArtNr
    a002t26391, a002t26391g, a002t27091, a002t27091a, a002t27091b, a002t27091c, a002t27091d, a002t27091e, a002t27091f, a002t27091g, a2t26391, a2t26391g, a2t27091, a2t27091a, a2t27091b, a2t27091c, a2t27091d, a2t27091e, a2t27091f, a2t27091g, aze2210, cs792, cst10411, drs6920, f032112553, f042002073, f042s02073, is9439, lrt00228, ms15, rgo112553, s0394, s0723s, str2219, 8ea012528131, 8ea731782001, 1986s01136, 3669, 4127, 5705jq, 5705q5, 10792, 17497, 17497n, 17497r, 21539bo, 103372, 220332, 220332a, 252254, 458473, 555724, 557024, 570525, 570580, 0001110072, 1516920, 1729981, 1736921, 8016920, 11016920, 11017170, 11139447, 42016920, 91517981, 91517982, 91517983, 95611523, 95619191, 315118092, 0986016920, 0986016923, 0986016924, 0986016927, 9151095080, 9151798080, 9151798180, 9151798380, 12411428622, 12411468622, 12411729981, 12411729982, 12411736921, 12411736922, 943253133010, 944280169200

  • Passar modeller
    ALPINA ROADSTER V8 (E52) 4.8 V8 Engine volume: 4.8 Engine type: M62 B48 (488S2) Year: 06.02-10.03
    BMW 5 (E34) 530 i Engine volume: 3.0 Engine type: M30 B30 (306KA) Year: 01.88-04.90
    BMW 5 (E34) 530 i V8 Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 09.92-12.95
    BMW 5 (E34) 540 i V8 Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 09.92-12.95
    BMW 5 (E39) 535 i Engine volume: 3.5 Engine type: M62 B35 (358S1) Year: 06.96-08.98
    BMW 5 (E39) 535 i Engine volume: 3.5 Engine type: M62 B35 (358S2) Year: 09.98-06.03
    BMW 5 (E39) 540 i Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 03.96-06.03
    BMW 5 (E39) M5 Engine volume: 4.9 Engine type: S62 B50 (508S1) Year: 10.98-06.03
    BMW 5 Touring (E34) 530 i Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 09.92-07.96
    BMW 5 Touring (E34) 540 i Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 09.93-07.96
    BMW 5 Touring (E39) 540 i Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 04.97-12.03
    BMW 7 (E32) 730 i, iL Engine volume: 3.0 Engine type: M30 B30 (306EA) Year: 03.85-01.89
    BMW 7 (E32) 730 i, iL Engine volume: 3.0 Engine type: M30 B30 (306KA) Year: 03.87-03.94
    BMW 7 (E32) 730 i, iL V8 Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 04.92-09.94
    BMW 7 (E32) 740 i, iL V8 Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 05.92-03.94
    BMW 7 (E38) 730 i, iL Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 03.94-02.96
    BMW 7 (E38) 730 i, iL Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 10.94-11.01
    BMW 7 (E38) 735 i, iL Engine volume: 3.5 Engine type: M62 B35 (358S1) Year: 03.96-08.98
    BMW 7 (E38) 735 i, iL Engine volume: 3.5 Engine type: M62 B35 (358S2) Year: 09.98-07.01
    BMW 7 (E38) 740 i, iL Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 03.94-02.96
    BMW 7 (E38) 740 i, iL Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 02.96-07.01
    BMW 8 (E31) 840 Ci Engine volume: 4.4 Engine type: M62 B44 (448S1) Year: 03.96-06.99
    BMW 8 (E31) 840 i Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 03.93-02.96
    BMW X5 (E53) 4.4 i Engine volume: 4.4 Engine type: M62 B44 (448S2) Year: 01.00-09.03
    BMW X5 (E53) 4.6 is Engine volume: 4.6 Engine type: M62 B46 (468S1) Year: 10.01-09.03
    BMW Z8 Roadster (E52) 4.9 Engine volume: 4.9 Engine type: S62 B50 (508S1) Year: 01.00-12.03
    1 / 6
  • Beskrivelse
    Spenningsverdi: 12
    KW: 1,7
    Feste brakett: 76,20
    Drevavstand: 21,50
    Avstand/bak: 196,00
    Avstand/fram: 60,00
    Antall/tannhjul: 9
    B+: M8
    Trådlengde mm: 14,00
    Posisjon/50: 15
    Terminal 50: M6
    Gavltype: GR
    Avstand mm: 105,00
    Vridning: CW
    Total lengde mm: 269,00
    Terminal 30h: M5
    Posisjon/30h: 40
    Drevtype: Stål
    Prod. info: BN
    Værbestandig: Nei
    Olje forseglet: Nei
    Antall/festehull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 76.20
    Oil sealed No
    No./mount. holes 2 (2)
    Position/30h 40
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 196.00
    Dist./front 60.00
    Drive dist. 21.50
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 M6
    Voltage 12
    Total length 269.00 mm
    Waterproof No
    Dist. 105.00 mm
    Thread length 14.00 mm
    Terminal 30H M5 mm
  • Kjøretøymatching

    • OEM
      A002T26391, A002T26391G, A002T27091, A002T27091A, A002T27091B, A002T27091C, A002T27091D, A002T27091E, A002T27091F, A002T27091G, A2T26391, A2T26391G, A2T27091, A2T27091A, A2T27091B, A2T27091C, A2T27091D, A2T27091E, A2T27091F, A2T27091G, aze2210, AZE2210, cs792, CS792, CST10411, drs6920, DRS6920, F032112553, F042002073, F042S02073, IS9439, LRT00228, MS15, RGO 112553, S0394, S0723S, STR-2219, STR2219, 2-1539-BO, 8EA012528-131, 8ea731782-001, 8EA731782001, 11.139.447, 15-16.920, 25-2254, 315.118.092, 1986S01136, 3669, 4127, 5705JQ, 5705Q5, 10792, 17497, 17497N, 17497R, 103372, 220332, 220332A, 458473, 555724, 557024, 570525, 570580, 0001110072, 1729981, 1736921, 8016920, 11016920, 11017170, 42016920, 91517981, 91517982, 91517983, 95611523, 95619191, 0986016920, 0986016923, 0986016924, 0986016927, 9151095080, 9151798080, 9151798180, 9151798380, 12411428622, 12411468622, 12411729981, 12411729982, 12411736921, 12411736922, 943253133010, 944280169200

    • Konkurrentreferens
      CST10411, drs6920, F042002073, F042S02073, IS9439, LRT00228, MS15, S0394, S0723S, STR-2219, STR2219, 2-1539-BO, 8EA012528-131, 8ea731782-001, 15-16.920, 25-2254, 315.118.092, 3669, 4127, 10792, 17497, 17497N, 17497R, 103372, 220332, 220332A, 458473, 8016920, 11016920, 11017170, 42016920, 0986016920, 0986016923, 0986016924, 0986016927, 943253133010, 944280169200

    • Bilmärken
      ALPINA, BMW

    • NormaliseratArtNr
      a002t26391, a002t26391g, a002t27091, a002t27091a, a002t27091b, a002t27091c, a002t27091d, a002t27091e, a002t27091f, a002t27091g, a2t26391, a2t26391g, a2t27091, a2t27091a, a2t27091b, a2t27091c, a2t27091d, a2t27091e, a2t27091f, a2t27091g, aze2210, cs792, cst10411, drs6920, f032112553, f042002073, f042s02073, is9439, lrt00228, ms15, rgo112553, s0394, s0723s, str2219, 8ea012528131, 8ea731782001, 1986s01136, 3669, 4127, 5705jq, 5705q5, 10792, 17497, 17497n, 17497r, 21539bo, 103372, 220332, 220332a, 252254, 458473, 555724, 557024, 570525, 570580, 0001110072, 1516920, 1729981, 1736921, 8016920, 11016920, 11017170, 11139447, 42016920, 91517981, 91517982, 91517983, 95611523, 95619191, 315118092, 0986016920, 0986016923, 0986016924, 0986016927, 9151095080, 9151798080, 9151798180, 9151798380, 12411428622, 12411468622, 12411729981, 12411729982, 12411736921, 12411736922, 943253133010, 944280169200

    • Passar modeller
      ALPINA ROADSTER V8 (E52) 4.8 V8 Engine volume: 4.8 Engine type: M62 B48 (488S2) Year: 06.02-10.03
      BMW 5 (E34) 530 i Engine volume: 3.0 Engine type: M30 B30 (306KA) Year: 01.88-04.90
      BMW 5 (E34) 530 i V8 Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 09.92-12.95
      BMW 5 (E34) 540 i V8 Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 09.92-12.95
      BMW 5 (E39) 535 i Engine volume: 3.5 Engine type: M62 B35 (358S1) Year: 06.96-08.98
      BMW 5 (E39) 535 i Engine volume: 3.5 Engine type: M62 B35 (358S2) Year: 09.98-06.03
      BMW 5 (E39) 540 i Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 03.96-06.03
      BMW 5 (E39) M5 Engine volume: 4.9 Engine type: S62 B50 (508S1) Year: 10.98-06.03
      BMW 5 Touring (E34) 530 i Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 09.92-07.96
      BMW 5 Touring (E34) 540 i Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 09.93-07.96
      BMW 5 Touring (E39) 540 i Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 04.97-12.03
      BMW 7 (E32) 730 i, iL Engine volume: 3.0 Engine type: M30 B30 (306EA) Year: 03.85-01.89
      BMW 7 (E32) 730 i, iL Engine volume: 3.0 Engine type: M30 B30 (306KA) Year: 03.87-03.94
      BMW 7 (E32) 730 i, iL V8 Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 04.92-09.94
      BMW 7 (E32) 740 i, iL V8 Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 05.92-03.94
      BMW 7 (E38) 730 i, iL Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 03.94-02.96
      BMW 7 (E38) 730 i, iL Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 10.94-11.01
      BMW 7 (E38) 735 i, iL Engine volume: 3.5 Engine type: M62 B35 (358S1) Year: 03.96-08.98
      BMW 7 (E38) 735 i, iL Engine volume: 3.5 Engine type: M62 B35 (358S2) Year: 09.98-07.01
      BMW 7 (E38) 740 i, iL Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 03.94-02.96
      BMW 7 (E38) 740 i, iL Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 02.96-07.01
      BMW 8 (E31) 840 Ci Engine volume: 4.4 Engine type: M62 B44 (448S1) Year: 03.96-06.99
      BMW 8 (E31) 840 i Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 03.93-02.96
      BMW X5 (E53) 4.4 i Engine volume: 4.4 Engine type: M62 B44 (448S2) Year: 01.00-09.03
      BMW X5 (E53) 4.6 is Engine volume: 4.6 Engine type: M62 B46 (468S1) Year: 10.01-09.03
      BMW Z8 Roadster (E52) 4.9 Engine volume: 4.9 Engine type: S62 B50 (508S1) Year: 01.00-12.03
      1 / 6
