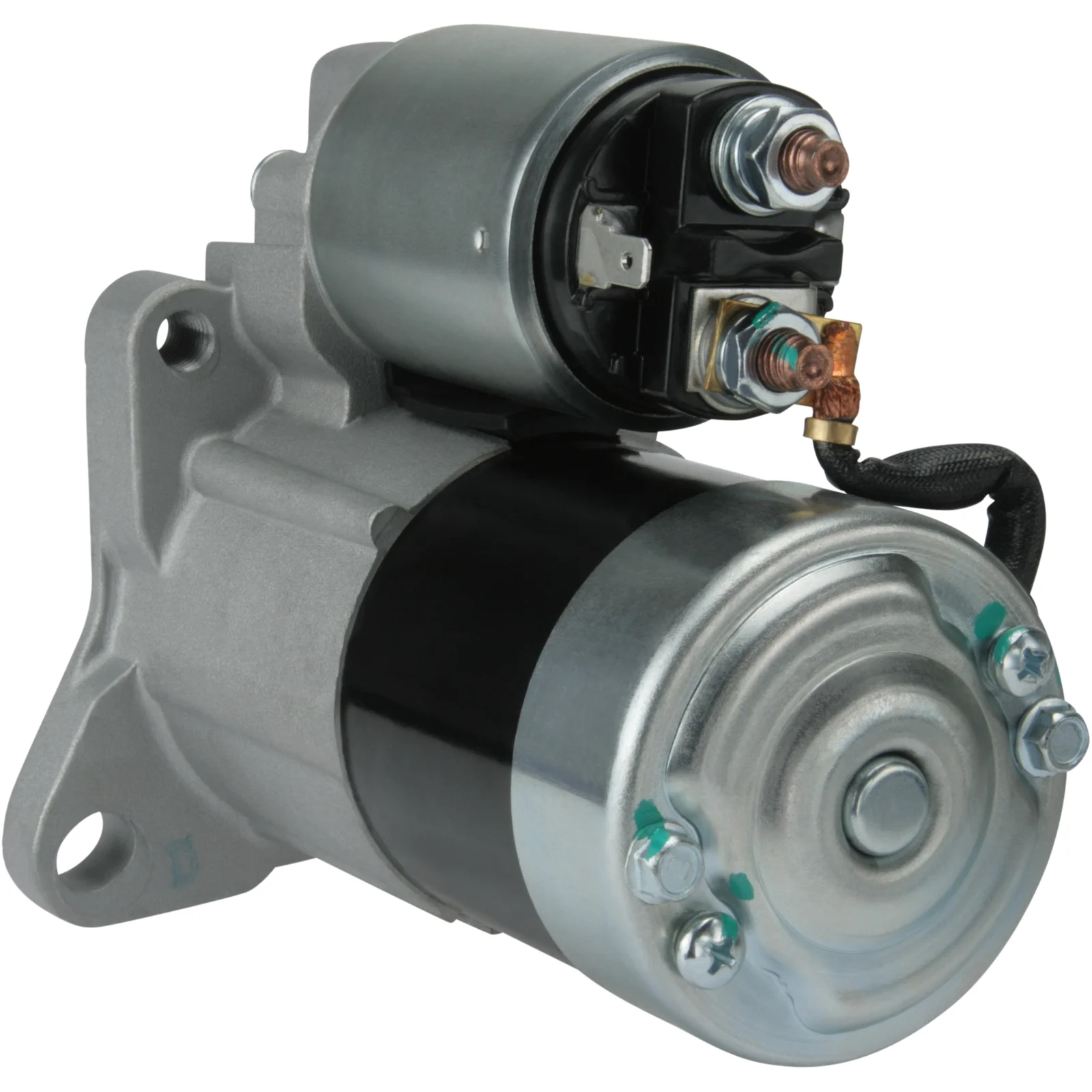

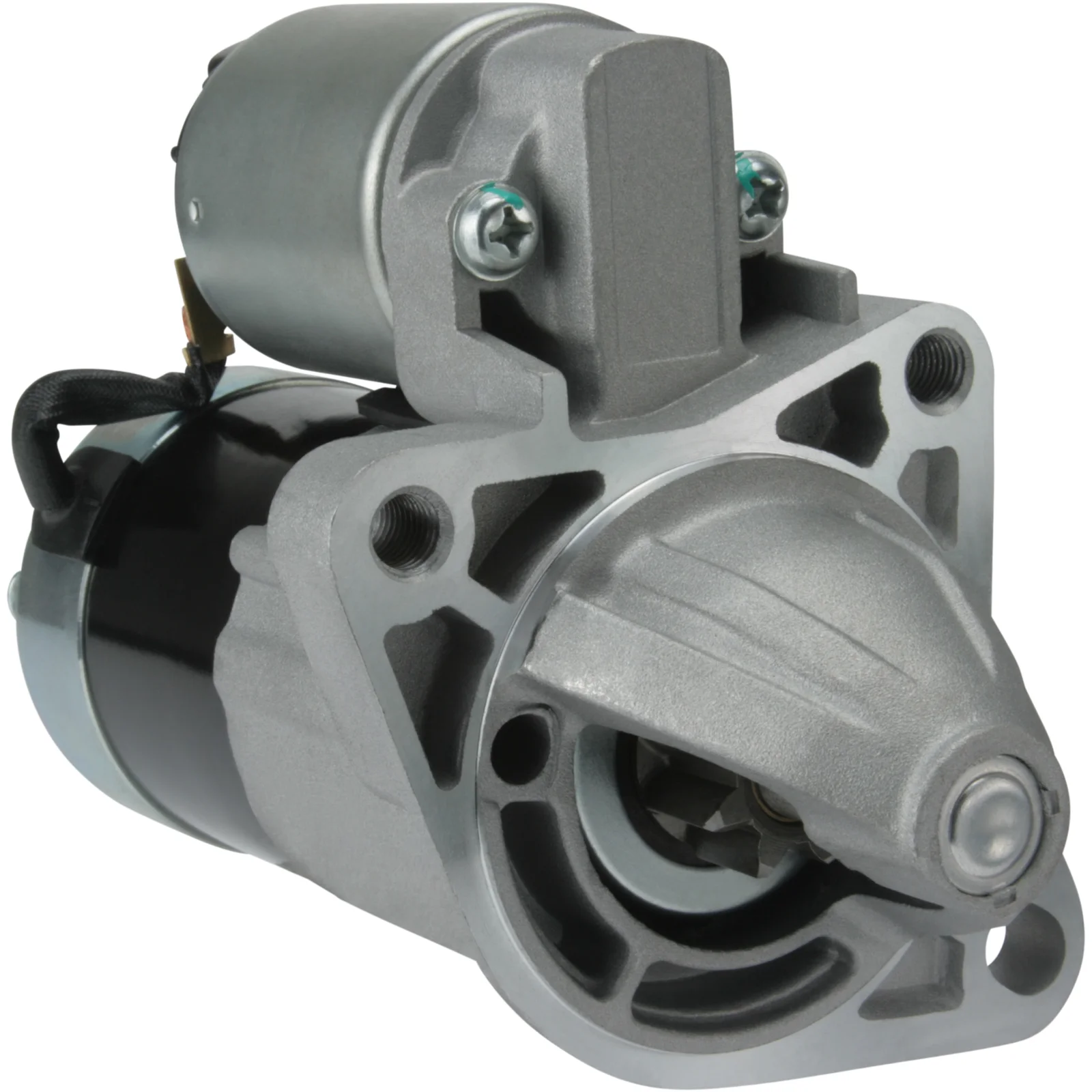

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032111970

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.0, Ant./tenner: 8, Rotasjon: Døgngående (CW)

Beskrivelse

Spenning: 12
kW: 1.0
Mountingsflens: 74.00
Drevet dist.: 15.50
Festeringshull 3 mm: M10
Festeringshull 2 mm: 11.00
Dist./bak: 143.00
Dist./foran: 50.50
Nummer/tannhjul: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Geventype: GR
Dist. 2: 112.00
Dist. 3: 78.00
Dist. mm: 78.50
Roteringsretning: CW
Total lengde mm: 197.00
Clutch-type: Våt
Drevet type: Stål
Prod. info: BN
Vannmotstandig: Nei
Oljetett: Nei
Nummer/festeringshull: 3 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 74.00
Oil sealed No
No./mount. holes 3 (2)
Position/50 45
Clutch type Wet
Prod. info BN
Dist. 2 112.00
Dist. 3 78.00
Rotation CW
Dist./back 143.00
Dist./front 50.50
Drive dist. 15.50
Drive type Steel
Gear type GR
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 197.00 mm
Waterproof No
Dist. 78.50 mm
Mount. hole 3 M10 mm
Mount. hole 2 11.00 mm

  • OEM
    BPD4-18-400, BPD4-18-400A, BPD4-18-400B, F032111970, js1136, M000T80081, m0t80081, RGO 111970, 23300HA00A

  • Konkurrentreferens
    CST35109, DRS3723, F042001091, F042S01091, J5213033, LRS01361, S5397S, sm-0082r, smt0097, SR4216X, STR-3502, 2-1850-mi, 8EA012527-291, 8ea737545-001, 25-2193, 35-2620, 324.028.082, 4569, 9527, 16922N, 16922R, 17241, 17592, 17592N, 17592R, 105377, 201136, 220920, 220920A, 458326, 8212608, 11040651, 0986020731

  • NormaliseratArtNr
    bpd418400, bpd418400a, bpd418400b, cst35109, drs3723, f032111970, f042001091, f042s01091, j5213033, js1136, lrs01361, m000t80081, m0t80081, rgo111970, s5397s, sm0082r, smt0097, sr4216x, str3502, 8ea012527291, 8ea737545001, 4569, 9527, 16922n, 16922r, 17241, 17592, 17592n, 17592r, 21850mi, 23300ha00a, 105377, 201136, 220920, 220920a, 252193, 352620, 458326, 8212608, 11040651, 324028082, 0986020731

  • Passar modeller
    Mazda Model: 323 F Model series: 323 F Model type: 16V (BA8P) Size of motor: 1.8 Brand of engine: BP-ZE Type description: BA Body: Hatchback Fuel: Petrol Approved: Yes
    Mazda Model: 323 F Model series: 323 F Model type: Astina (BJ10M) Size of motor: 1.6 Brand of engine: ZM Type description: BJ Body: Hatchback Fuel: Petrol Approved: Yes
    Mazda Model: 323 Model series: 323 C Size of motor: 1.8 Brand of engine: BPZE Type description: BA Body: Hatchback From date: 01-08-1994 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 F Size of motor: 1.6 Brand of engine: ZM Type description: BJ Body: Hatchback From date: 01-01-2001 To date: 01-05-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 F Type of engine: 16V Size of motor: 1.8 Brand of engine: BPZE Type description: BA Body: Coupe From date: 01-08-1994 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 S Size of motor: 1.6 Brand of engine: ZM Type description: BJ From date: 01-01-2001 To date: 01-05-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 S Type of engine: 16V Size of motor: 1.8 Brand of engine: BPZE Type description: BA From date: 01-08-1994 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 Type of engine: 16V Size of motor: 1.3 Brand of engine: B3ME Type description: BJ Body: Hatchback From date: 01-09-1998 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 Type of engine: 16V Size of motor: 1.5 Brand of engine: Z5-DE Type description: BA Body: Hatchback From date: 01-10-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 Type of engine: 16V Size of motor: 1.5 Brand of engine: ZL05 Type description: BJ Body: Hatchback From date: 01-09-1998 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 Type of engine: 16V Size of motor: 1.5 Brand of engine: ZL05 Type description: BJ From date: 01-09-1998 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 Type of engine: 16V Size of motor: 1.5 Brand of engine: ZL06 Type description: BJ Body: Hatchback From date: 01-09-1998 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mazda Model: 323 Model series: 323 Type of engine: 16V Size of motor: 1.5 Brand of engine: ZL06 Type description: BJ From date: 01-09-1998 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Mazda Model: Demio Model series: Demio Type of engine: 16V Size of motor: 1.5 Brand of engine: B5E Type description: DW Body: Estate From date: 01-04-2000 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Mazda Model: Miata Model series: Miata Model type: LS Size of motor: 1.8 From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mazda Model: Miata Model series: Miata Size of motor: 1.8 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Mazda Model: Miata Model series: Miata Size of motor: 1.8 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Size of motor: 1.8 Type description: NB Body: Convertible From date: 01-08-2002 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Type of engine: 16V Size of motor: 1.6 Brand of engine: B6D Type description: NB Body: Convertible From date: 01-05-1998 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Type of engine: 16V Size of motor: 1.8 Brand of engine: BPD Type description: NB Body: Convertible From date: 01-11-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Type of engine: 16V Size of motor: 1.9 Brand of engine: BPD Type description: NB Body: Convertible From date: 01-11-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Mazda Model: Portege Model series: Portege Model type: ES Size of motor: 1.8 From date: 01-01-1995 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Mazda Model: Portege Model series: Portege Model type: ES Size of motor: 1.8 From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Mazda Model: Portege Model series: Portege Model type: S Size of motor: 1.8 From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Mazda Model: Protege Model series: Protege Model type: ES Size of motor: 1.8 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Mazda Model: Protege Model series: Protege Size of motor: 1.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter Model type: 4x4 3,5t Type of engine: CDI Size of motor: 2.1 Brand of engine: OM651.956 Type description: 906 Body: Bus From date: 01-08-2011 To date: 01-05-2016 Fuel: Diesel Approved: Yes
