Varenr.: F032112382

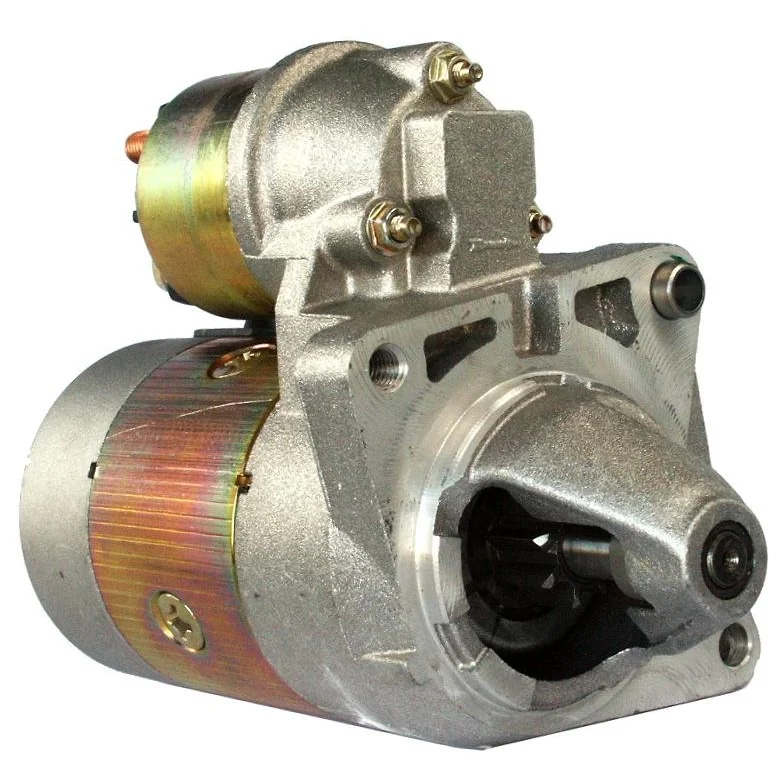

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 0.8, Ant./tenner: 8, Rotasjon: CW

Beskrivelse

Spenningsverdi: 12
kW: 0.8
Monteringsflens: 64,50
Drivingsavstand: 10,50
Monteringshull 3 mm: M8
Monteringshull 2 mm: 9,00
Monteringshull 1 mm: 8,50
Avstand/bak: 144,50
Avstand/fram: 46,50
Antall/tannhjul: 8
B+: M8
Posisjon/50: 45
Terminal 50: M6
Girtype: DD/GR
Avstand 2: 108,50
Avstand 3: 74,00
Avstand mm: 75,50
Rotasjon: medur
Total lengde mm: 191,00
Clutch type: Tørr
Drive type: Stål
Prod. info: BN
Vannavvisende: Nei
Oljetett: Nei
Antall/monteringshull: 3 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 64.50
Oil sealed No
No./mount. holes 3 (1)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 108.50
Dist. 3 74.00
Rotation CW
Dist./back 144.50
Dist./front 46.50
Drive dist. 10.50
Drive type Steel
Gear type DD/GR
kW 0.8
Terminal 50 M6
Voltage 12
Total length 191.00 mm
Waterproof No
Dist. 75.50 mm
Mount. hole 3 M8 mm
Mount. hole 2 9.00 mm
Mount. hole 1 8.50 mm

  • OEM
    cs1192, F032112382, RGO 112382, S114-903, S114-903A, s114-949, S114-949A, 1986S01020, 1986S01026, 7622952, 46429594, 46548654, 46737560, 46740242, 46763529, 51833880, 51890633, 55195030, 55201304, 55201305, 63101015, 63101018, 63102007, 63102018, 63102020, 63103015, 63103024

  • Konkurrentreferens
    CST20150, CST30120, DRS0193, drs3555, DRS3816, DRS3816X, DRS3977, DRS3977X, drs3978, DRS3979, DSN1004, DSN961, F042008004, F042S08004, F042S0H118, les0347, MSN829, S4028, S4028PR, STR-4519, STR-H118, STR52025, 8EA012526-741, 8ea732651-001, 8EA737823-001, 25-1480, 25-3082, 25-3096, 318.201.092, 500.582.103, 4131, 31397N, 101192, 107261, 201170, 220014, 220014A, 220024, 220024A, 446519, 726133, 8080290, 8212784, 11019290, 11090023, 063280043, 063280047, 0986024210, 063103024010, 063280043010, 063280047010

  • NormaliseratArtNr
    cs1192, cst20150, cst30120, drs0193, drs3555, drs3816, drs3816x, drs3977, drs3977x, drs3978, drs3979, dsn1004, dsn961, f032112382, f042008004, f042s08004, f042s0h118, les0347, msn829, rgo112382, s114903, s114903a, s114949, s114949a, s4028, s4028pr, str4519, str52025, strh118, 8ea012526741, 8ea732651001, 8ea737823001, 1986s01020, 1986s01026, 4131, 31397n, 101192, 107261, 201170, 220014, 220014a, 220024, 220024a, 251480, 253082, 253096, 446519, 726133, 7622952, 8080290, 8212784, 11019290, 11090023, 46429594, 46548654, 46737560, 46740242, 46763529, 51833880, 51890633, 55195030, 55201304, 55201305, 63101015, 63101018, 63102007, 63102018, 63102020, 63103015, 63103024, 063280043, 063280047, 318201092, 500582103, 0986024210, 063103024010, 063280043010, 063280047010

  • Passar modeller
    Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 176A8.000 Body: Hatchback From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178B5.000 Body: Estate From date: 01-04-1996 To date: 01-02-2001 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178B5.000 Body: Hatchback From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178C4.066 Type description: 178DYA1A Body: Estate From date: 01-07-1997 To date: 01-10-2004 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178E2.000 Body: Hatchback From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 178DYA1A Body: Estate From date: 01-07-1997 To date: 01-10-2004 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Punto Model series: Punto Model type: Bipower Type of engine: Bifuel Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188_ Body: Hatchback From date: 01-08-2001 To date: 01-05-2003 Fuel: Diesel/Electro Approved: Yes
    Fiat Model: Punto Model series: Punto Model type: Natural Power Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188_ Body: Box From date: 01-01-2003 To date: 01-12-2010 Fuel: LNG Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 176A7.000 Type description: 176 Body: Hatchback From date: 01-01-1994 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 176A8.000 Type description: 176 Body: Hatchback From date: 01-10-1993 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-09-1999 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: 16V Size of motor: 1.2 Brand of engine: 188A5.000 Type description: 188 Body: Hatchback From date: 01-09-1999 To date: 01-04-2006 Fuel: Gasoline Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: BiFuel Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-08-2007 To date: 01-03-2012 Fuel: Bi-Fuel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Natural Power Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-09-2003 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 187A1.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Lancia Model: Y Model series: Y Size of motor: 1.2 Brand of engine: 188A4.000 Body: Hatchback From date: 01-03-1996 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Lancia Model: Y Model series: Y Type of engine: 16V Size of motor: 1.2 Brand of engine: 188A5.000 Type description: 840AG Body: Hatchback From date: 01-10-2000 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsverdi: 12
    kW: 0.8
    Monteringsflens: 64,50
    Drivingsavstand: 10,50
    Monteringshull 3 mm: M8
    Monteringshull 2 mm: 9,00
    Monteringshull 1 mm: 8,50
    Avstand/bak: 144,50
    Avstand/fram: 46,50
    Antall/tannhjul: 8
    B+: M8
    Posisjon/50: 45
    Terminal 50: M6
    Girtype: DD/GR
    Avstand 2: 108,50
    Avstand 3: 74,00
    Avstand mm: 75,50
    Rotasjon: medur
    Total lengde mm: 191,00
    Clutch type: Tørr
    Drive type: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Oljetett: Nei
    Antall/monteringshull: 3 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 64.50
    Oil sealed No
    No./mount. holes 3 (1)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 108.50
    Dist. 3 74.00
    Rotation CW
    Dist./back 144.50
    Dist./front 46.50
    Drive dist. 10.50
    Drive type Steel
    Gear type DD/GR
    kW 0.8
    Terminal 50 M6
    Voltage 12
    Total length 191.00 mm
    Waterproof No
    Dist. 75.50 mm
    Mount. hole 3 M8 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 8.50 mm
  • Kjøretøymatching

    • OEM
      cs1192, F032112382, RGO 112382, S114-903, S114-903A, s114-949, S114-949A, 1986S01020, 1986S01026, 7622952, 46429594, 46548654, 46737560, 46740242, 46763529, 51833880, 51890633, 55195030, 55201304, 55201305, 63101015, 63101018, 63102007, 63102018, 63102020, 63103015, 63103024

    • Konkurrentreferens
      CST20150, CST30120, DRS0193, drs3555, DRS3816, DRS3816X, DRS3977, DRS3977X, drs3978, DRS3979, DSN1004, DSN961, F042008004, F042S08004, F042S0H118, les0347, MSN829, S4028, S4028PR, STR-4519, STR-H118, STR52025, 8EA012526-741, 8ea732651-001, 8EA737823-001, 25-1480, 25-3082, 25-3096, 318.201.092, 500.582.103, 4131, 31397N, 101192, 107261, 201170, 220014, 220014A, 220024, 220024A, 446519, 726133, 8080290, 8212784, 11019290, 11090023, 063280043, 063280047, 0986024210, 063103024010, 063280043010, 063280047010

    • NormaliseratArtNr
      cs1192, cst20150, cst30120, drs0193, drs3555, drs3816, drs3816x, drs3977, drs3977x, drs3978, drs3979, dsn1004, dsn961, f032112382, f042008004, f042s08004, f042s0h118, les0347, msn829, rgo112382, s114903, s114903a, s114949, s114949a, s4028, s4028pr, str4519, str52025, strh118, 8ea012526741, 8ea732651001, 8ea737823001, 1986s01020, 1986s01026, 4131, 31397n, 101192, 107261, 201170, 220014, 220014a, 220024, 220024a, 251480, 253082, 253096, 446519, 726133, 7622952, 8080290, 8212784, 11019290, 11090023, 46429594, 46548654, 46737560, 46740242, 46763529, 51833880, 51890633, 55195030, 55201304, 55201305, 63101015, 63101018, 63102007, 63102018, 63102020, 63103015, 63103024, 063280043, 063280047, 318201092, 500582103, 0986024210, 063103024010, 063280043010, 063280047010

    • Passar modeller
      Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 176A8.000 Body: Hatchback From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178B5.000 Body: Estate From date: 01-04-1996 To date: 01-02-2001 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178B5.000 Body: Hatchback From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178C4.066 Type description: 178DYA1A Body: Estate From date: 01-07-1997 To date: 01-10-2004 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178E2.000 Body: Hatchback From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 178DYA1A Body: Estate From date: 01-07-1997 To date: 01-10-2004 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Punto Model series: Punto Model type: Bipower Type of engine: Bifuel Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188_ Body: Hatchback From date: 01-08-2001 To date: 01-05-2003 Fuel: Diesel/Electro Approved: Yes
      Fiat Model: Punto Model series: Punto Model type: Natural Power Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188_ Body: Box From date: 01-01-2003 To date: 01-12-2010 Fuel: LNG Approved: Yes
      Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 176A7.000 Type description: 176 Body: Hatchback From date: 01-01-1994 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 176A8.000 Type description: 176 Body: Hatchback From date: 01-10-1993 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-09-1999 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: 16V Size of motor: 1.2 Brand of engine: 188A5.000 Type description: 188 Body: Hatchback From date: 01-09-1999 To date: 01-04-2006 Fuel: Gasoline Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: BiFuel Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-08-2007 To date: 01-03-2012 Fuel: Bi-Fuel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Natural Power Size of motor: 1.2 Brand of engine: 188A4.000 Type description: 188 Body: Hatchback From date: 01-09-2003 To date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 187A1.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Lancia Model: Y Model series: Y Size of motor: 1.2 Brand of engine: 188A4.000 Body: Hatchback From date: 01-03-1996 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Lancia Model: Y Model series: Y Type of engine: 16V Size of motor: 1.2 Brand of engine: 188A5.000 Type description: 840AG Body: Hatchback From date: 01-10-2000 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
